*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Nakamura-Tome |
| Model: | WT-300 |
| Year: | 2007 |
| Condition: | Used |
| Machine Type: | 7-Axis CNC Multi-Tasking Turning Center |
| Control: | Fanuc Series 18i-TB CNC Control |
| EQUIPPED WITH: |
|---|
| Fanuc Series 18i-TB CNC Control |

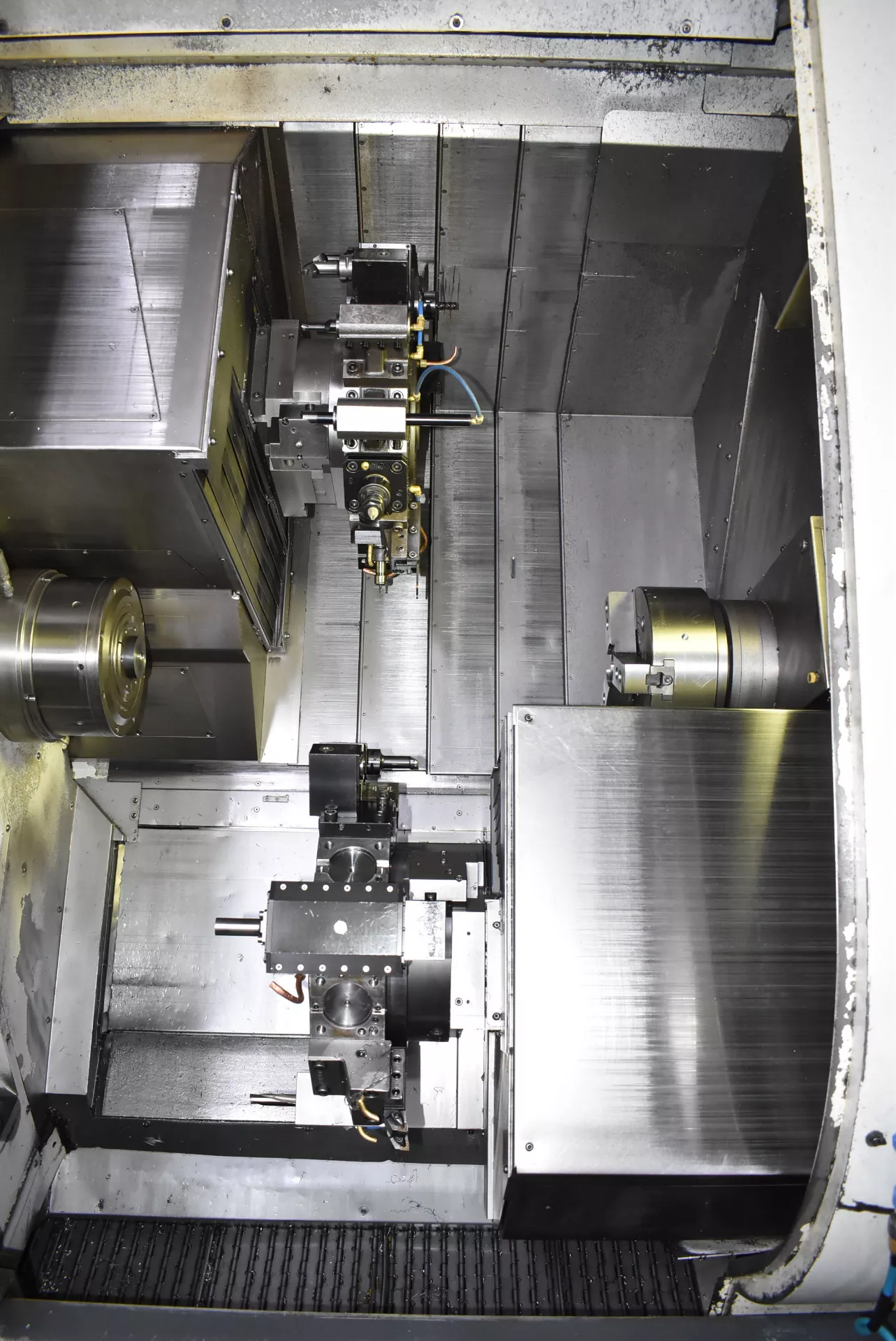

| Opposed Twin Spindle Configuration |
| Twin 24-Station Turrets |
| 7-Axis Configuration |
| C1 & C2 Axes |
| Y-Axis |
| Live Tooling |
| High-Pressure Coolant System |
| Aeroex ROX 400 Mist Collector |
| Chip Conveyor |
| Parts Catcher Arm |
| Minuteman 50 mm Powered Slotting Head (Lower Turret) |

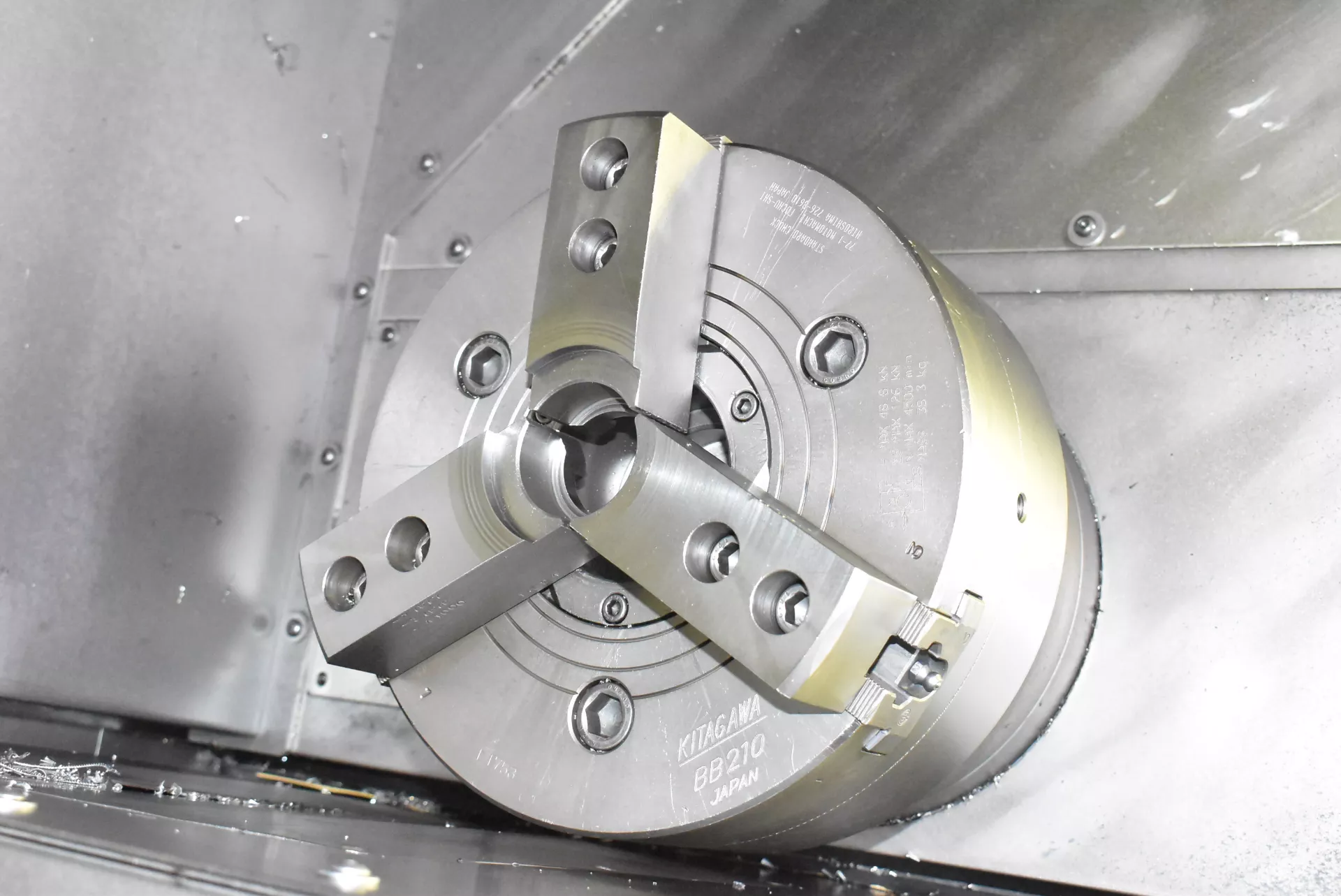

| Hydraulic Chucks |
| Automatic Lubrication System |
| CAPACITY: |
|---|
| Max Turning Diameter: 10.63″ |
| Max Turning Length: 30.71″ |
| Main Spindle Bar Capacity: 2.80″ |
| Sub Spindle Bar Capacity: 2.56″ |
| Distance Between Spindle Noses: 9.84″ – 43.31″ |
| TRAVELS: |
|---|
| X1-Axis Travel: 7.28″ |
| X2-Axis Travel: 7.68″ |
| Z1-Axis Travel: 30.71″ |
| Z2-Axis Travel: 30.71″ |
| Y-Axis Travel: ±2.36″ |
| C1/C2 Axis: 360° (0.001° Increment) |
| MAIN SPINDLE: |
|---|
| Spindle Bore: 3.35″ |
| Max Bar Capacity: 2.80″ |
| Max Spindle Speed: 4,000 RPM |

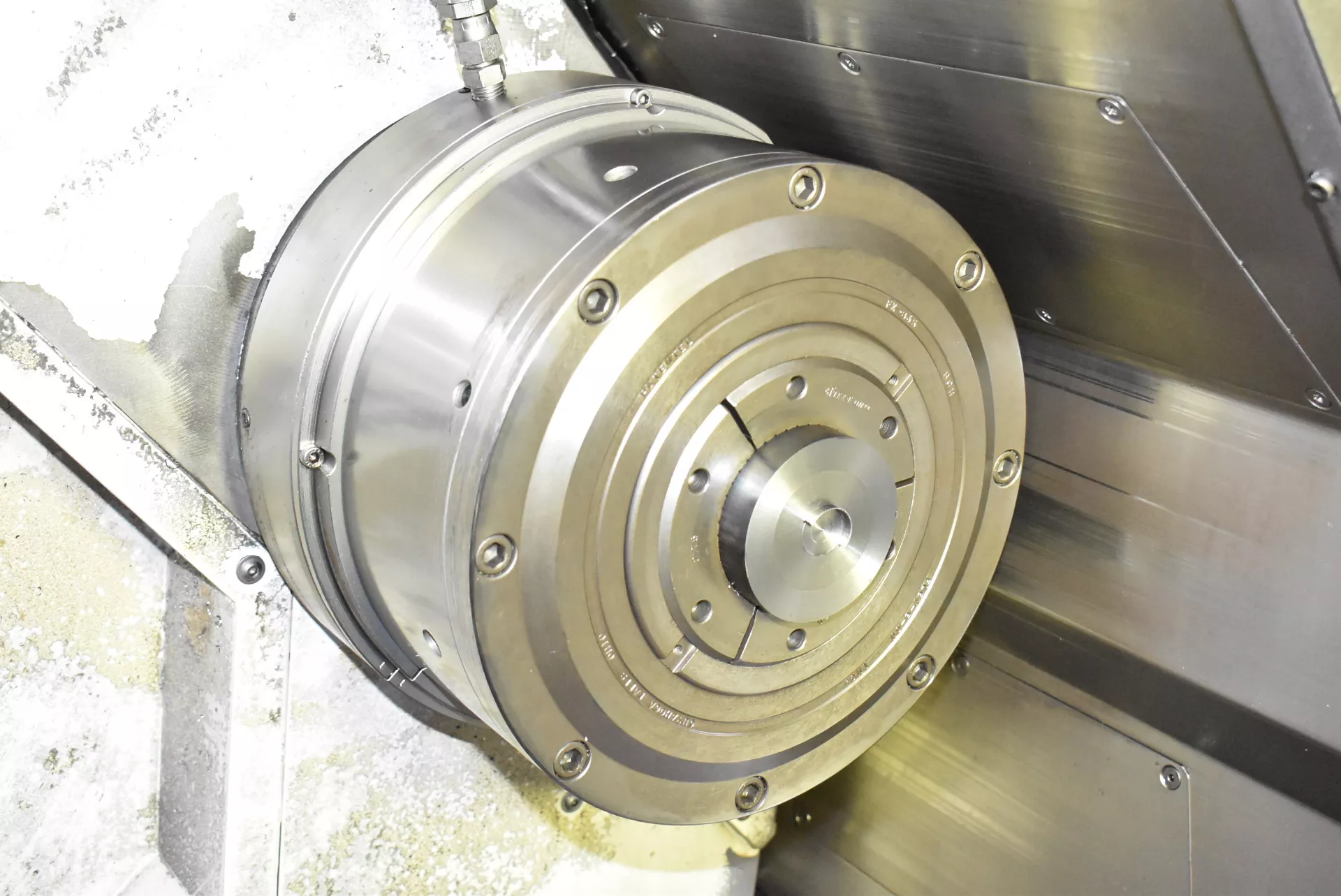

| SUB SPINDLE: |
|---|
| Spindle Bore: 3.15″ |
| Max Bar Capacity: 2.56″ |
| Max Spindle Speed: 4,500 RPM |
| Opposed Sub Spindle |

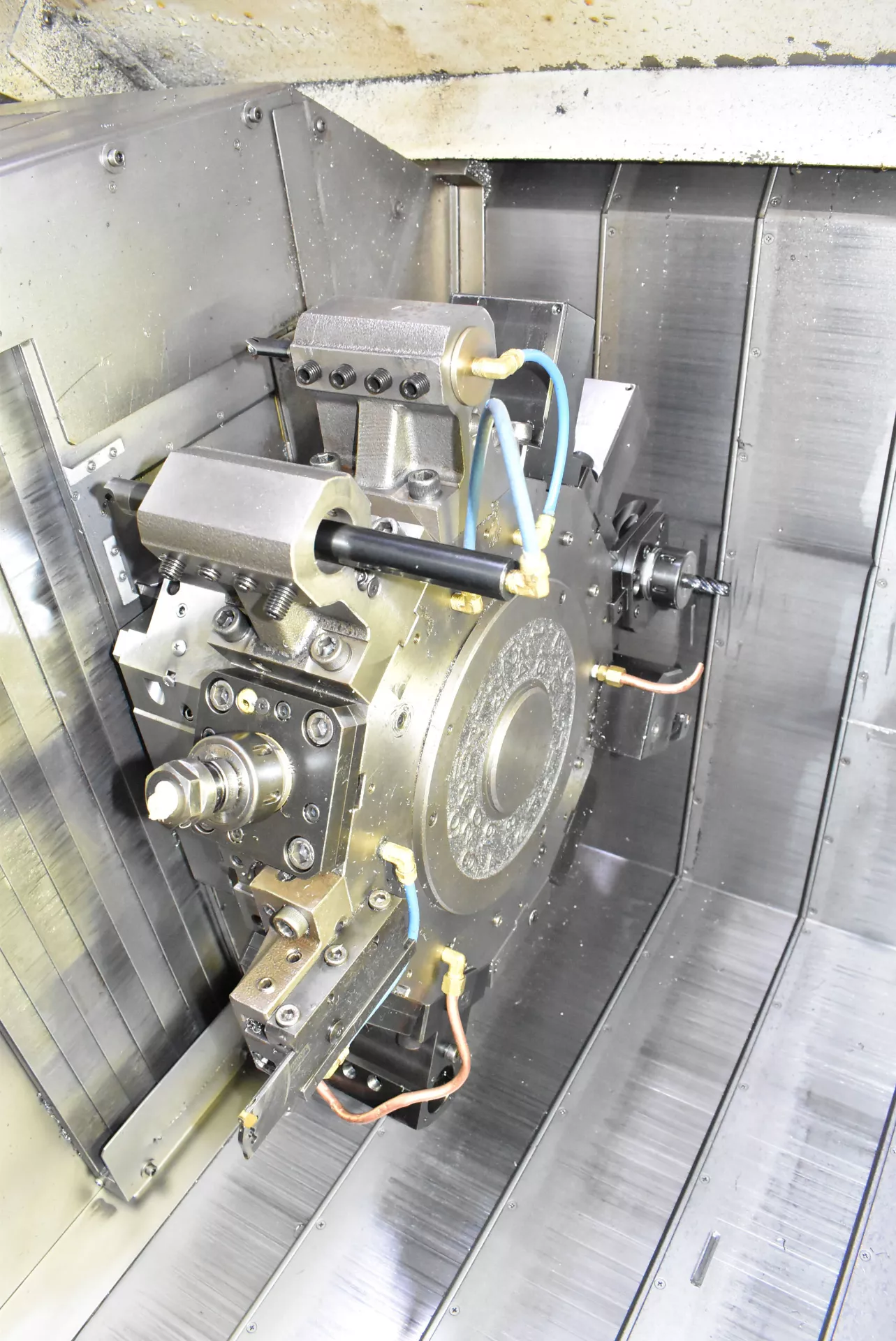

| TURRETS: |
|---|
| (2) 24-Station Turrets |
| Live Tool Capability |
| GENERAL: |
|---|

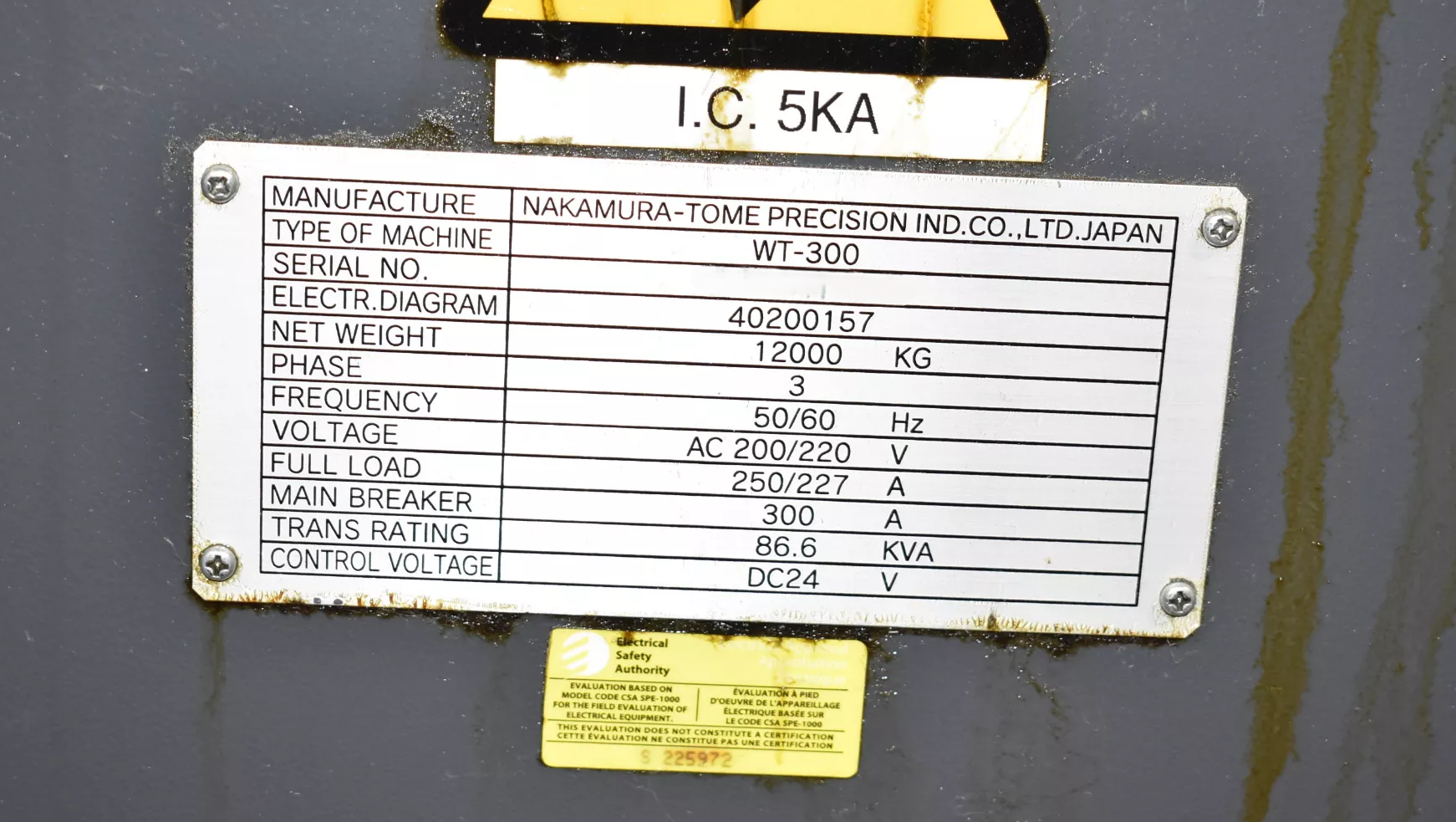

| Power Requirement: 200-220V / 3-Phase / 50-60 Hz |
| Net Weight: 12,000 KG (Approx.) |
| Manufactured: Japan |
