*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Okuma |
| Model: |
2SP-150H |
| Year: |
2015 |
| Condition: |
Used – Good |
| Machine Type: |
Twin Spindle CNC Turning Center |
| Country of Origin: |
Japan |
| Features: |

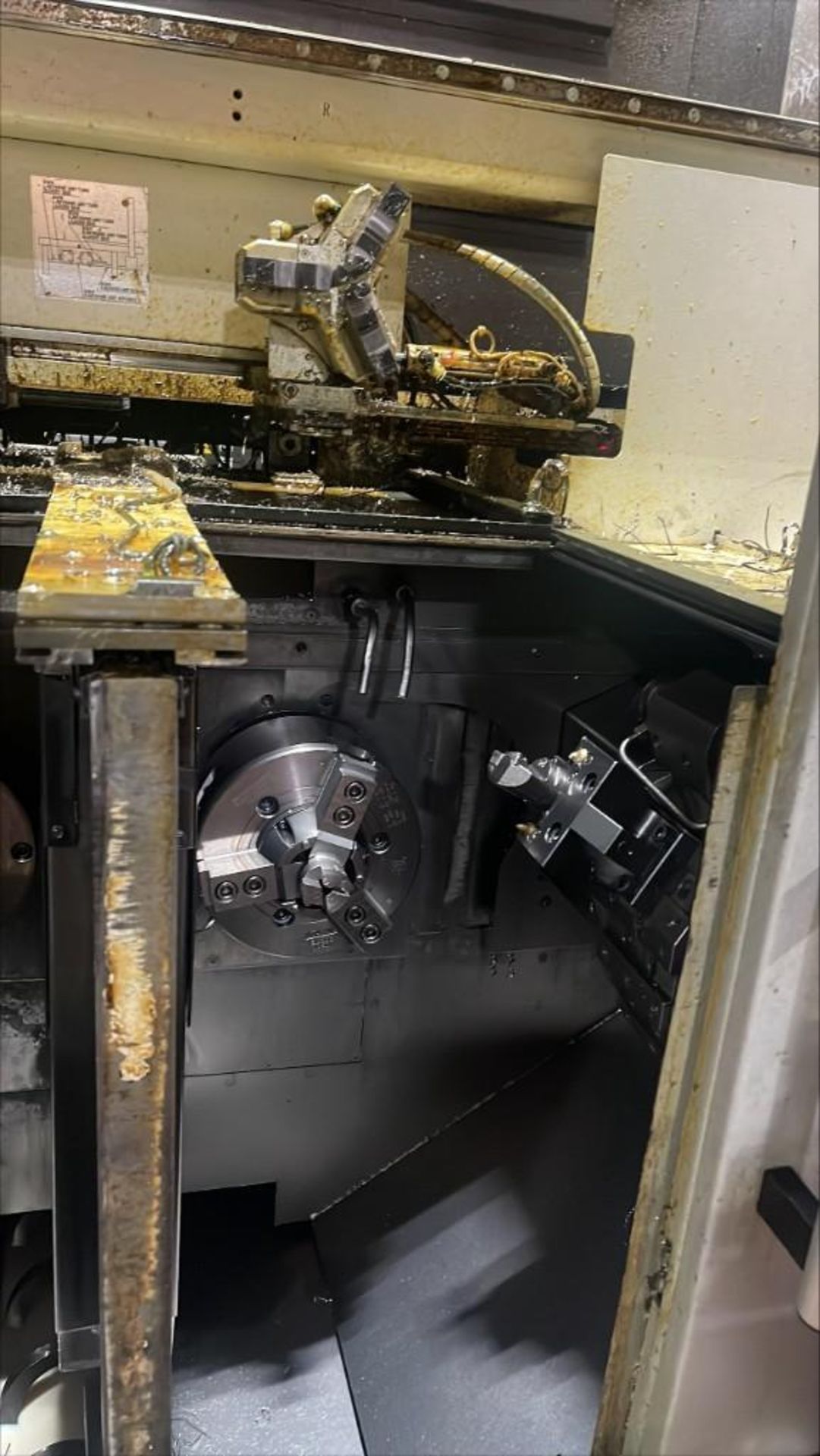

- Twin Spindle CNC Turning Center
- Twin Turrets for Simultaneous Machining
- Sub-Spindle for Complete Front & Back Machining
- C-Axis on Main and Sub Spindles
- High-Rigidity Box Way Construction
- Spindle Synchronization for Part Transfer
- Rigid Tapping Capability
- Automatic Central Lubrication System
- Full Enclosure with Interlocked Doors
- Production-Oriented High Stability Design
|
| Travels & Axis Specifications: |
- X-Axis Travel (Upper Turret): Approx. 7.9″
- Z-Axis Travel (Upper Turret): Approx. 17.7″
- X-Axis Travel (Lower Turret): Approx. 7.9″
- Z-Axis Travel (Lower Turret): Approx. 17.7″
- C-Axis: Both Spindles
|
| Workholding: |
- Main Chuck Size: 8″ Hydraulic Chuck
- Sub-Spindle Chuck Size: 8″ Hydraulic Chuck
- Maximum Turning Diameter: Approx. 11.8″
- Maximum Turning Length: Approx. 15.7″
- Bar Capacity: Approx. 2.5″ (With Bar Feeder)
|
| Spindles: |
- Main Spindle Nose: A2-6
- Sub-Spindle Nose: A2-6
- Maximum Spindle Speed: Approx. 4,500 RPM
- Spindle Motor Power: Approx. 15 HP (Main & Sub)
- Spindle Orientation
- Spindle Synchronization
|
| Turrets / Tooling: |
- Turret Type: Servo-Driven Turrets (Upper & Lower)
- Number of Stations: 12 Stations per Turret
- Total Tool Positions: 24
- Live Tooling: Optional (Machine Dependent)
|
| Feedrates & Rapids: |
- High-Speed AC Servo Drives (X / Z)
- High-Precision Motion Control with Thermal Stability
|
| Coolant System: |
- Flood Coolant System
- Coolant Ready for High-Pressure Upgrade
- Central Coolant Filtration Capability
|
| Chip Management: |
- Integrated Chip Conveyor
- Automatic Chip Discharge System
|

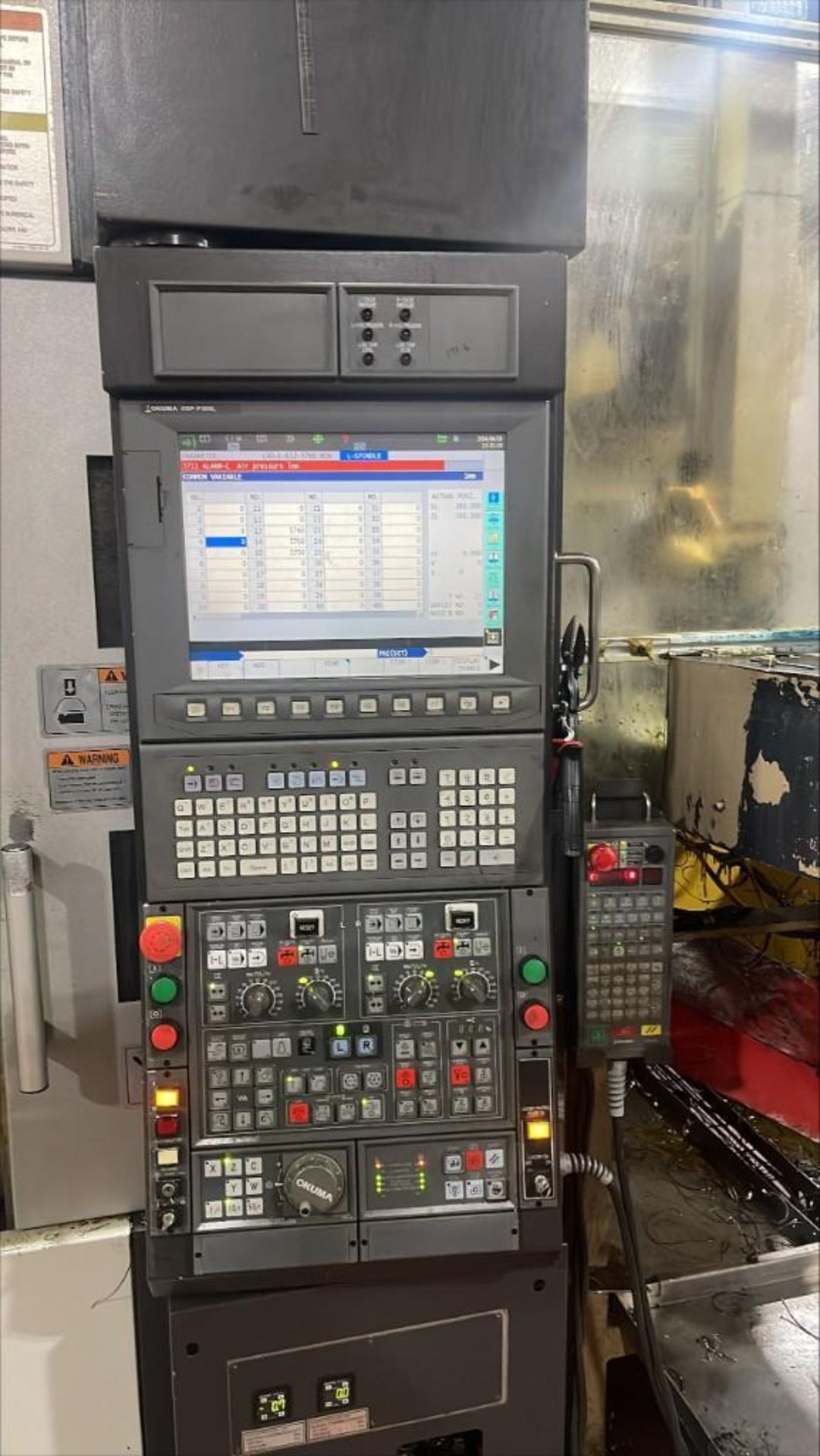

| CNC Control: |
- Okuma OSP CNC Control
- High-Speed Look-Ahead
- Conversational & G-Code Programming
- Advanced Spindle Synchronization Control
- Ethernet & Data Transfer Capable
- Rigid Tapping & C-Axis Interpolation
|

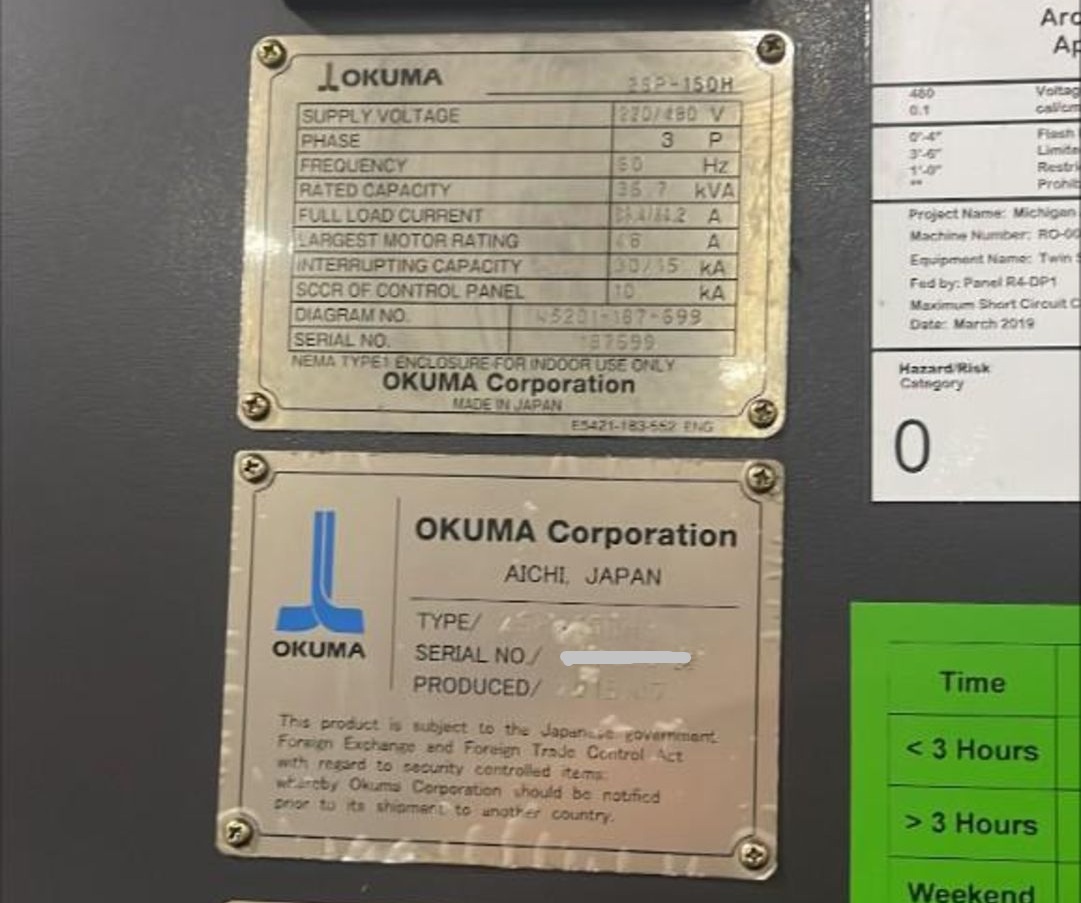

| Electrical & Utilities: |
- Power Supply: 220 / 480V
- Phase: 3-Phase
- Frequency: 60 Hz
- Rated Capacity: 36.7 kVA
- Full Load Current: 95.8 / 48.2 Amps
- Largest Motor Rating: 48 Amps
- SCCR (Control Panel): 10 kA
|
| Machine Weight: |
- Approx. Machine Weight: 18,000 – 20,000 lbs (Configuration Dependent)
|
