Used Okuma 2SP-150H Twin Spindle CNC Lathe – Gantry Ready

Okuma 2SP-150H Twin Spindle CNC Lathe – Gantry Ready – 2016

SKU 11200

Make/Model Okuma 2SP-150H

Year 2016

Condition Used - Good

Video On Request

Out of stock

SKU:	11200
Make/Model:	Okuma 2SP-150H
Year:	2016
Condition:	Used – Good
Video:	On Request

SKU: 11200

*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Okuma
Model:	2SP-150H
Year of Manufacture:	2016
Condition:	Used – Good
Machine Type:	Twin Spindle CNC Lathe
CNC Control:	Okuma OSP-P200L / P300L CNC Control

Equipped With:
Okuma OSP CNC Control
Twin Spindle Configuration
Twin Turret (12 + 12 Stations)

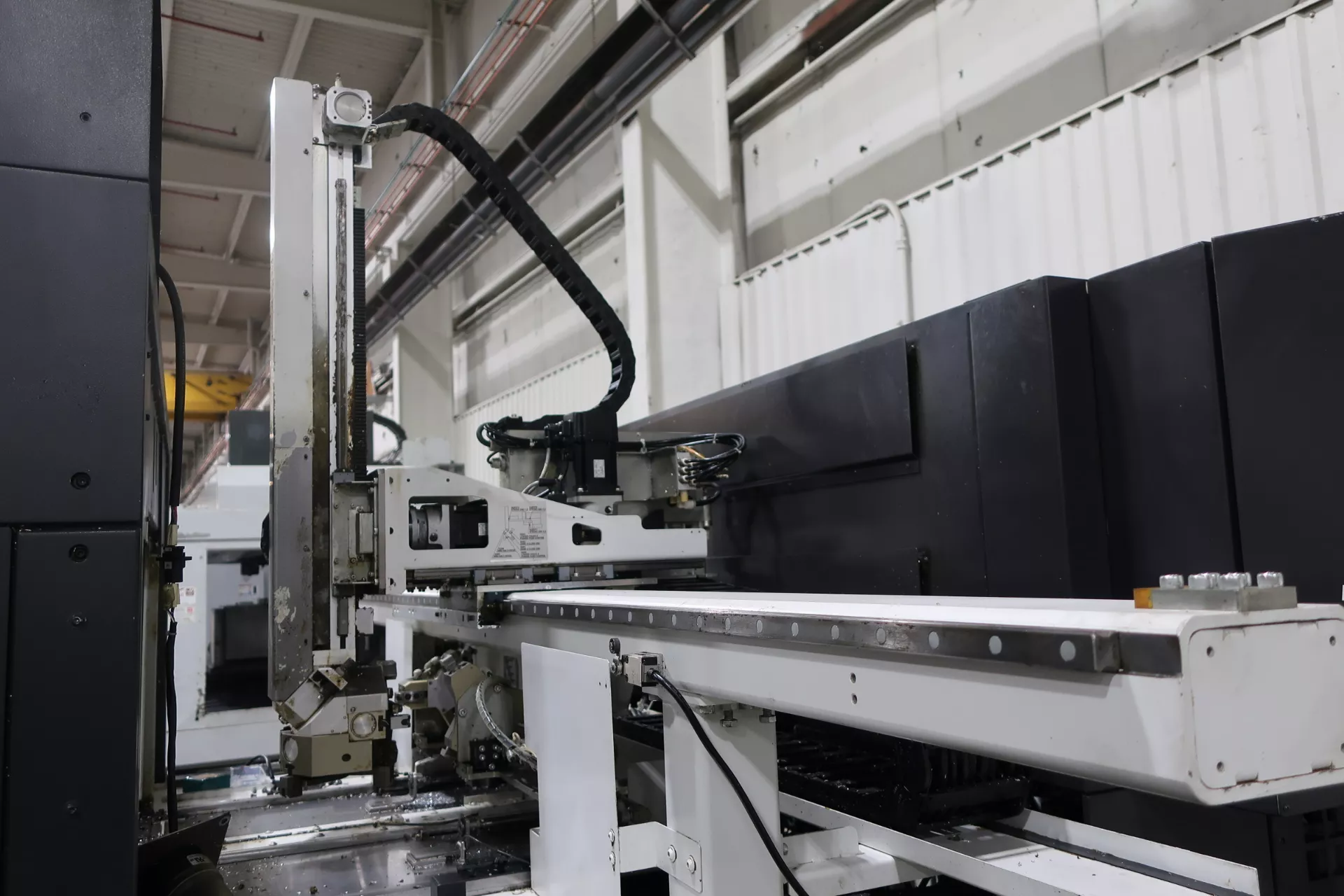

Automatic Gantry Loader (OGL Ready / Optional Installed)
Front-Facing Spindle Design
6″ Hydraulic Chucks (Both Spindles)
Chip Conveyor
Coolant System
Spindle Chiller
Rigid Tapping
Compact Footprint Design

Capacity:
Maximum Turning Diameter: 220 mm (8.66″)
Maximum Turning Length: 150 mm (5.91″)
Bar Capacity: ~51 mm (2″)
Chuck Size: 6″

Travels:
X-Axis Travel: 150 mm (5.91″)
Z-Axis Travel: 155 mm (6.10″)
C-Axis Rotation: 360°

Spindle:
Number of Spindles: 2
Spindle Speed: 50 – 4,500 RPM
Spindle Motor: 11 / 7.5 kW (15 / 10 HP) each
Spindle Nose: 140 Flat
Spindle Bore: ~42–52 mm

Tooling:
Number of Turrets: 2
Stations per Turret: 12 + 12
Turret Type: V12
OD Tool Size: 40 mm
ID Tool Size: 40 mm

Feed Rates:
Rapid Traverse (X/Z): 24 m/min (945 IPM)
Cutting Feedrate: Programmable

Electrical:
Voltage: 220 / 480 V
Phase: 3-Phase
Frequency: 60 Hz
Rated Capacity: 37.7 kVA
Full Load Current: 99 / 45.4 A
Largest Motor Rating: 48 A
Interrupting Capacity: 30 / 15 kA
SCCR (Control Panel): 10 kA

General:
Machine Weight: ≈5,000 kg (≈11,000 lbs)
Floor Space: Approx. 73″ × 85″
Height: Approx. 104″

Features:
Twin spindle & twin turret design enables simultaneous machining for faster cycle times
Front-facing spindle layout ideal for automation and gantry loading
Compact footprint maximizes shop floor efficiency
Designed for high-volume small parts production
Reduced handling time with integrated automation capability
High reliability Okuma OSP control system
Excellent for automotive, medical, and precision component manufacturing

Equipped With:
Okuma OSP CNC Control
Twin Spindle Configuration
Twin Turret (12 + 12 Stations)
Automatic Gantry Loader (OGL Ready / Optional Installed)
Front-Facing Spindle Design
152 mm Hydraulic Chucks (Both Spindles)
Chip Conveyor
Coolant System
Spindle Chiller
Rigid Tapping
Compact Footprint Design

Capacity:
Maximum Turning Diameter: 220 mm (220 mm)
Maximum Turning Length: 150 mm (150 mm)
Bar Capacity: ~51 mm (51 mm)
Chuck Size: 152 mm

Travels:
X-Axis Travel: 150 mm (150 mm)
Z-Axis Travel: 155 mm (155 mm)
C-Axis Rotation: 360°

Spindle:
Number of Spindles: 2
Spindle Speed: 50 – 4,500 RPM
Spindle Motor: 11 / 7.5 kW (15 / 10 HP) each
Spindle Nose: 140 Flat
Spindle Bore: ~42–52 mm

Tooling:
Number of Turrets: 2
Stations per Turret: 12 + 12
Turret Type: V12
OD Tool Size: 40 mm
ID Tool Size: 40 mm

Feed Rates:
Rapid Traverse (X/Z): 24 m/min (945 IPM)
Cutting Feedrate: Programmable

Electrical:
Voltage: 220 / 480 V
Phase: 3-Phase
Frequency: 60 Hz
Rated Capacity: 37.7 kVA
Full Load Current: 99 / 45.4 A
Largest Motor Rating: 48 A
Interrupting Capacity: 30 / 15 kA
SCCR (Control Panel): 10 kA

General:
Machine Weight: ≈5,000 kg (≈11,000 lbs)
Floor Space: Approx. 1,854 mm × 2,159 mm
Height: Approx. 2,642 mm

Categories	CNC Gantry Type
Make	Okuma
Model	2SP-150H

Twin spindle & twin turret design enables simultaneous machining for faster cycle times
Front-facing spindle layout ideal for automation and gantry loading
Compact footprint maximizes shop floor efficiency
Designed for high-volume small parts production
Reduced handling time with integrated automation capability
High reliability Okuma OSP control system
Excellent for automotive, medical, and precision component manufacturing

Payment Terms

A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
