Okuma Bridgeport HTC-6 CNC Turning Center - MachineStation
Okuma Bridgeport HTC-6 CNC Turning Center for Sale in California (1)
Okuma Bridgeport HTC-6 CNC Turning Center for Sale in California (2)Okuma Bridgeport HTC-6 CNC Turning Center for Sale in California (3)Okuma Bridgeport HTC-6 CNC Turning Center for Sale in California (4)Okuma Bridgeport HTC-6 CNC Turning Center for Sale in California (5)Okuma Bridgeport HTC-6 CNC Turning Center for Sale in California (6)Okuma Bridgeport HTC-6 CNC Turning Center for Sale in California (7)Okuma Bridgeport HTC-6 CNC Turning Center for Sale in California (8)Okuma Bridgeport HTC-6 CNC Turning Center for Sale in California (9)

Okuma Bridgeport HTC-6 CNC Turning Center

$19,800.00

“This machine is in very Good running condition. It is equipped with 6.5″ Chuck, Tailstock & chip conveyor. On Our Floor fully powered / tested & is in Great working condition.”

Qty =

Product Description

OKUMA BRIDGEPORT HTC-6 CNC TURNING CENTER

Make: Okuma Bridgeport
Model No.: HTC-6
Serial No.: D0087
Year: 2001
Condition: Excellent

All specifications are approximations, and are subject to verification.

“This machine is in very Good running condition. It is equipped with 6.5″ Chuck, Tailstock & chip conveyor. On Our Floor fully powered / tested & is in Great working condition.”

Okuma Bridgeport HTC-6 Equipped With:

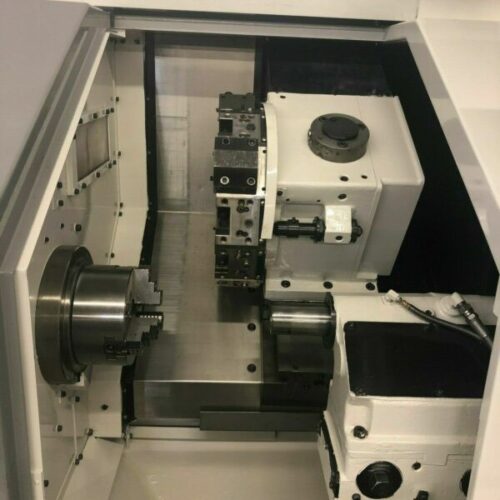

12-Station Turret

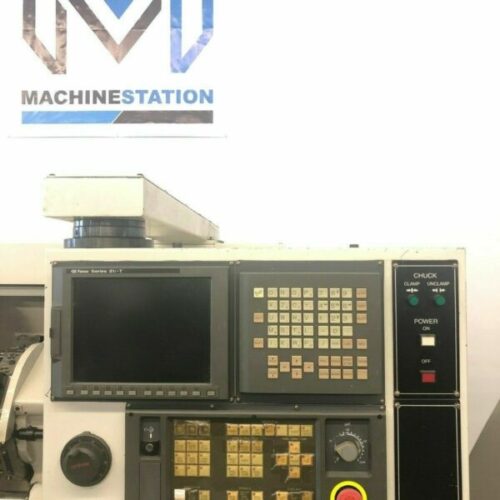

Fanuc 21i-T CNC Control
PCMCIA Card Slot
6.5″ 3-Jaw Hydraulic Chuck ( 8″ Capable )
Hydraulic Tailstock with Power Quill

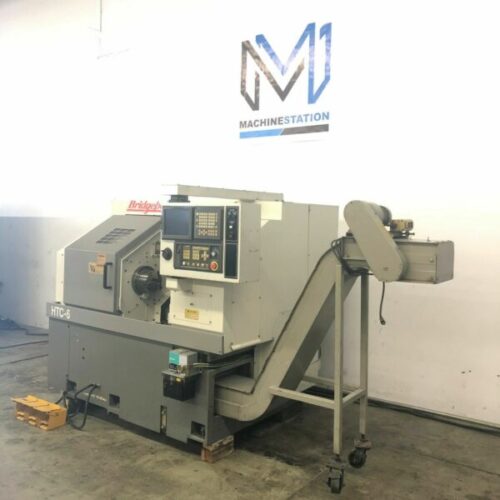

Chip Pan and Chip Conveyor
Coolant System
Automatic Lubrication system
Foot Operated Control for Chuck and Tailstock
Books and Manuals

Okuma Bridgeport HTC-6 Specifications:

Max Turning Diameter: 8.27″
Max Turning Length: 11.02″
Max Bar Capacity: 1.62″
Swing Over Slide: 13.8″
Swing Over Bed: 17.72″
Distance Between Centers: 18.6″

Travel:
X Axis Travel: 6.1″
Z Axis Travel: 12.6″
Rapid Traverse X Axis: 591 IPM
Rapid Traverse Z Axis: 787 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.09″
Spindle Speed: 5000 RPM
Spindle Motor: 15 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second

Tailstock:
Tailstock Body Travel: 14.3″
Tailstock Quill Dia.: 4.33″
Tailstock Quill Stroke: 3.93″
Tailstock Taper: MT-4

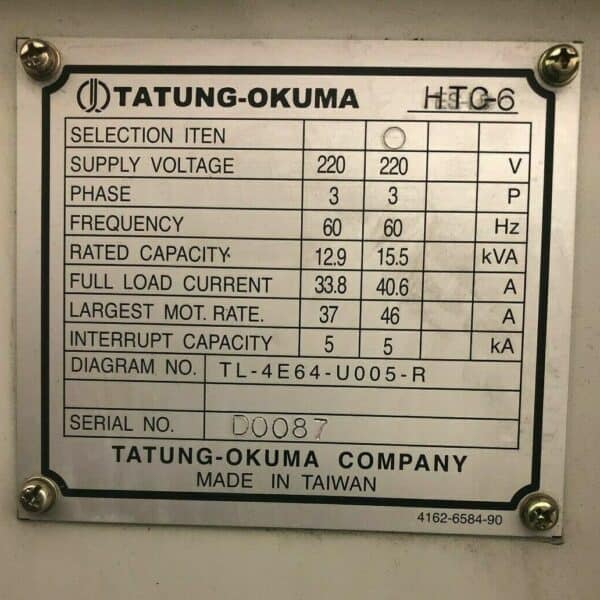

General:
Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 68 Amps
Overall Dimensions: 110″ x 68″ x 80″ High
Overall Dimensions: 140″ x 68″ x 80″ High with Chip Conveyor
Weight : 8000 lbs Approx.

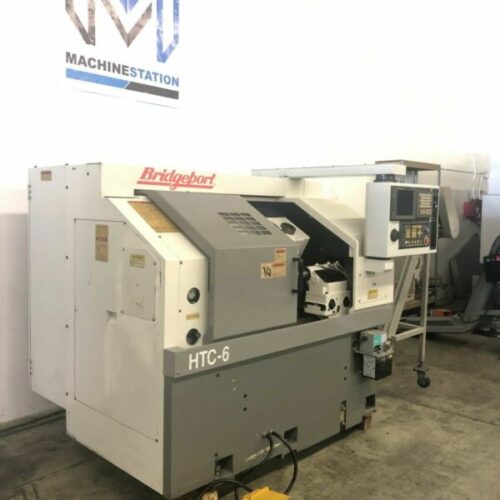

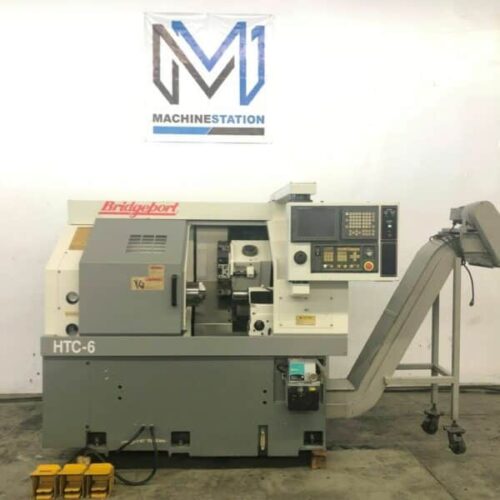

Okuma Bridgeport HTC-6 Comes As Shown in Pictures…
