*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Okuma |
| Model: | Captain L-370M |
| Year: | 2007 |
| Cutting Time: | Only |
| Equipped With: |
|---|

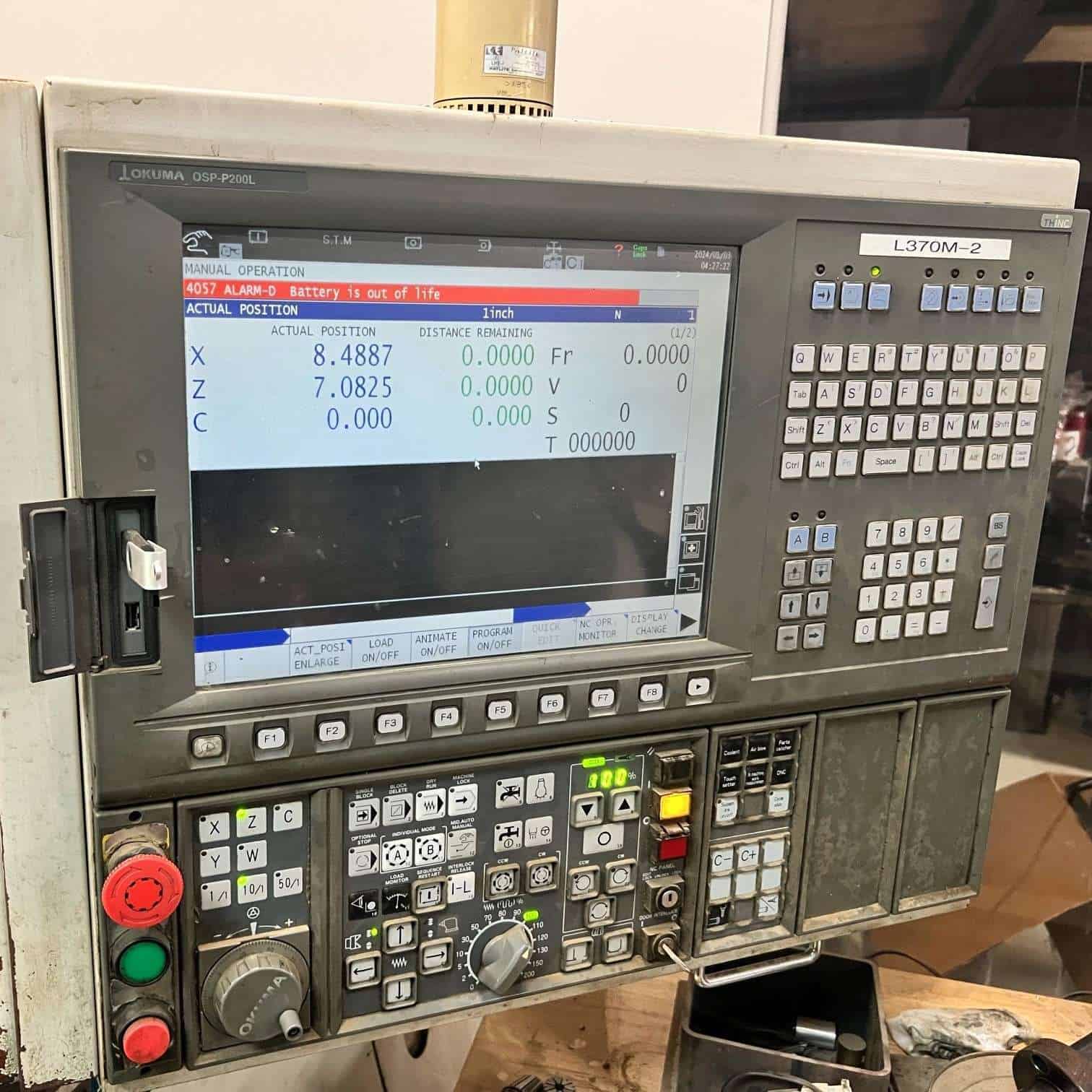

| OSP-P200 CNC Control |
| 10″ 3-Jaw Hydraulic Chuck |

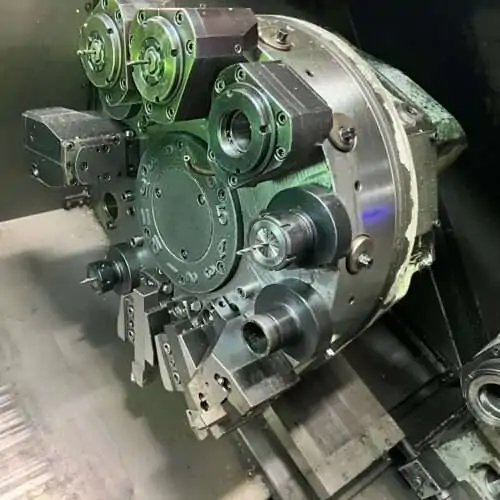

| 12-Station Live Tool Turret |
| A2-8 Spindle |
| 20 HP Spindle Motor |

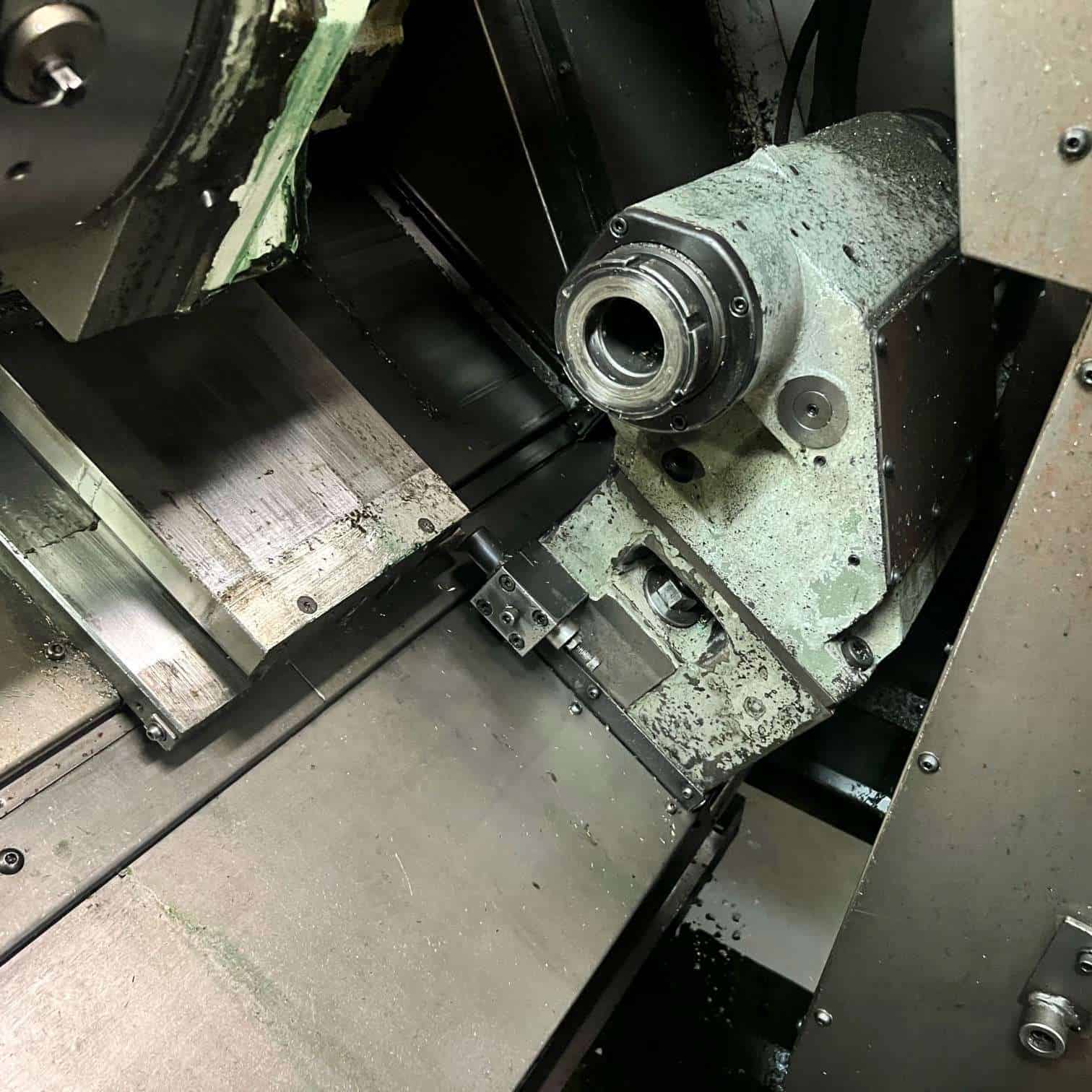

| Hydraulic Tailstock with Power Quill |
| Tool Presetter |
| Coolant System |
| Chip Conveyor |
| Automatic Lubrication system |
| Foot Switches |
| Capacity: |
|---|
| Max Turning Diameter : 14.57″ |
| Max Swing Over Bed : 20.86″ |
| Max Turning Length: 19.68″ |
| Max Bar Capacity : 2.75″ |
| Distance Between Center: 20.0″ |
| Travels: |
|---|
| X Axis Travel : 10.23″ |
| Z1 Axis Travel : 20.47″ |
| C Axis: 0.001° |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 984 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.15″ |
| Spindle Speed: 4500 RPM |
| Spindle Motor: 20 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.5 Second |
| Tailstock: |
|---|
| Tailstock Body Travel: 14.3″ |
| Tailstock Taper: MT-5 |
| Tailstock Quill Dia.: 3.54″ |
| Tailstock Quill Travel: 3.93″ |
| General: |
|---|
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Power Requirement: 28.2 kva |
| Machine Dimensions: 88″ x 68″ x 70″ High |
| Machine Weight: 9,500 lbs Approx. |
