*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | OKUMA |
| Model: | CROWN 769 |
| Machine Type: | CNC Lathe / CNC Turning Center |

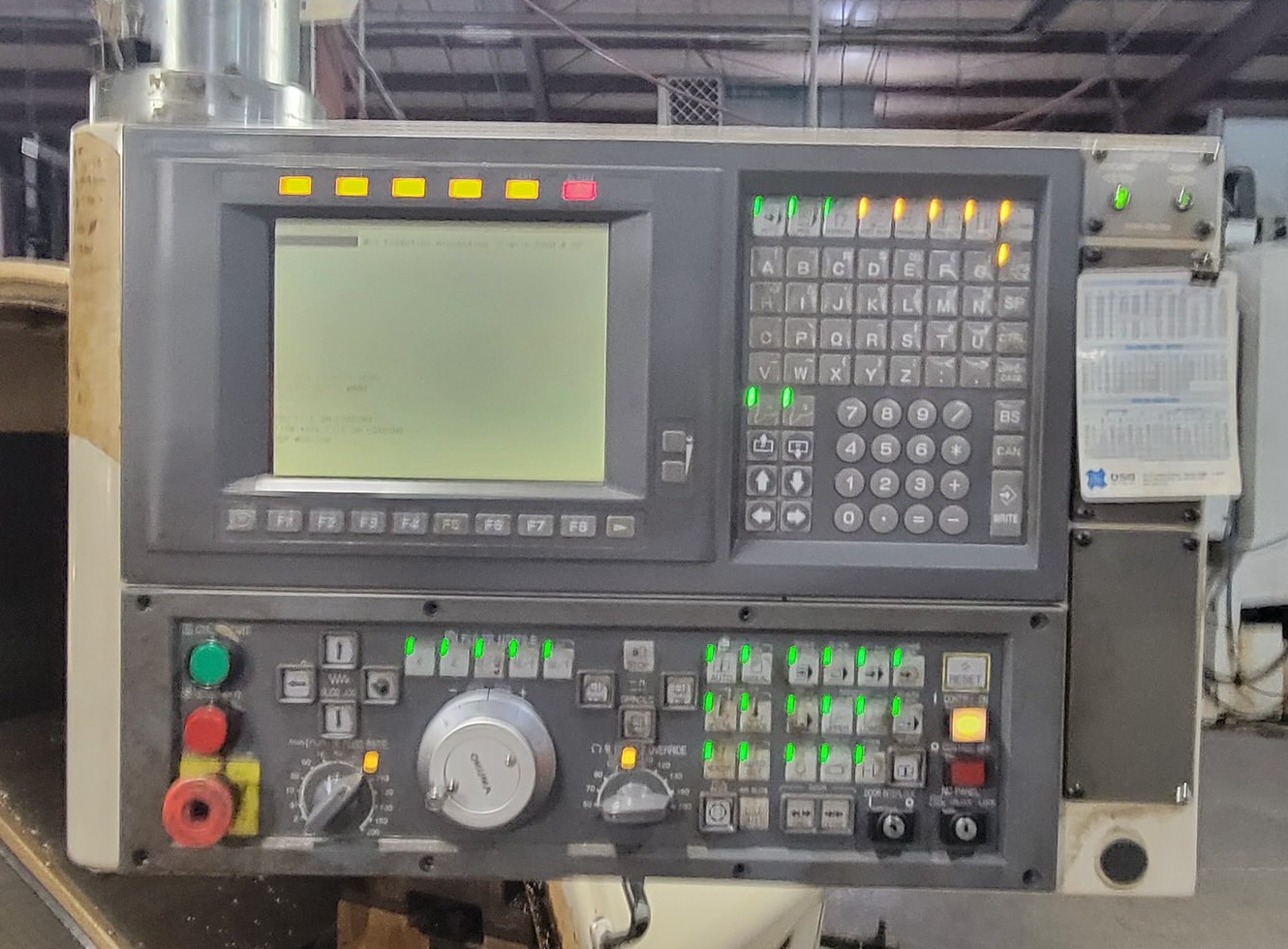

| Control: | Okuma OSP-U10L CNC Control |
| Equipped With: |
|---|
| Okuma OSP-U10L CNC Control |

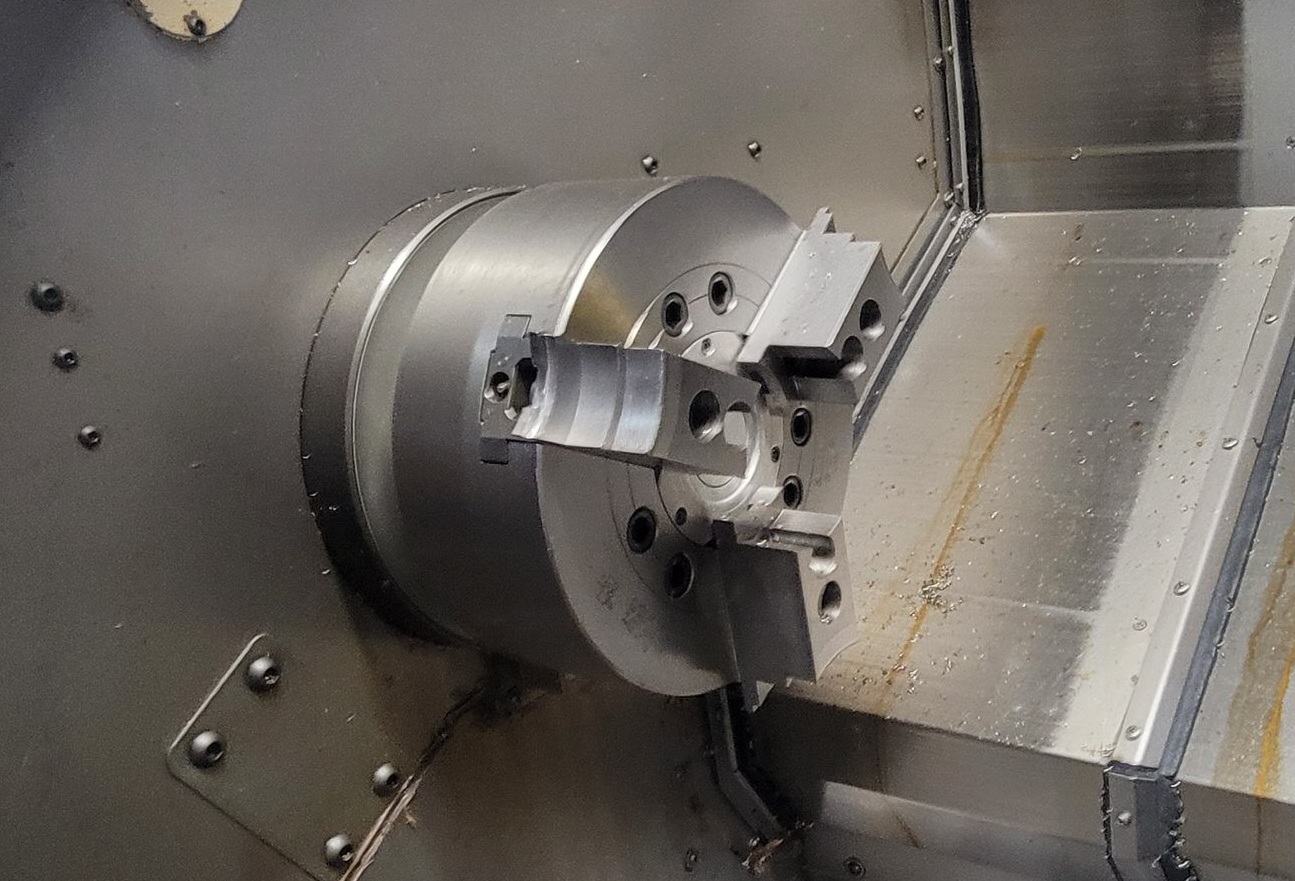

| 15″ Hydraulic 3-Jaw Chuck |

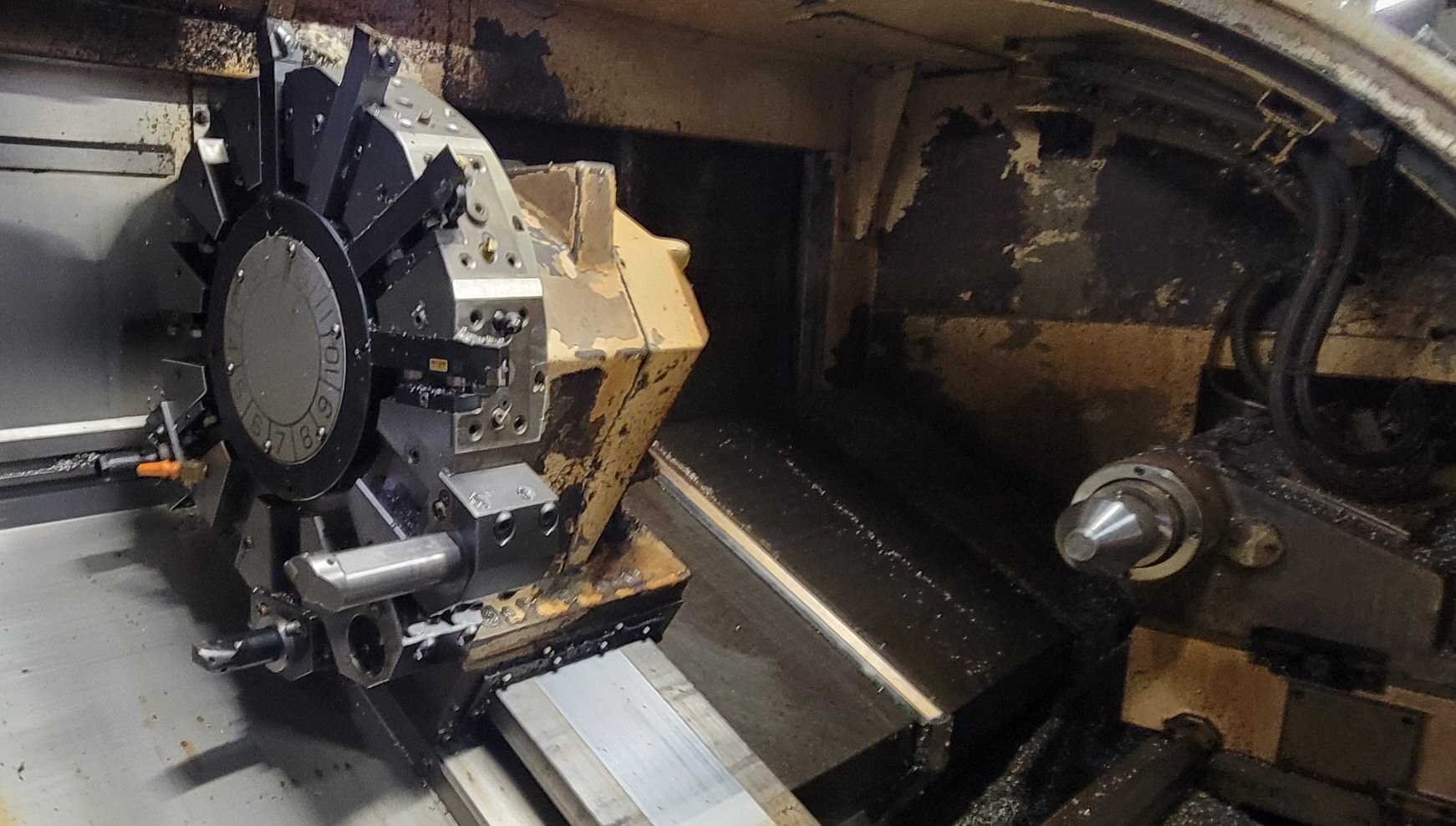

| 12-Station Turret |
| Hydraulic Tailstock with Power Quill |
| Chip Conveyor |
| Coolant System |
| Automatic Lubrication System |
| Foot-Operated Chuck/Tailstock Control |
| Built-In Transformer |
| Swing-Down Tool Setter |
| Capacity: |
|---|
| Maximum Swing Over Bed: 28″ |
| Maximum Swing Over Slide: 18.9″ |
| Maximum Turning Diameter: 14.17″ |
| Maximum Turning Length: Up to 50.1″ |
| Maximum Bar Capacity: 3.15″ |
| Chuck Size: 15″ |
| Travels: |
|---|
| X-Axis Travel: 9.1″ |
| Z-Axis Travel: 50.01″ |
| Rapid Traverse X-Axis: 591 IPM |
| Rapid Traverse Z-Axis: 787 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.54″ |
| Spindle Speed Range: 65–3,500 RPM |
| Spindle Motor: 30 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |

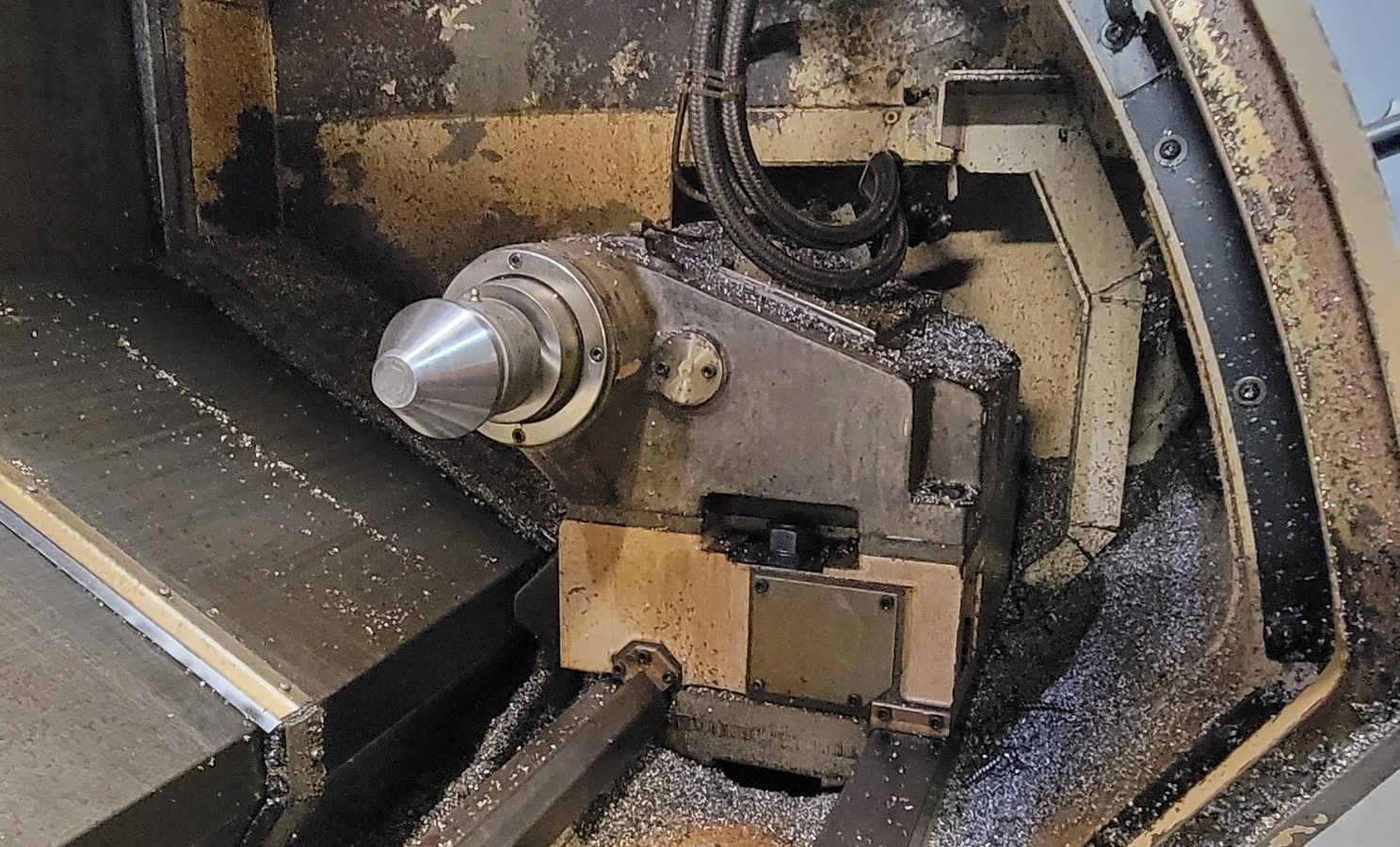

| Tailstock: |
|---|
| Tailstock: Hydraulic |
| Tailstock Body Travel: 34.3″ |
| Tailstock Quill Stroke: 4.72″ |
| Tailstock Taper: MT-5 |
| General: |
|---|

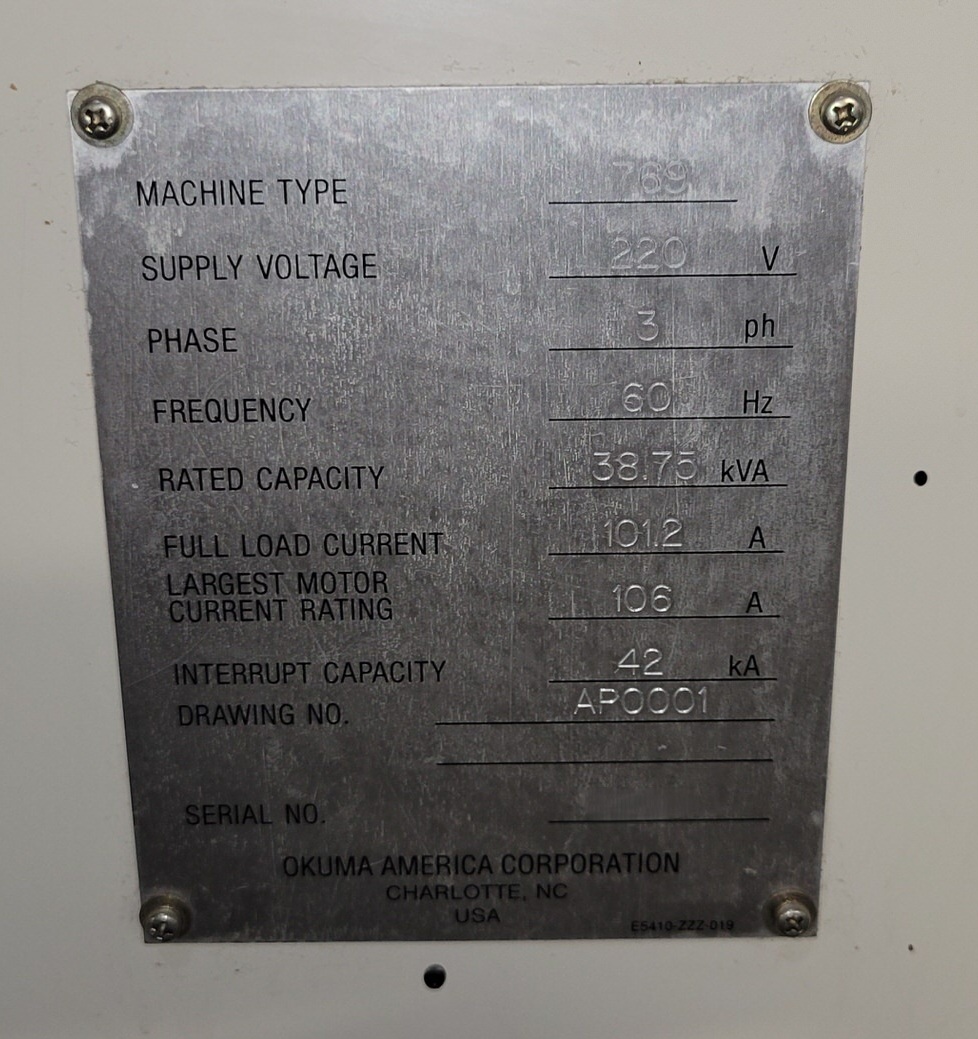

| Power Source: 220 V / 3 Phase / 60 Hz |
| Machine Weight (Approx.): 13,500 lbs |
| Machine Dimensions (Approx.): 140″ × 76″ × 80″ H |
