Okuma ES-L10 CNC Turning Center

“Payment shown is based on 60 month Financing Terms. Please Ask the Sales Manager for more details”

“This machine is in very Good running condition. It is equipped with 10″ Big Bore Chuck, Tailstock & chip conveyor. On Our Floor fully powered / tested & is in Great working condition.”

Out of stock

Product Description


OKUMA ES-L10 CNC TURNING CENTER

Make: Okuma
Model No.: ES-L10
Serial No.: P0127
Year: 2004
Condition: Excellent

All specifications are approximations, and are subject to verification.
“This machine is in very Good running condition. It is equipped with 10″ Big Bore Chuck, Tailstock & chip conveyor. On Our Floor fully powered / tested & is in Great working condition.”

Okuma ES-L10 Equipped With:

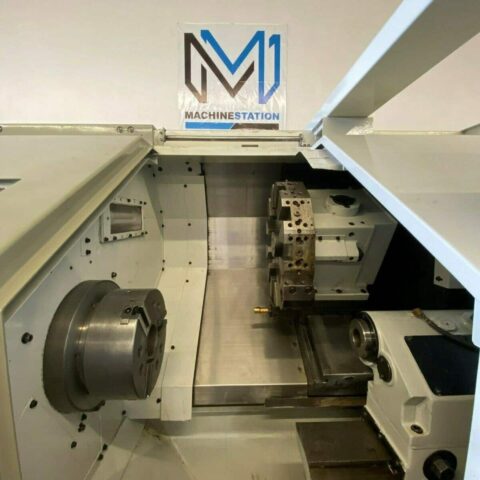

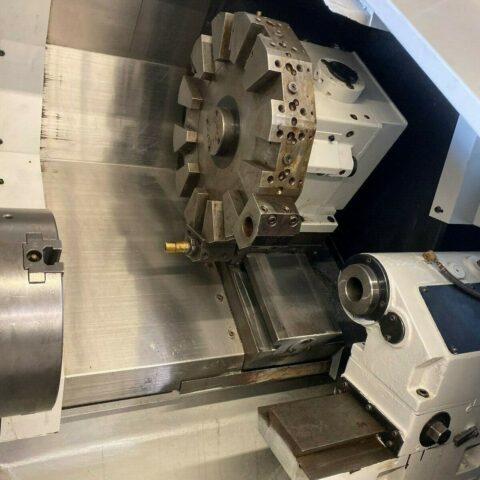

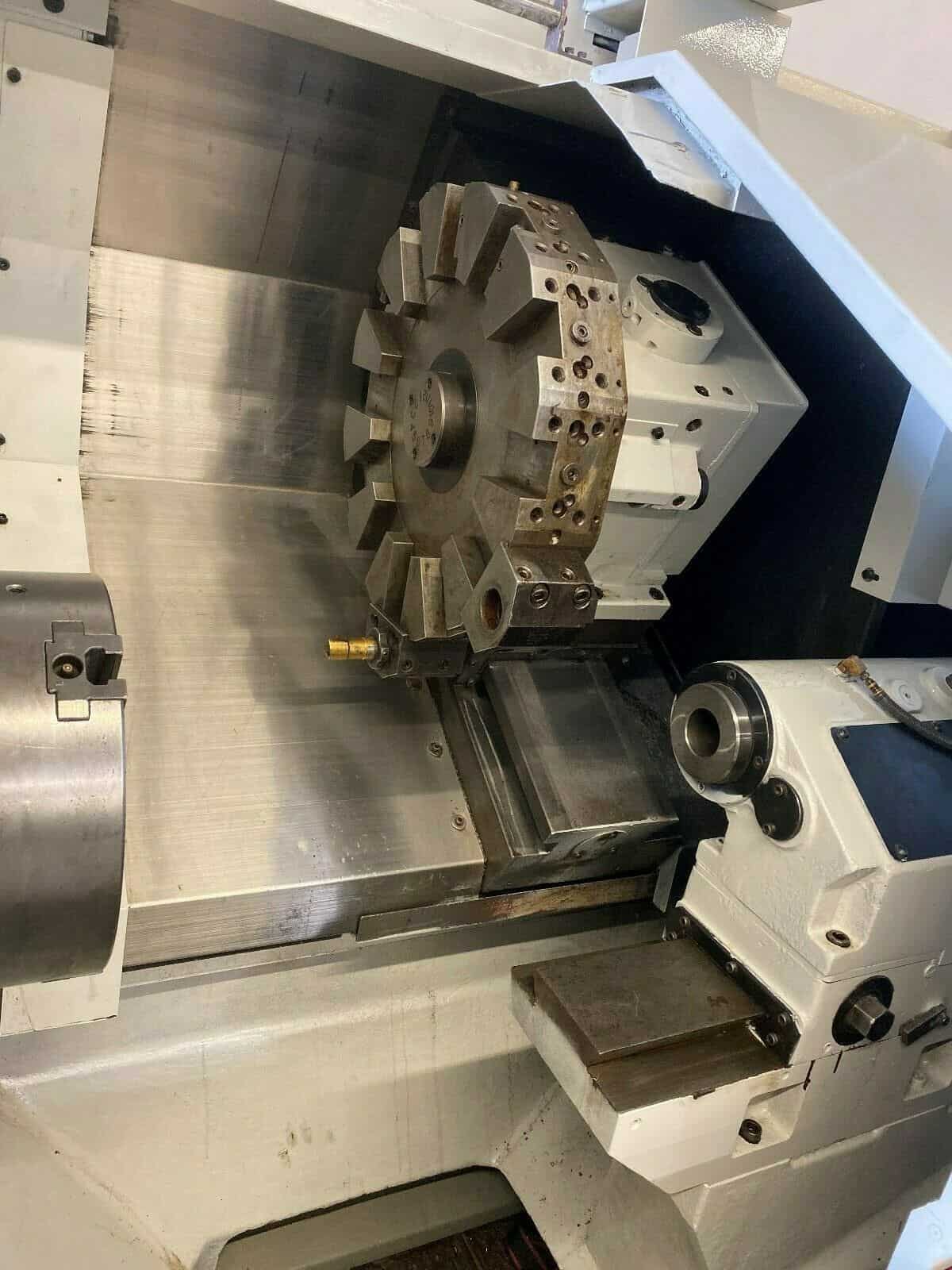

12-Station Turret

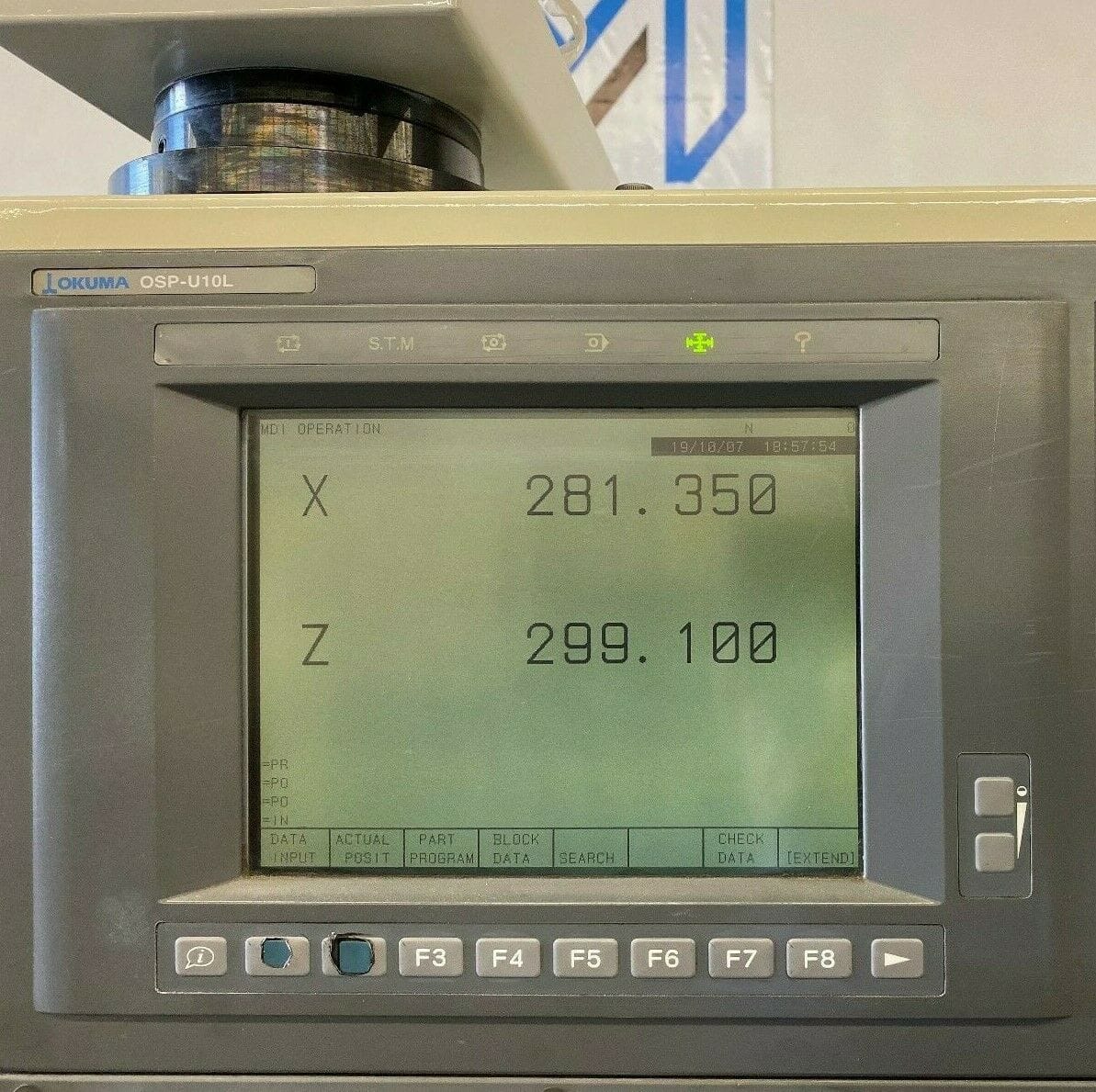

OSP-U10L CNC Control
One Touch IGF Programming
Floppy Drive

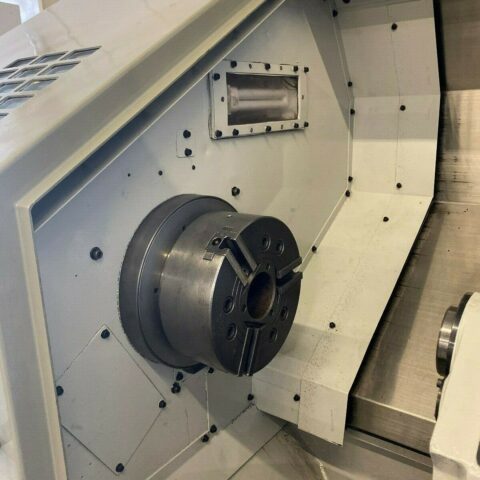

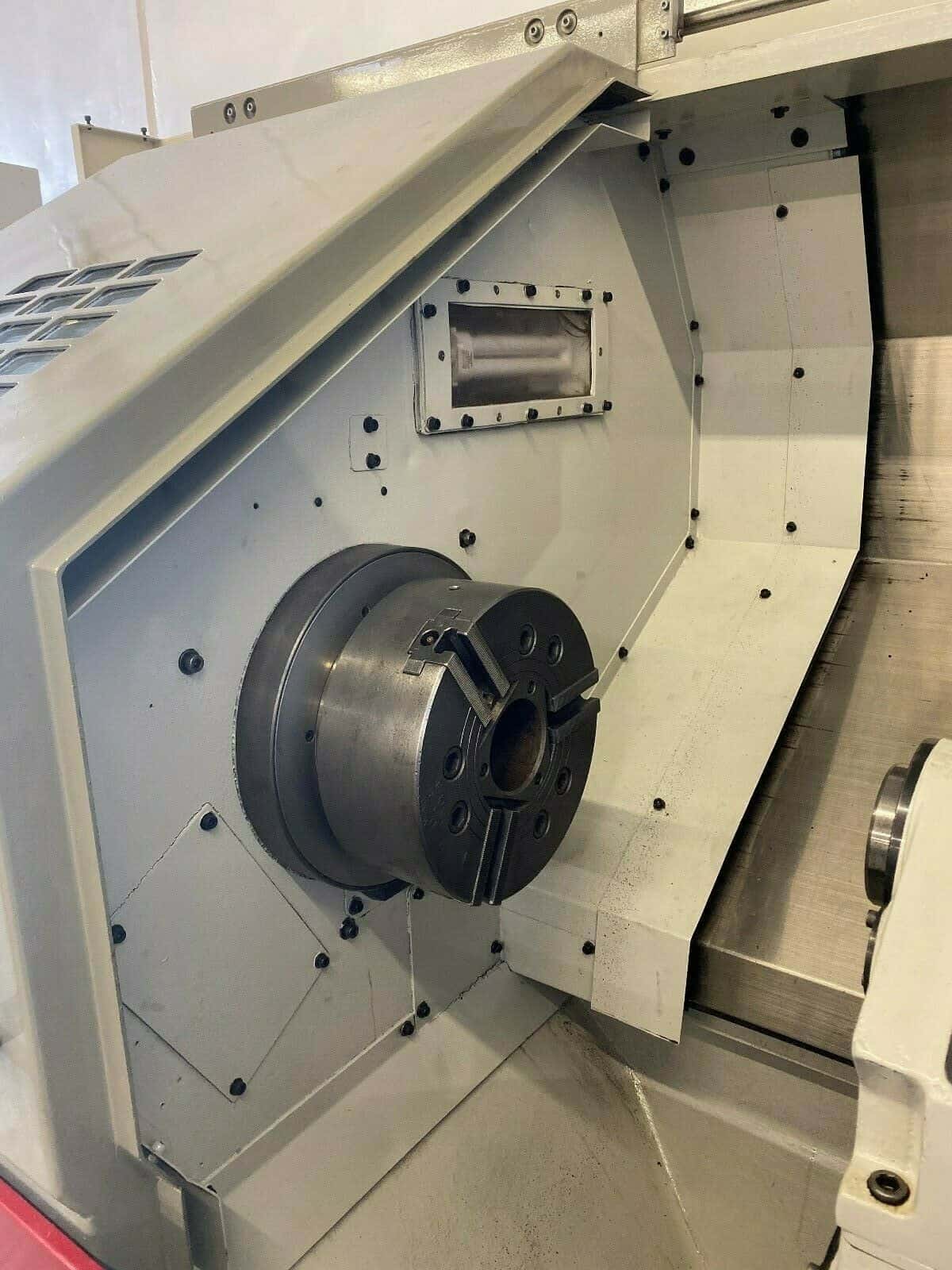

10″ Kitagawa Hydraulic Chuck
Hydraulic Tailstock with Power Quill
Chip Pan and Chip Conveyor
Coolant System
Automatic Lubrication system
Foot Operated Control for Chuck and Tailstock

Okuma ES-L10 Specifications:

Max Turning Diameter: 12.20″
Max Turning Length: 19.68″
Max Bar Capacity: 3.05″
Swing Over Bed: 21.65″
Distance Between Centers: 24.6″

Travel:
X Axis Travel: 8.10″
Z Axis Travel: 20.47″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 984 IPM

Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.15″
Spindle Speed: 30-3000 RPM
Spindle Motor: 20 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second

Tailstock:
Tailstock Body Travel: 14.3″
Tailstock Quill Dia.: 3.54″
Tailstock Quill Stroke: 3.93″
Tailstock Taper: MT-5

General:

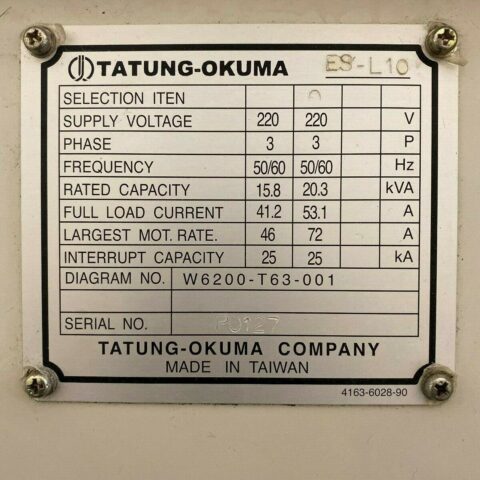

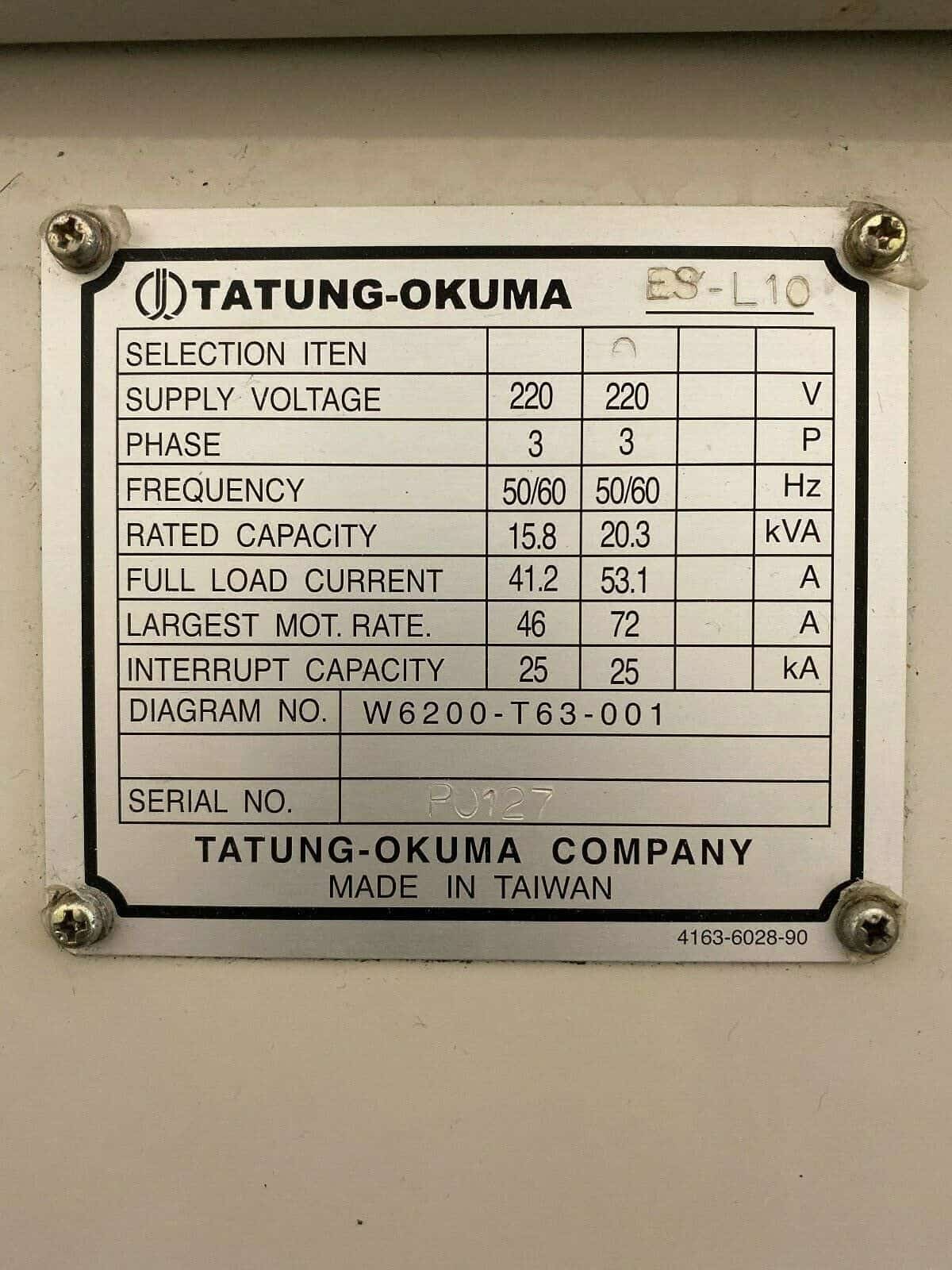

Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 68 Amps
Overall Dimensions: 110″ x 68″ x 80″ High
Overall Dimensions: 140″ x 68″ x 80″ High with Chip Conveyor
Weight : 8500 lbs Approx.

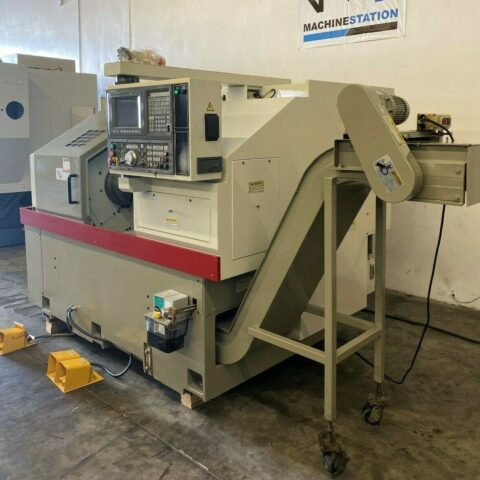

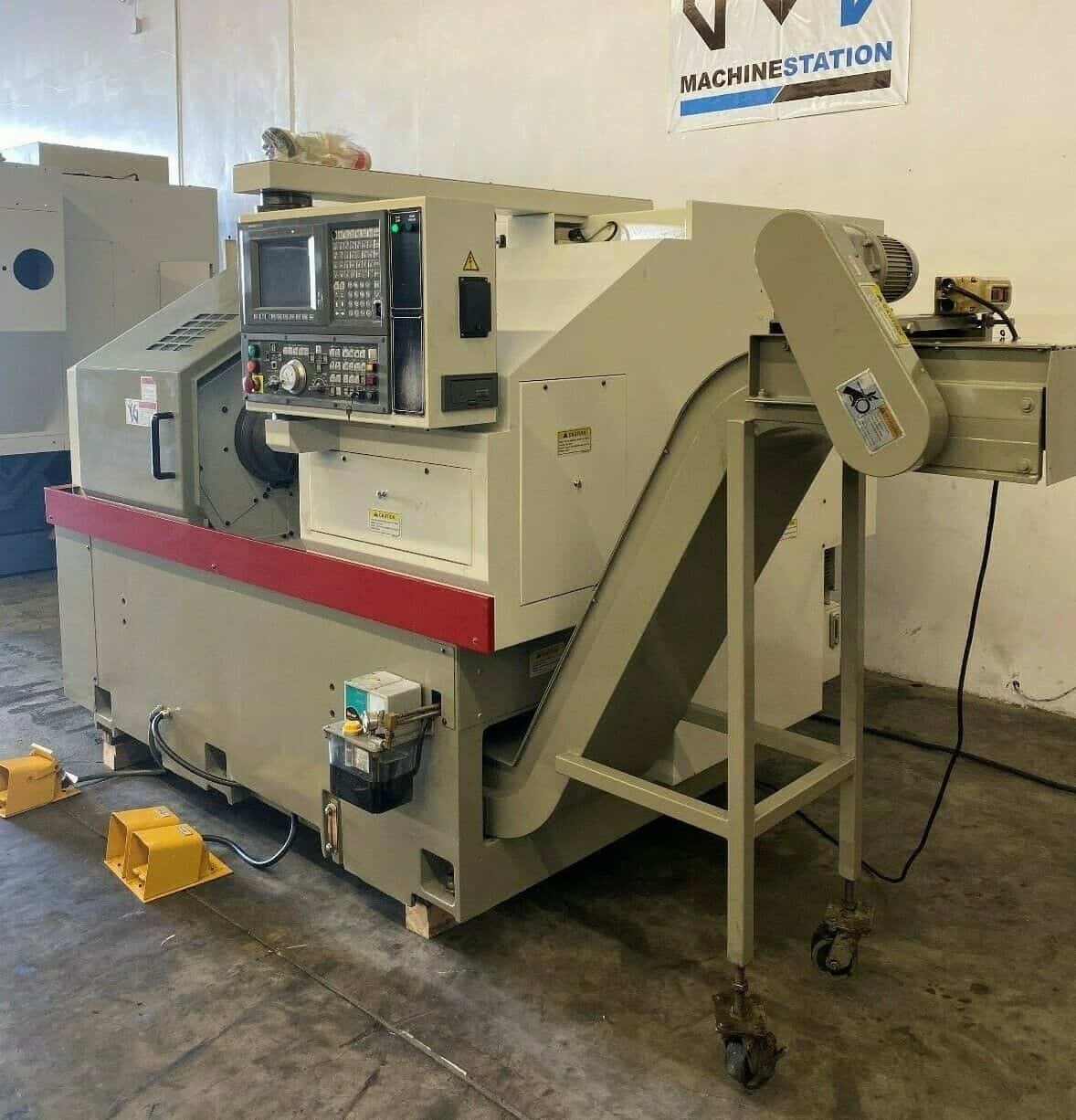

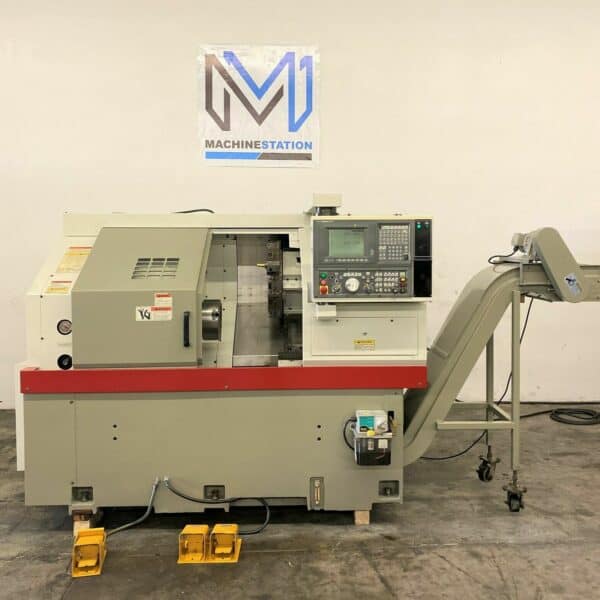

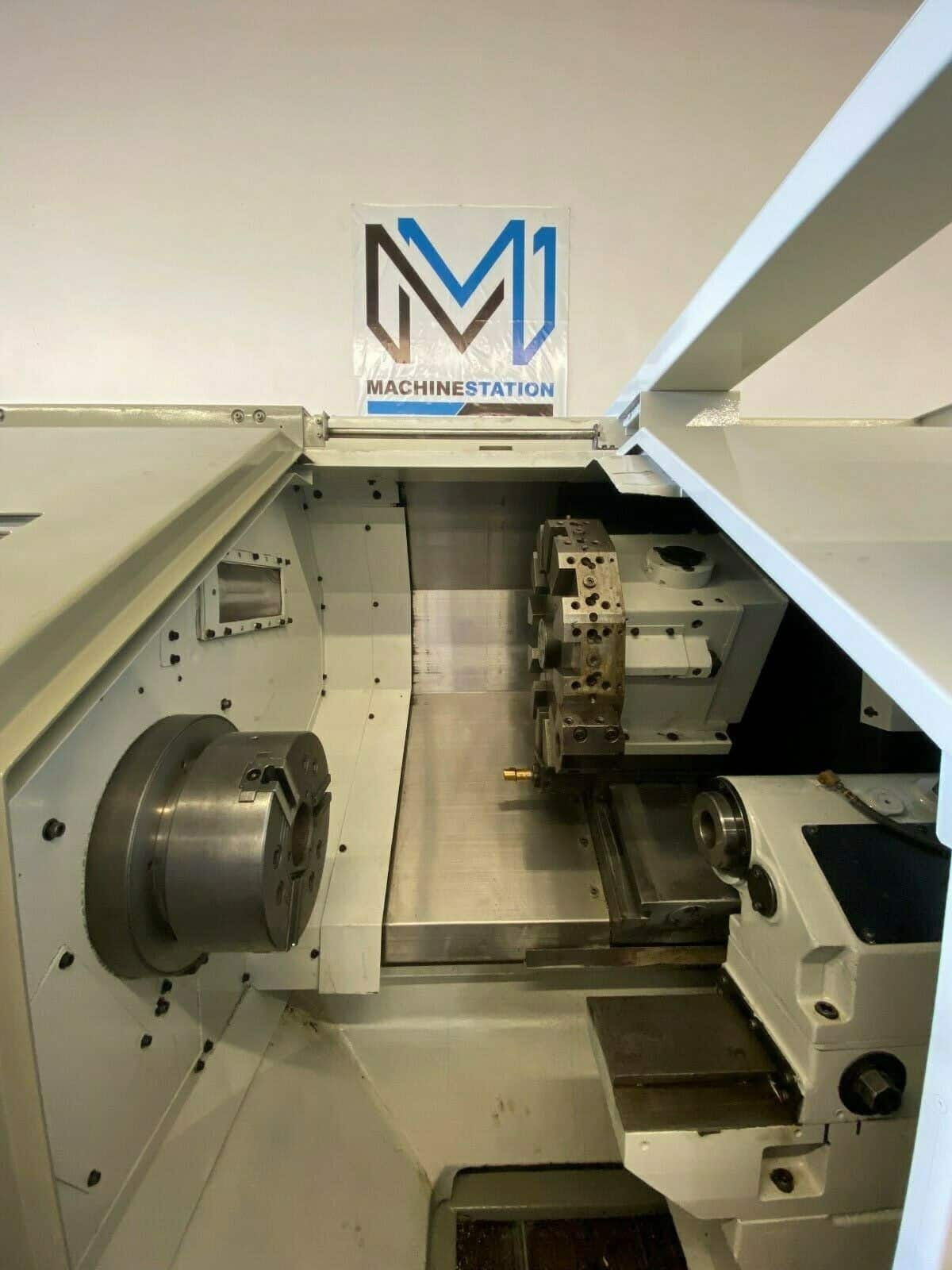

Okuma ES-L10 comes as shown in Pictures…..
