*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

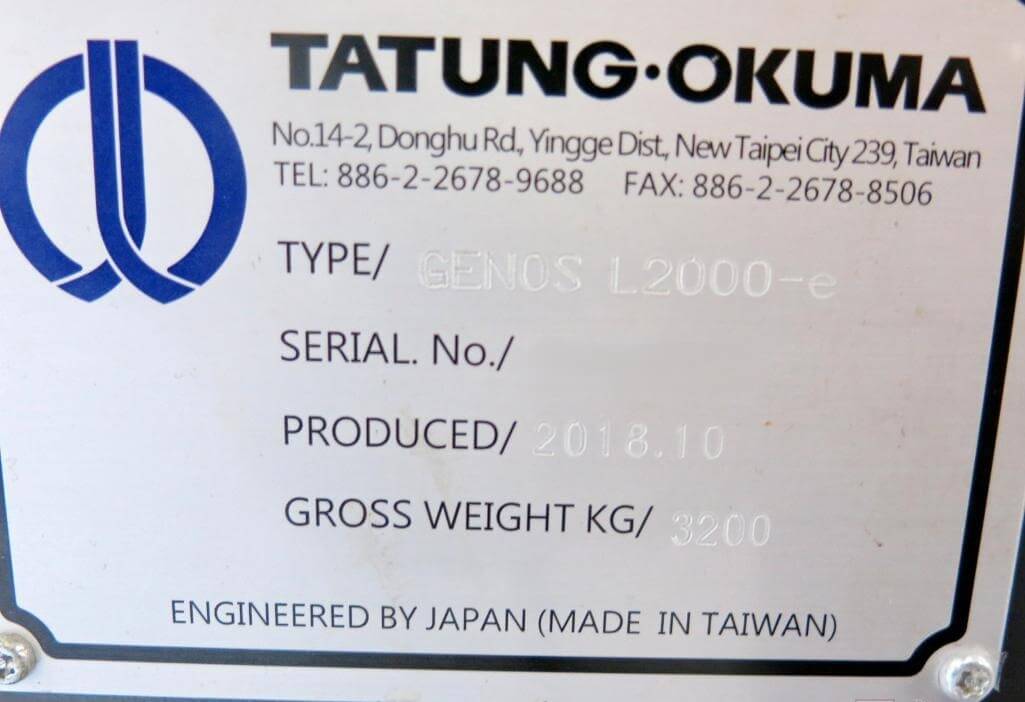

| Make: | Okuma |
| Model: | GENOS L2000-E |
| Year: | 2018 |
| Equipped With: |
|---|
| Okuma OSP-P300LA-e CNC Control |
| 12-Position Tool Turret |
| 8″ 3-Jaw Chuck |
| Tailstock |
| Chip Conveyor |
| Bullnose |
| (3) Bar Liners |
| Full Enclosure |
| Coolant System |
| Capacity: |
|---|
| Swing Over Bed: 17.72″ |
| Swing Over Saddle: 13.78″ |
| Maximum Turning Diameter: 9.06″ |
| Maximum Turning Length: 19.69″ |
| Spindle Bore Diameter: 2.44″ |
| Travels: |
|---|
| X-Axis Travel: 6.50″ |
| Z-Axis Travel: 18.50″ |
| X-Axis Rapid Traverse: 82.03 FPM |
| Z-Axis Rapid Traverse: 98.43 FPM |
| Spindle: |
|---|
| Spindle Speed: 45 – 5,000 RPM |
| Spindle Nose: JIS A2-6 |
| Spindle Bore: 2.44″ |
| Spindle Motor: 20 HP (20 Min.) / 15 HP Continuous |
| Turret: |
|---|
| Turret Capacity: 12 Positions |
| Turret Type: V12 |
| ID Tool Shank Diameter: 1-1/4″ |
| Tailstock: |
|---|
| Tailstock Taper: MT- 5 |
| Tailstock Travel: 16.54″ |
| Electrical: |
|---|
| Supply Voltage: 220 V |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| General: |
|---|
| Cutting Time: 1808 Hours |
| Machine Dimensions (Approx.): 102.36″ × 72.13″ × 63.78″ |
| Machine Weight (Approx.): 7,040 lbs |
