*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Okuma |
| Model No.: | Genos L250E |
| Year of Manufacture: | 2011 |
| Condition: | Used – Good |
| Machine Type: | CNC Turning Center |
| CNC Control: | Okuma OSP-P200L CNC Control |
| Equipped With: |
|---|
| Okuma OSP-P200L CNC Control |
| 10″ Hydraulic Chuck |

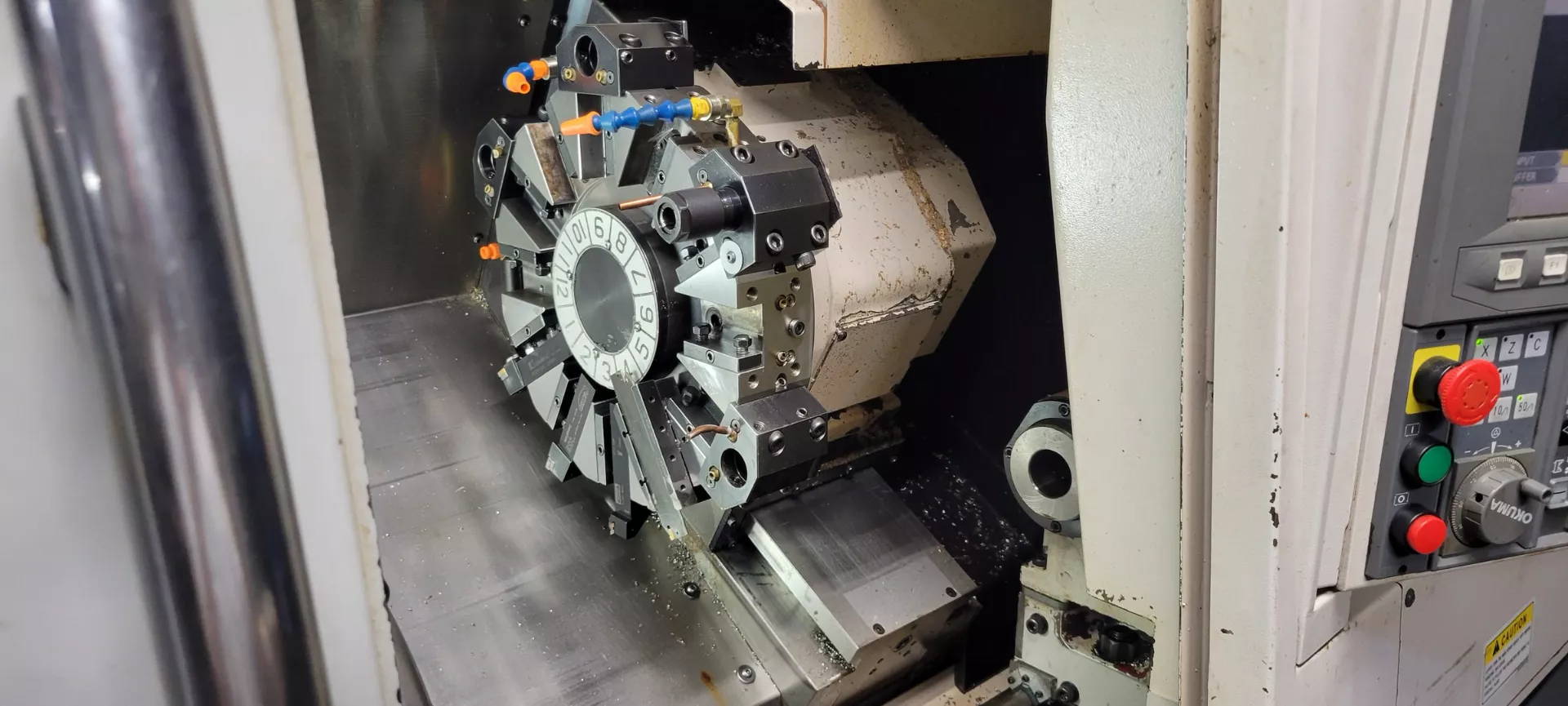

| 12-Station VDI Turret |
| Programmable Tailstock |
| Chip Conveyor |
| Coolant System |
| Automatic Lubrication System |
| Parts Catcher |
| Tool Presetter |
| Work Light |
| Fully Enclosed Splash Guard |
| Capacity: |
|---|
| Maximum Turning Diameter: 13.4″ (340 mm) |
| Maximum Turning Length: 19.7″ (500 mm) |
| Swing Over Bed: 20.9″ (530 mm) |
| Swing Over Cross Slide: 10.8″ (275 mm) |
| Bar Capacity: 2.56″ (65 mm) |
| Travel: |
|---|
| X-Axis Travel: 8.07″ (205 mm) |
| Z-Axis Travel: 21.3″ (540 mm) |
| Spindle: |
|---|
| Spindle Speed: Up to 3,800 RPM |
| Spindle Motor Power: 15 / 11 kW (20 / 15 HP) |
| Spindle Nose: A2-6 |
| Spindle Bore: 2.56″ (65 mm) |
| Turret: |
|---|
| Turret Type: VDI Turret |
| Number of Stations: 12 |
| Square Tool Size: 25 mm |
| Boring Bar Capacity: 40 mm |
| Feedrates: |
|---|
| Rapid Traverse (X-Axis): 20 m/min |
| Rapid Traverse (Z-Axis): 25 m/min |

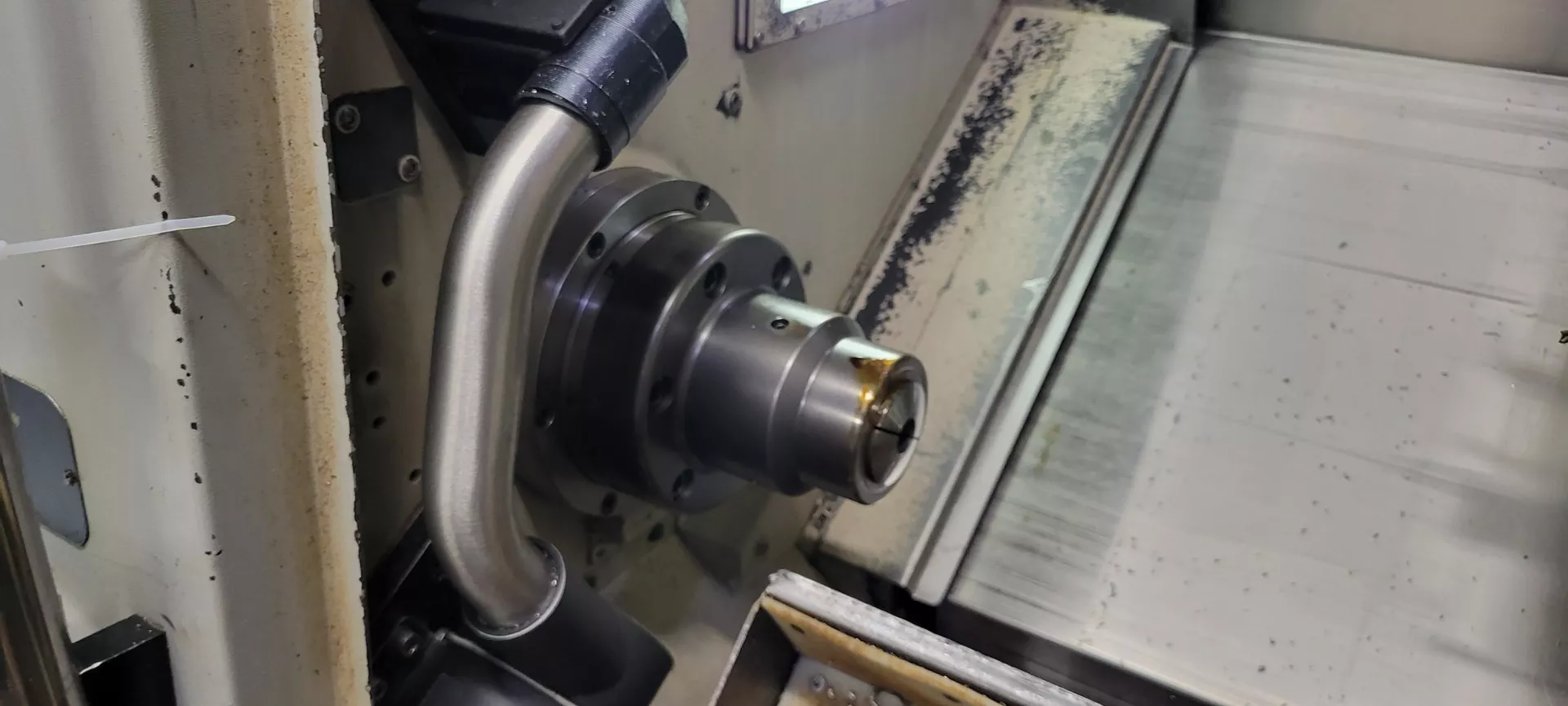

| Tailstock: |
|---|
| Programmable Hydraulic Tailstock |
| Tailstock Quill Travel: 120 mm |
| Center Taper: MT-4 |
| Electrical: |
|---|
| Power Requirement: Approx. 30 kVA |
| Voltage: 220 / 380 / 440 V |
| Phase: 3-Phase |
| General: |
|---|
| Machine Dimensions: Approx. 108.7″ × 74.8″ × 78.7″ (2760 × 1900 × 2000 mm) |
| Machine Weight: Approx. 10,582 lbs (4,800 kg) |
| Features: |
|---|
| Rigid slant-bed construction for high precision and stability |
| Okuma OSP-P200L control for advanced machining capability |
| 12-station turret for fast tool indexing |
| High-torque spindle for heavy cutting operations |
| Compact footprint ideal for production environments |
| Programmable tailstock for long part machining |
| Integrated chip conveyor and coolant system |
| Ideal for precision turning, drilling, and tapping operations in production machining |
