*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Okuma |
| Model: | GENOS L250II-e |
| Year: | 2019 |
| Equipped With: |
|---|
| Okuma OSP-P300LA-e CNC Control |
| 8″ Kitagawa 208 Chuck |
| 12-Station Turret |
| Renishaw Manual Tool Setting Arm |
| Tailstock |
| Hennig Chip Conveyor |

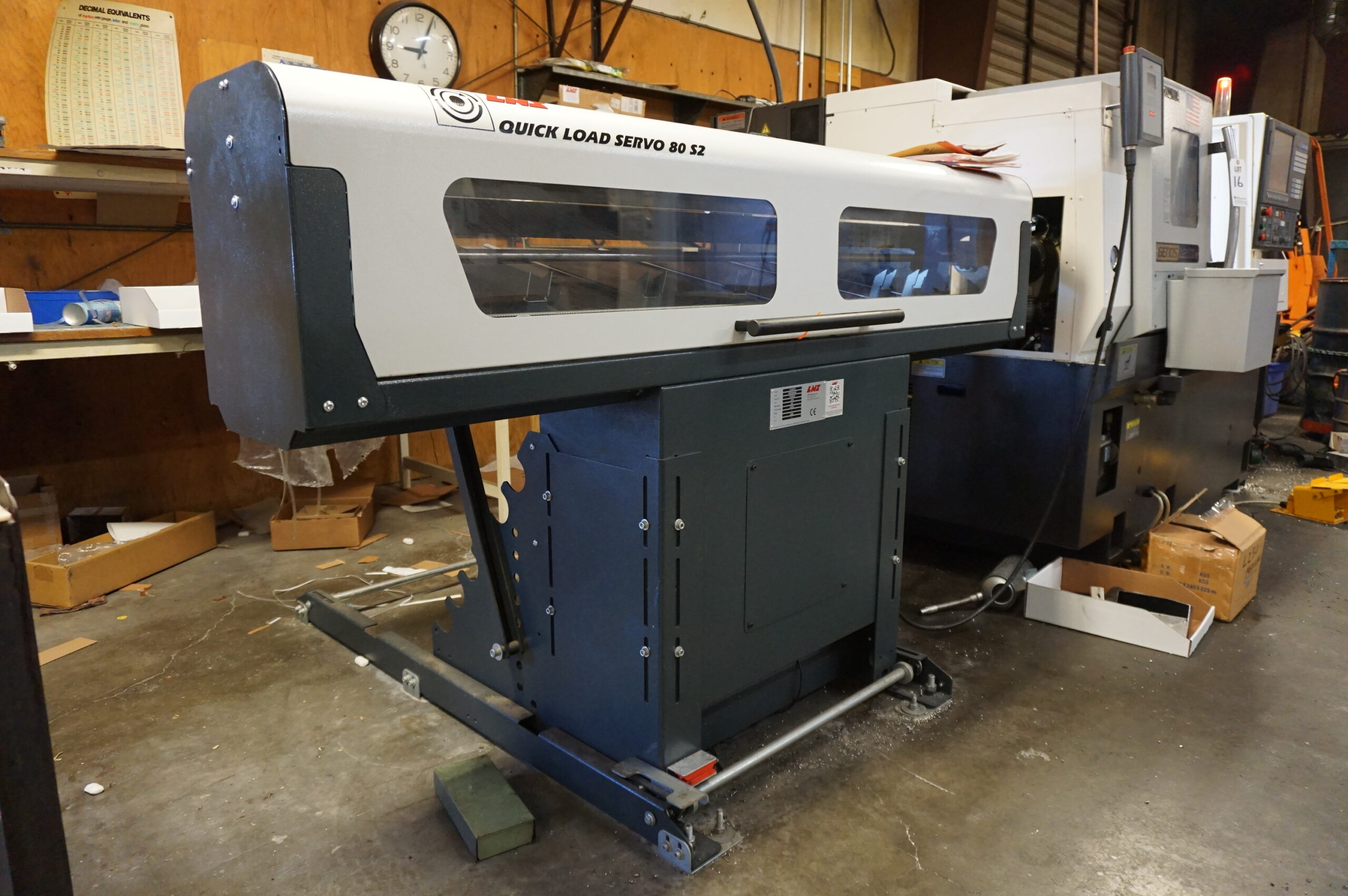

| 2019 LNS Quick Load Servo 80 S2 Bar Feeder |
| Coolant System |
| Full Machine Enclosure |
| Spare Parts / Tools |
| Manuals for Lathe and Chip Conveyor |
| Capacity: |
|---|
| Maximum Turning Diameter: 11.02″ |
| Maximum Turning Length: 11.42″ |
| Travels: |
|---|
| X-Axis Travel: 6.30″ |
| Z-Axis Travel: 12.99″ |
| Rapid Traverse X-Axis: 984 IPM (25 m/min) |
| Rapid Traverse Z-Axis: 1,181 IPM (30 m/min) |
| Spindle: |
|---|
| Chuck Size: 8″ |
| Spindle Nose: JIS A2-6 |
| Maximum Spindle Speed: 4,500 RPM |
| Main Spindle Motor: 10 HP (30 Min.), 7.4 HP (Continuous) |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| OD Tool Shank: 0.98″ × 0.98″ |
| ID Tool Shank Diameter: 1.57″ |
| Tailstock: |
|---|
| Tailstock: Equipped |
| Tailstock Quill Diameter: 2.76″ |
| Tailstock Taper: MT-4 |
| Quill Travel: 3.15″ |
| Bar Feeder: |
|---|
| Manufacturer: LNS |
| Model: Quick Load Servo 80 S2 / QLS80 S2 |
| Year: 2019 |
| Type: Bar Feeder |
| Main Voltage: 200 V |
| Control Voltage: 24 VDC |
| Phase: 1 Phase |
| Frequency: 50/60 Hz |

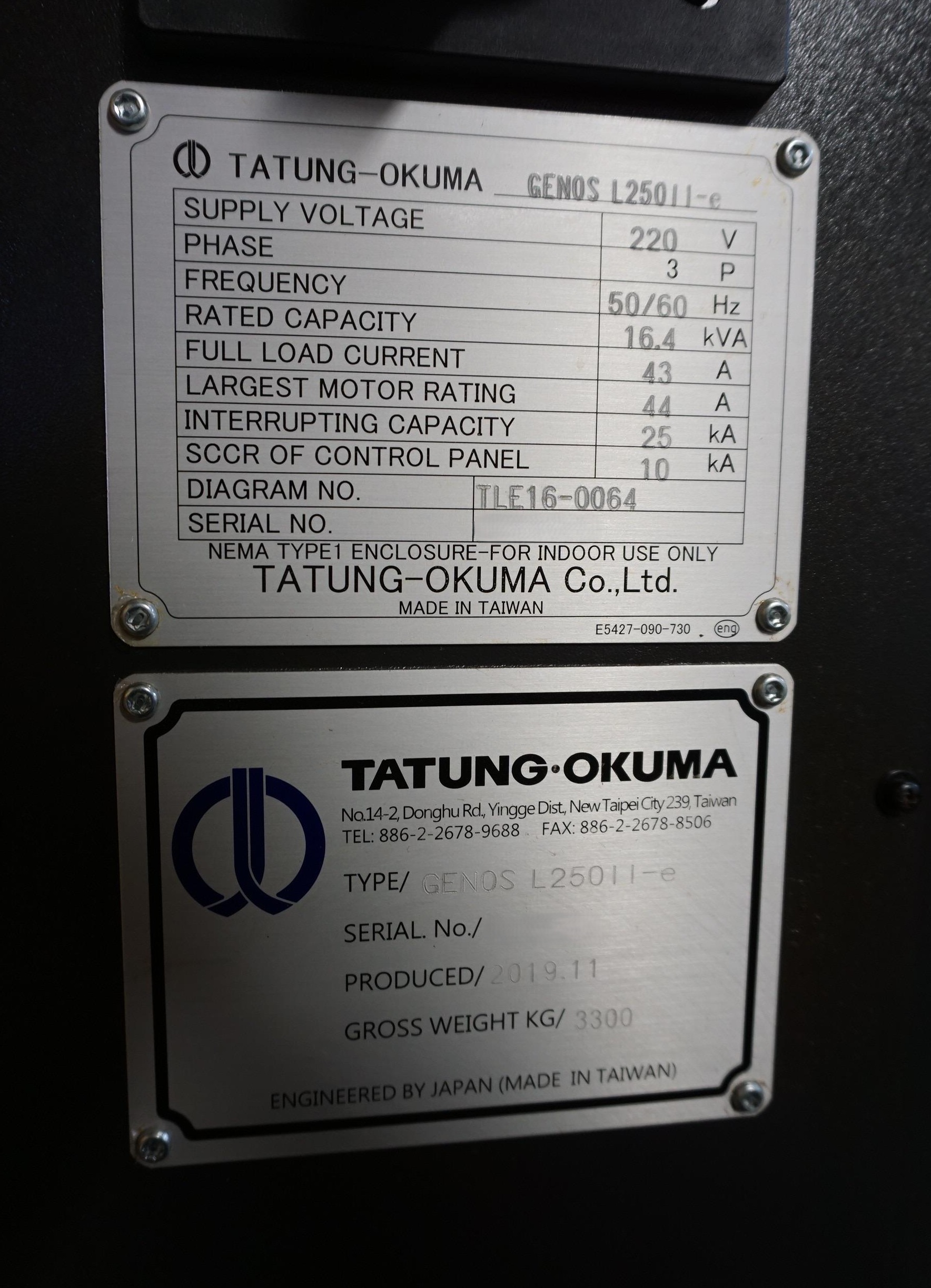

| Electrical: |
|---|
| Supply Voltage: 220 V |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| Rated Capacity: 16.4 kVA |
| General: |
|---|
| Country of Manufacture: Taiwan |
| Cutting Time: 3,596 Hours |
| Machine Dimensions (Approx.): 58.3″ × 72.6″ × 63.8″ |
| Machine Weight (Approx.): 7,275 lbs |
