*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Okuma |
| Model: | Genos L440E |
| Year: | 2012 |
| Condition: | Used – Good |
| Machine Type: | CNC Turning Center |

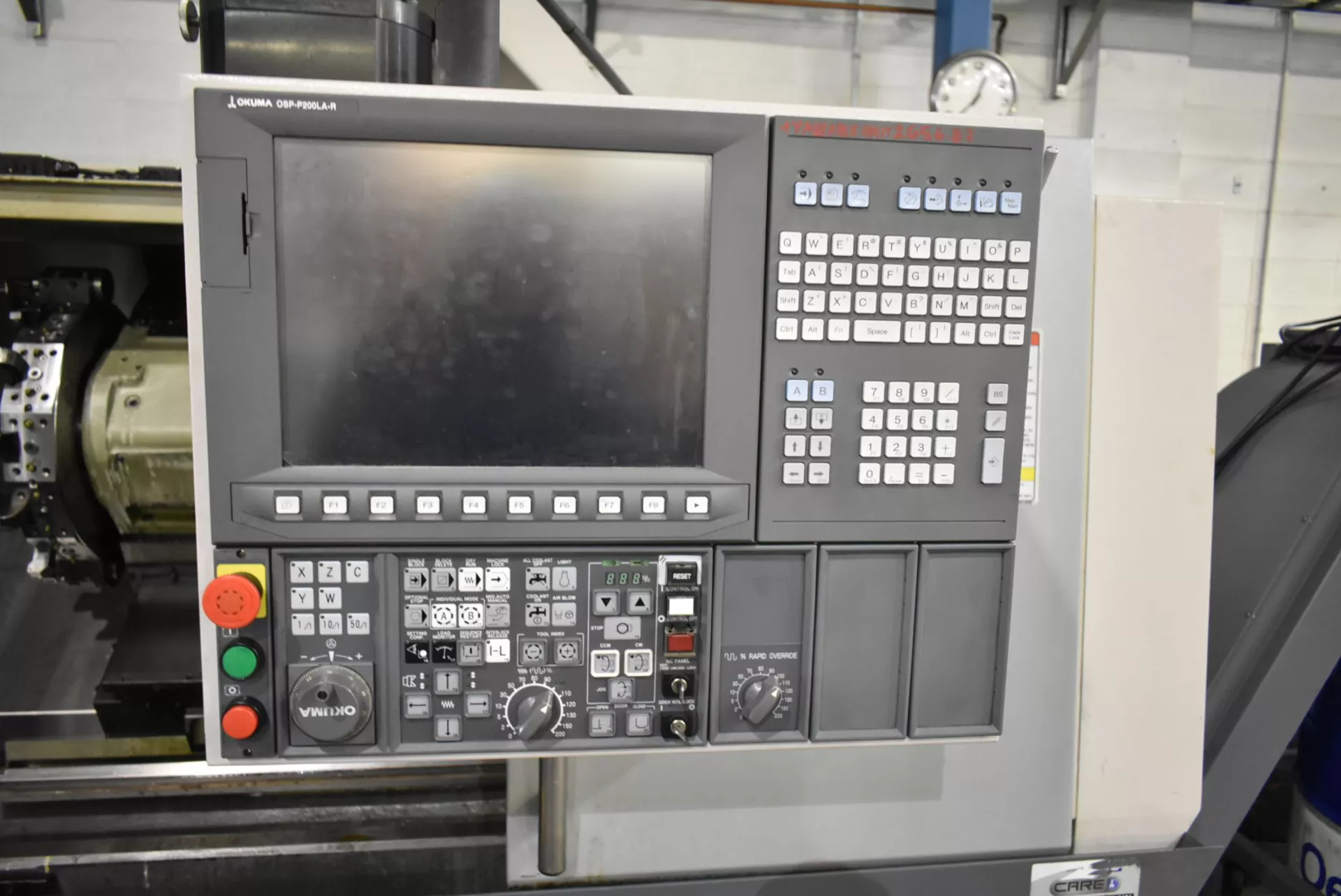

| Control: | Okuma OSP-P200LA-R CNC Control |
| Equipped With: |
|---|
| Okuma OSP-P200LA-R CNC Control |

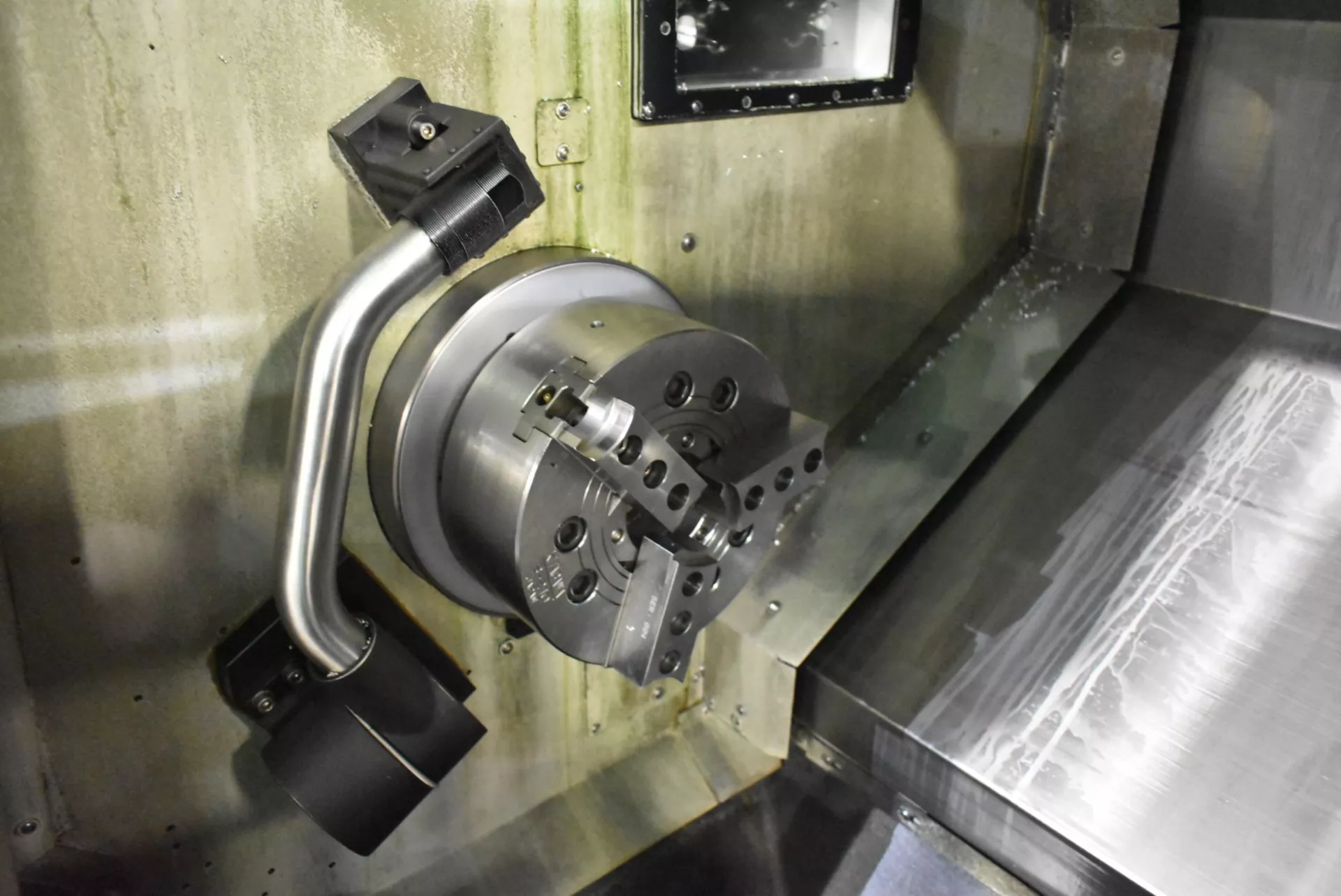

| Kitagawa B210 10″ Hydraulic Chuck |

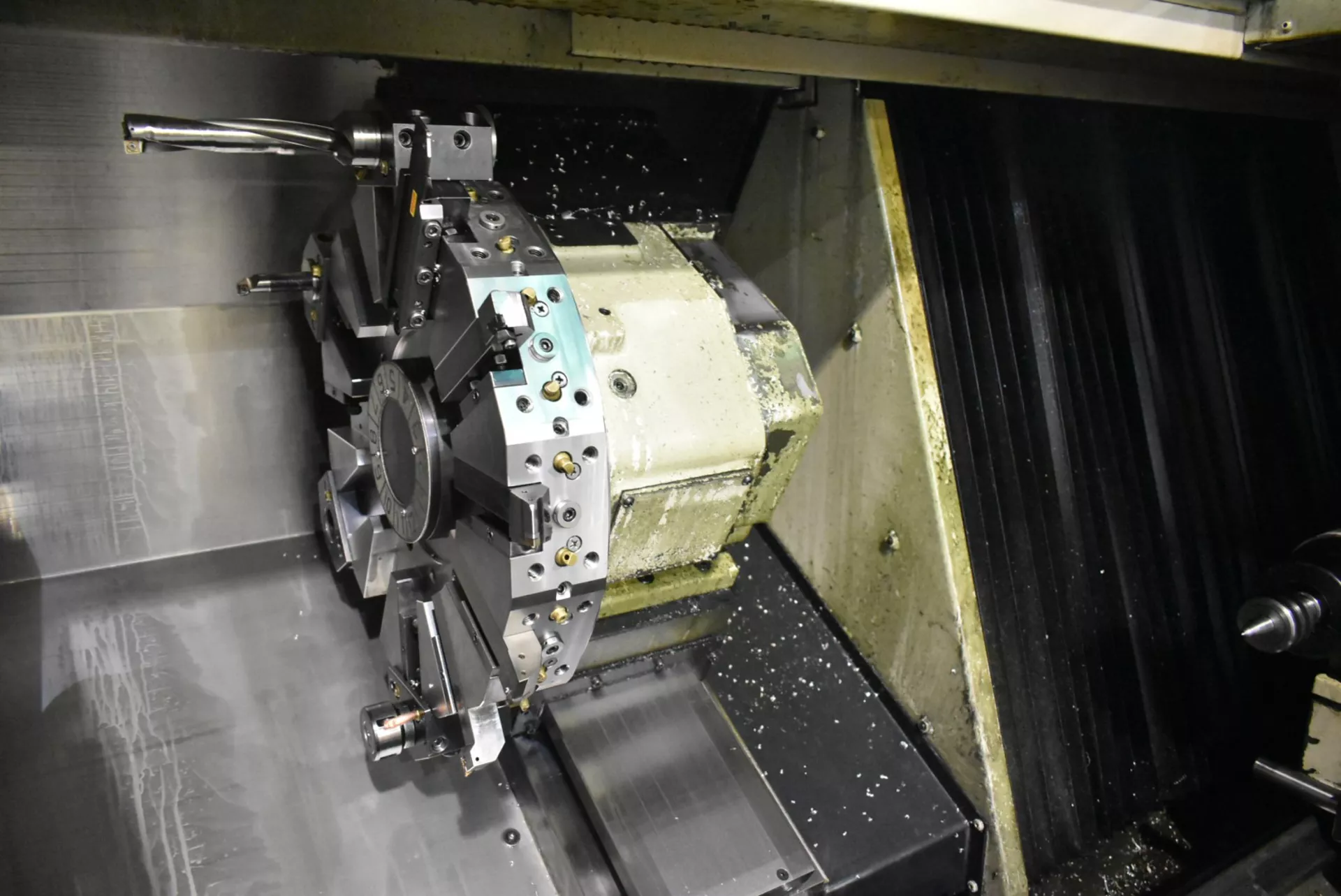

| 12-Station Turret |

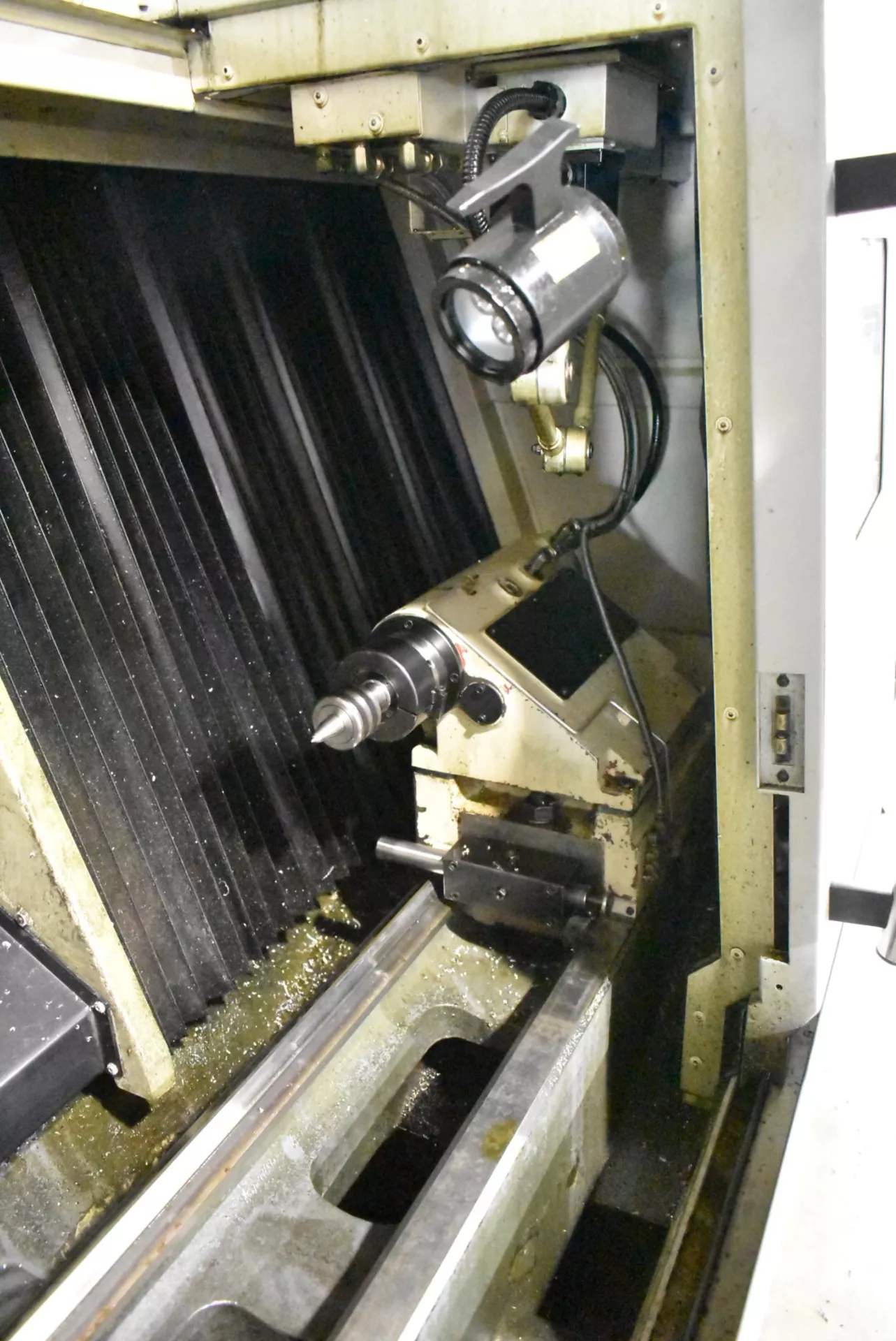

| Programmable Tailstock |
| Chip Conveyor |
| Coolant System |
| Work Light |
| Fully Enclosed Splash Guard |
| Capacity: |
|---|
| Swing Over Bed: 20.47″ |
| Maximum Turning Length: 43.30″ |
| Spindle Bore: 3.14″ |
| Chuck Size: 10″ |
| Bar Capacity: 2.99″ |
| Travels: |
|---|
| X-Axis Travel: 9.05″ |
| Z-Axis Travel: 45.03″ |
| Feedrate: |
|---|
| Rapid Traverse Rate (X-Axis): 984 IPM |
| Rapid Traverse Rate (Z-Axis): 1,181 IPM |
| Spindle: |
|---|
| Spindle Speed: 3,000 RPM |
| Spindle Motor: 15 HP |
| Spindle Nose: A2-8 |
| Spindle Bore: 3.14″ |
| Turret: |
|---|
| Number of Stations: 12 |
| Turret Type: VDI/BMT Style Servo Indexing |
| Tool Shank Size: 1.00″ |
| Boring Bar Capacity: 1.57″ |
| Tailstock: |
|---|
| Tailstock Type: Programmable Hydraulic |
| Quill Diameter: 3.94″ |
| Quill Travel: 4.72″ |
| General: |
|---|
| Air Required: 72 PSI |
| Power: 220V / 50-60 Hz / 3 Phase / 22.6 KVA |
| Overall Dimensions: 142″ L x 74″ W x 78″ H Approx. |
| Machine Weight: 11,000 Lbs Approx. |
