*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Okuma |

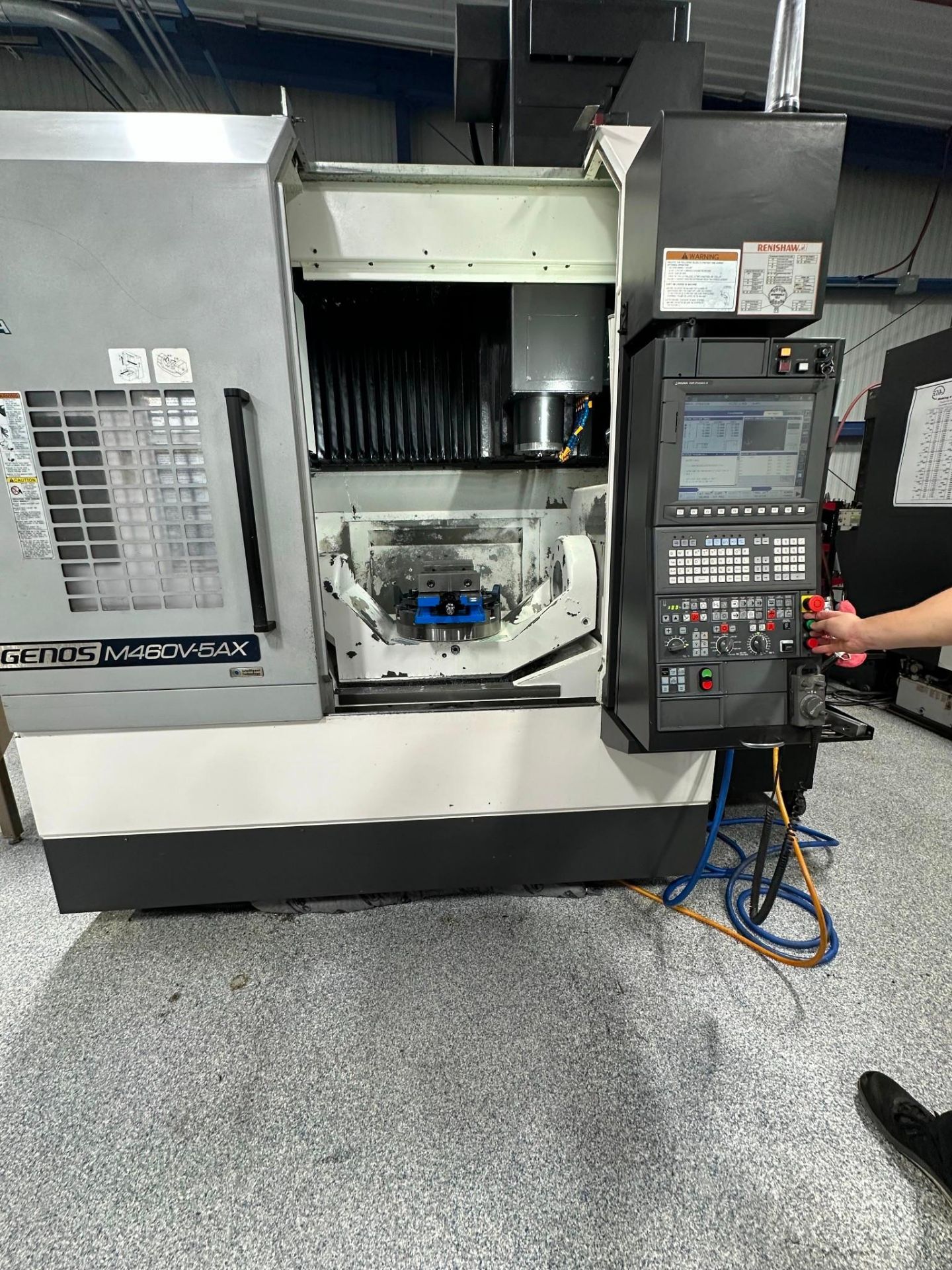

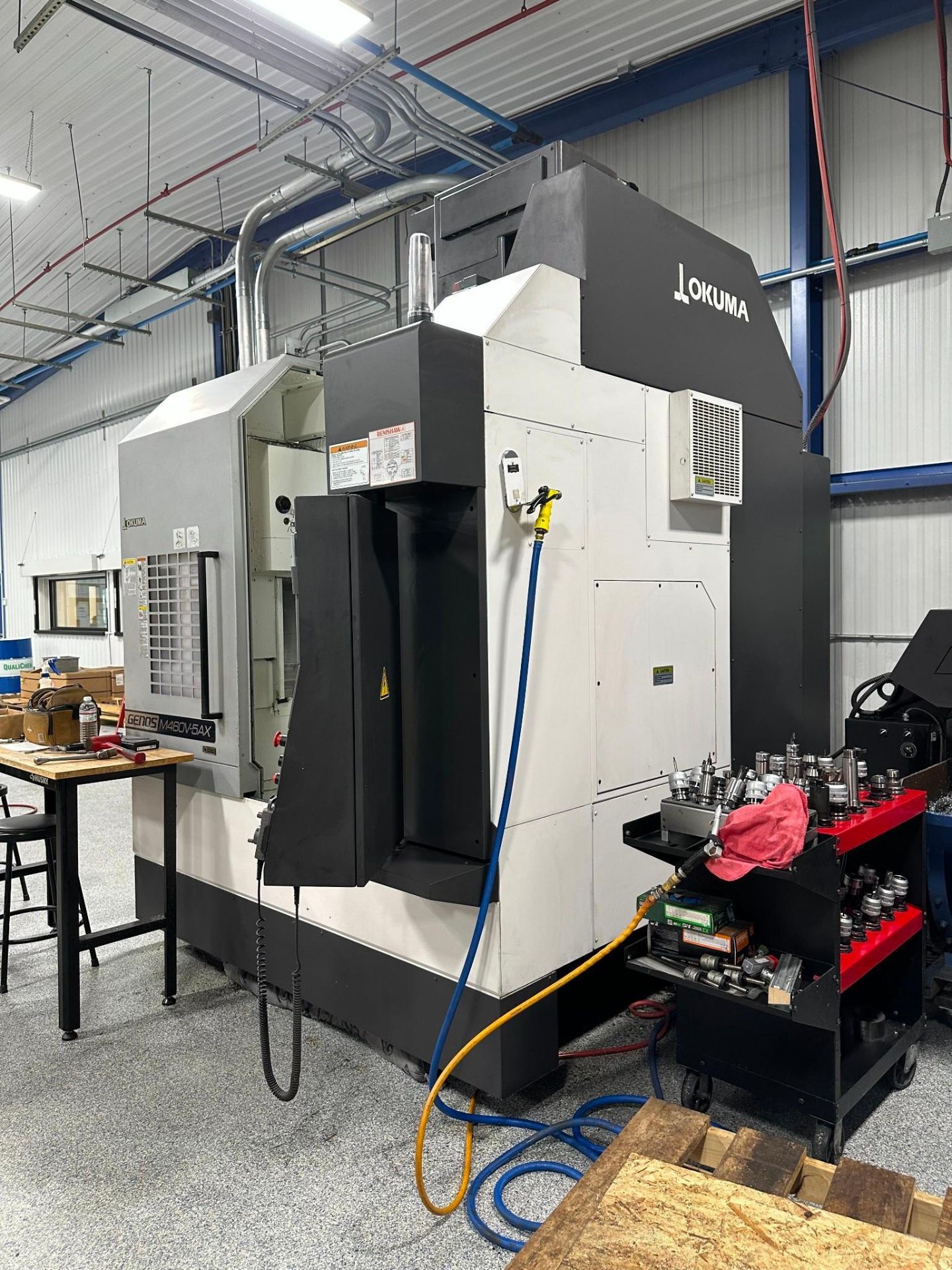

| Model: | GENOS M460V-5AX |
| Equipped With: |
|---|

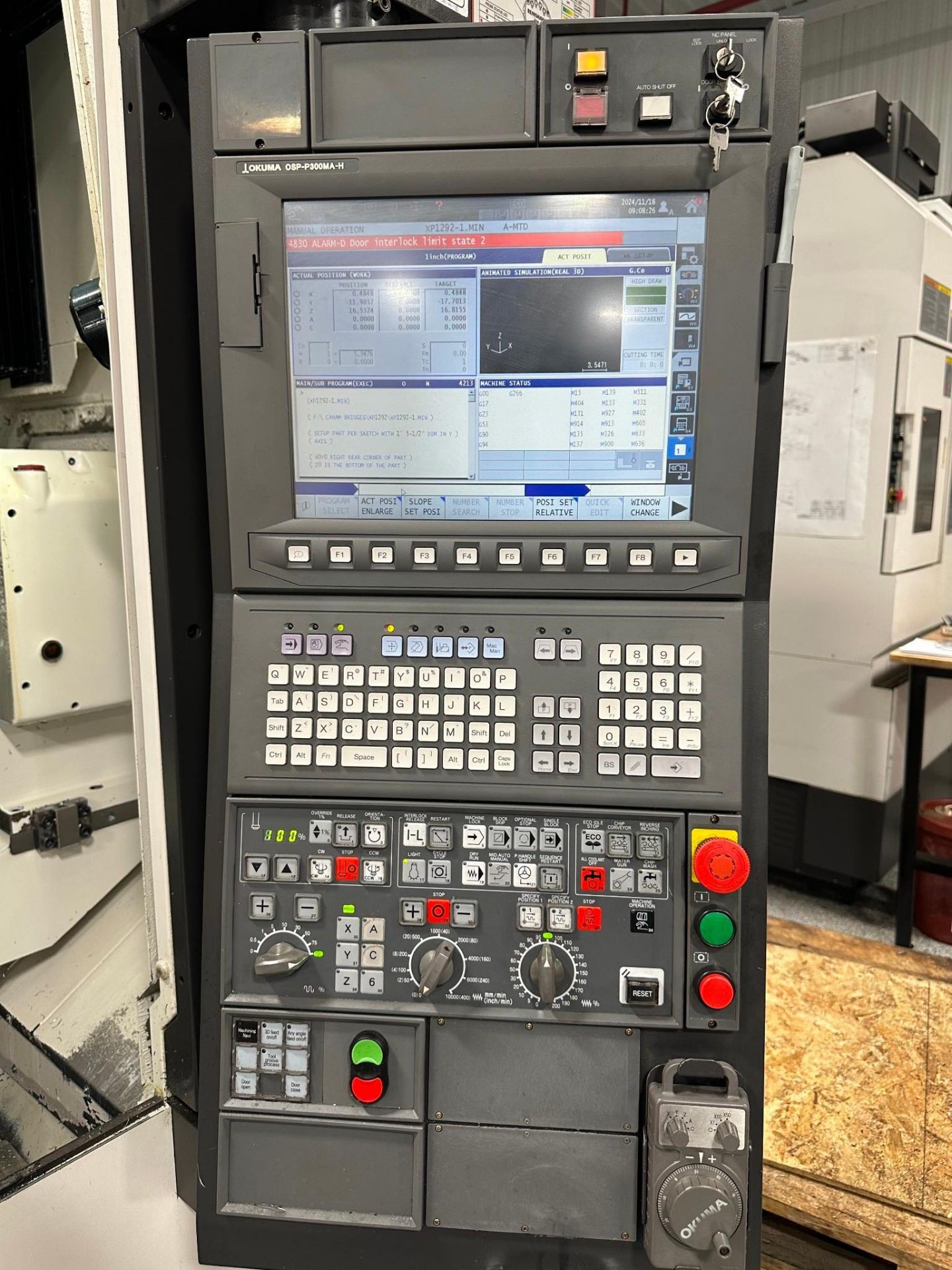

| Okuma OSP-P300M CNC Control |
| Simultaneous 5-Axis Machining |
| Integrated Trunnion Table |
| Thermo-Friendly Concept |
| Rigid Box & Linear Guide Construction |
| Automatic Tool Changer |
| Full Enclosure |
| Coolant System |
| Chip Conveyor |
| Capacity: |
|---|
| Table Size: 15.75″ Diameter |
| Max Workpiece Diameter: 19.7″ |
| Max Workpiece Height: 13.8″ |
| Max Table Load: 661 lbs |
| Travels: |
|---|
| X-Axis Travel: 30.3″ |
| Y-Axis Travel: 18.1″ |
| Z-Axis Travel: 18.1″ |
| A-Axis Travel: −120° to +30° |
| C-Axis Travel: 360° |
| Spindle: |
|---|
| Spindle Taper: CAT-40 |
| Spindle Speed: 15,000 RPM |
| Spindle Motor: 22 HP (Continuous) |
| Integral Motor Spindle |
| Feedrates: |
|---|
| Rapid Traverse X/Y/Z: 1,969 IPM |
| Cutting Feedrate: 0 – 787 IPM |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 32 Tools |
| Max Tool Diameter: 3.15″ (6.3″ Adjacent Empty) |
| Max Tool Length: 11.8″ |
| Max Tool Weight: 17.6 lbs |
| General: |
|---|
| Power Requirement: 220V / 3-Phase |
| Machine Dimensions (Approx.): 94″ × 100″ × 108″ |
| Machine Weight (Approx.): 14,550 lbs |
