*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Okuma & Howa |
| Model: | ACT-20 |
| Machine Type: | CNC Turning Center |
| CNC Control: | FANUC Series 18-T |
| Equipped With: |
|---|

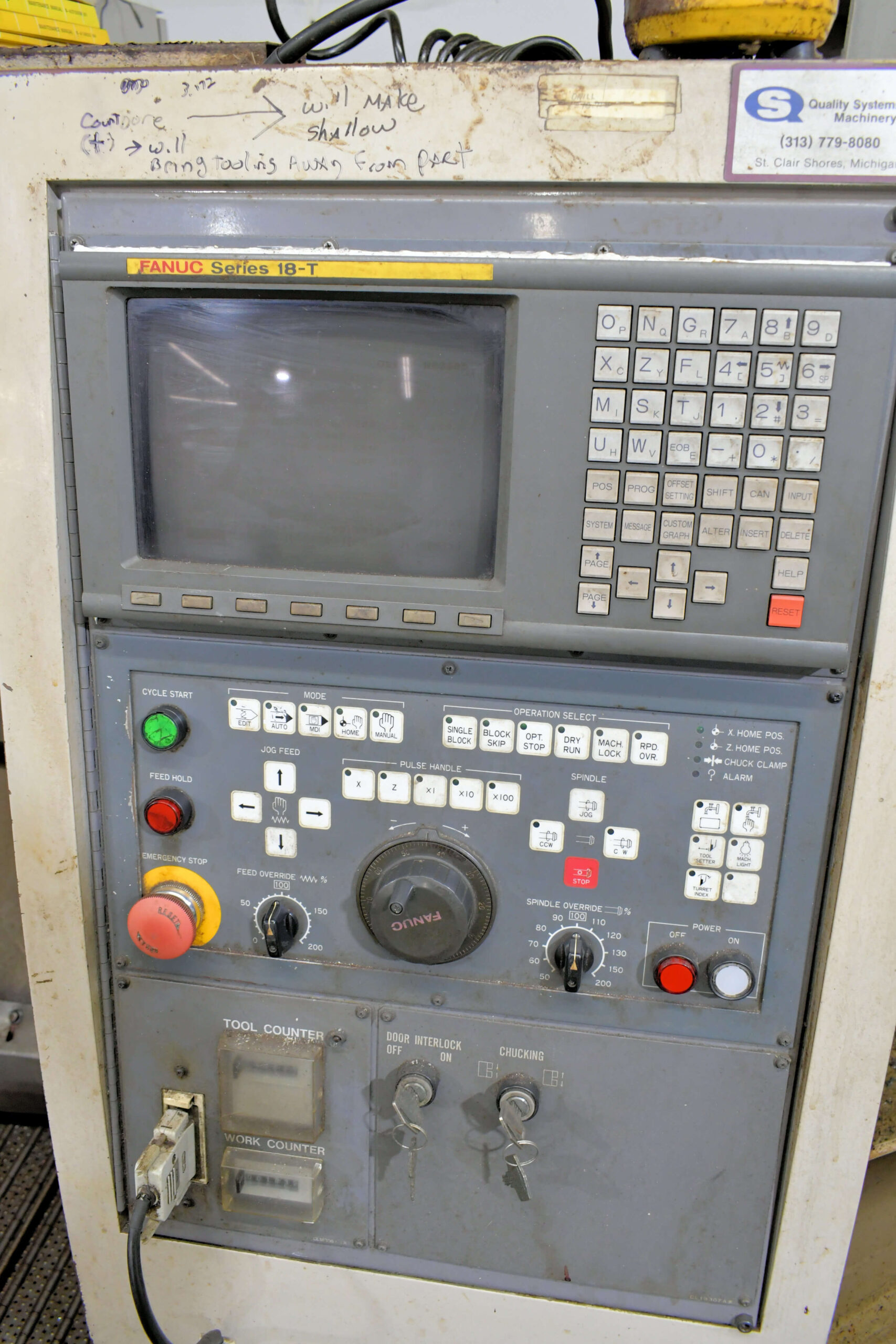

| FANUC Series 18-T CNC Control |
| 8″ 3-Jaw Hydraulic Chuck |
| 12-Position Turret |
| Foot Pedal Controls |
| Mist Collector |
| Turbo Model 6475-8579 Chip Conveyor |
| Built-In 20 KVA Transformer |
| Enclosed Work Area |
| Hydraulic Chucking System |
| Tool Counter |
| Work Counter |
| Coolant System |
| Capacity: |
|---|
| Maximum Swing Over Bed: 19.68″ |
| Maximum Turning Diameter: 11.81″ |
| Maximum Turning Length: 18.11″ |
| Distance Between Centers: 18″–20″ |
| Bar Capacity: 2.00″–2.44″ |
| Travels: |
|---|
| X-Axis Travel: 7.09″ |
| Z-Axis Travel: 18.11″ |
| Rapid Traverse: 945–1,102 IPM |
| Spindle: |
|---|
| Spindle Speed: Up to 4,500 RPM |
| Spindle Motor: 15 HP |
| Spindle Nose: A2-5 |
| Spindle Bore: 2.44″ |
| Chuck Size: 8″ |
| Turret: |
|---|
| Turret Type: Automatic |
| Number of Stations: 12 |
| General: |
|---|
| Machine Dimensions (Approx.): 81″ L × 61″ W × 70″ H |
| Machine Weight (Approx.): 7,250 lbs. |
