*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Okuma & Howa |
| Model No.: | Millac 435V |
| Machine Type: | CNC Vertical Machining Center |
| Control: | Fanuc CNC Control |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| Fanuc CNC Control |
| Automatic Tool Changer |
| BT40 Spindle |
| Coolant System |
| Chip Conveyor |
| Rigid Tapping |
| Full Enclosure |
| Travels: |
|---|
| X-Axis Travel: 30″ |
| Y-Axis Travel: 16″ |
| Z-Axis Travel: 20″ |
| Spindle: |
|---|
| Spindle Speed: 10,000 – 12,000 RPM |
| Spindle Taper: BT40 |
| Spindle Motor: 10 / 15 HP |
| Table: |
|---|
| Table Size: 39″ x 17″ |
| Max Table Load: 1,100 lbs |
| Feed Rates: |
|---|
| Rapid Traverse (X/Y/Z): 945 / 945 / 787 IPM |
| Tool Changer: |
|---|
| Tool Capacity: 20 / 24 Tools |
| Tool Change Type: Arm Type |

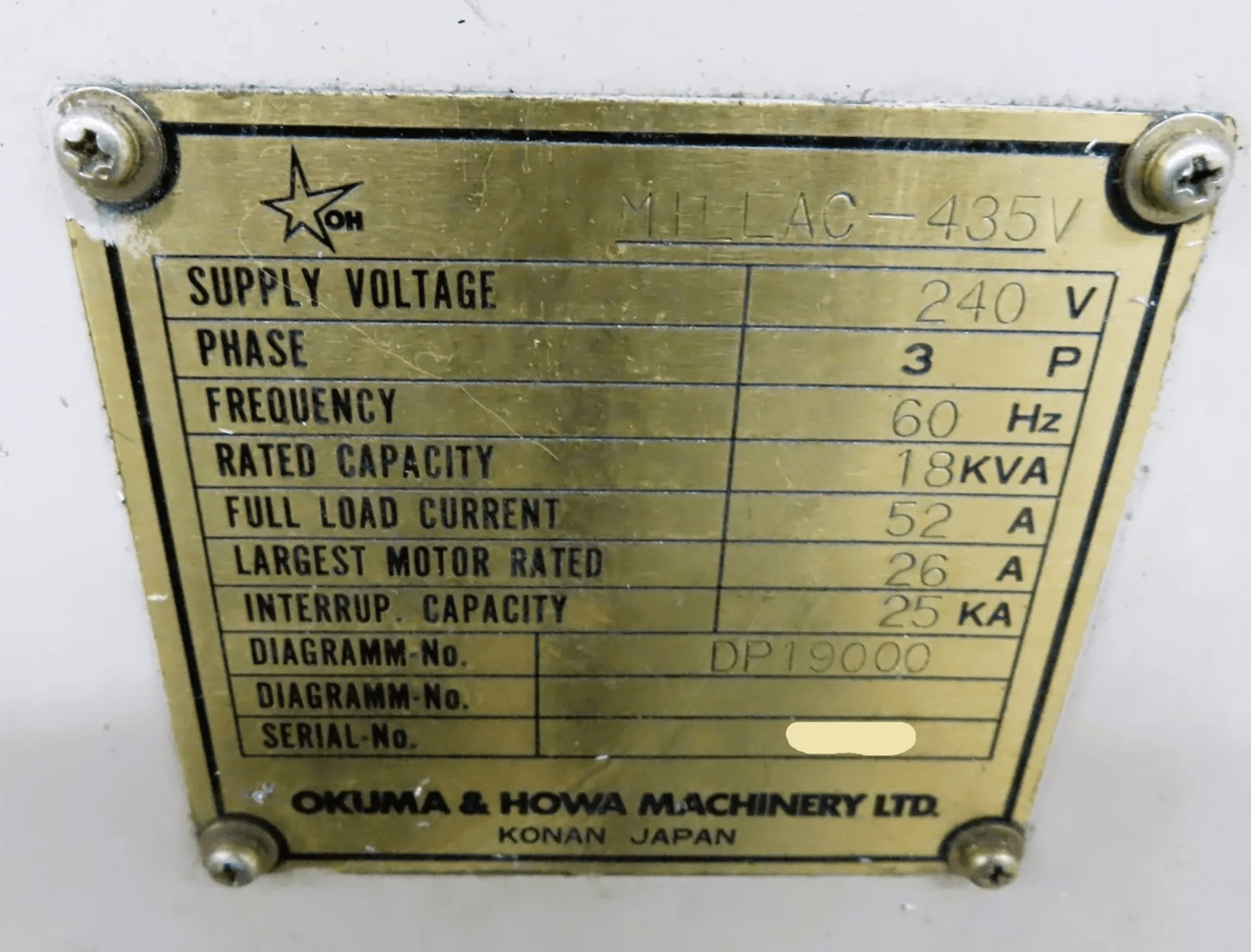

| Electrical: |
|---|
| Voltage: 240 V |
| Phase: 3 |
| Frequency: 60 Hz |
| Power Capacity: 18 kVA |
| Full Load Current: 52 A |
| General: |
|---|
| Air Required: 90 PSI |
| Power: 240V / 3-Phase |
| Overall Dimensions: 100″ x 85″ x 100″ High (Approx.) |
| Weight: 9,500 lbs (Approx.) |
