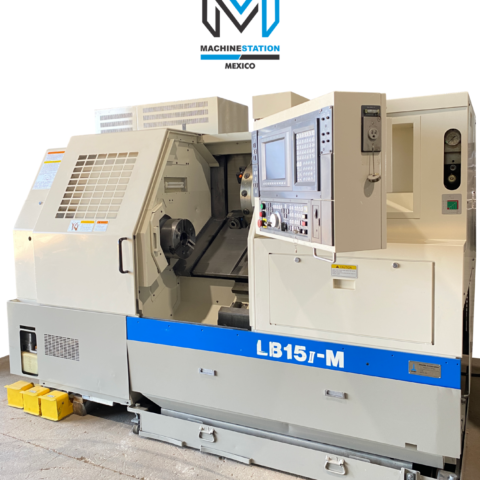

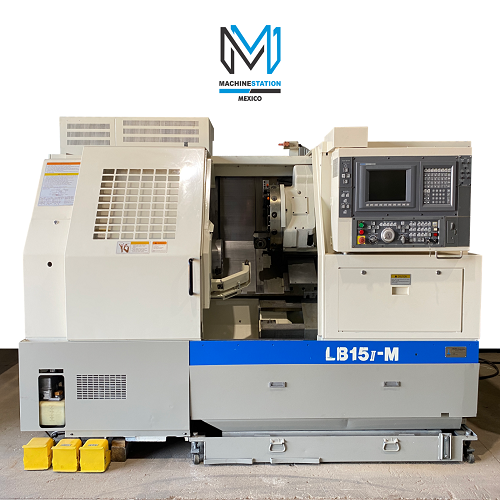

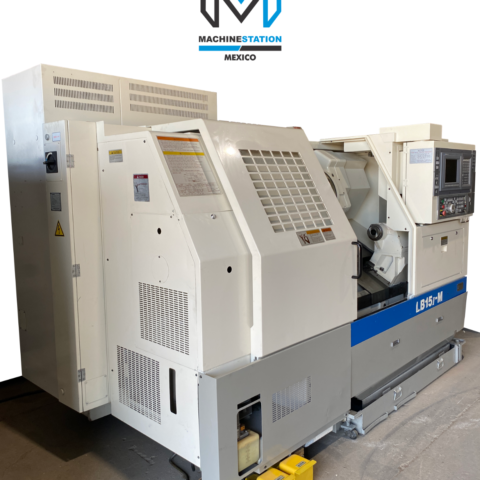

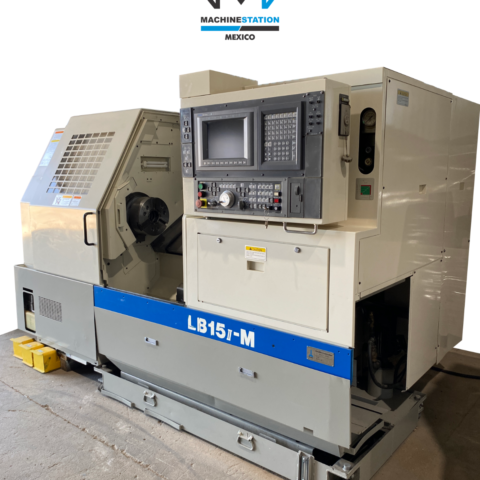

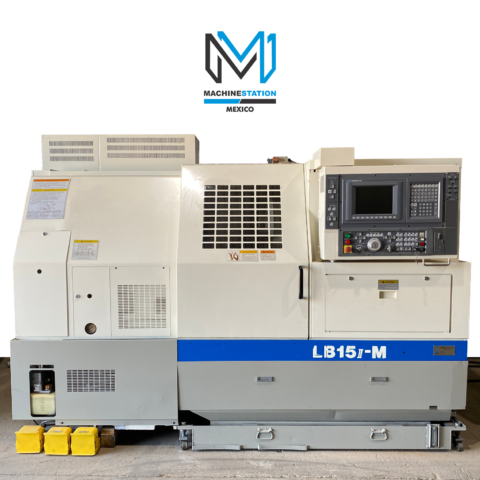

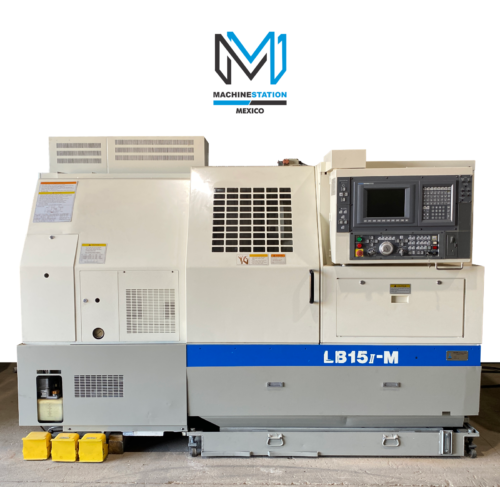

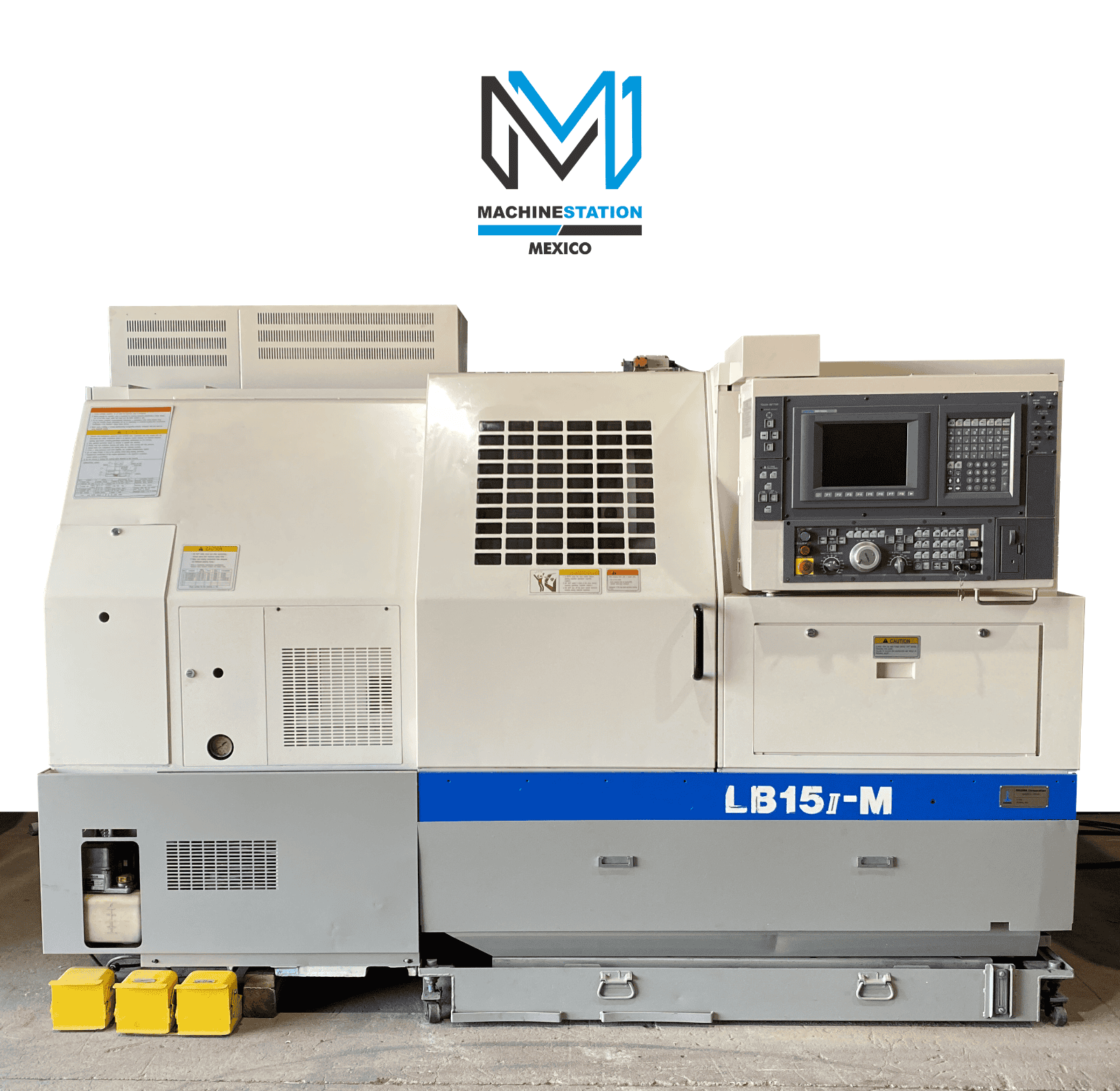

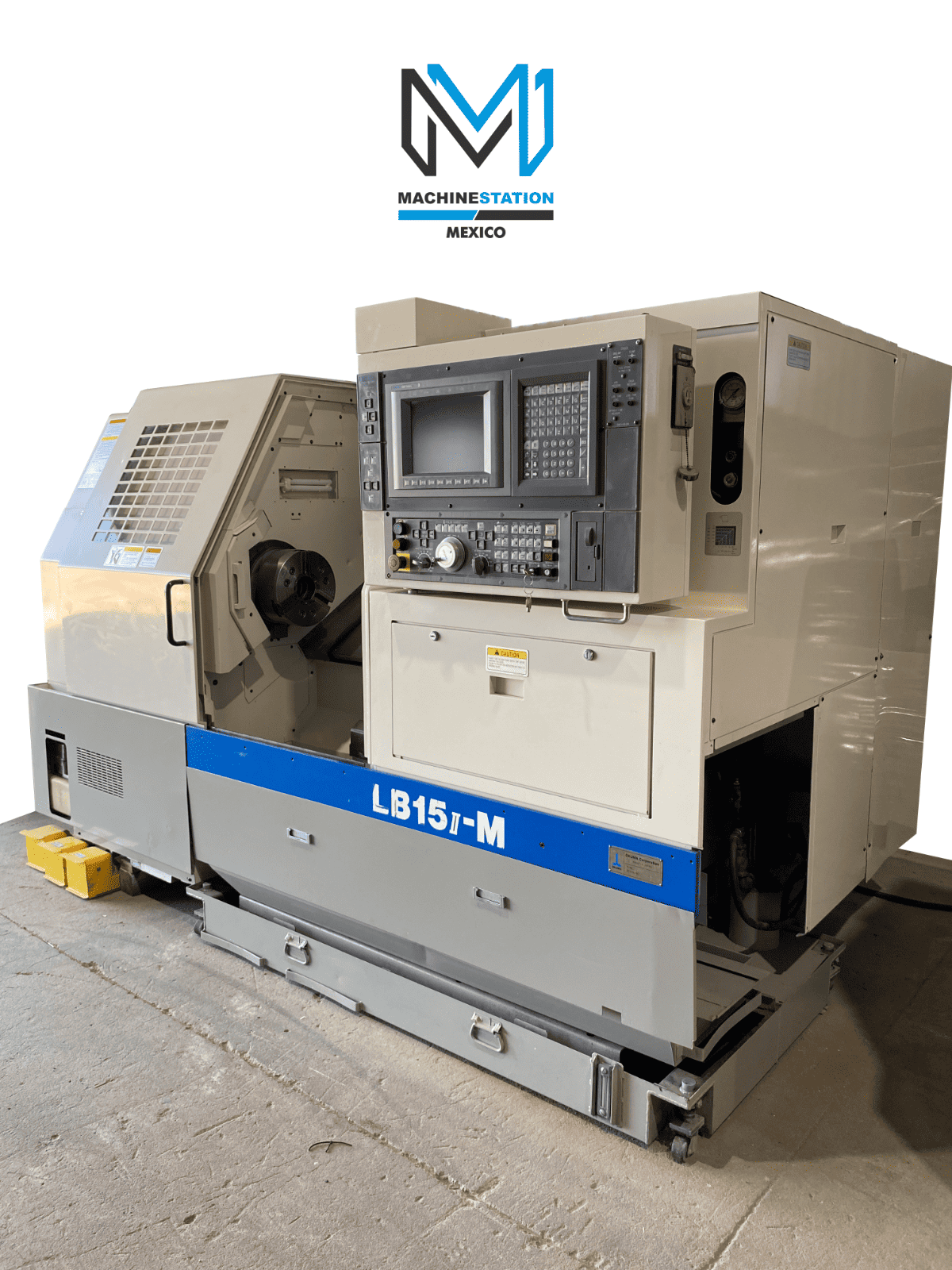

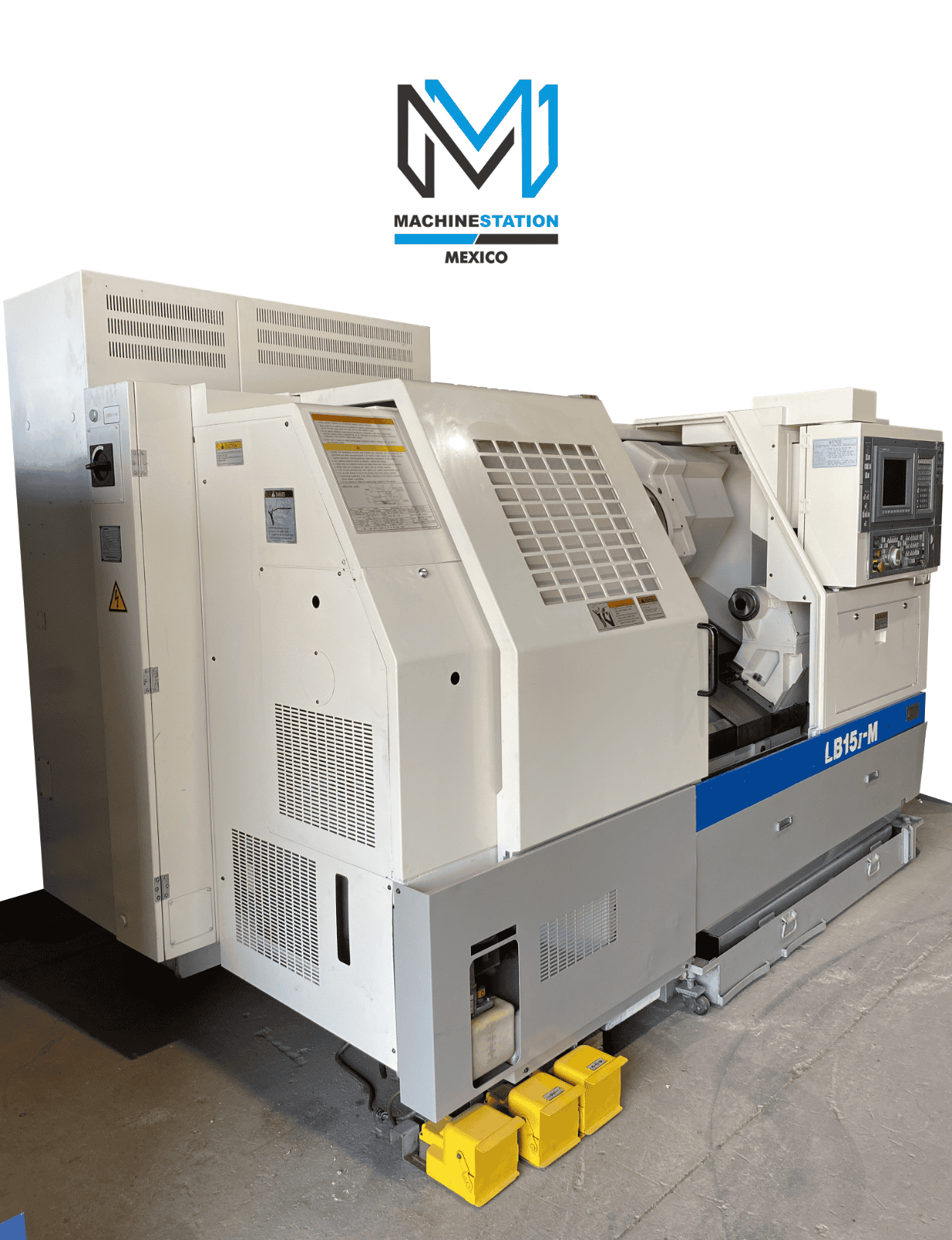

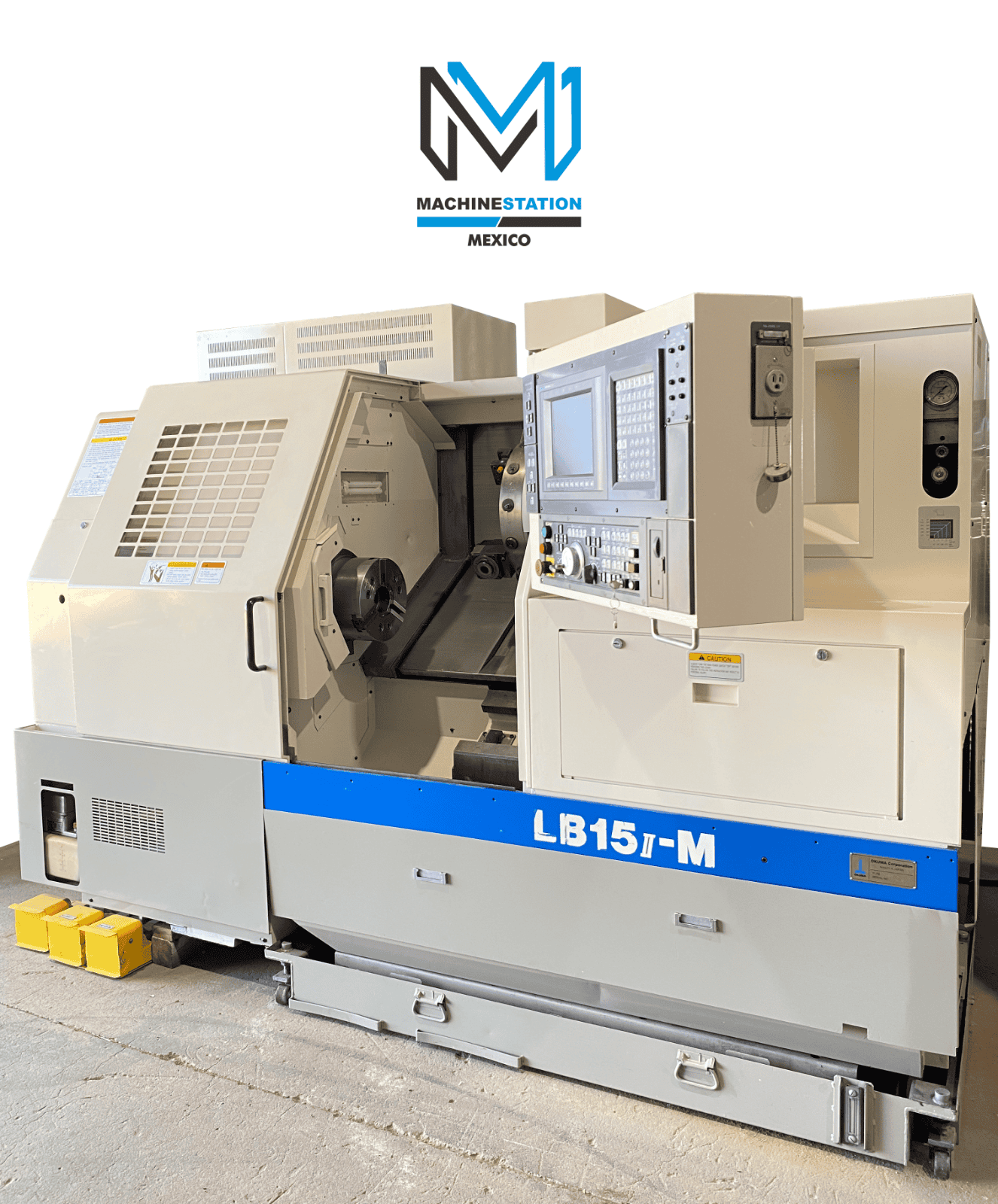

Okuma LB 15II-M CNC Turn Mill Center Lathe

Location Lake Elsinore, CA

SKU 105071

Make Okuma

Model No. LB 15II-M

Serial # 3348

Out of stock

Location	Lake Elsinore, CA
SKU	105071
Make	Okuma
Model No.	LB 15II-M
Serial #	3348

SKU: 105071

All specifications are approximations and are subject to verification.

SKU	105071
Make	Okuma
Model No.	LB 15II-M
Serial #	3348
Year
Condition	Used-Good
Run Time

Features:

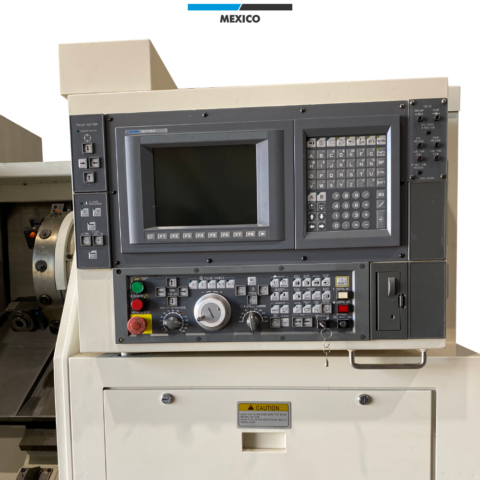

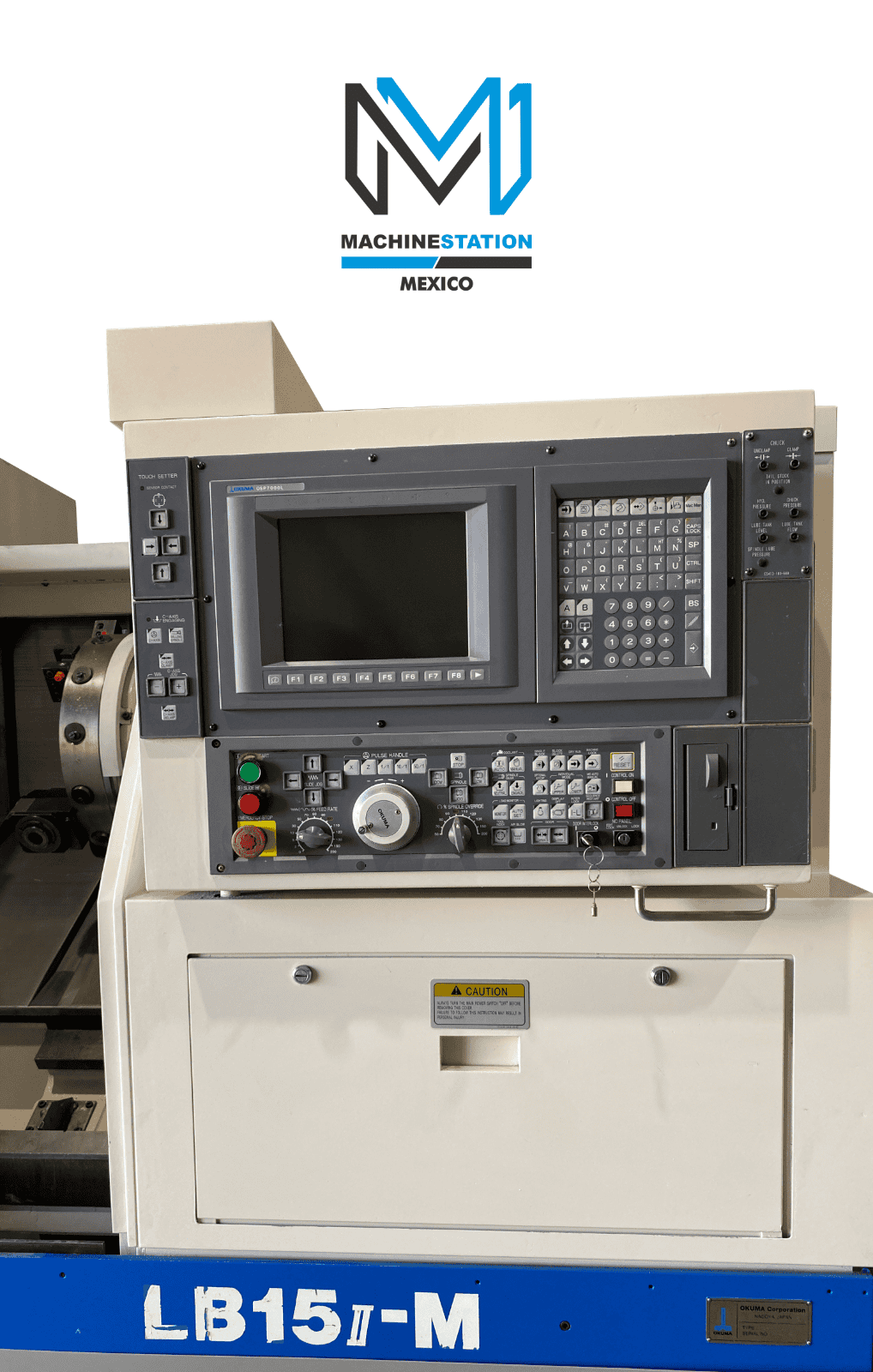

Okuma CNC Control

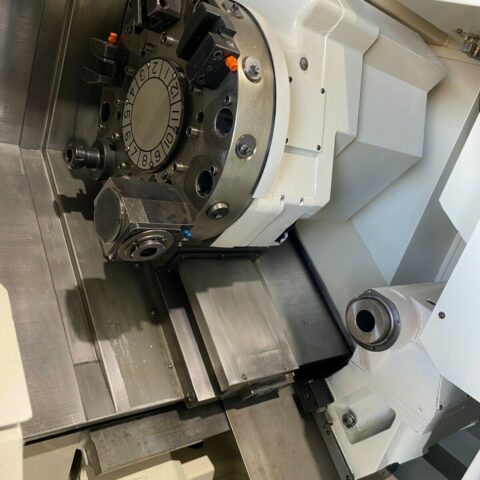

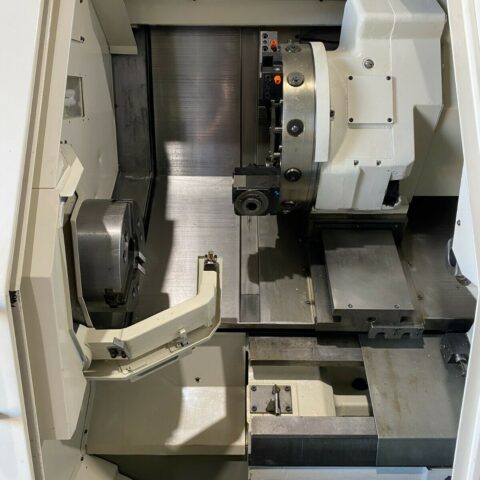

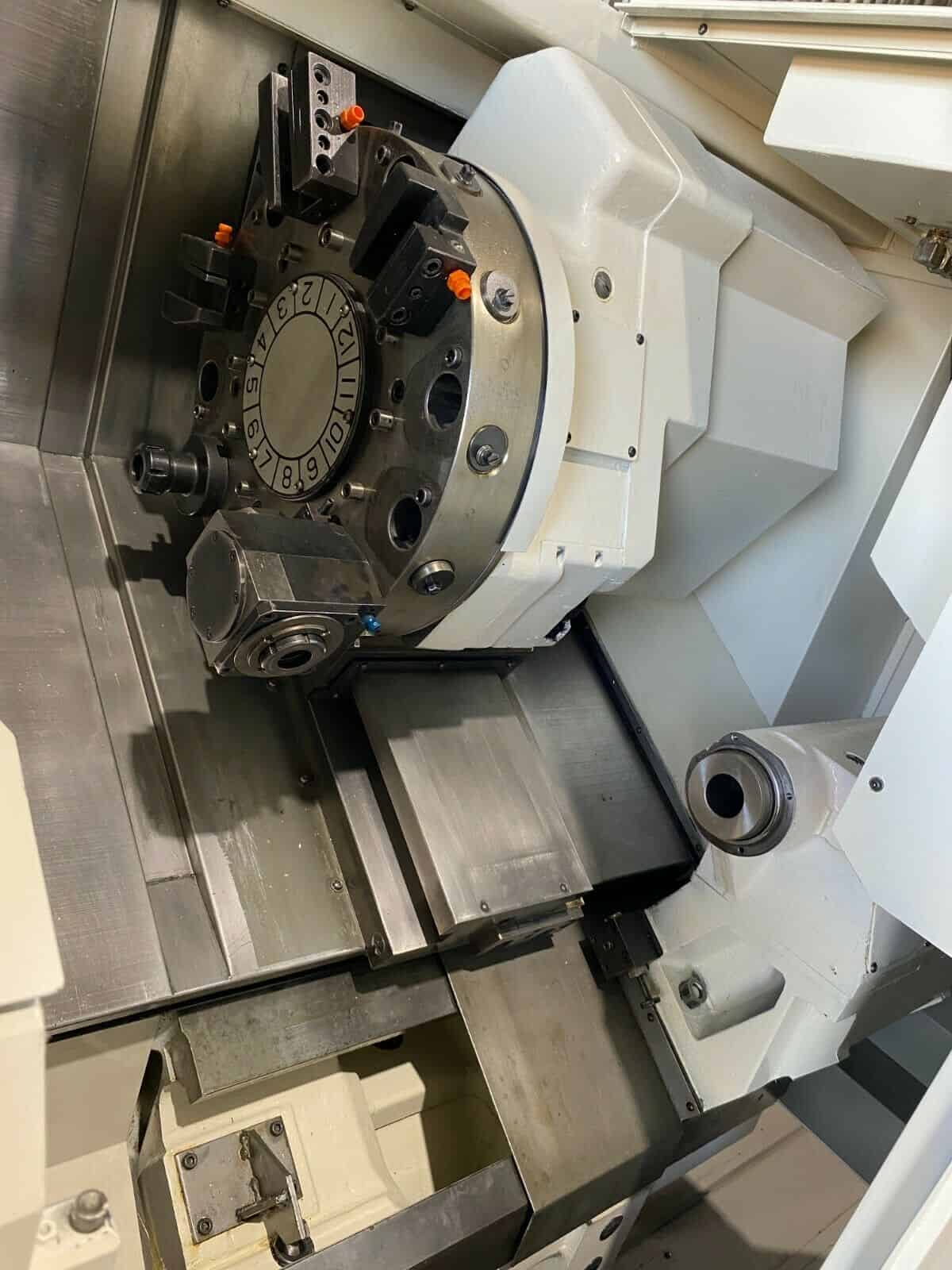

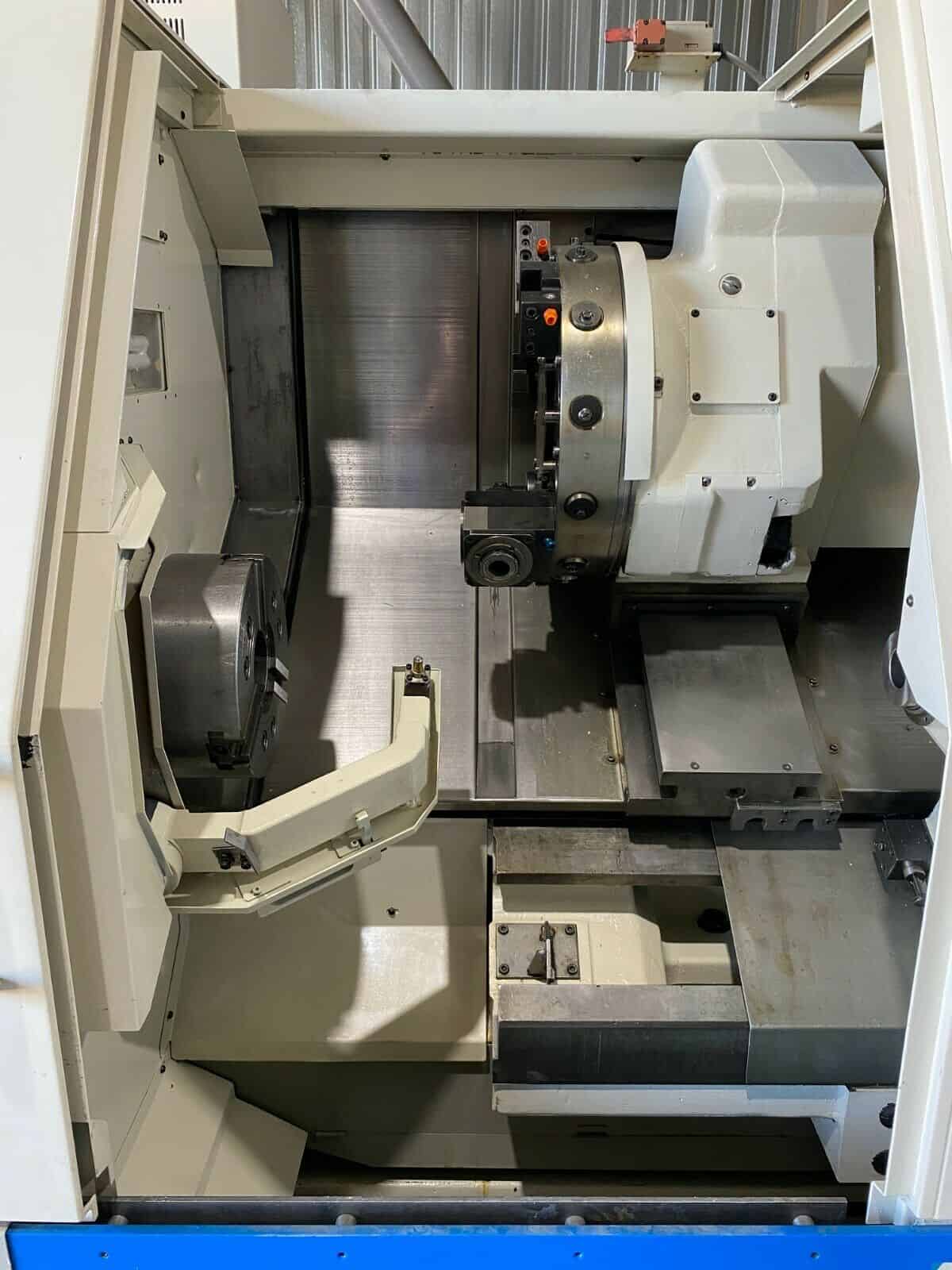

12-Station Turret W/6 Live
C Axis

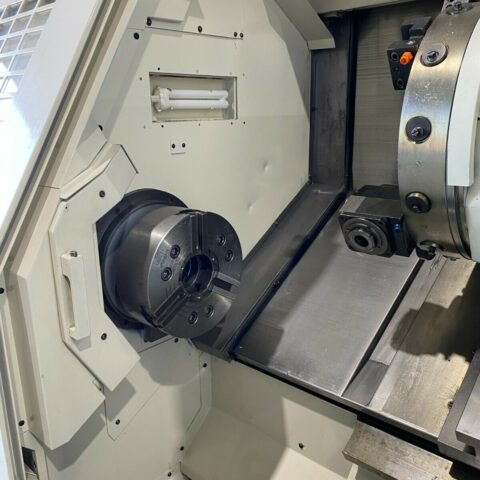

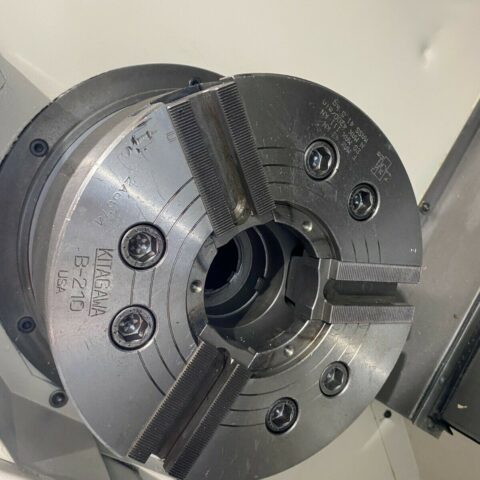

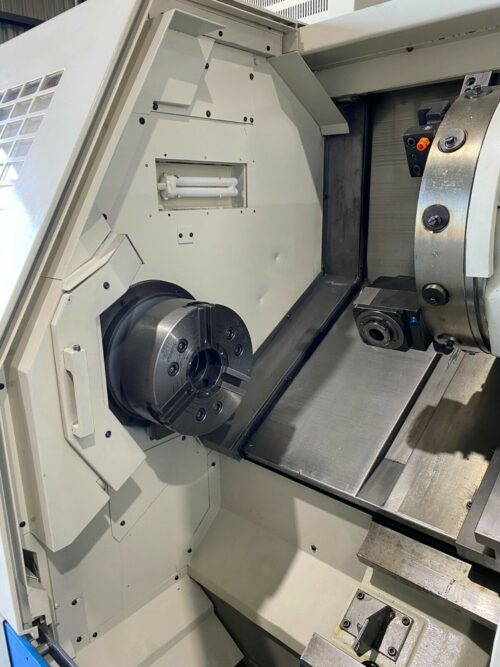

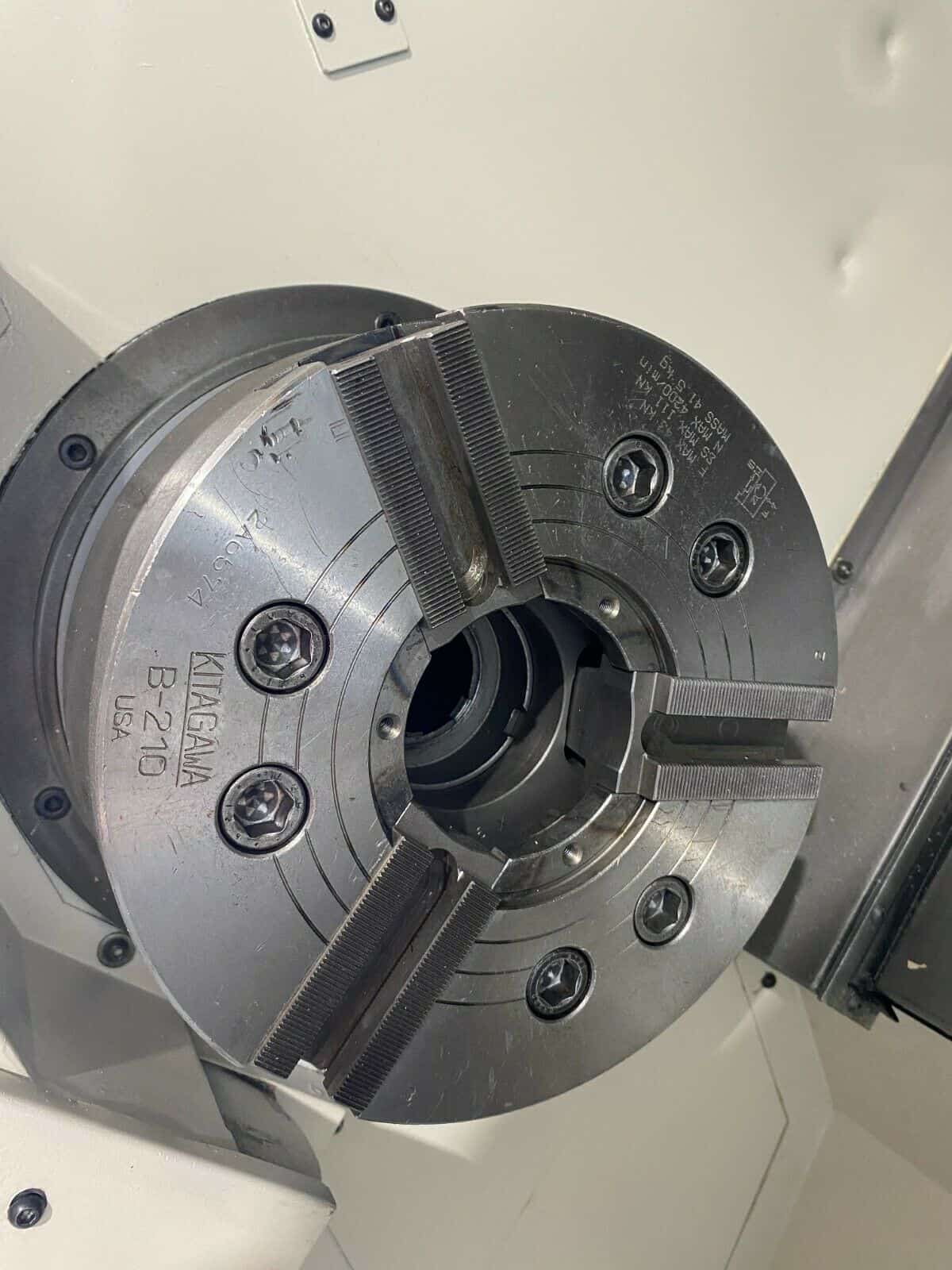

10″ 3 Jaw Hydraulic Chuck
Tool Presetter
2 Step Gear Spindle for Powerful Torque

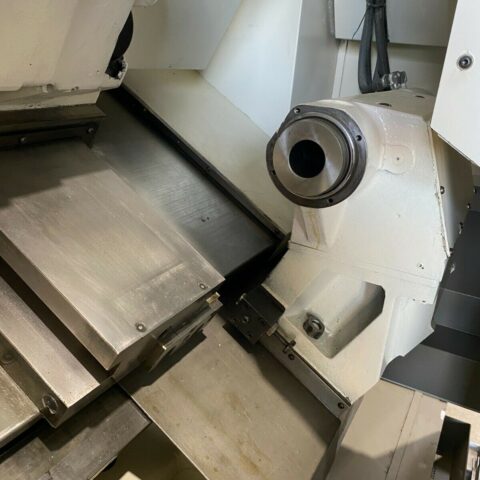

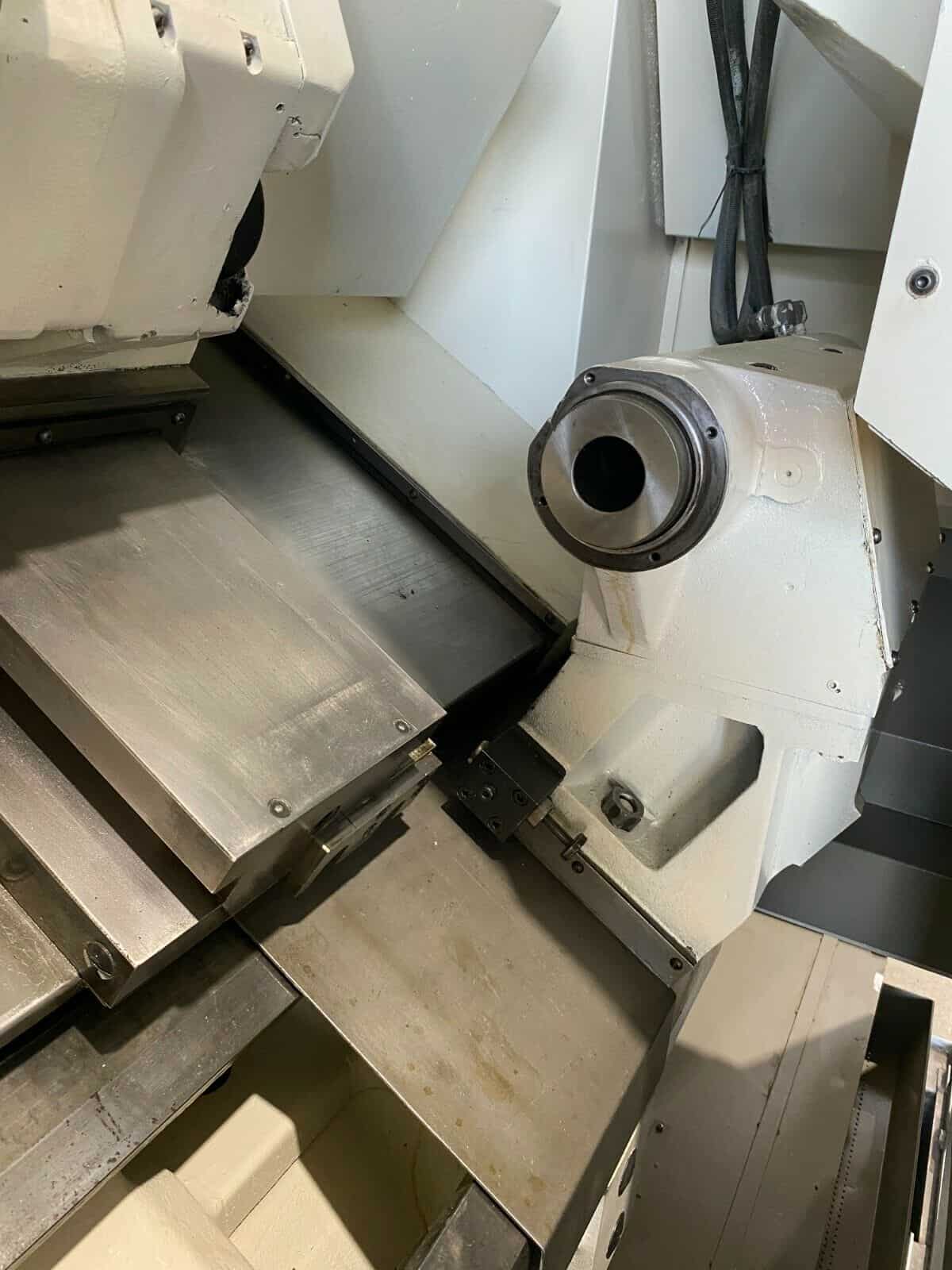

Hydraulic Tailstock with Power Quill
Foot Switch
Chip Pan
Coolant System
Automatic Lubrication system

Specifications:
Max Turning Diameter: 9.84″
Max Turning Length: 19.69″
Max Bar Capacity: 2.12″
Swing Over Bed: 20″
Distance Between Centers: 20.47″

Travel:
X Axis Travel: 5.91″
Z Axis Travel: 20.47″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 787 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.75″
Spindle Speed: 45-3800 RPM
Spindle Motor: 20 HP

Turret:
Turret Capacity: 12 Stations / 6 Live
Turret Index Time: 0.1 Second
Live Tool Speed: 4500 RPM
Live Tool Motor Power: 5 HP

Tailstock:
Tailstock Quill Dia.: 3.54″
Tailstock Quill Stroke: 4.72″
Tailstock Taper: MT-5

General:
Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 42 kva
Overall Dimensions: 120″ x 64″ x 84″ High
Weight : 10,000 lbs Approx.

“No Charges for loading at list Price”MachineStation buys sells trade all kinds of new and used CNC metal cutting & metal forming machines …. Used CNC Machines, CNC lathes, CNC mills, presses, gears, turning centers, horizontal machining centers, vertical machining centers, horizontal lathes, vertical lathes, surface grinders, cylindrical grinders, sheets, fabricating equipment, boring mills, lasers cutting, saws, waterjets, shears, press brakes.We are a one-stop organisation for all your buying and selling needs for pre-owned CNC machinery of over 70 brands. We are the biggest machinery stockist in the US with the largest inventory of certified pre-owned machinery. We have operations in California, Texas, Mexico and India.

Specifications:
Max Turning Diameter: 250 mm
Max Turning Length: 500 mm
Max Bar Capacity: 54 mm
Swing Over Bed: 508 mm
Distance Between Centers: 520 mm

Travel:
X Axis Travel: 150 mm
Z Axis Travel: 520 mm
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 787 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 70 mm
Spindle Speed: 45-3800 RPM
Spindle Motor: 20 HP

Turret:
Turret Capacity: 12 Stations / 6 Live
Turret Index Time: 0.1 Second
Live Tool Speed: 4500 RPM
Live Tool Motor Power: 5 HP

Tailstock:
Tailstock Quill Dia.: 90 mm
Tailstock Quill Stroke: 120 mm
Tailstock Taper: MT-5

General:
Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 42 kva
Overall Dimensions: 3,048 mm x 1,626 mm x 2,134 mm High
Weight : 10,000 lbs Approx.

Make	Okuma

Okuma CNC Control
12-Station Turret W/6 Live
C Axis
254 mm 3 Jaw Hydraulic Chuck
Tool Presetter
2 Step Gear Spindle for Powerful Torque
Hydraulic Tailstock with Power Quill
Foot Switch
Chip Pan
Coolant System
Automatic Lubrication system
