*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Okuma |
| Model No.: | LB3000EX-MC500 |
| Year of Manufacture: | 2011 |
| Machine Type: | CNC Multi-Tasking Turning Center |
| Control: | Okuma OSP CNC Control |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| Live Tooling |
| Y-Axis Capability |
| Sub Spindle |
| C-Axis Spindle Control |

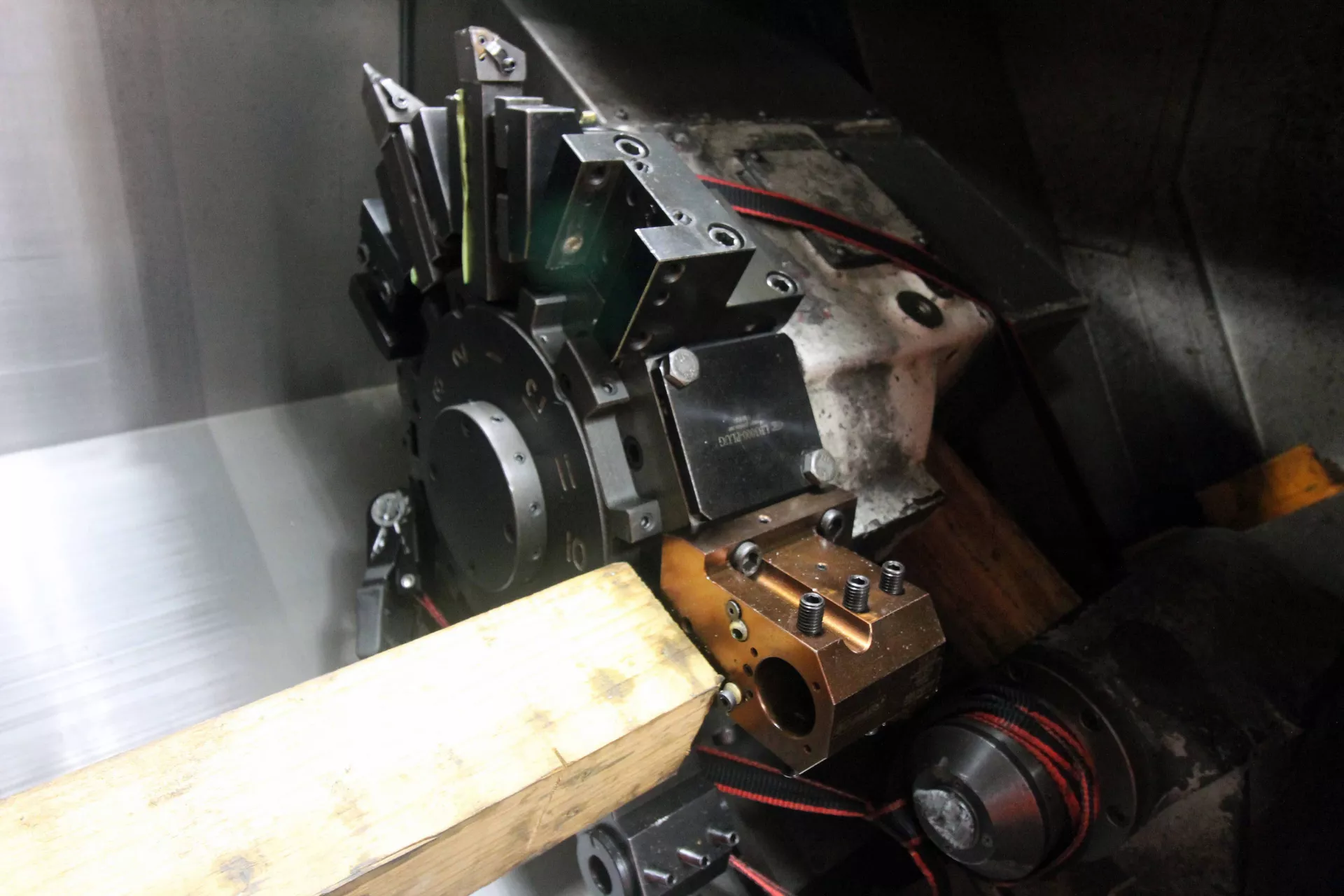

| 12-Station Turret |
| Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Capacity: |
|---|
| Max Turning Diameter: 16.93″ |
| Max Turning Length: 20″ (500 mm) |
| Bar Capacity: 3″ |
| Travels: |
|---|
| X-Axis Travel: 10.24″ |
| Y-Axis Travel: ±2″ |
| Z-Axis Travel: 20.08″ |
| Spindle: |
|---|
| Main Spindle Speed: 4,200 RPM |
| Sub Spindle Speed: 4,200 RPM |
| Spindle Motor: 30 HP |
| Spindle Nose: A2-6 |
| Spindle Bore: 3.15″ |
| Tooling: |
|---|
| Turret Capacity: 12 Stations |
| Live Tooling Positions: Yes |
| Feed Rates: |
|---|
| Rapid Traverse (X): 787 IPM |
| Rapid Traverse (Y): 472 IPM |
| Rapid Traverse (Z): 945 IPM |
| General: |
|---|
| Power Source: AC 220/440 V, 3-Phase, 50/60 Hz |
| Machine Dimensions (L x W x H): 115″ x 80″ x 85″ |
| Machine Weight: 12,000 lbs Approx. |
