Okuma LB45III-C/3000 CNC Lathe

SKU 11715

Make/Model Okuma LB45III-C/3000

Year 2014

Video On Request

Out of stock

SKU:	11715
Make/Model:	Okuma LB45III-C/3000
Year:	2014
Video:	On Request

SKU: 11715

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Okuma
Model:	LB45III-C/3000
Year:	2014

Equipped With:

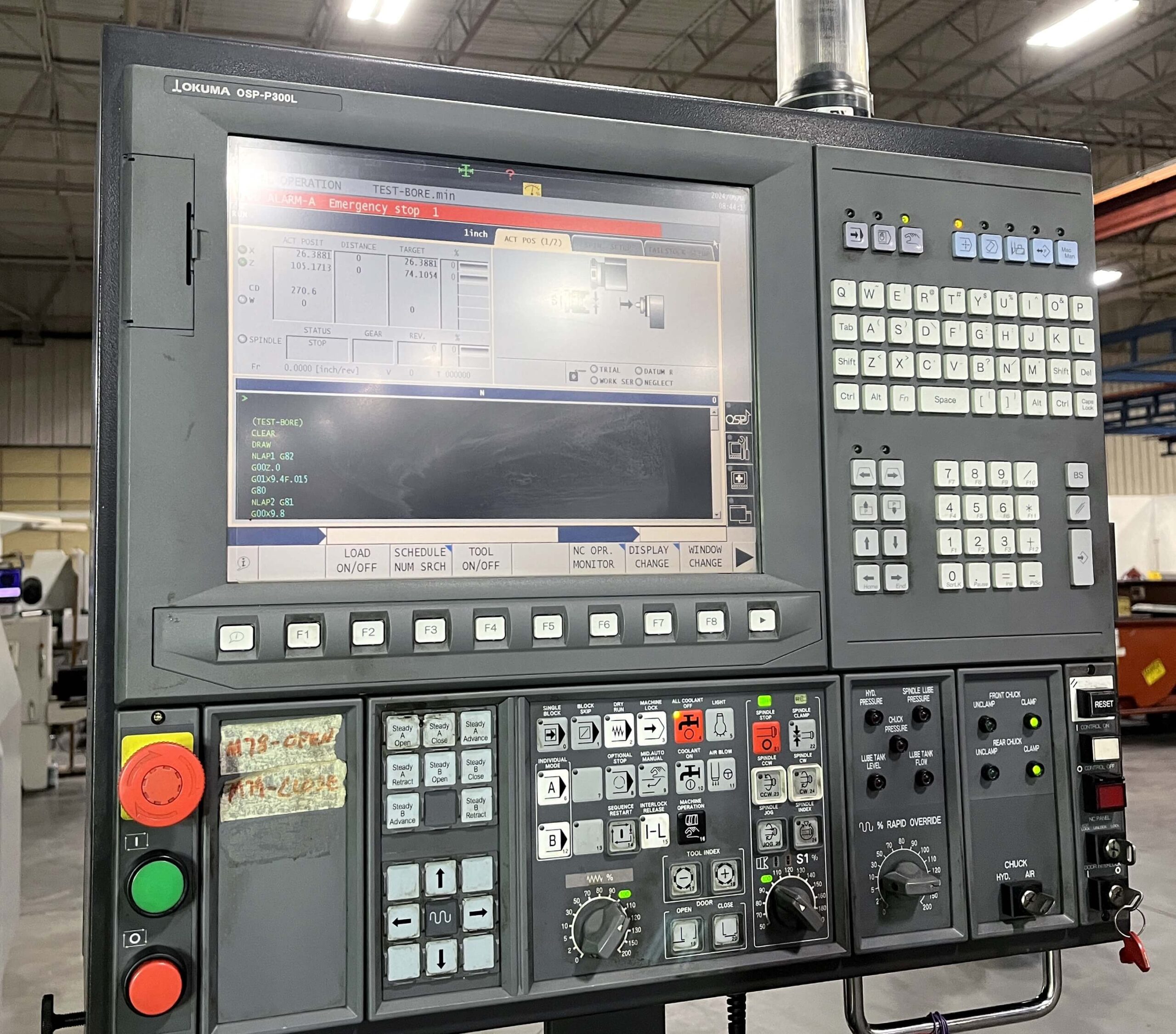

Okuma OSP-P300L CNC Control
10.1″ Spindle Bore
19″ Hydraulic 3-Jaw Chuck
120″ Between Centers
12-Station Turret
Programmable Hydraulic Tailstock
Spindle Orientation
Renishaw Tool Setter / Probe
Spindle Chiller
Prepared for Programmable Steady Rest
Chip Conveyor
Automatic Lubrication System
Hydraulic Chuck
Fully Enclosed Splash Guard
Work Light

Capacity:
Swing Over Bed: 35″
Distance Between Centers: 120″
Chuck Size: 19″
Spindle Bore: 10.1″

Travels:
X-Axis Travel: Approx. 16″
Z-Axis Travel: Approx. 122″
Rapid Traverse (X-Axis): Approx. 787 IPM
Rapid Traverse (Z-Axis): Approx. 787 IPM

Spindle:
Spindle Speed: 1,000 RPM
Spindle Motor: 60 HP
Spindle Orientation: Yes

Turret:
Turret Capacity: 12 Stations
Turret Type: Servo Indexing

Tailstock:
Tailstock Type: Programmable Hydraulic

General:

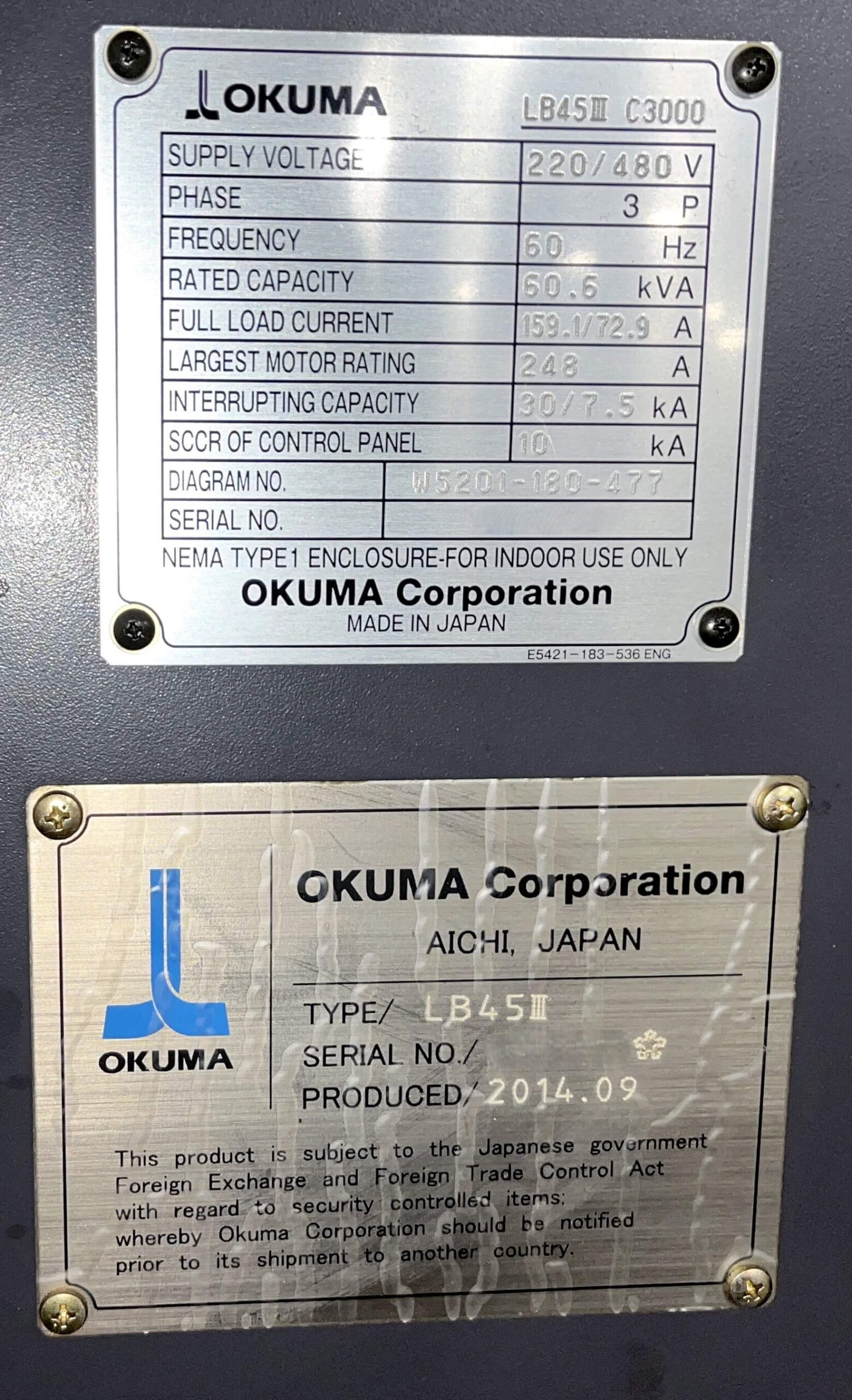

Power Requirement: 220/480 V / 3 Phase / 60 Hz
Rated Capacity: 60.5 kVA
Machine Dimensions (Approx.): 275″ × 95″ × 95″
Machine Weight (Approx.): 27,500 lbs

Equipped With:
Okuma OSP-P300L CNC Control
257 mm Spindle Bore
483 mm Hydraulic 3-Jaw Chuck
3,048 mm Between Centers
12-Station Turret
Programmable Hydraulic Tailstock
Spindle Orientation
Renishaw Tool Setter / Probe
Spindle Chiller
Prepared for Programmable Steady Rest
Chip Conveyor
Automatic Lubrication System
Hydraulic Chuck
Fully Enclosed Splash Guard
Work Light

Capacity:
Swing Over Bed: 889 mm
Distance Between Centers: 3,048 mm
Chuck Size: 483 mm
Spindle Bore: 257 mm

Travels:
X-Axis Travel: Approx. 406 mm
Z-Axis Travel: Approx. 3,099 mm
Rapid Traverse (X-Axis): Approx. 787 IPM
Rapid Traverse (Z-Axis): Approx. 787 IPM

Spindle:
Spindle Speed: 1,000 RPM
Spindle Motor: 60 HP
Spindle Orientation: Yes

Turret:
Turret Capacity: 12 Stations
Turret Type: Servo Indexing

Tailstock:
Tailstock Type: Programmable Hydraulic

General:
Power Requirement: 220/480 V / 3 Phase / 60 Hz
Rated Capacity: 60.5 kVA
Machine Dimensions (Approx.): 6,985 mm × 2,413 mm × 2,413 mm
Machine Weight (Approx.): 27,500 lbs

Categories	CNC Lathes & Turning Centers
Make	Okuma
Model	LB45III-C/3000

Payment Terms

A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
