*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU | 105931 |
| Make | Okuma |

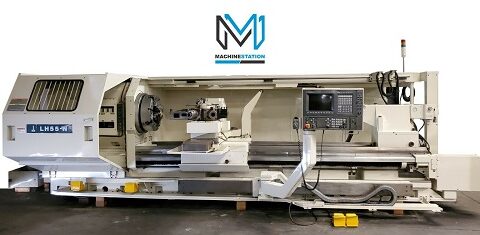

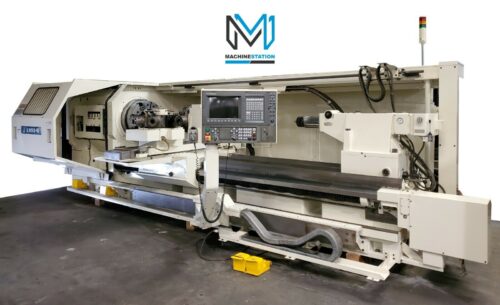

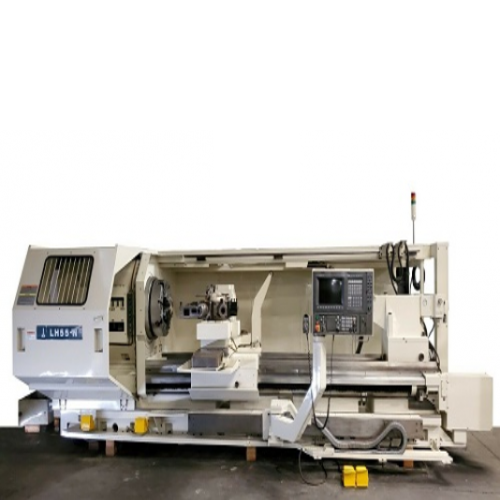

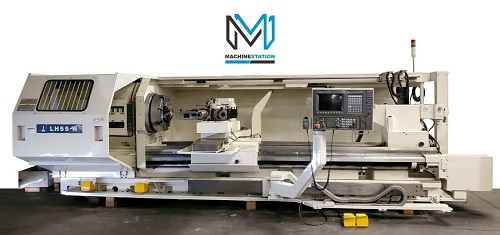

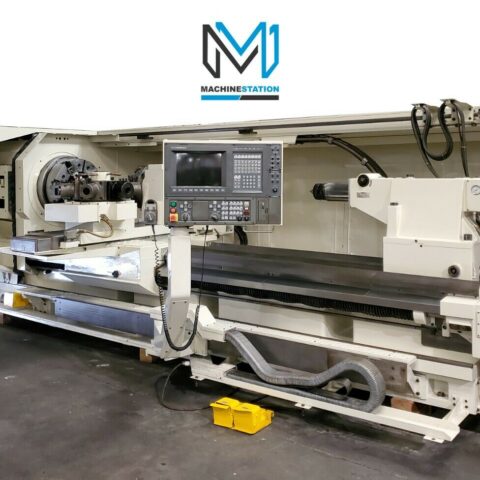

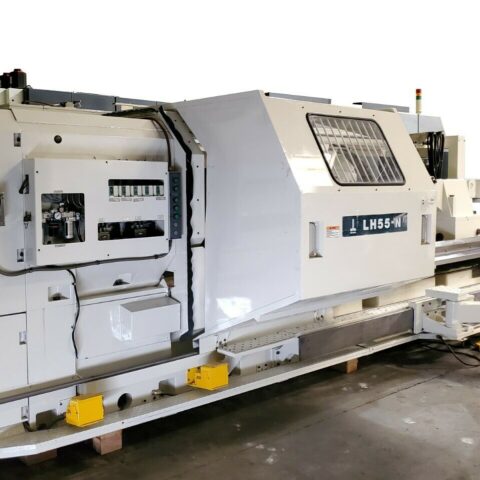

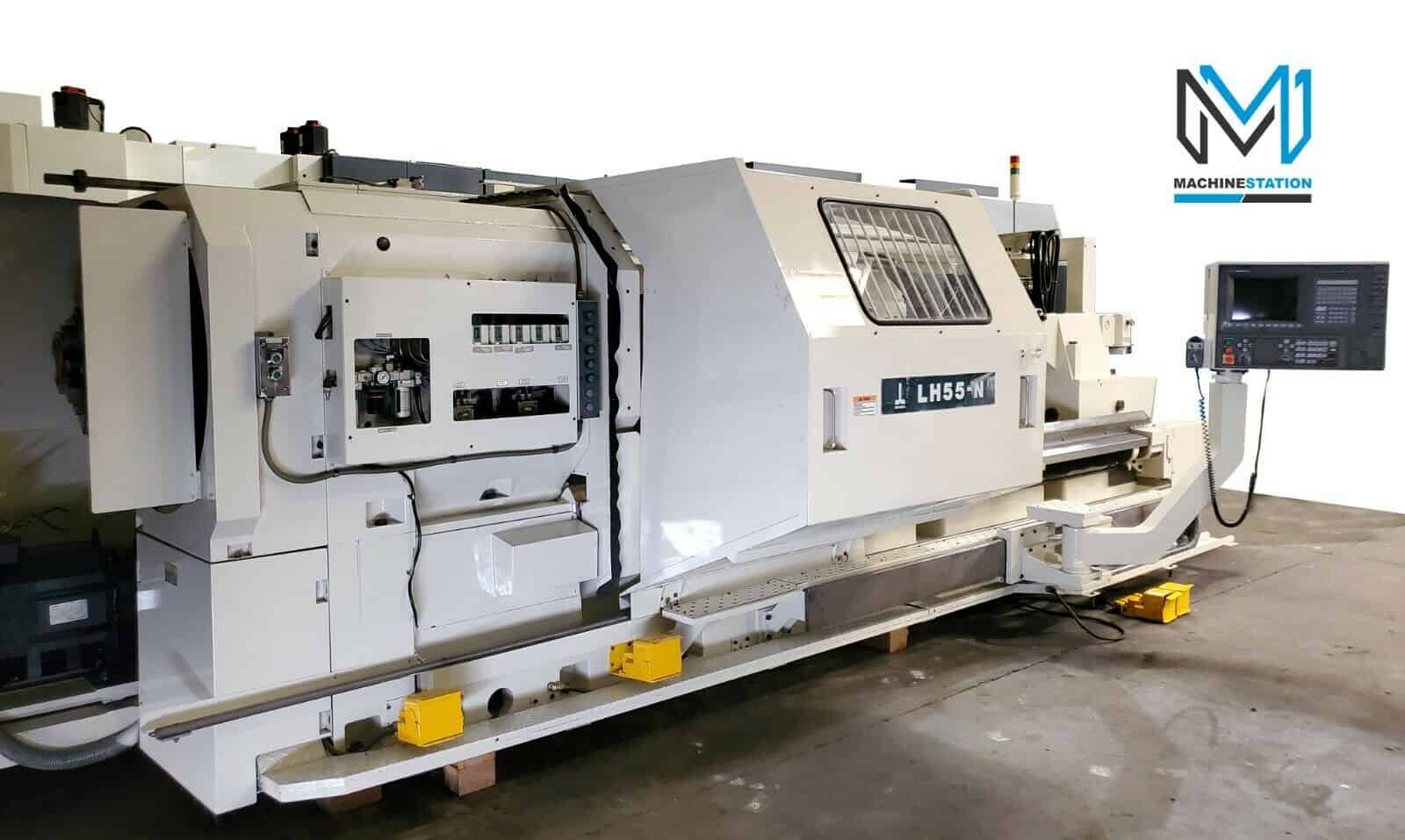

| Model No. | LH-55N |
| Year | 2004 |
| Condition | Used – Good |
| Equipped With: |
|---|
| A2-20 12.9″ Bore Gear Head Spindle |

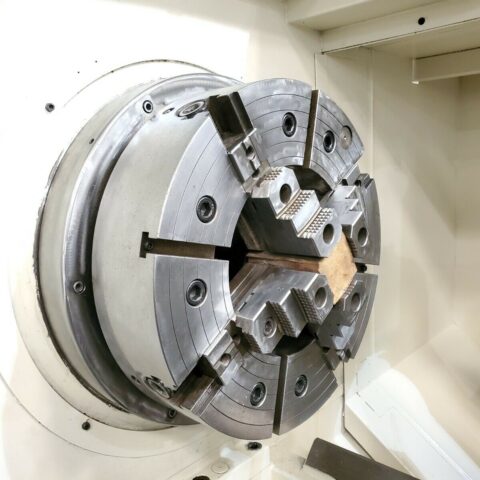

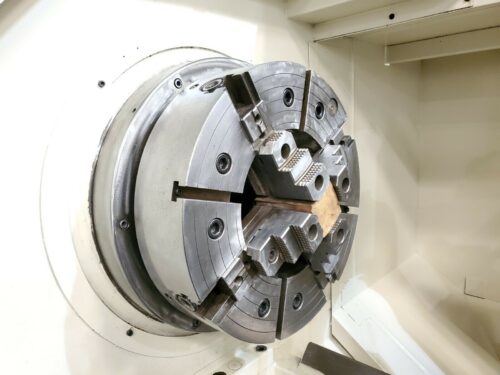

| Nobel 24″ Front & Back Big Bore Chucks |

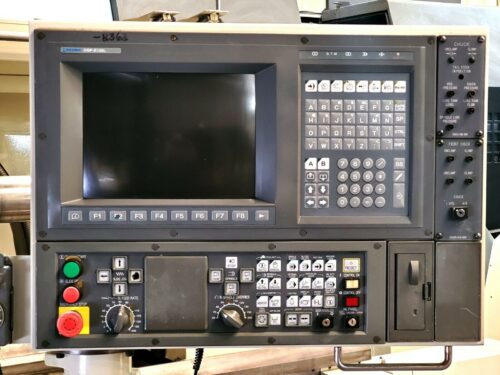

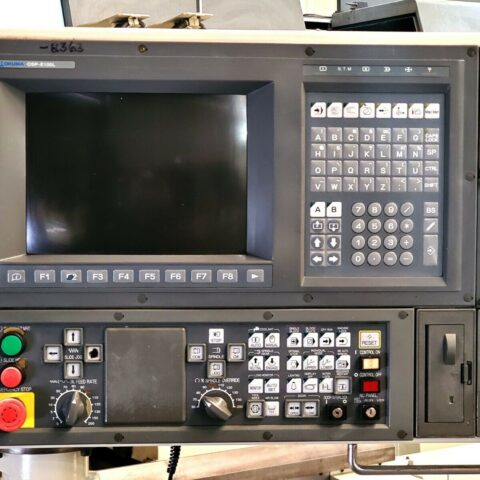

| OSP-E100L CNC Control |
| One Touch IGF Programming |
| MPG Control |
| Floppy Drive |

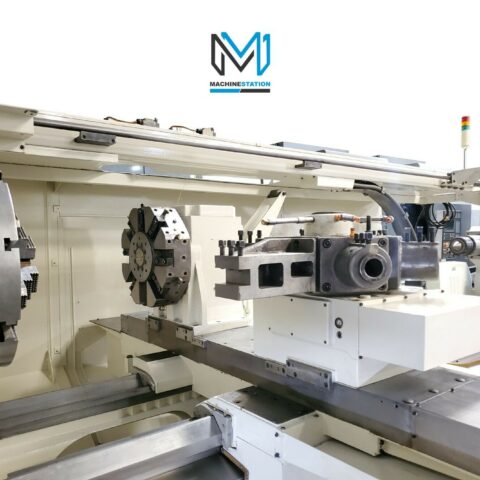

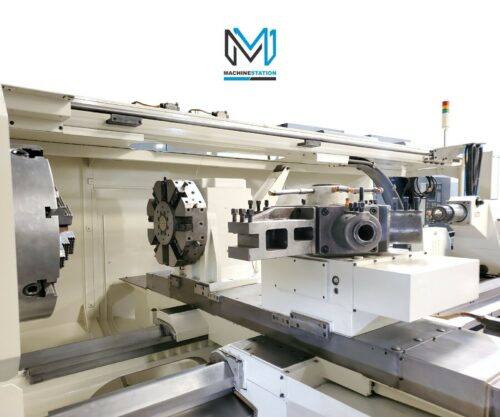

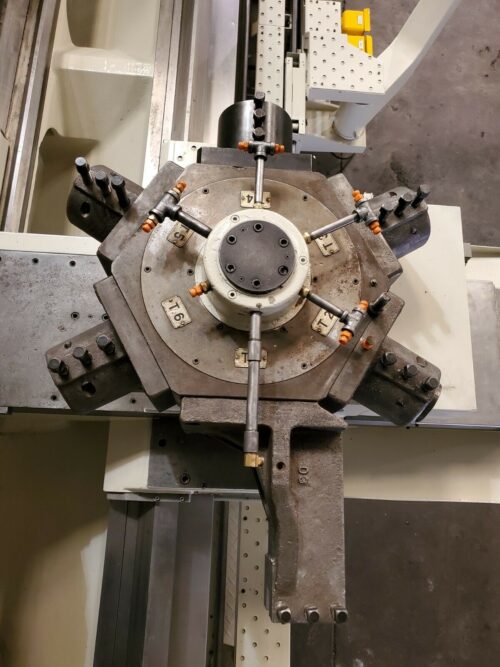

| 6 & 8 Station Dual Turrets |

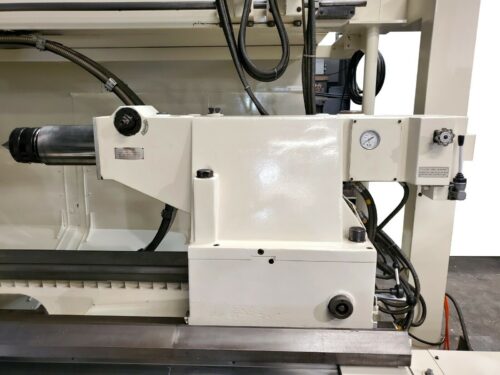

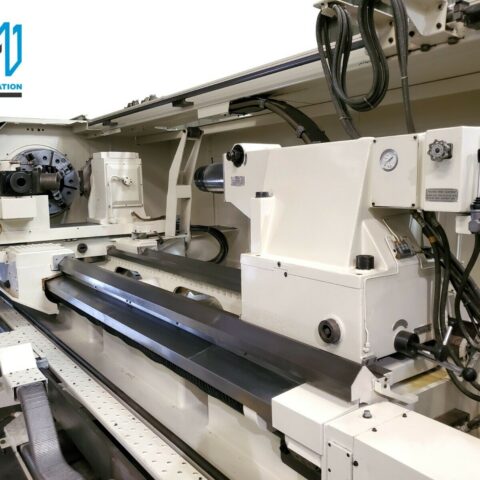

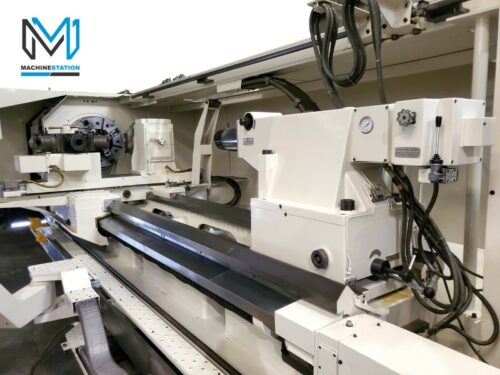

| Hydraulic Tailstock with Power Quill |
| Coolant System |
| Foot Operated Control for Chuck and Tailstock |
| Specifications: |
|---|
| Max Turning Diameter: 22.17″ |
| Max Turning Length: 119.21″ |
| Max Bar Capacity: 12.99″ |
| Swing Over Carriage: 19.78″ |
| Swing Over Slide: 26.97″ |
| Swing Over Bed: 43.30″ |
| Distance Between Centers: 120.4″ |
| Travel: |
|---|
| X Axis Travel: 26.57″ |
| Z Axis Travel: 119.30″ |
| Rapid Traverse X Axis: 360 IPM |
| Rapid Traverse Z Axis: 394 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-20 |
| Spindle Bore: 14.6″ |
| Spindle Speed: 500 RPM |

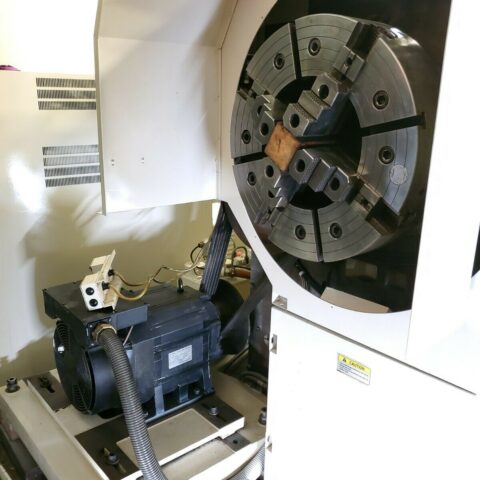

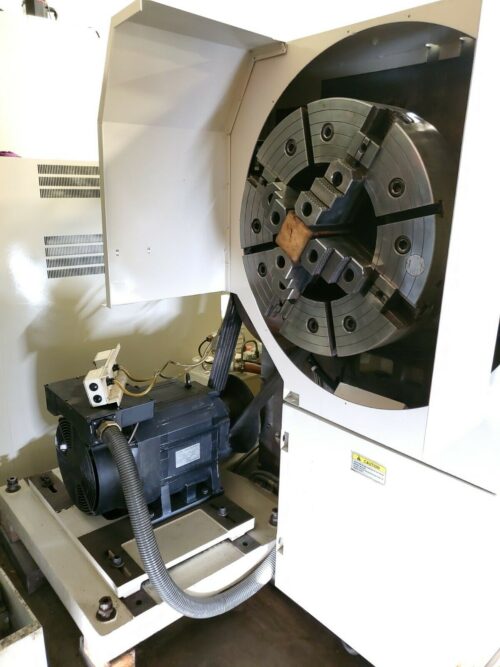

| Spindle Motor: 60 HP |
| Turret: |
|---|
| Vertical Turret Capacity: 8 Stations |

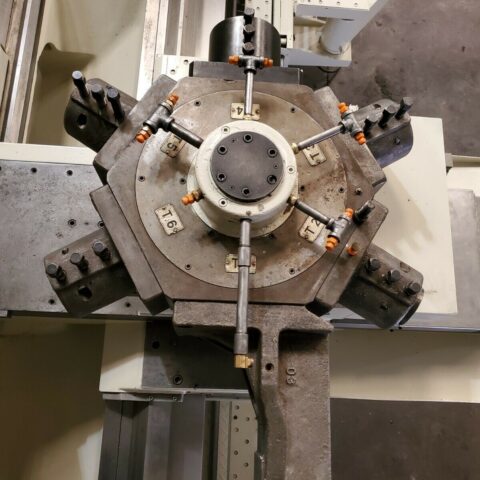

| Horizontal Turret Capacity: 6 Stations |

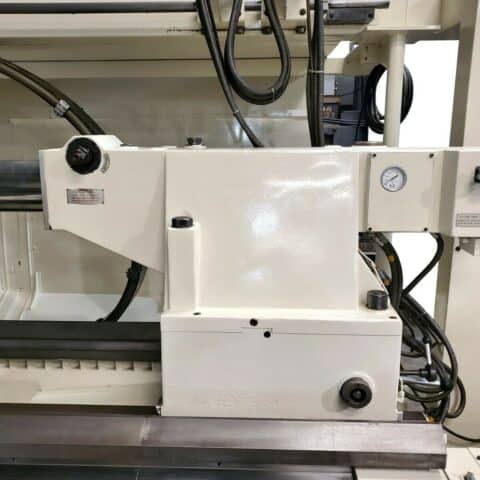

| Tailstock: |
|---|
| Tailstock Body Travel: 114.3″ |
| Tailstock Quill Dia.: 5.94″ |
| Tailstock Quill Stroke: 7.72″ |
| Tailstock Taper: MT-6 |
| General: |
|---|
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 42 kva |
| Overall Dimensions: 320″ x 86″ x 80″ High with Chip Conveyor |
| Weight : 29,500 lbs Approx. |
