*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

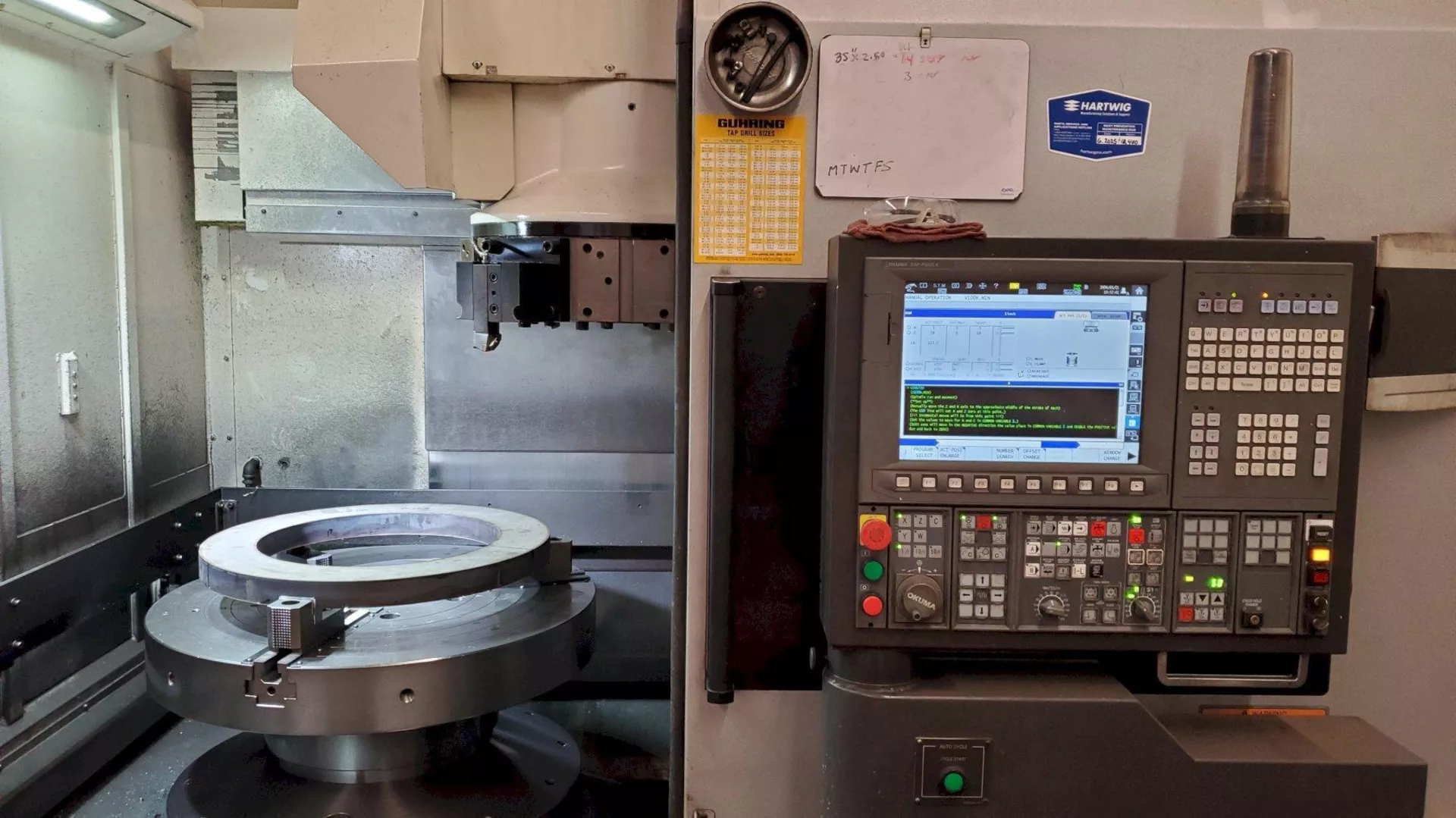

| Make: | Okuma |
| Model No.: | V100R |
| Year of Manufacture: | 2017 |
| Machine Type: | CNC Vertical Turning Center (VTL) |
| Control: | OSP-P200L CNC Control |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| OSP-P200L CNC Control |

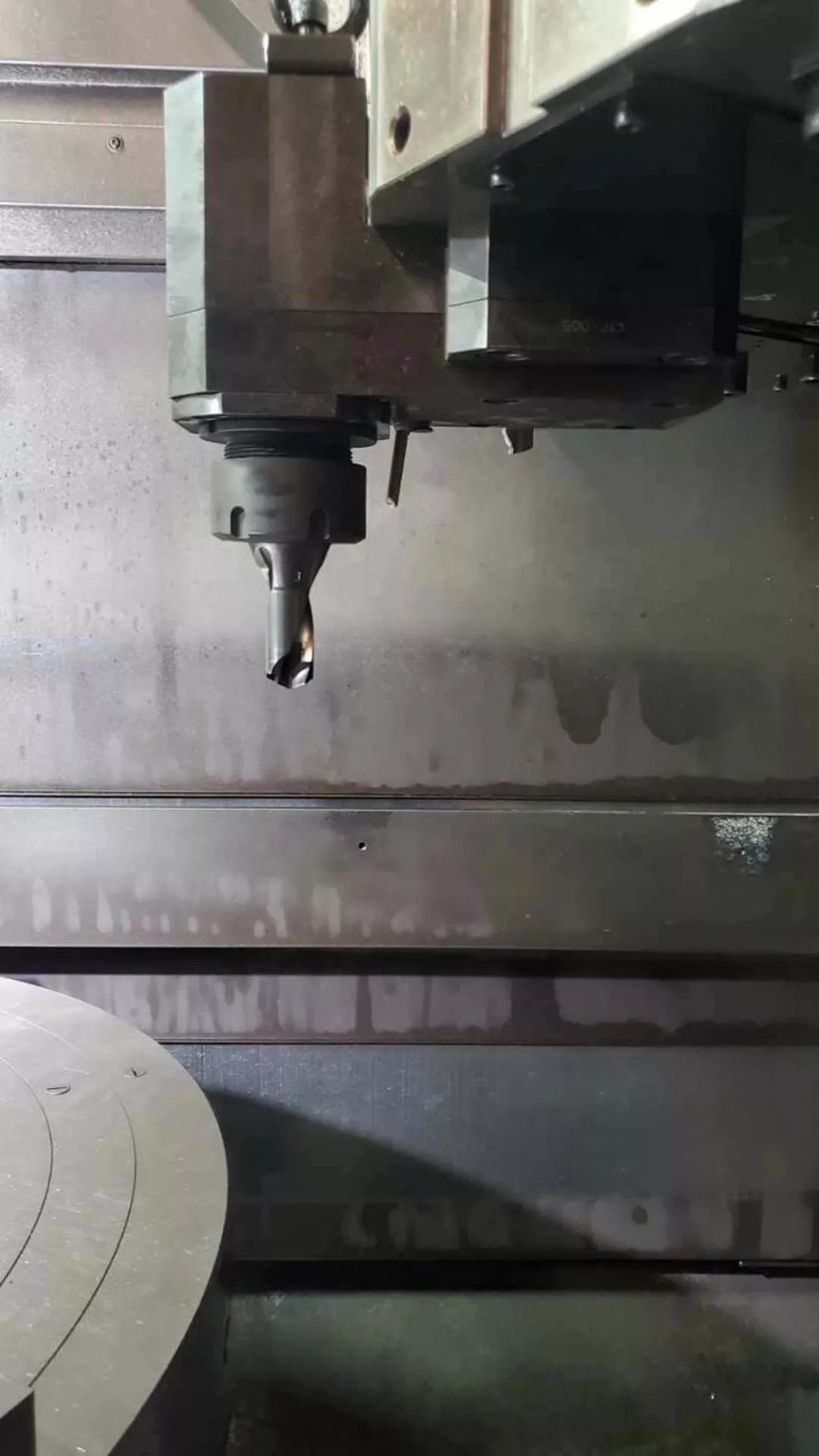

| 12-Position Turret with Live Tooling |
| Heavy-Duty 36″ Chuck |
| High Torque Spindle |
| Full Enclosure |
| Coolant System |
| Capacity: |
|---|
| Max Swing Over Bed: 49.21″ |
| Max Turning Diameter: 39.37″ |
| Max Turning Height: 35″ |
| Chuck Size: 36″ |
| Max Part Weight: 2,640 lbs |
| Travels: |
|---|
| X-Axis Travel: 22.24″ |
| Z-Axis Travel: 35.04″ |
| Feed Rates: |
|---|
| X-Axis Rapid Traverse: 945 IPM |
| Z-Axis Rapid Traverse: 945 IPM |
| Spindle: |
|---|
| Spindle Speed Range: 13 – 750 RPM |
| Spindle Motor: 60 HP |
| Spindle Center Height (from Floor): 46.1″ |
| Tooling: |
|---|
| Number of Turrets: 1 |
| Turret Positions: 12 (with Live Tooling) |
| General: |
|---|
| Power Supply: 220/480V / 3 Phase / 60 Hz |
| Machine Dimensions: 108″ x 140″ |
| Machine Height: 135″ |
| Machine Weight: 30,000 lbs |
| Cutting Hours: 3,181 hrs |
