*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Olympia |
| Model: |
V60 LS |
| Condition: |
Used – Good |
| Equipped With: |

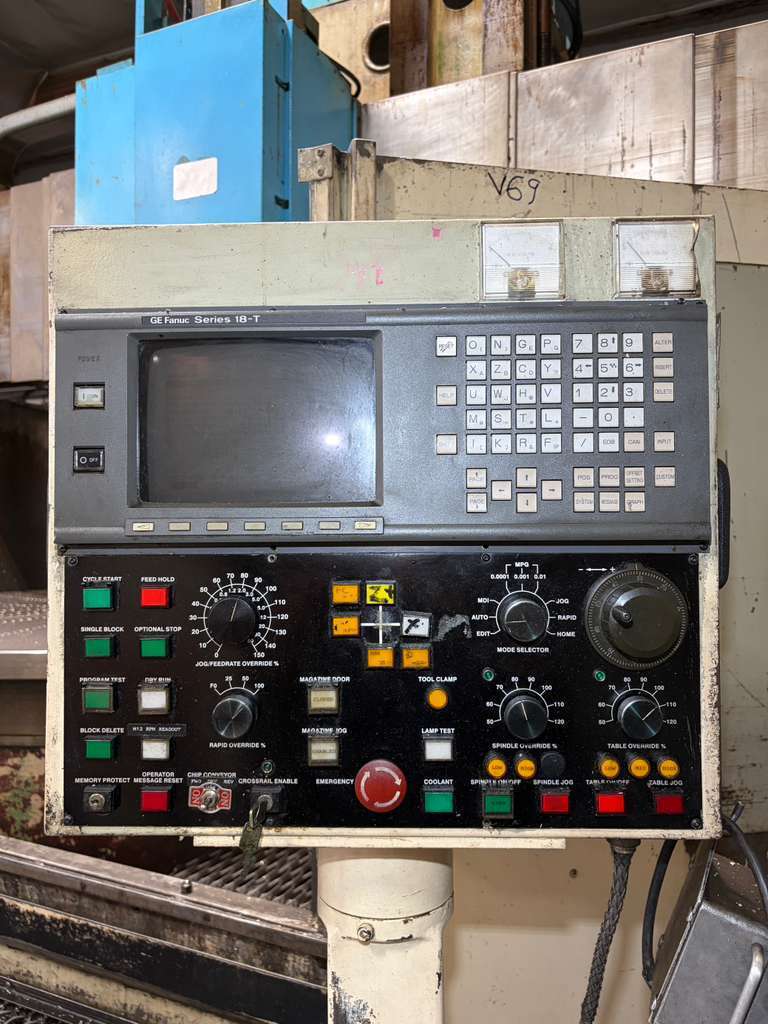

| Fanuc 18T CNC Control |
| 60″ 4-Jaw Chuck |
| 72″ Faceplate Mounted on Chuck |

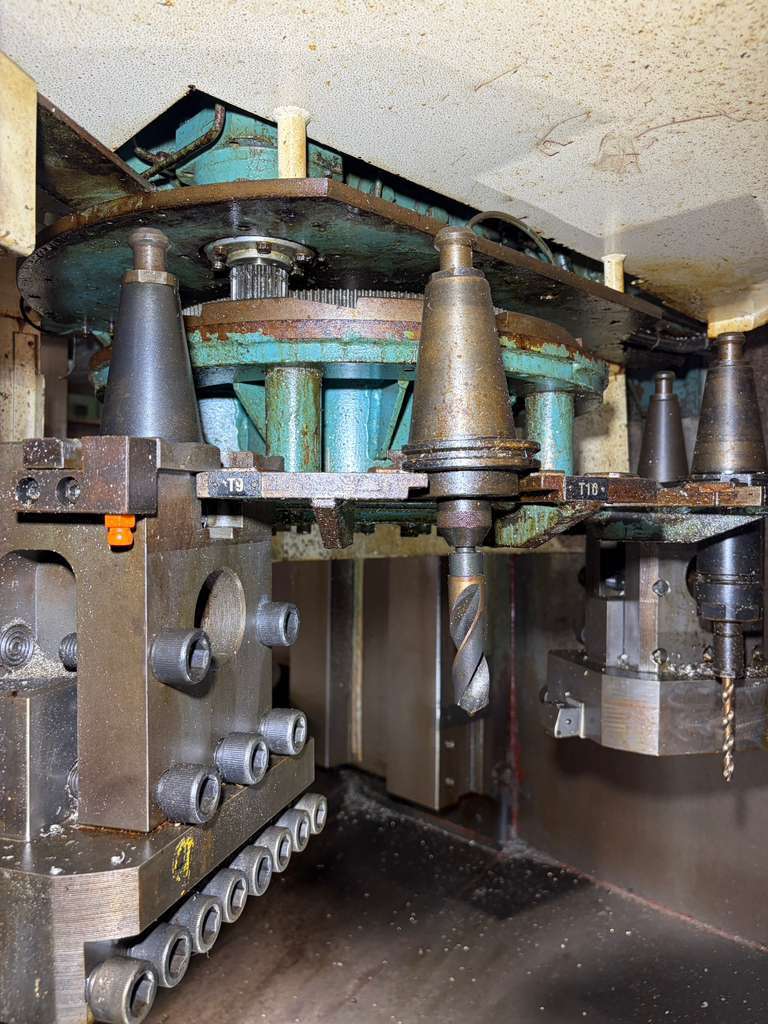

| 12-Station Automatic Tool Changer (6+6 Live Tool) |
| C Axis Live Tool |
| CAT-50 Taper Milling Spindle |
| Heavy Table Load Capacities |
| Coolant Tank |

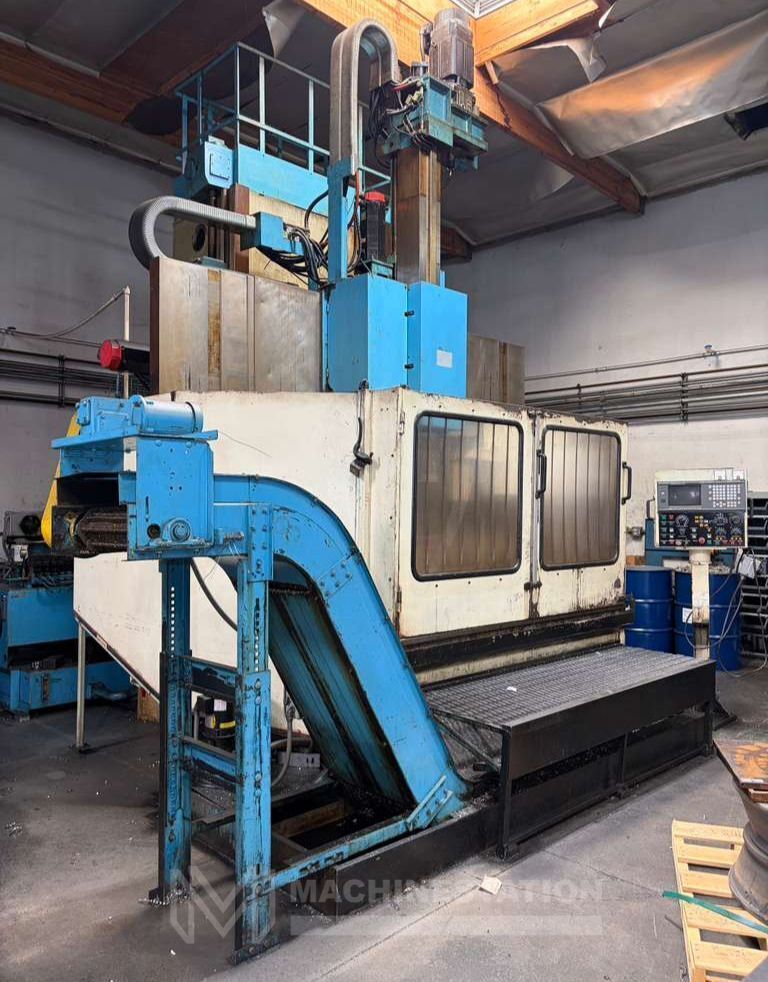

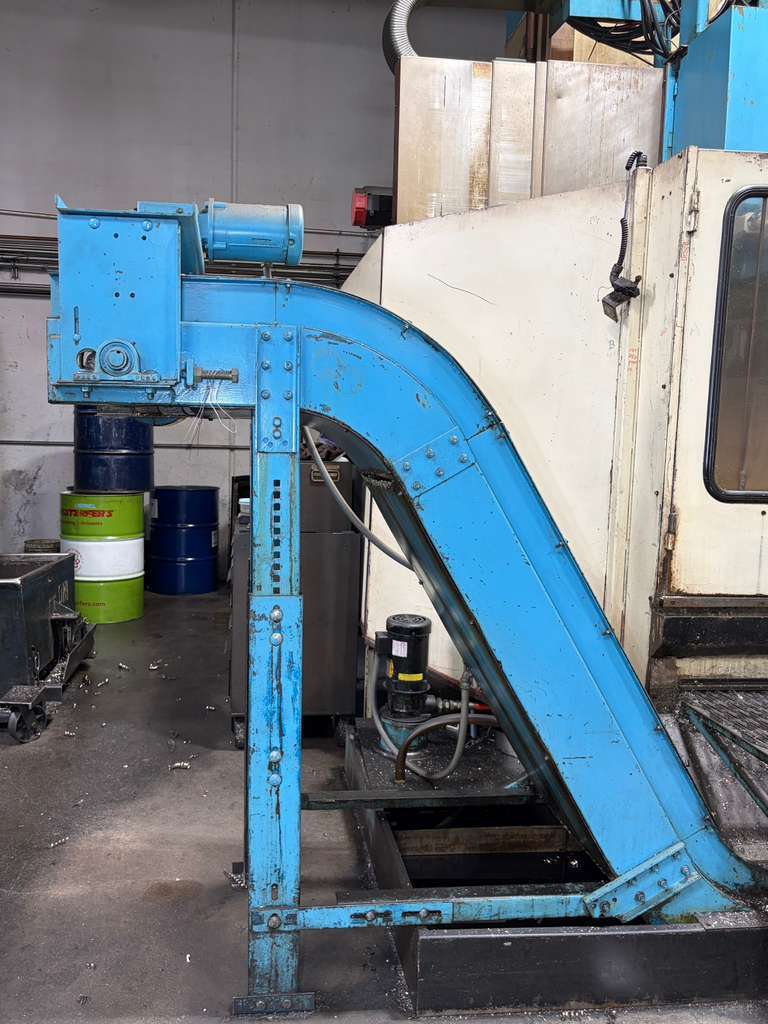

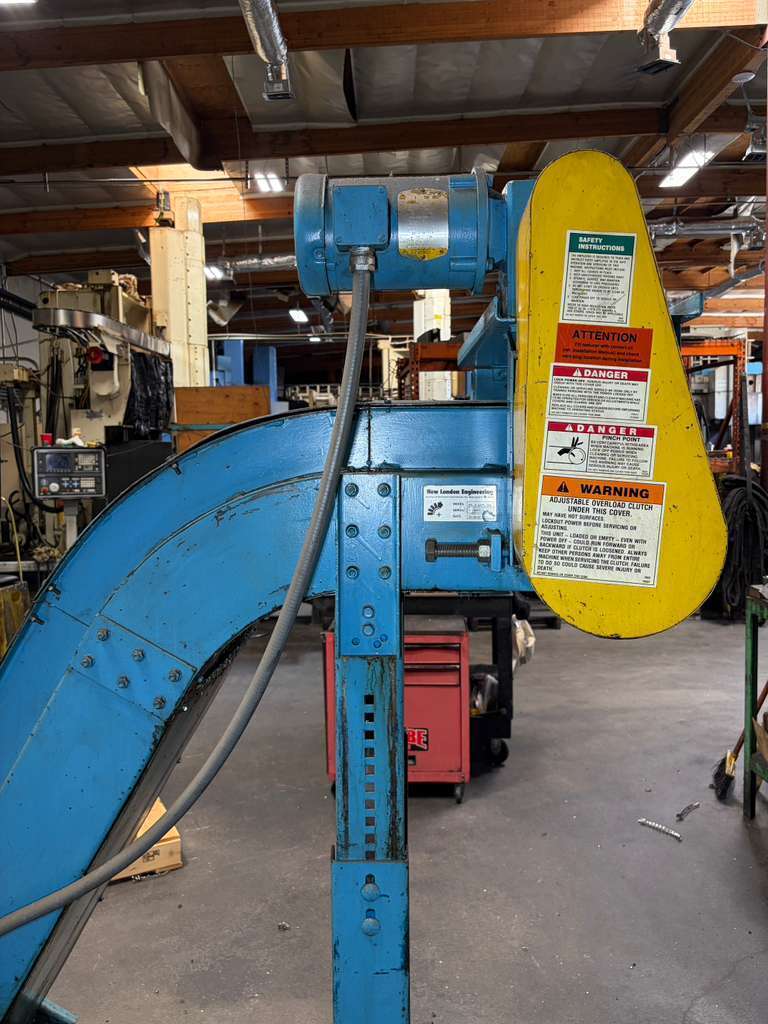

| Chip Conveyor |
| Table / Worpiece: |

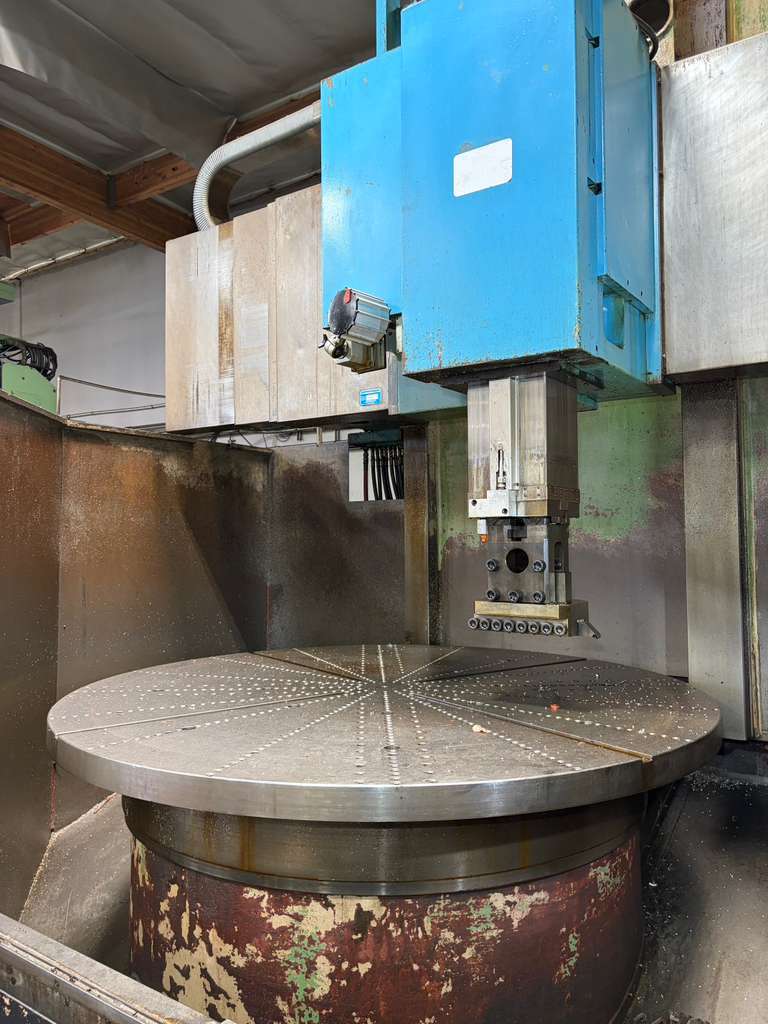

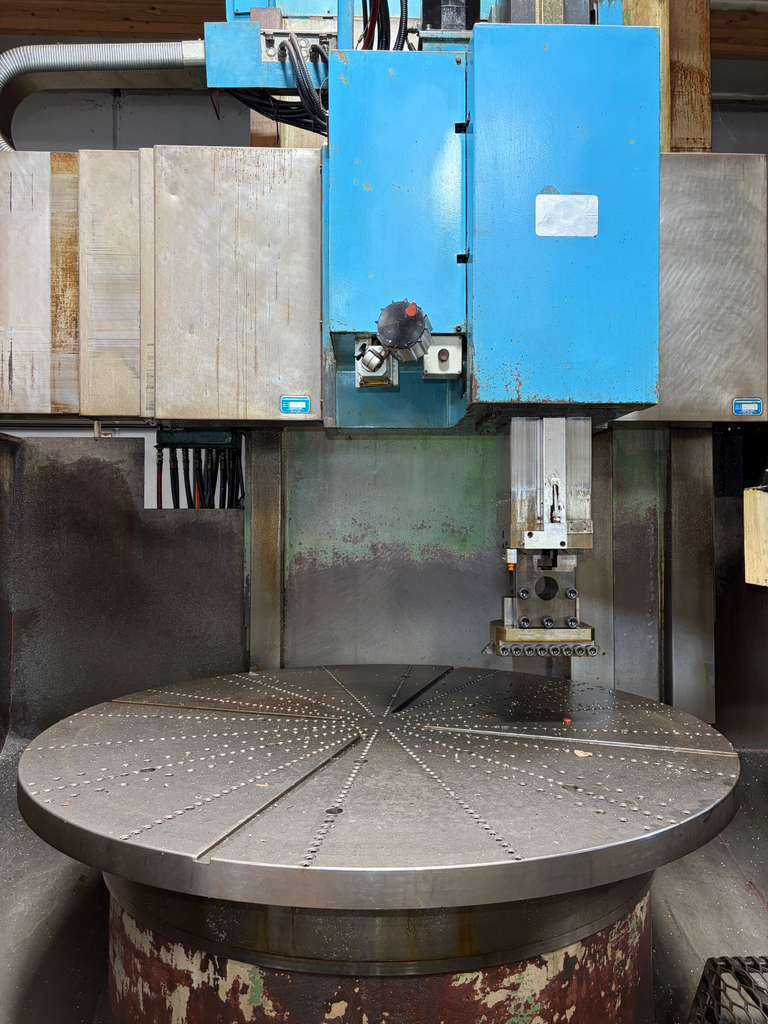

| Table Diameter: 60″ |
| Maximum Turning Diameter/ Swing: 80″ |
| Maximum Workpiece Height Under Rail: 62″ |
| Maximum Workpiece Height Under Tool: 50″ |
| Maximum Workpiece Weight: 65,000 lbs |
| Spindle / Table: |
| Main Spindle Motor: 80 HP |
| Maximum Table Speed: 450 RPM |
| Drive Type: Heavy-Duty Gear Driven Table |
| Travels: |
| X-Axis Head Travel: – 47.2″ / +57.1″ |
| Z-Axis Ram Travel: 39.4″ |
| Vertical Travel of Cross Rail: 39.4″ |
| C-Axis Rotation: 360000 Positions |
| Rapid Feedrates: 394 IPM |

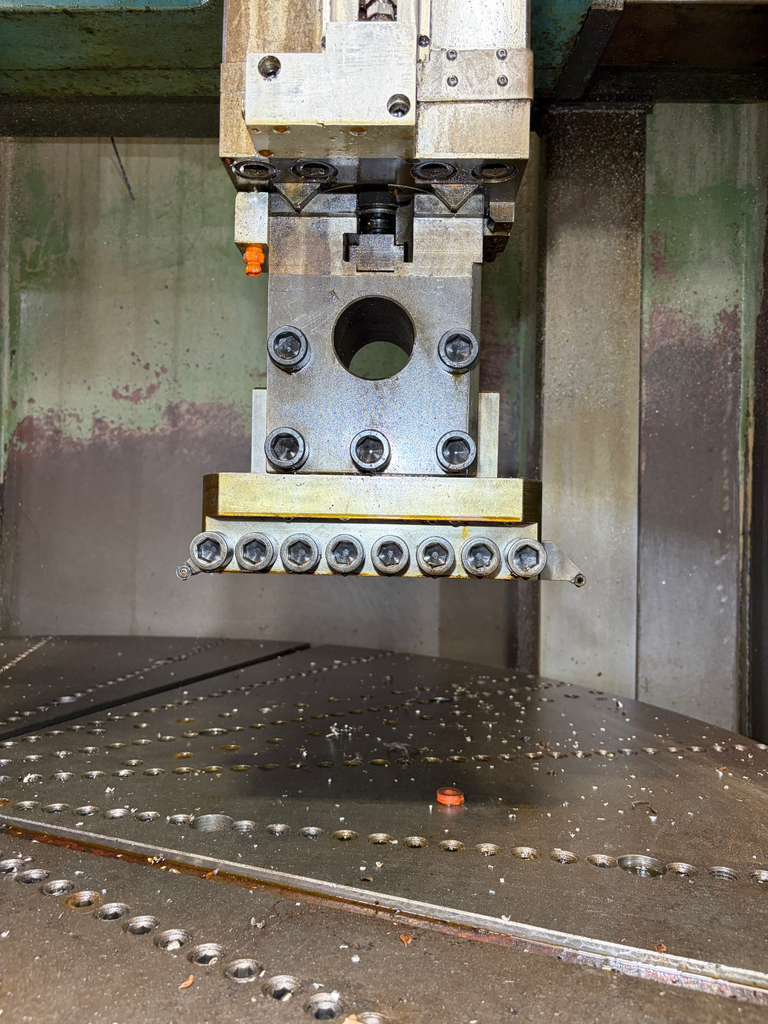

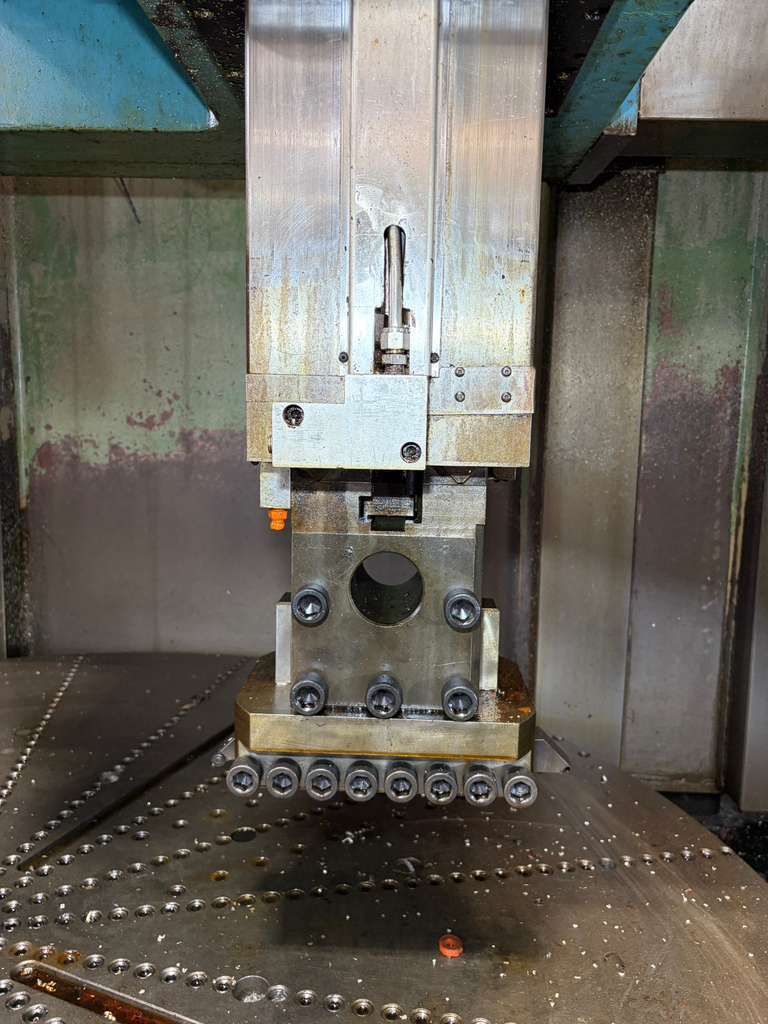

| Ram: |
| Ram Size: 8.3″ x 8.3″ |
| General: |

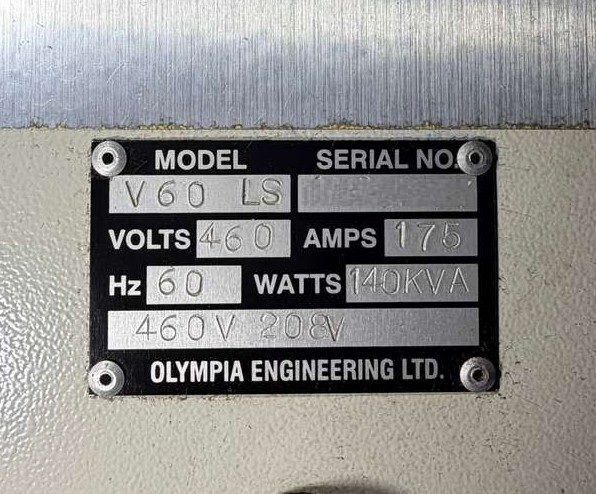

| Power: 460V – 208v / 3-phase / 60 Htz / 140 kva |
| Overall Dimensions: 165″ x 220″ x 215″ High Approx. |
| Machine Weight: 75,000 lbs |
