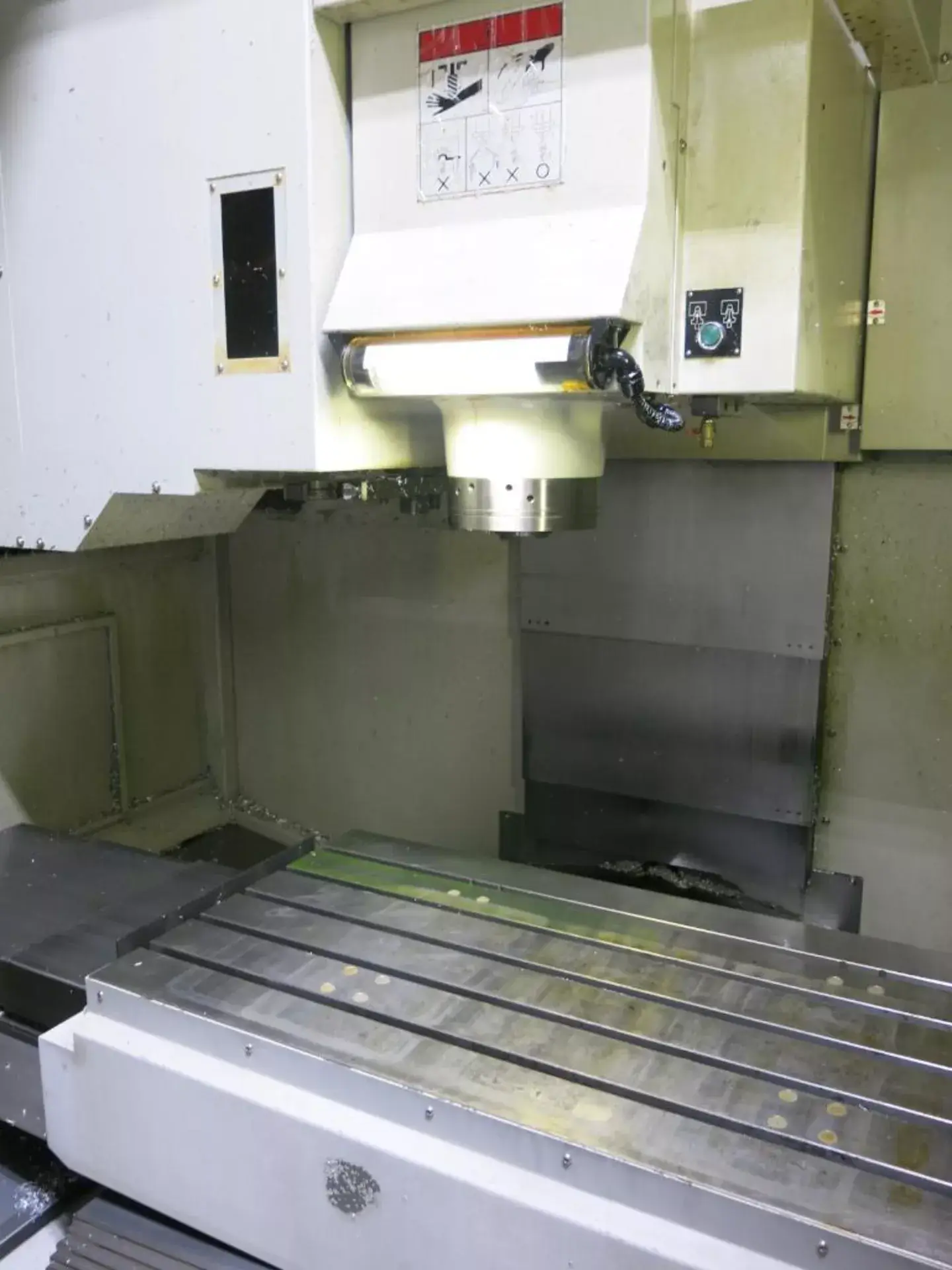

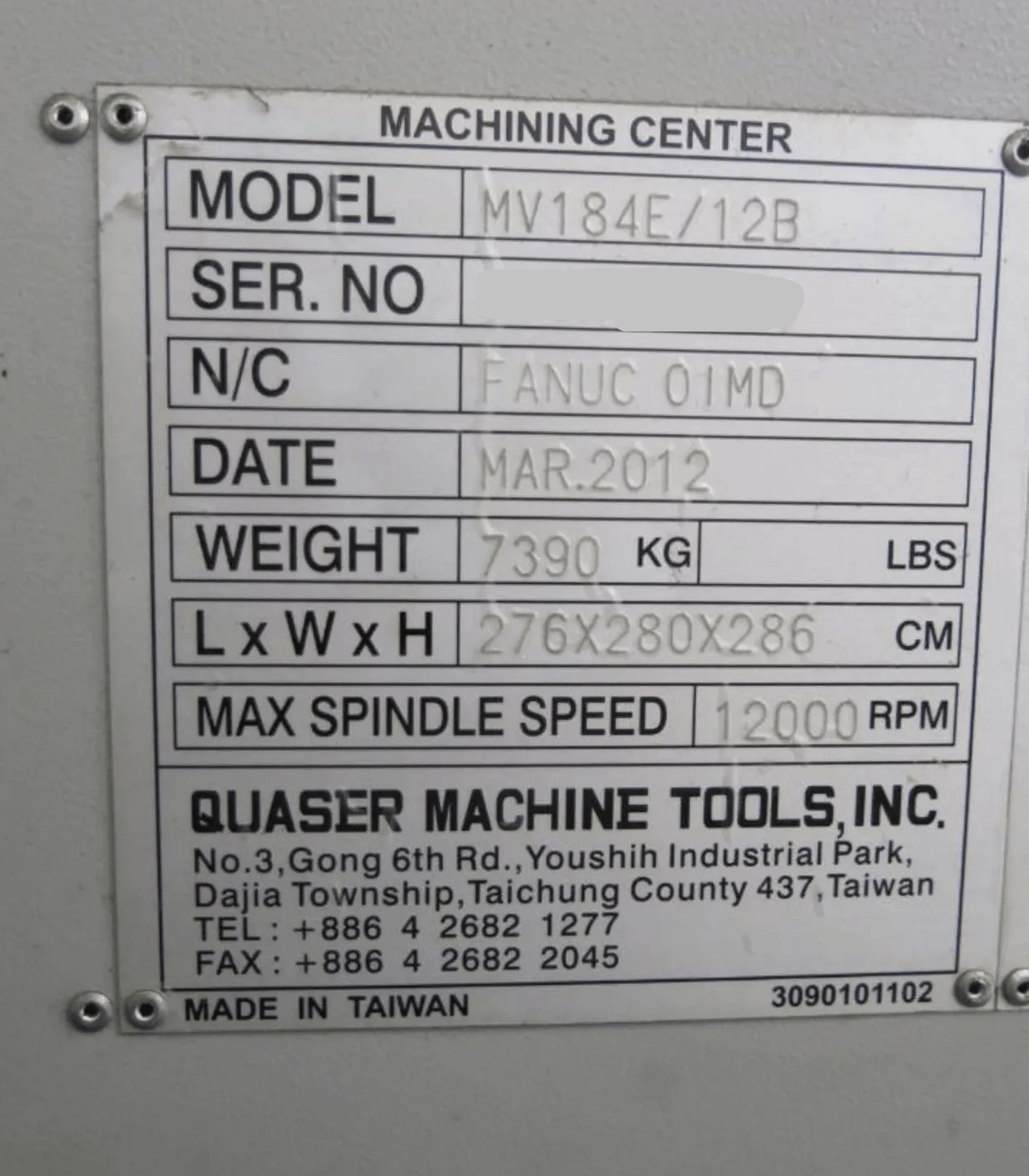

Quaser MV-184E/12B CNC Vertical Machining Center (2012) – Fanuc 0i-MD, BT40, 30 ATC
Out of stock
| SKU: | 11249 |
| Make/Model: | Quaser MV-184E/12B |
| Year: | 2012 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Quaser |
| Model: | MV-184E/12B |
| Year of Manufacture: | 2012 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Machining Center |
| CNC Control: | Fanuc 0i-MD |
| Country of Origin: | Taiwan |
| Equipped With: |
|---|
| Fanuc 0i-MD CNC Control |
| BT40 Spindle |
| Automatic Tool Changer |
| Rigid Tapping |
| Coolant System |
| Full Enclosure |
| Chip Management System |
| 4th Axis Ready |
| Capacity: |
|---|
| Table Size: 47.2″ × 23.6″ (1,200 × 600 mm) |
| Table Load Capacity: ~500 kg (~1,100 lbs) |
| Travels: |
|---|
| X-Axis Travel: 40.2″ (1,020 mm) |
| Y-Axis Travel: 24″ (610 mm) |
| Z-Axis Travel: 24″ (610 mm) |
| Rapid Traverse (X/Y/Z): ~30–36 m/min |
| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Taper: BT40 |
| Spindle Type: Belt Drive |
| Tooling System: |
|---|
| Tool Capacity: 30 Tools |
| Type: Arm / Carousel ATC |
| Fast and stable tool change system |
| General: |
|---|
| Axis: 3-Axis (4th Axis Ready) |
| Machine Dimensions: ~2.9 × 3.3 × 3.0 m |
| Machine Weight: ~6,900 – 7,400 kg |
| Power Requirement: ~25–35 kVA |
| Features: |
|---|
| Proven MV series rigidity and reliability |
| Compact footprint with large work envelope |
| BT40 spindle – versatile for job shop work |
| Fanuc 0i-MD – easy maintenance & availability |
| Ideal balance of speed and torque |
| Efficient chip evacuation design |
| Categories | CNC Vertical Machining Center |
|---|---|
| Make | |
| Model | MV-184E/12B |
