Rollomatic 620-XS 6 Axis CNC Tool & Cutter Grinder

Rollomatic 620-XS 6 Axis CNC Tool & Cutter Grinder

Out of stock

This One Owner machine is Fully powered / tested & is in Great working condition.”

SKU: 1755
Make/Model: Rollomatic 620-XS
Video:



SKU: 1755 Category:

Description

ROLLOMATIC 620-XS 6 AXIS CNC TOOL & CUTTER GRINDER
MakeRollomatic
Model No.620-XS
Year of Manufacture: 2006
ConditionVery Good
  • Rollomatic 620-XS Equipped With:

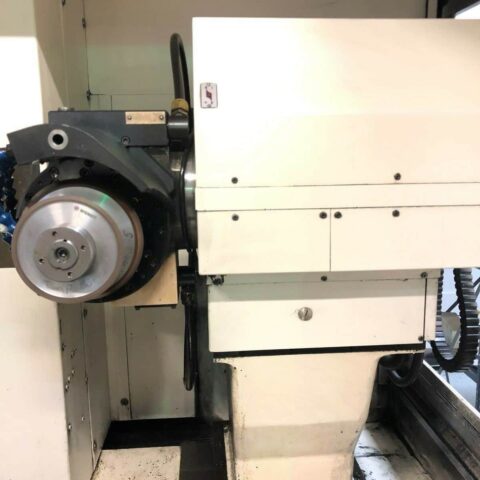

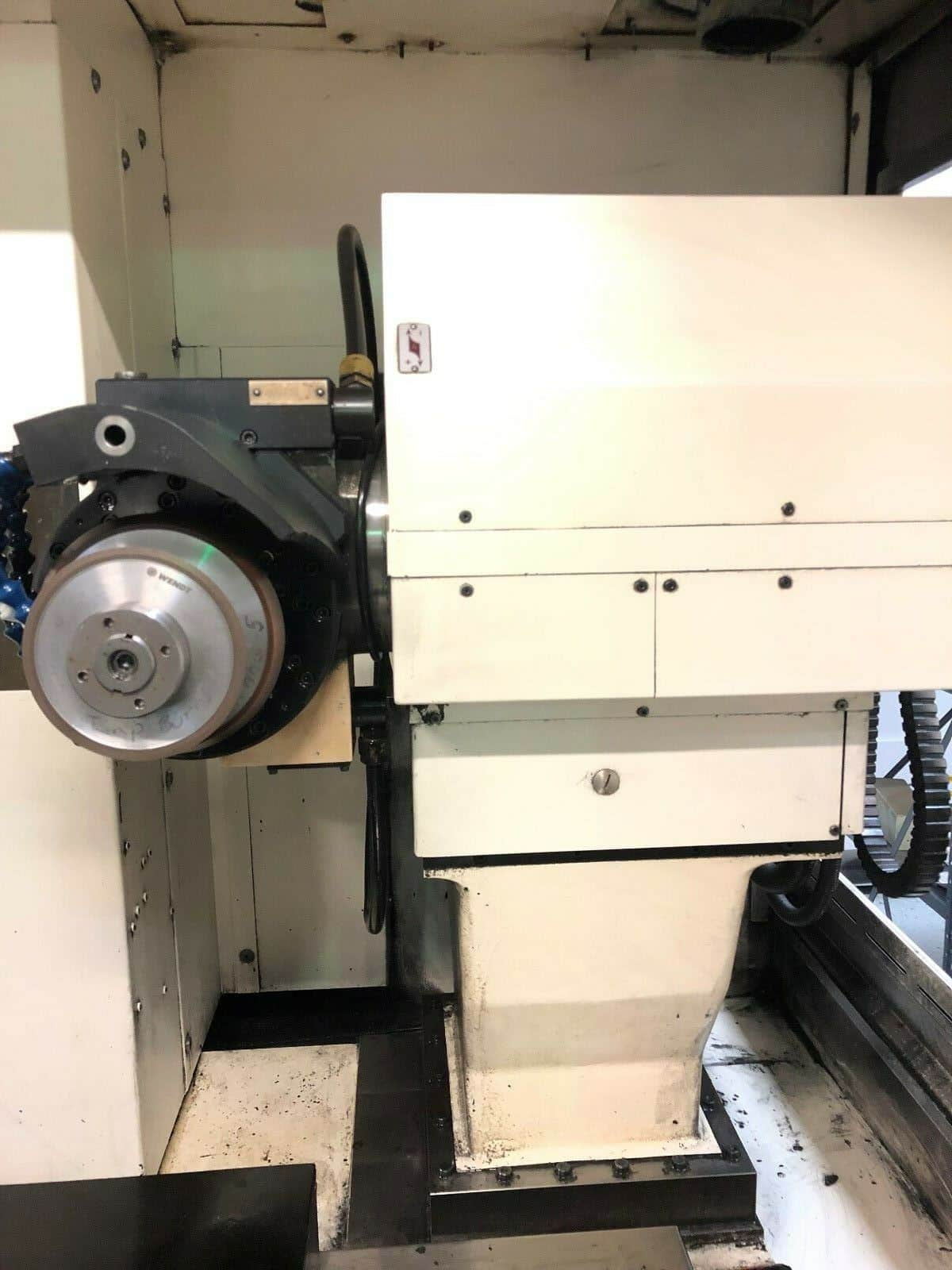

  • 10,000 RPM Precision Spindle ( Recently Replaced by Rollomatic )

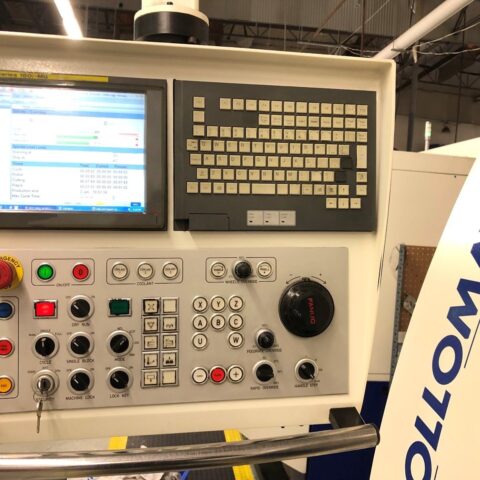

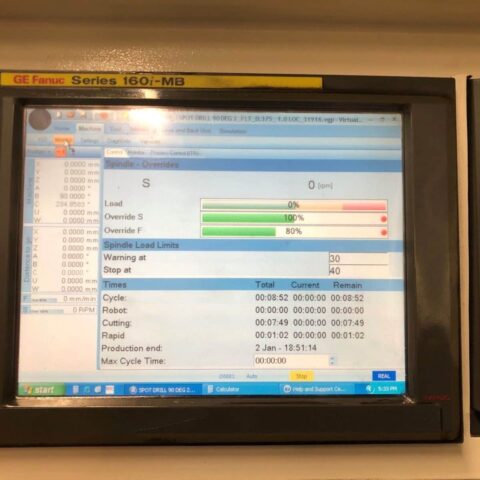

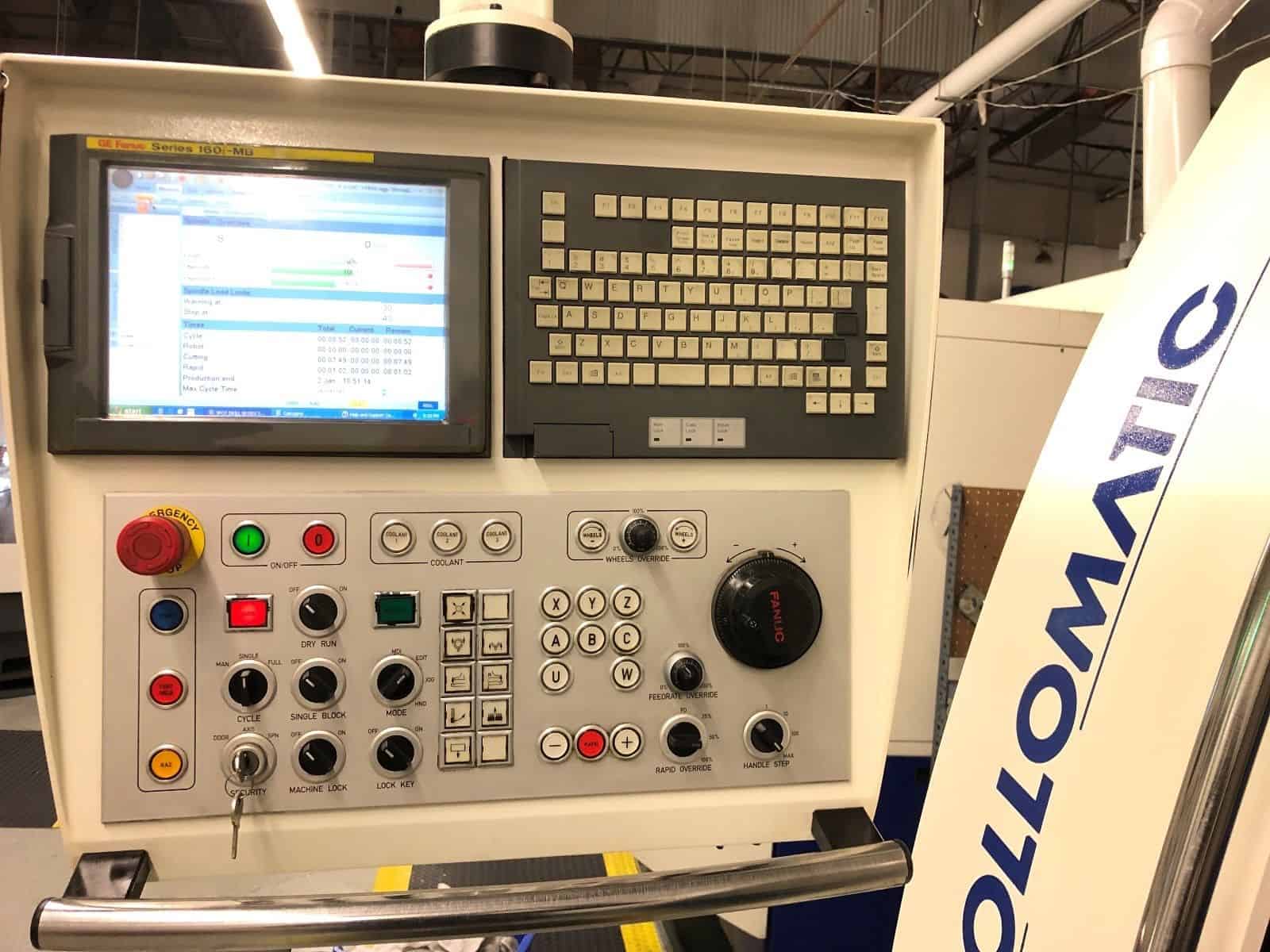

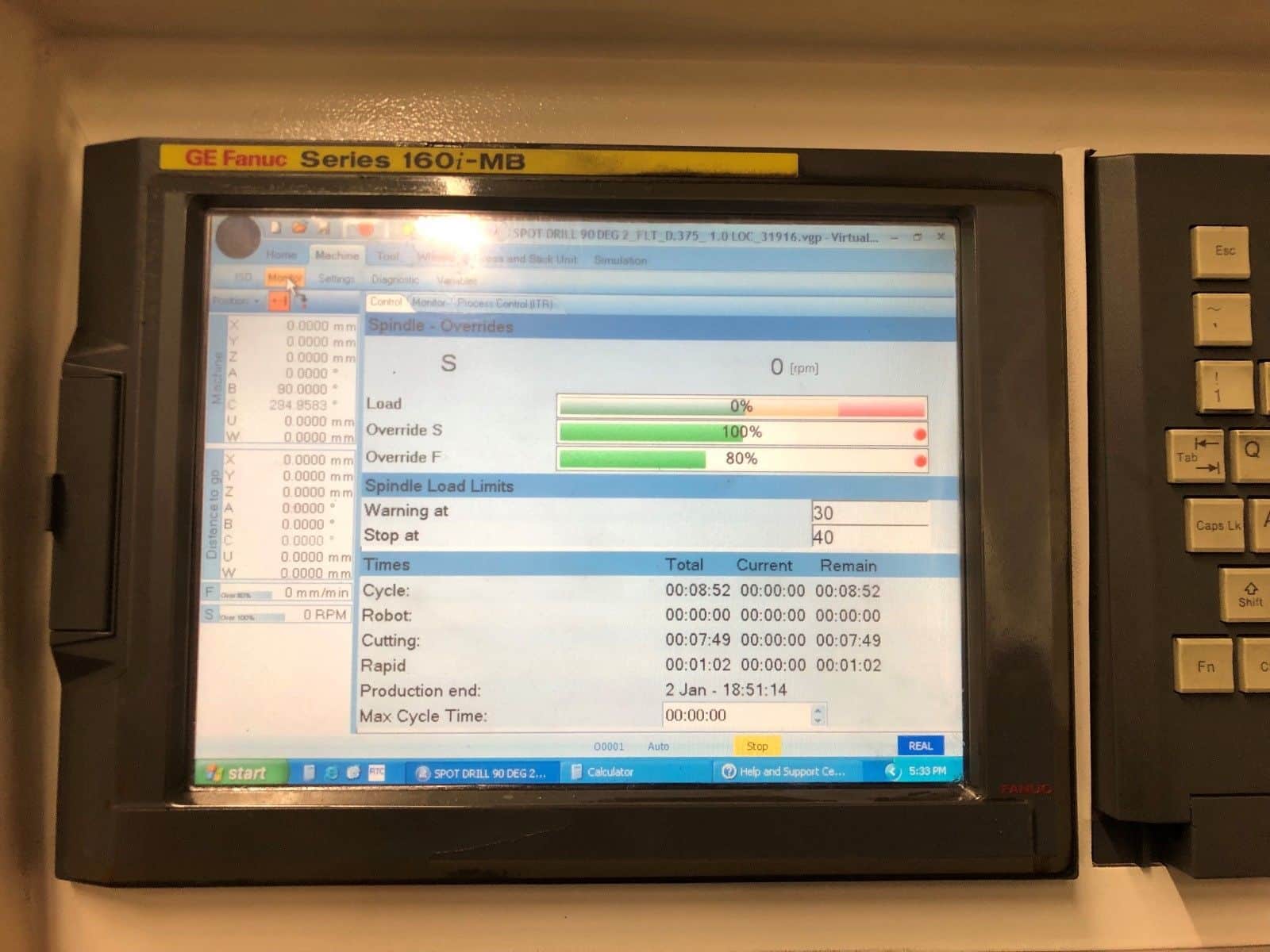

  • Fanuc 160i-MB Touch Panel Control
  • Windows based
  • Robotic load & unload
  • Full Enclosure
  • WorkLight
  • General:
  • Air Required: 6 bar
  • Total Power Requirement Max: 18kw
  • Power: 400v / 25A / 3-Phase
  • Overall Dimensions: 90″ x 70″ x 90″ High
  • Weight: 7000 lbs
  • Rollomatic 620-XS Specifications:
  • Capacity of Workpiece Dia.: 0.004″ – 0.63″
  • Max. X Axis Travel: -11.8″
  • Max. Y Axis Travel: -8.6″
  • Max. Z Axis Travel: -7″
  • A Axis Rotary Travel: 195 to 30°
  • B Axis Rotary Travel: 75 to 130°
  • C Axis Rotary Travel: 0 to 360°
  • Grinding Spindle Motor: 10hp
  • Grinding Wheel Type: Diamond or CBN
  • Grinding Wheel Dia. Max.: 8.00″
  • Grinding Wheel Speed: 500 to 10,000 RPM

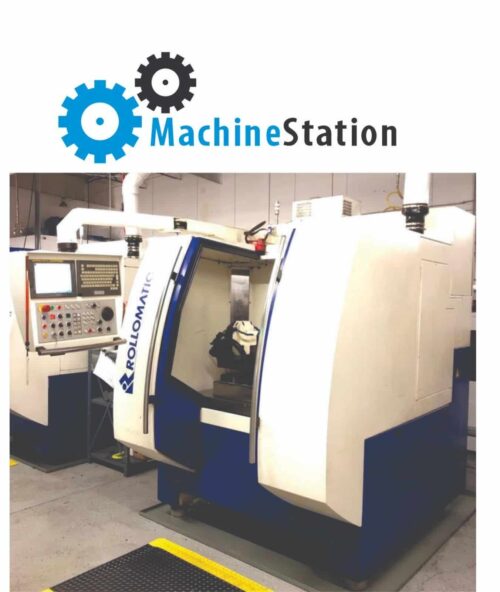

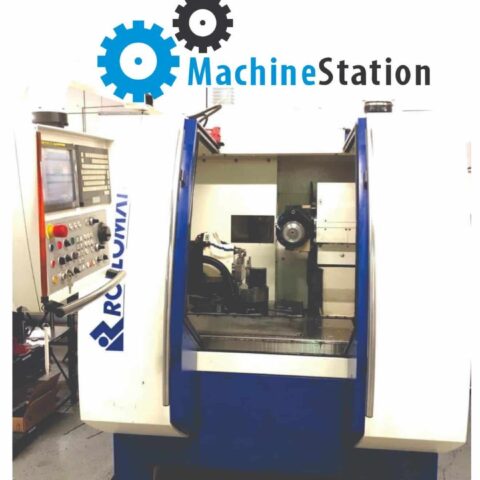

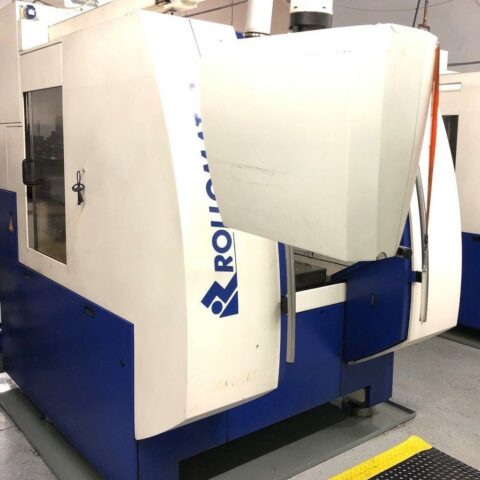

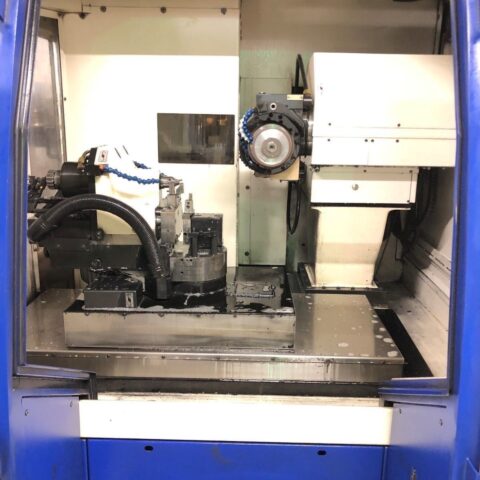

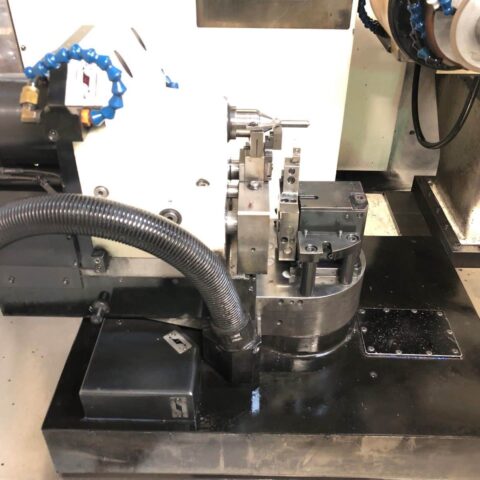

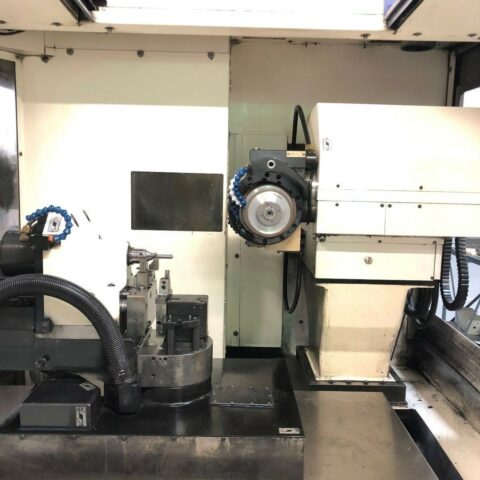

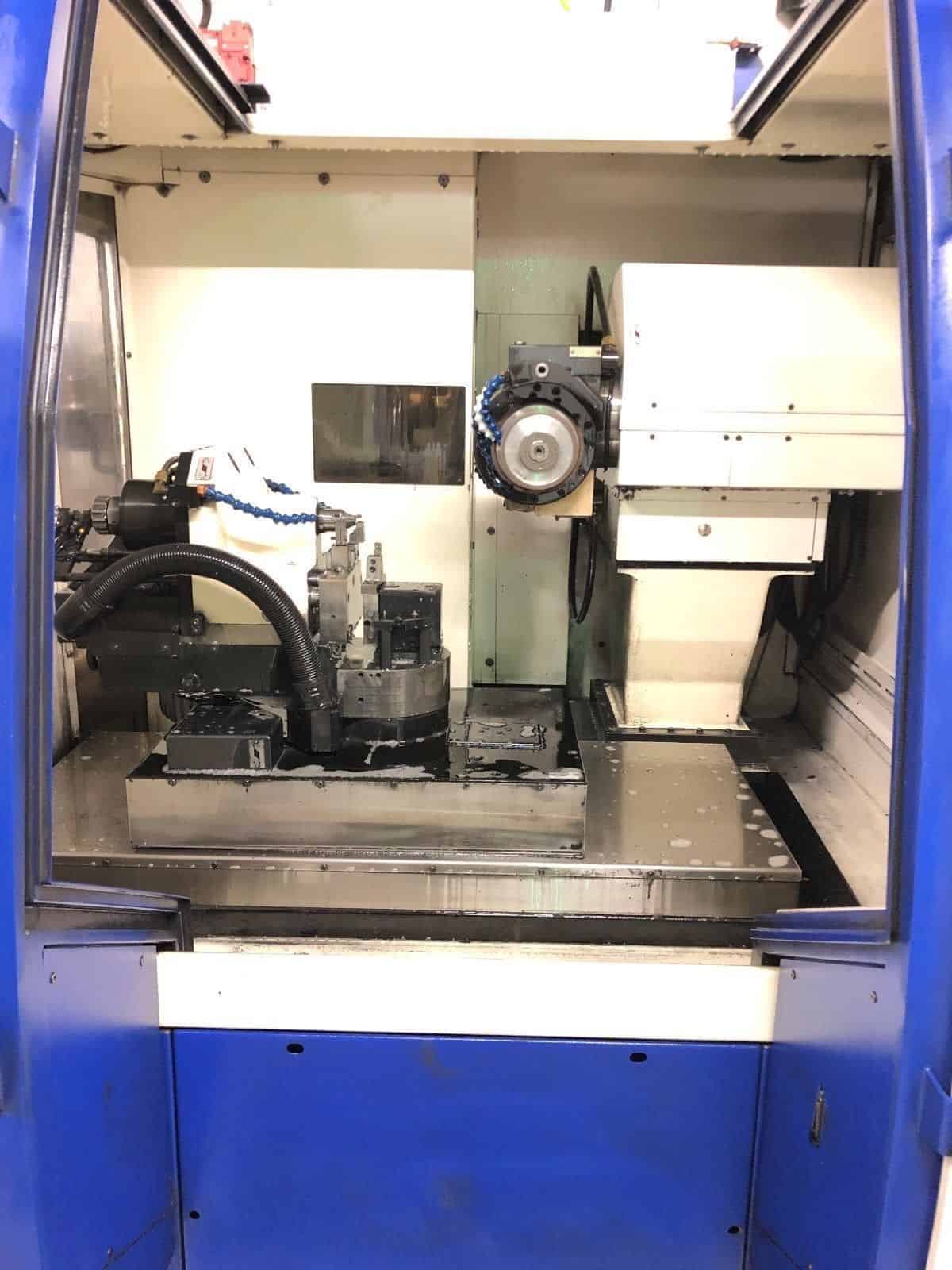

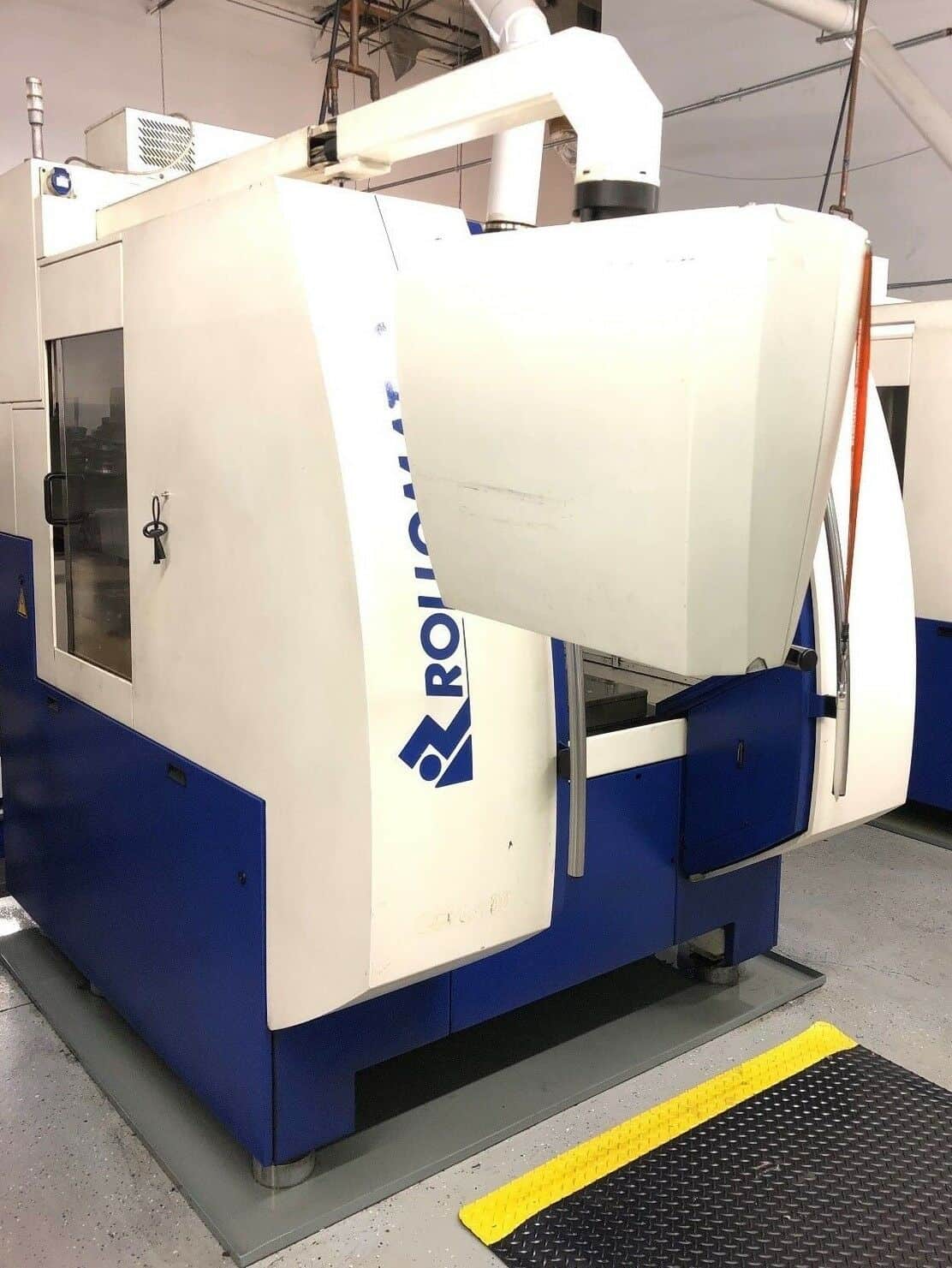

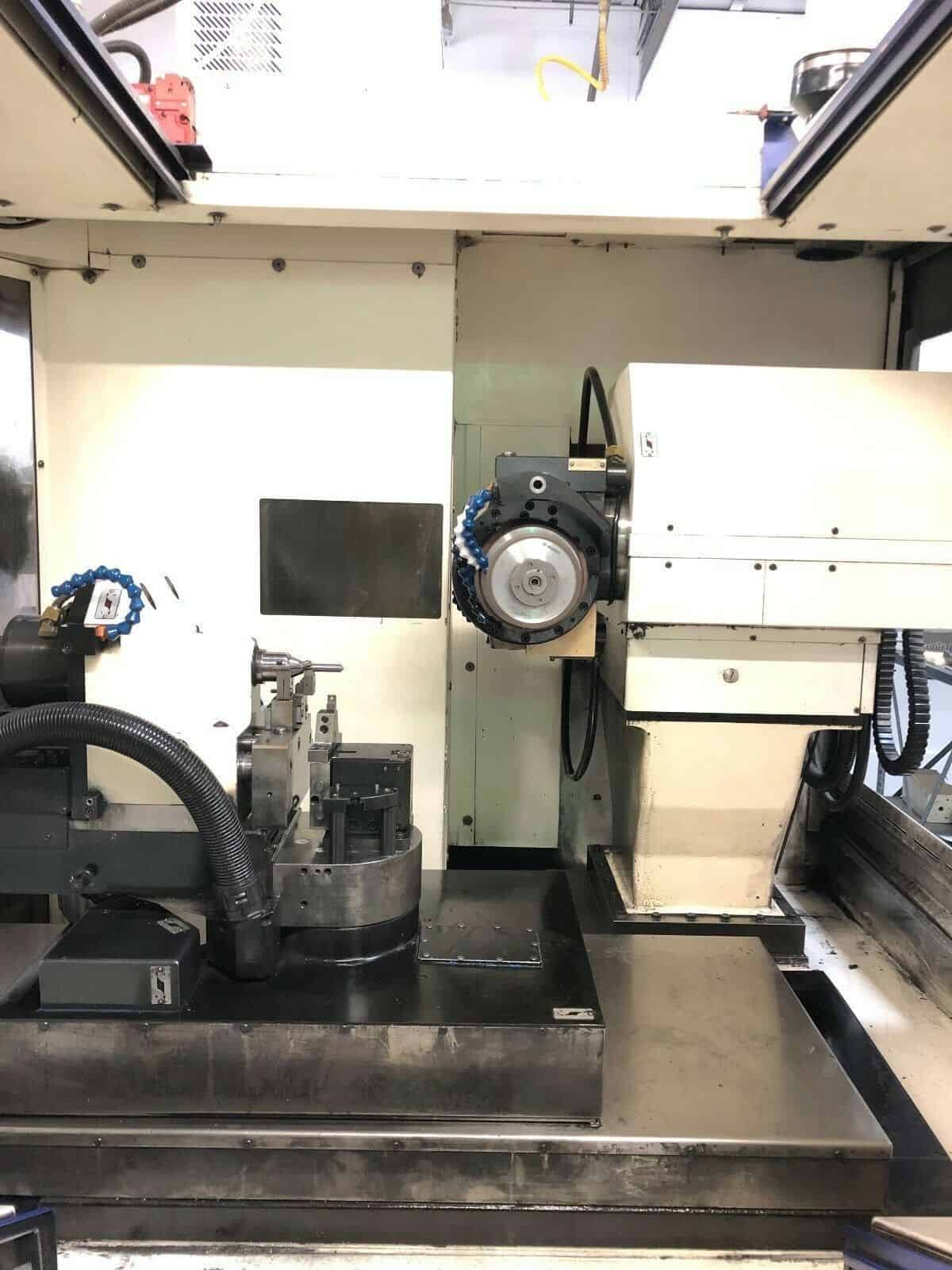

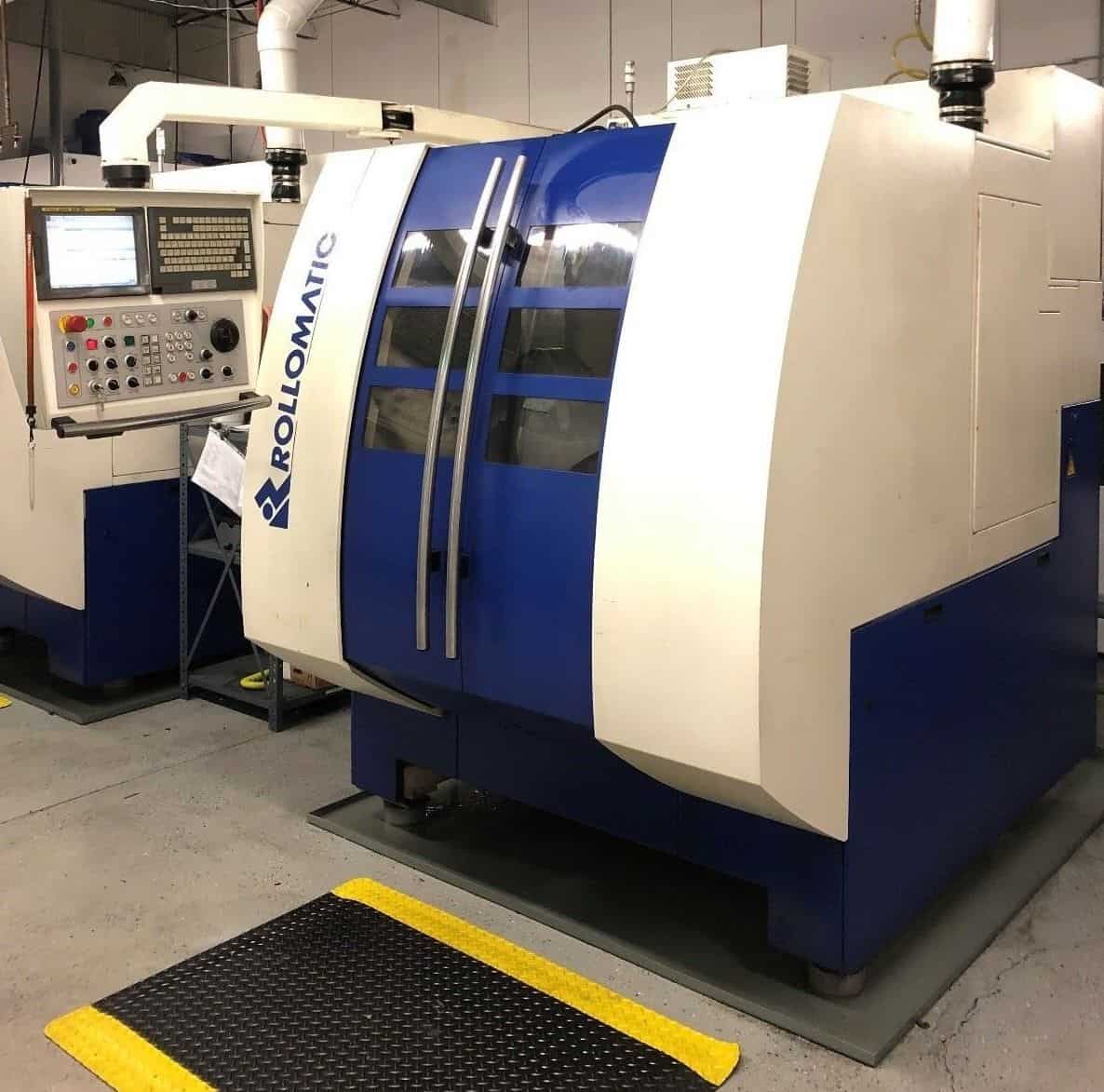

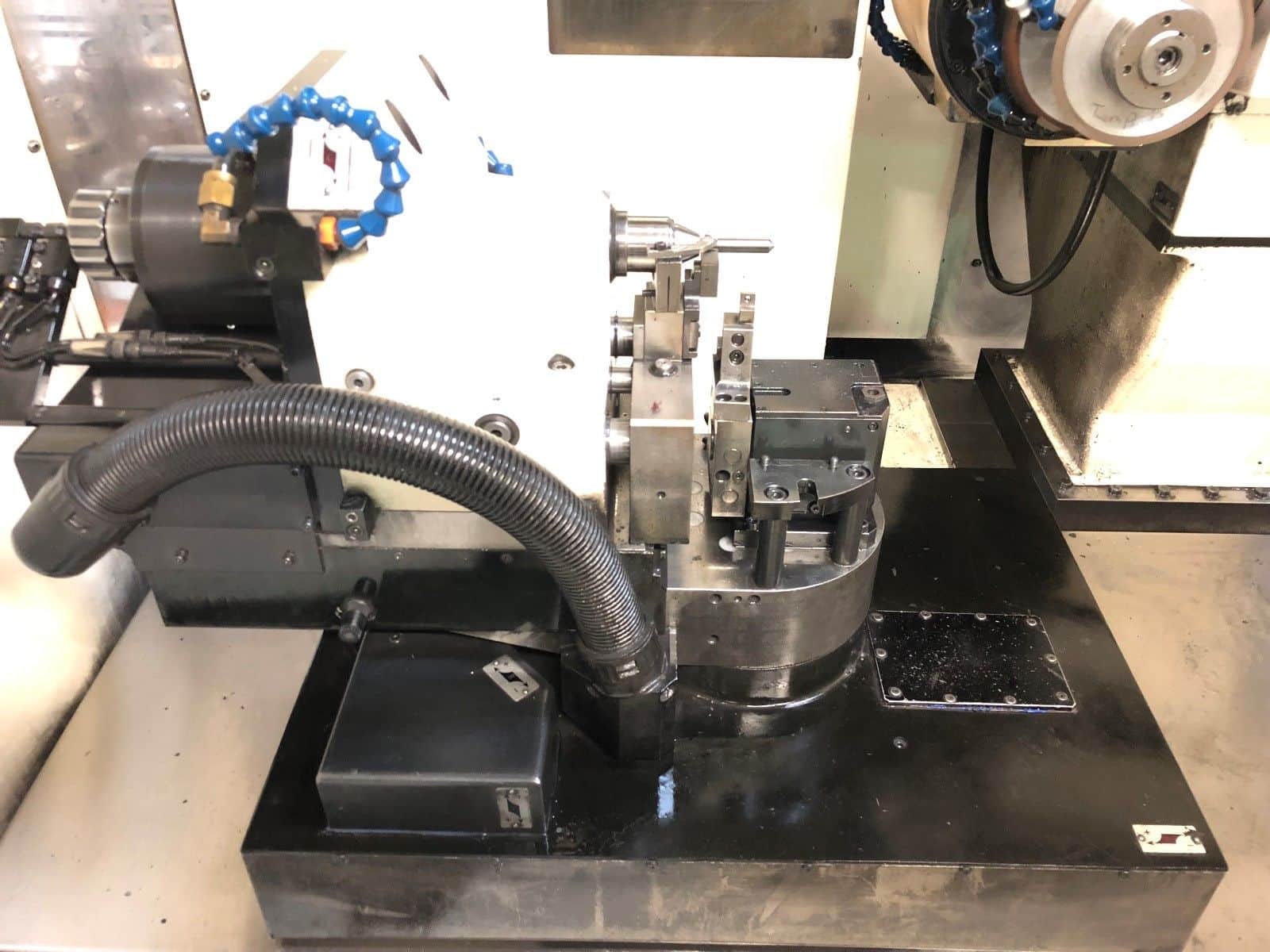

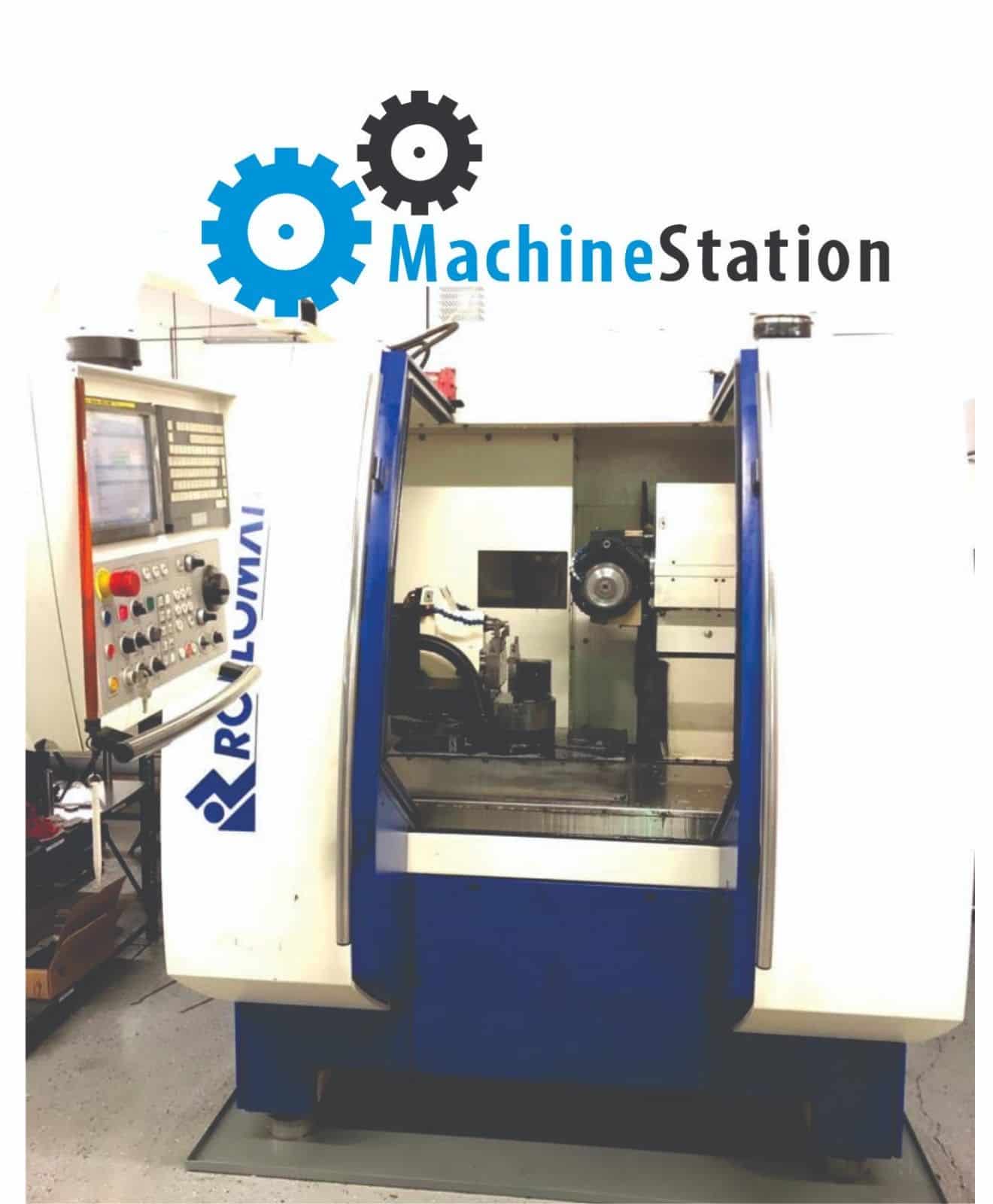

Rollomatic 620-XS CNC Tool & Cutter Grinder comes as shown in Pictures…..
