Samsung MCV-380TD CNC Vertical Machining Center (2013) – Dual Pallet, BT30, 12K RPM
Out of stock
| SKU: | 11246 |
| Make/Model: | Samsung MCV-380TD |
| Year: | 2013 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Samsung |

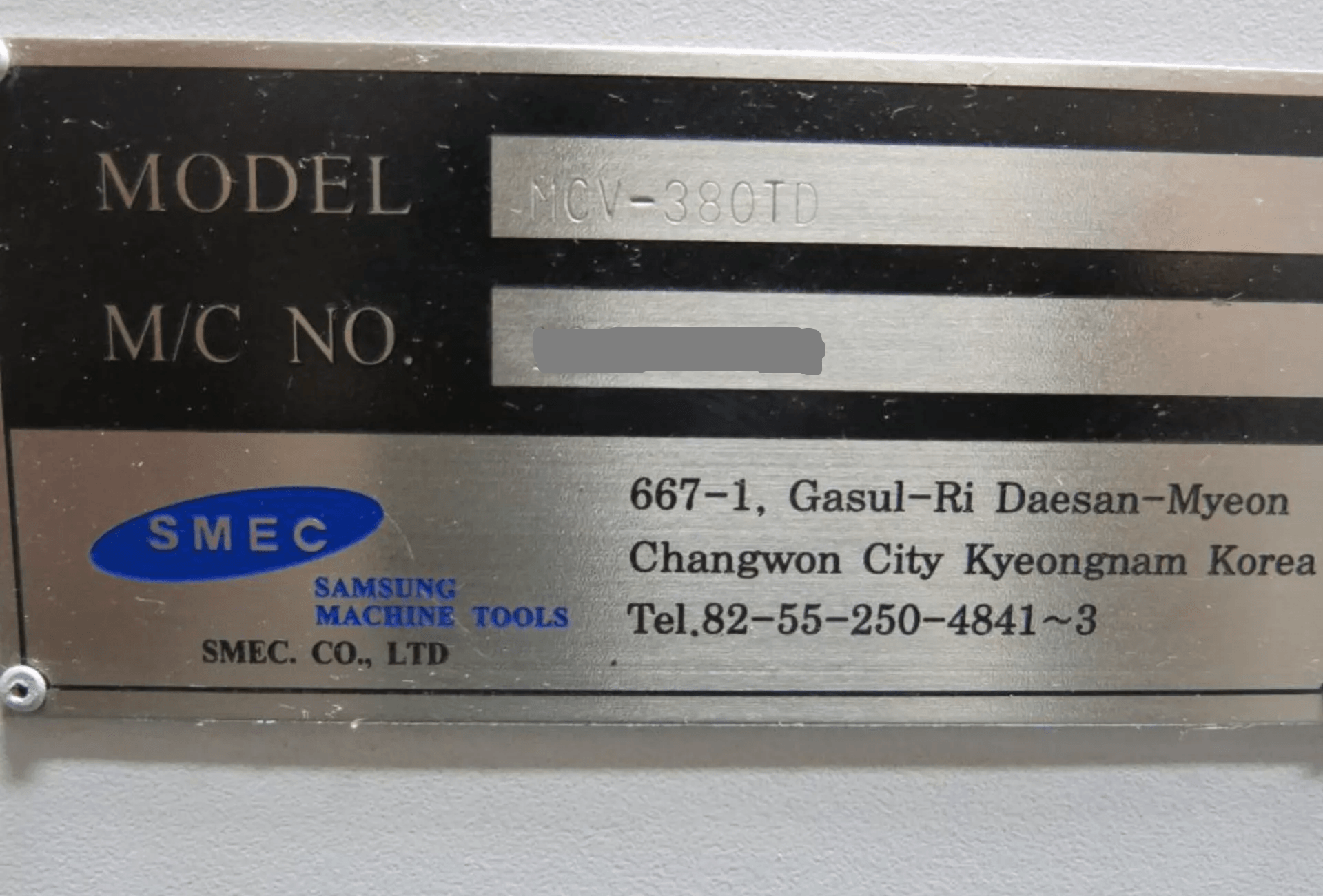

| Model No.: | MCV-380TD |
| Year of Manufacture: | 2013 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Machining Center |

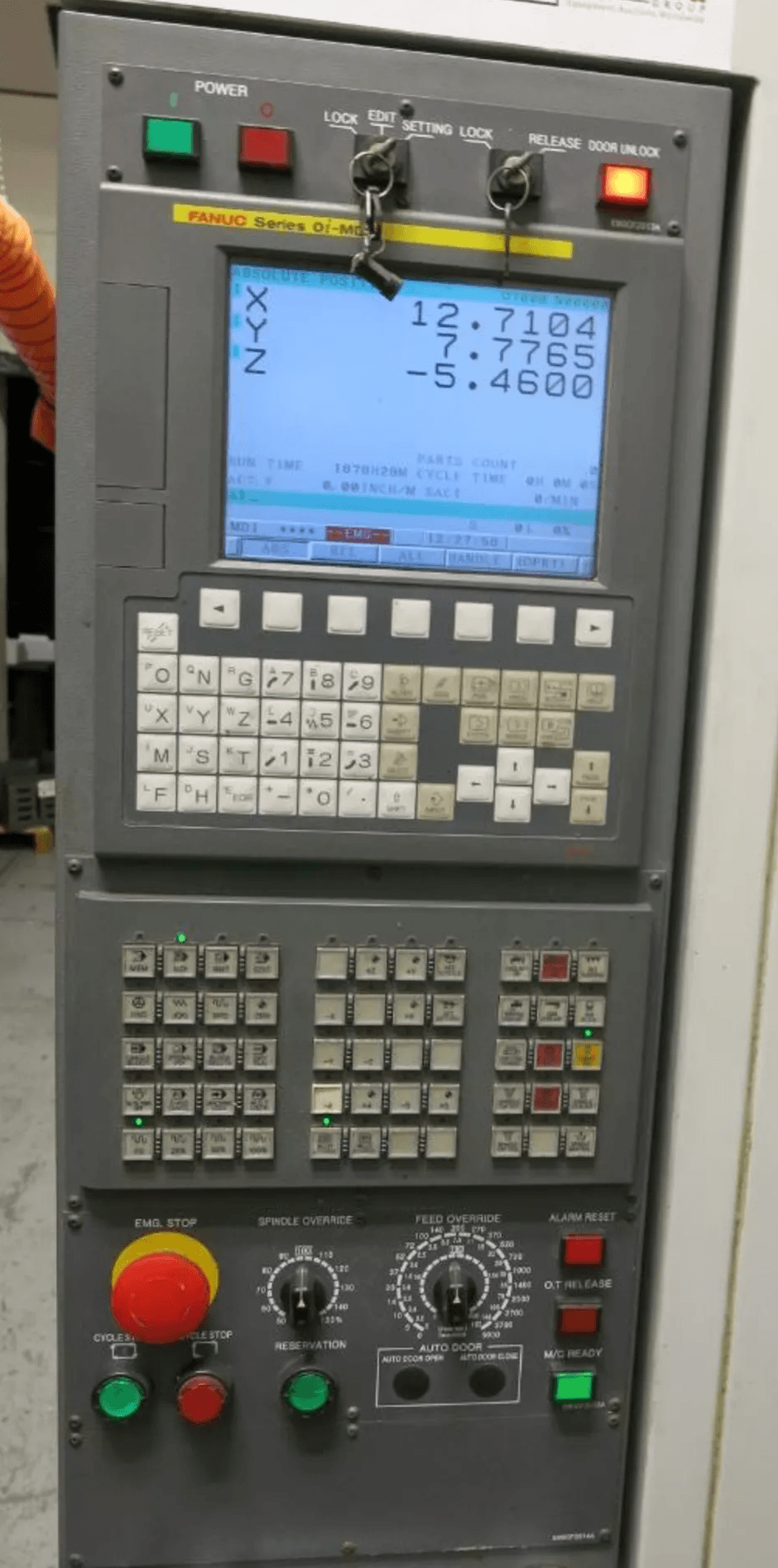

| CNC Control: | Fanuc Series Oi-MD |
| Country of Origin: | Korea |
| Equipped With: |
|---|
| Fanuc Oi-MD CNC Control |

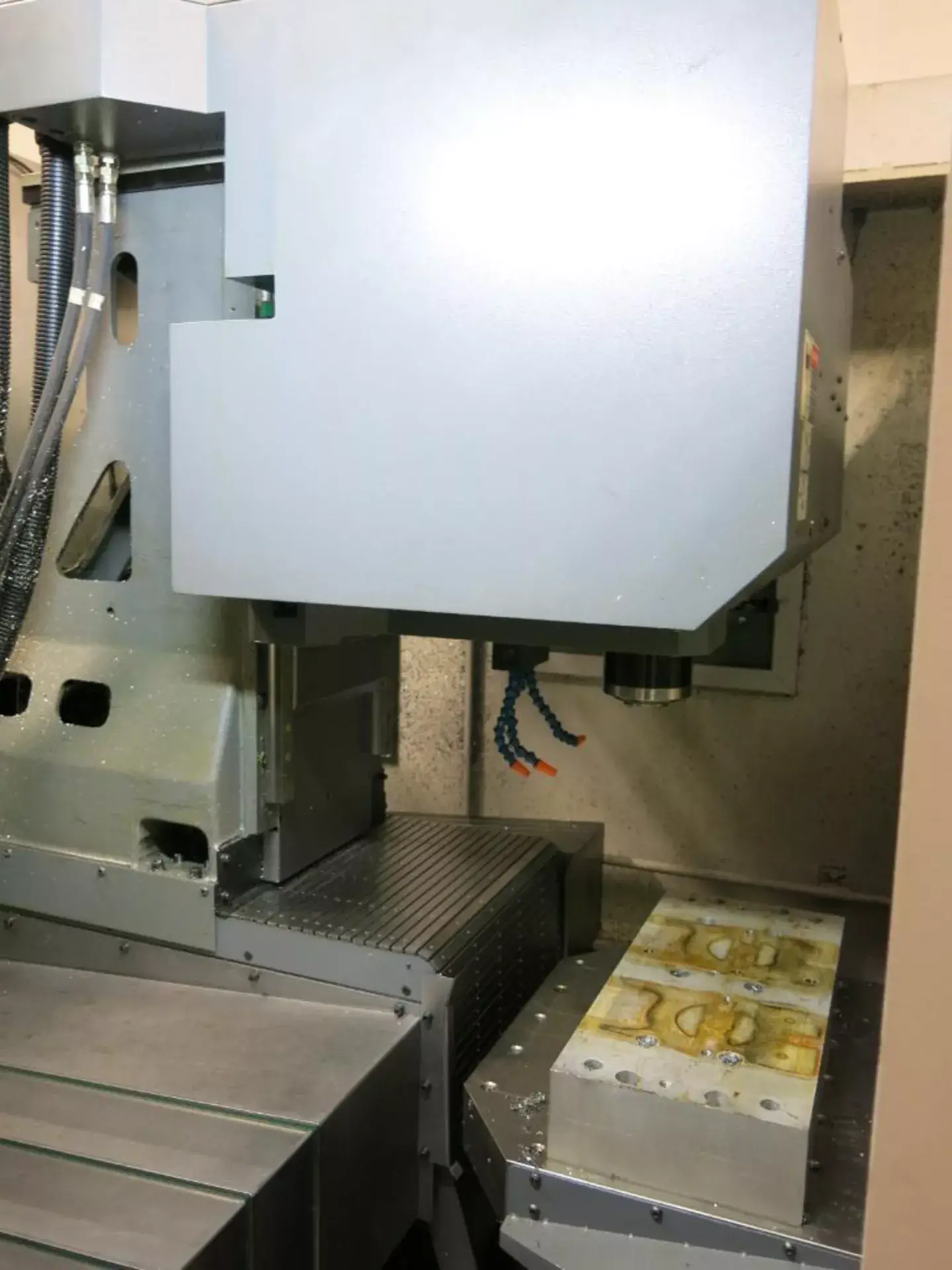

| Dual Pallet Changer (APC) |
| 20-Station Automatic Tool Changer |
| BT30 High-Speed Spindle |
| Through-Spindle Coolant |
| Rigid Tapping |
| Chip Conveyor |
| Full Enclosure |
| High-Speed Machining Capability |
| Capacity: |
|---|
| Pallet Size: 16.5″ × 23.6″ (Dual Pallet) |
| Max Load Capacity: ~440 lbs |
| Pallet Change Time: ~4.5 sec |
| Travels: |
|---|
| X-Axis Travel: 20.5″ |
| Y-Axis Travel: 15.0″ |
| Z-Axis Travel: 13.8″ |
| Rapid Traverse (X/Y/Z): ~1,969 IPM |
| Cutting Feed Rate: ~787 IPM |
| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Taper: BT30 |
| Spindle Motor: ~7.5 HP |
| Tooling System: |
|---|
| Tool Capacity: 20 Tools |
| Type: Double Arm ATC |
| Fast Tool Change for High Productivity |
| General: |
|---|
| Power Requirement: ~30 kVA |
| Machine Weight: ~9,900 lbs |
| Floor Space: 158″ × 70″ × 98″ |
| Axis Configuration: 3-Axis |
| Features: |
|---|
| Dual pallet system for continuous production |
| High-speed BT30 spindle (12K RPM) |
| Excellent for small precision parts |
| Fast tool change & rapid traverse |
| Compact footprint with high output |
| Ideal for automotive & mass production |
| Fanuc control – easy programming & support |
| Categories | CNC Vertical Machining Center |
|---|---|
| Make | |
| Model | MCV-380TD |
