*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

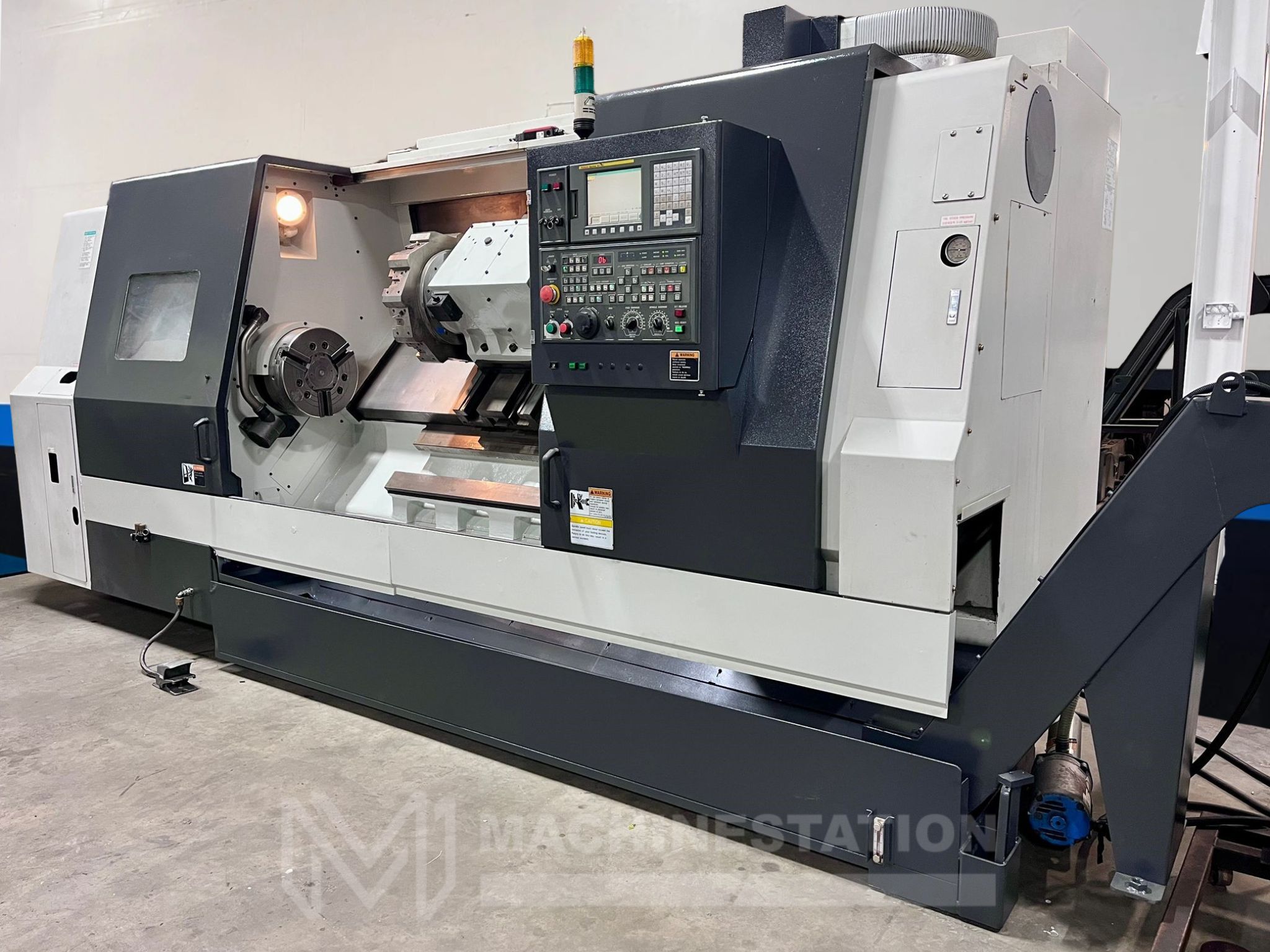

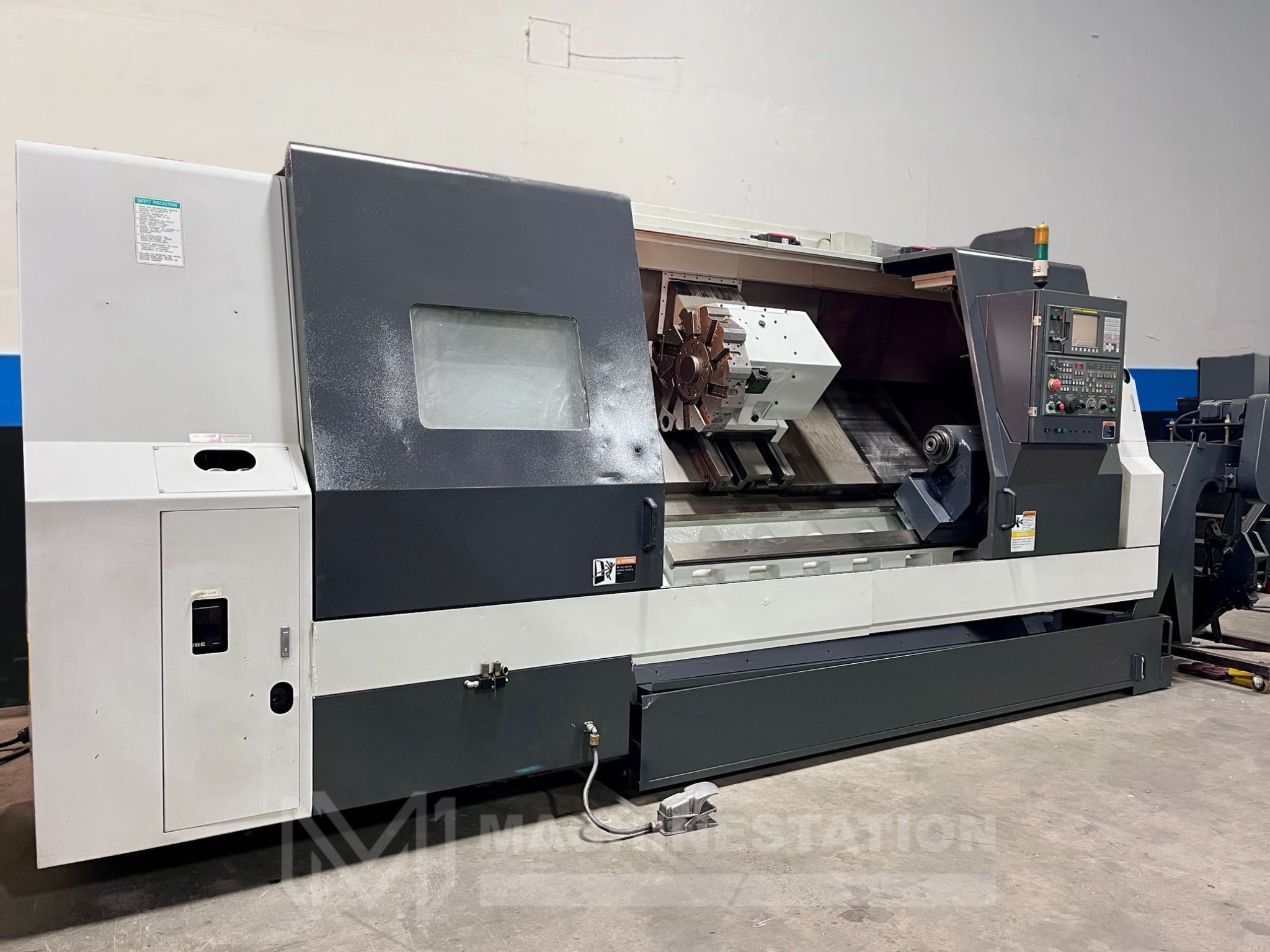

| Make: | SAMSUNG |

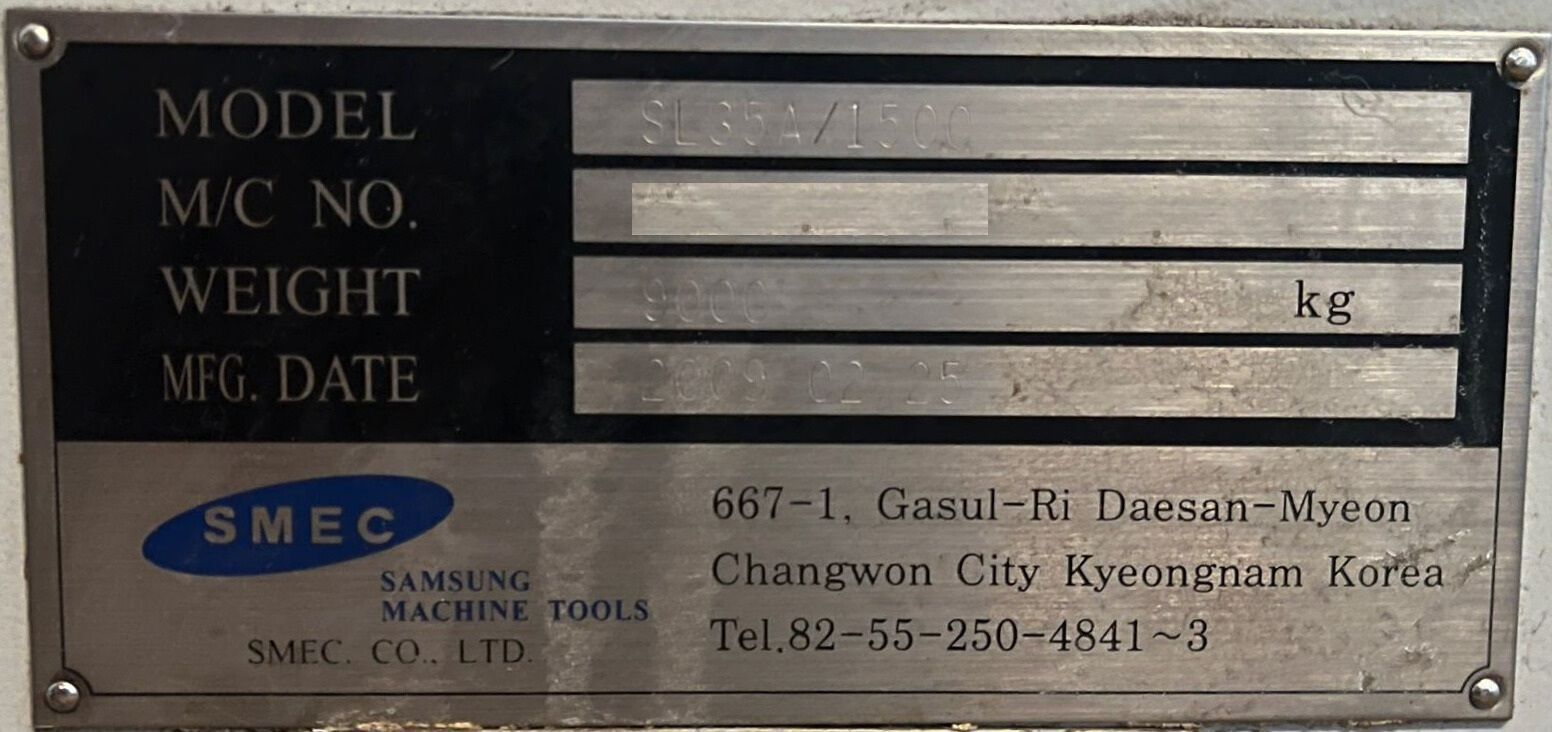

| Model: | SL35A/1500 |
| Year: | 2009 |
| Equipped With: |
|---|

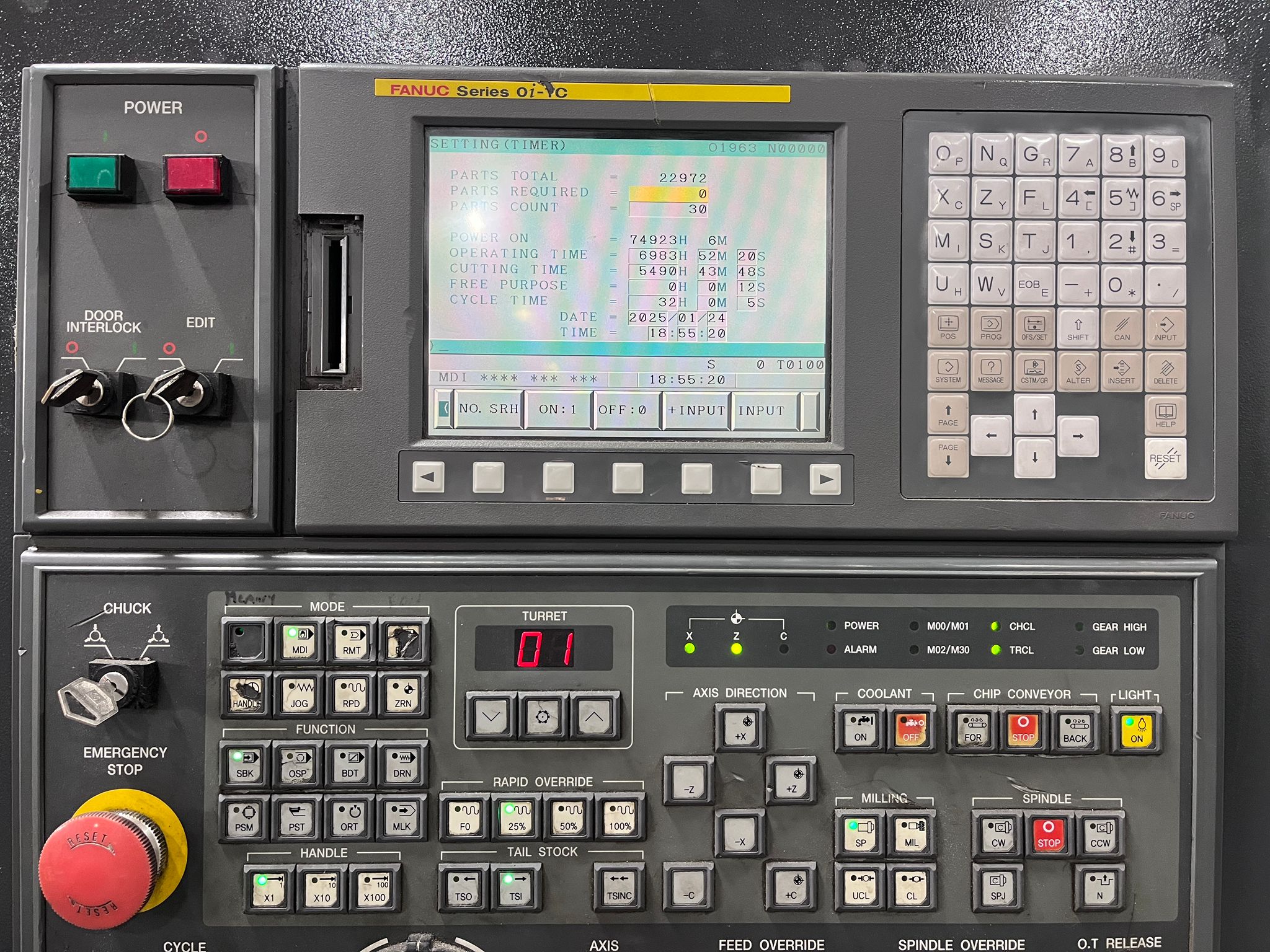

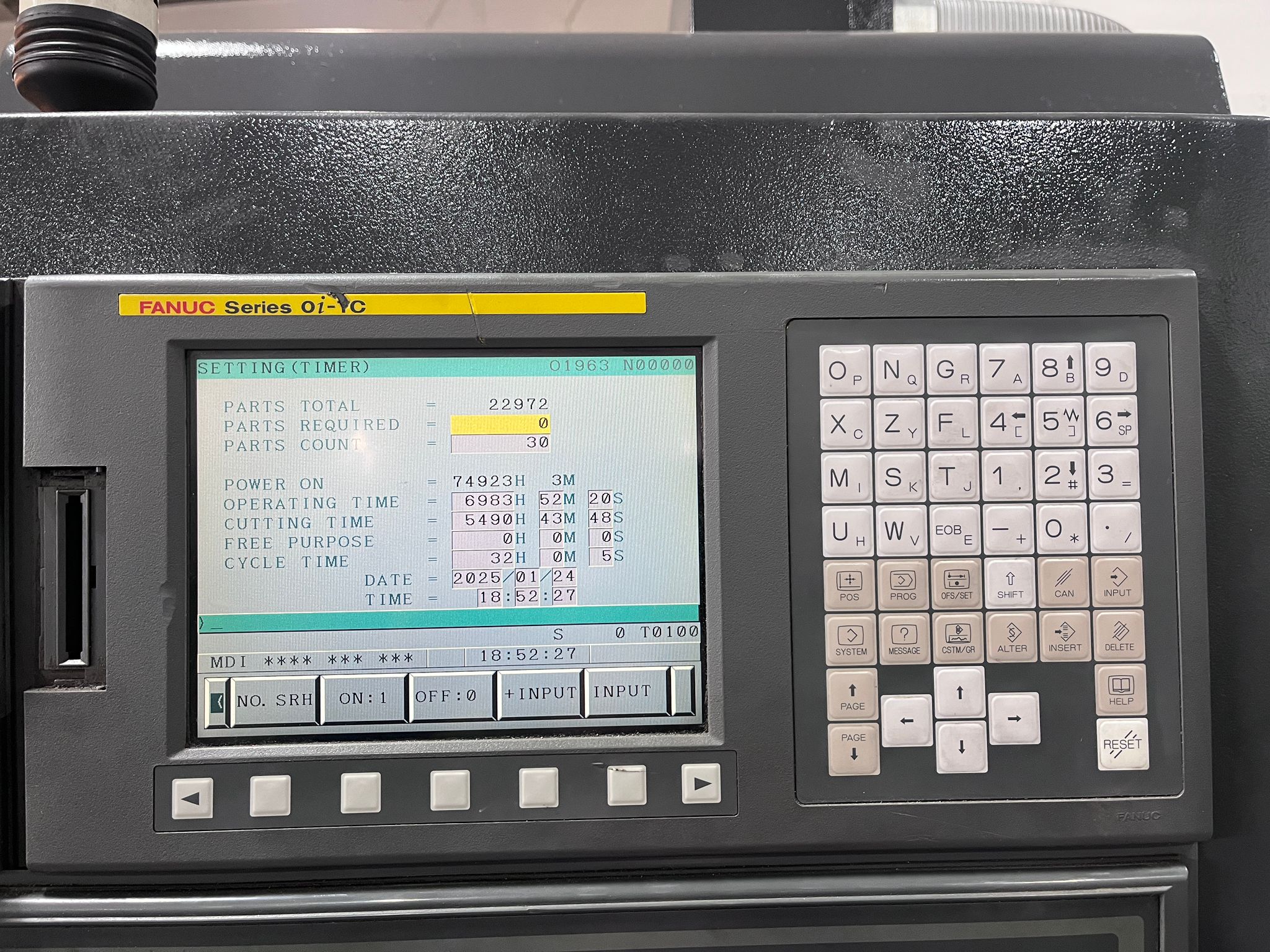

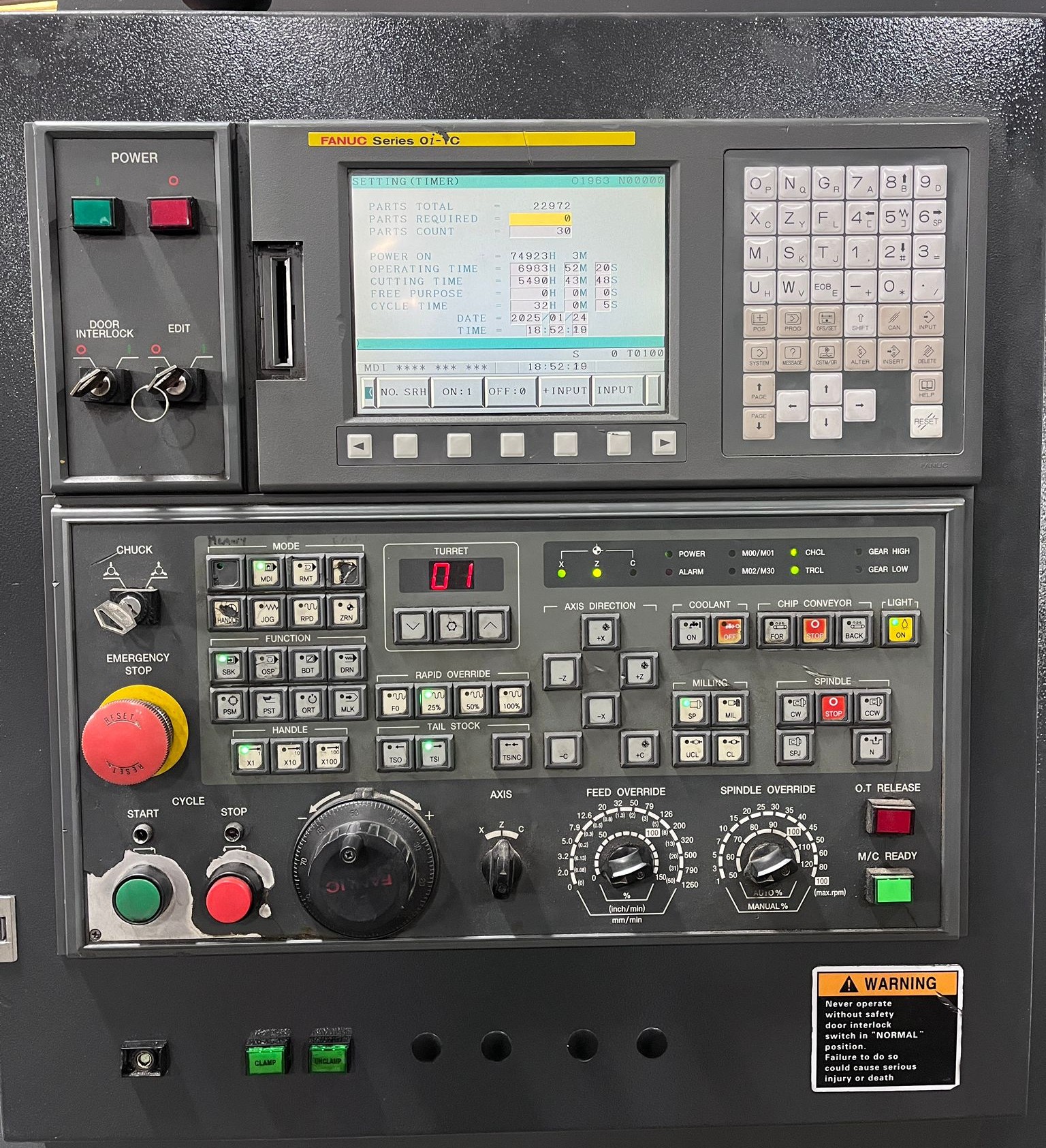

| Fanuc 0i-TC CNC Control |

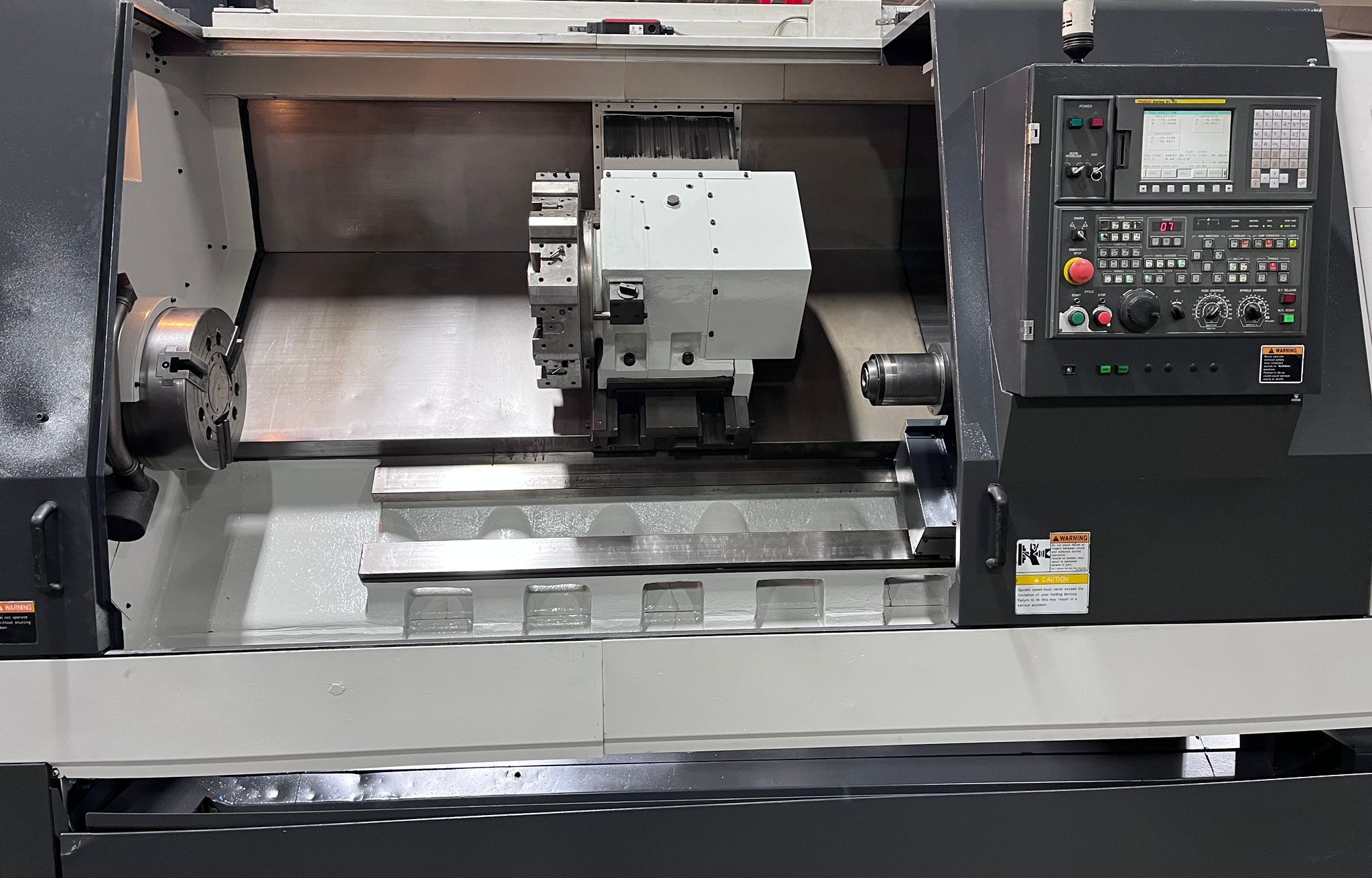

| Long Bed Box Way Machine |

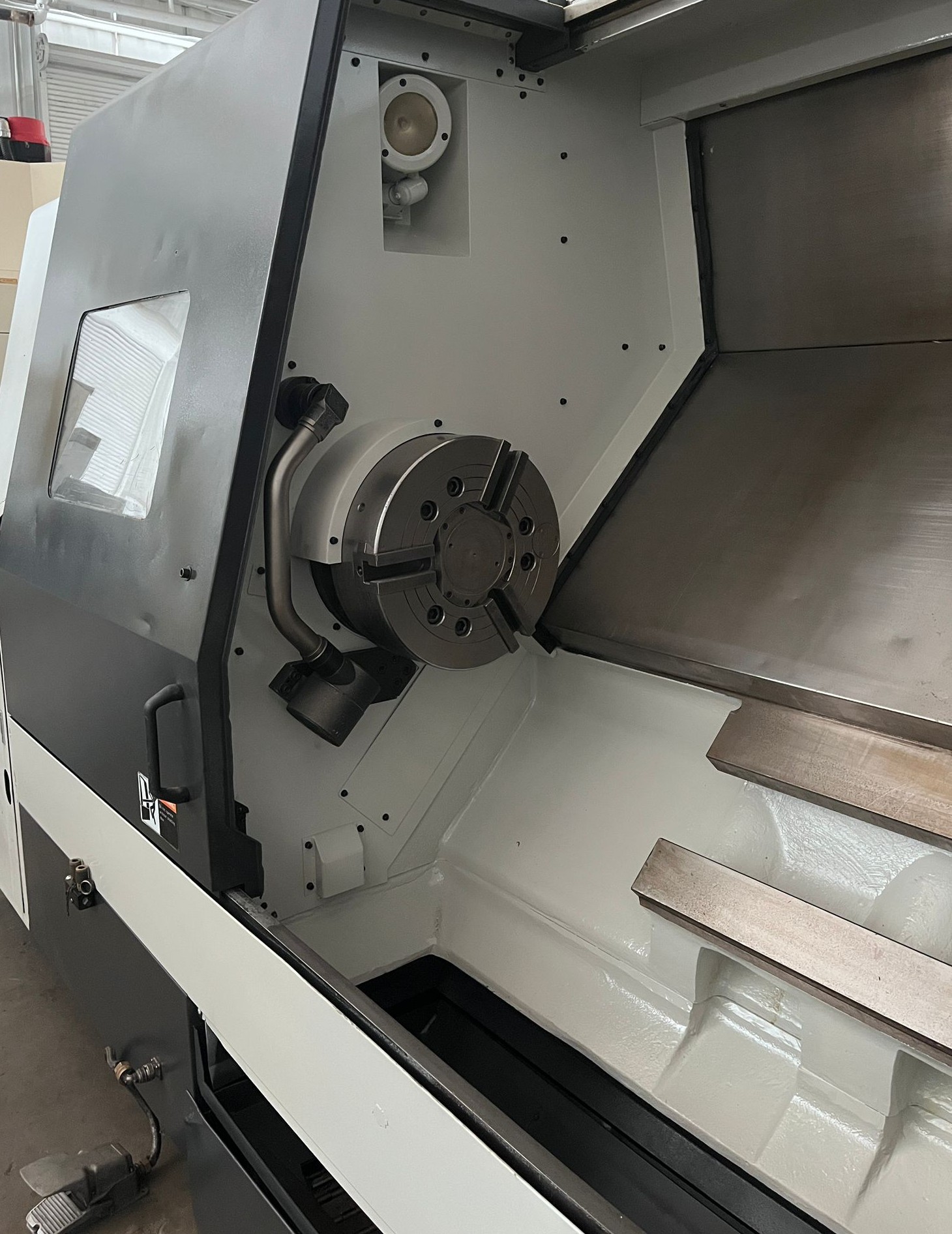

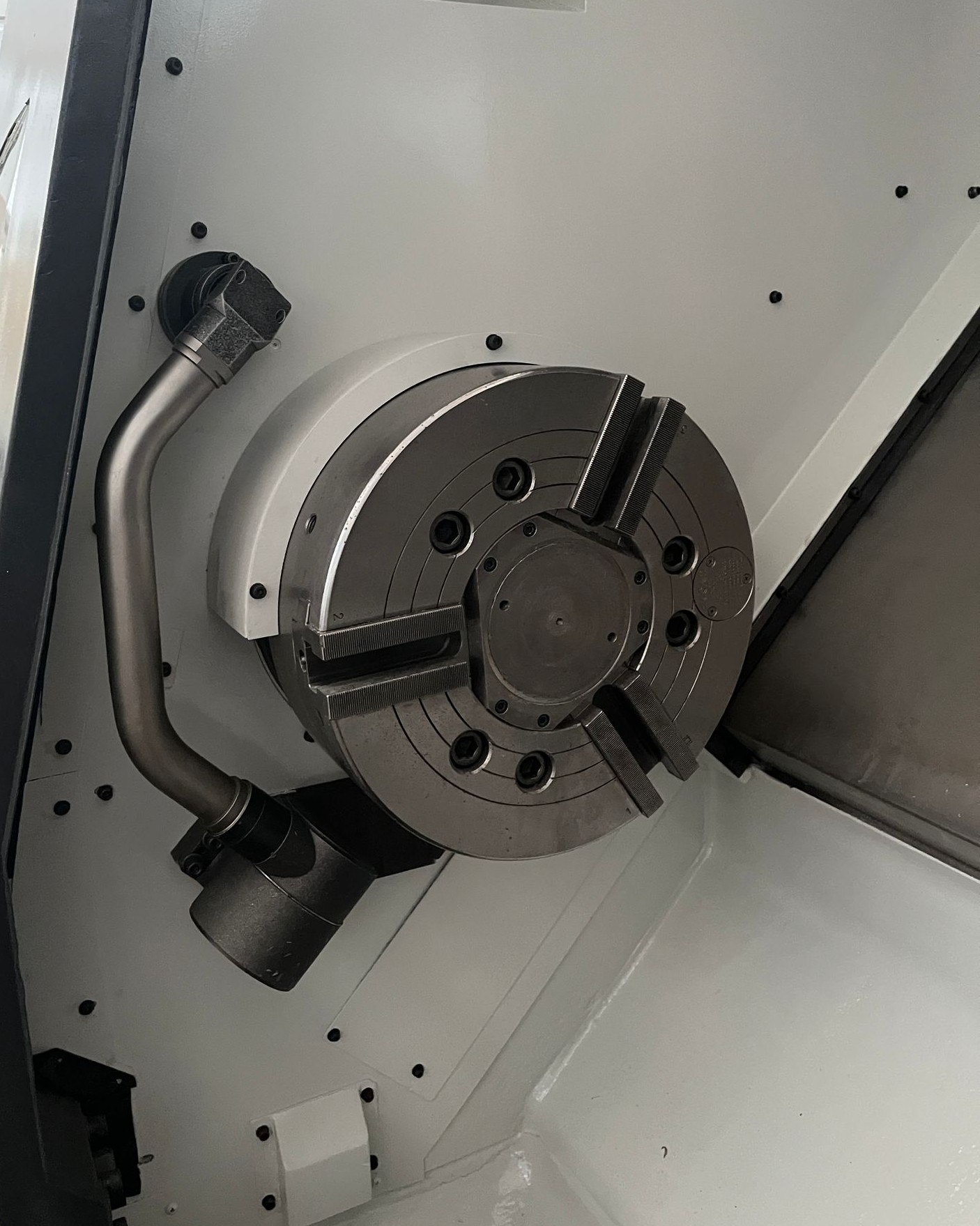

| 15″ 3-Jaw Hydraulic Chuck |
| 5.20″ Big Bore, A2-11 Spindle |

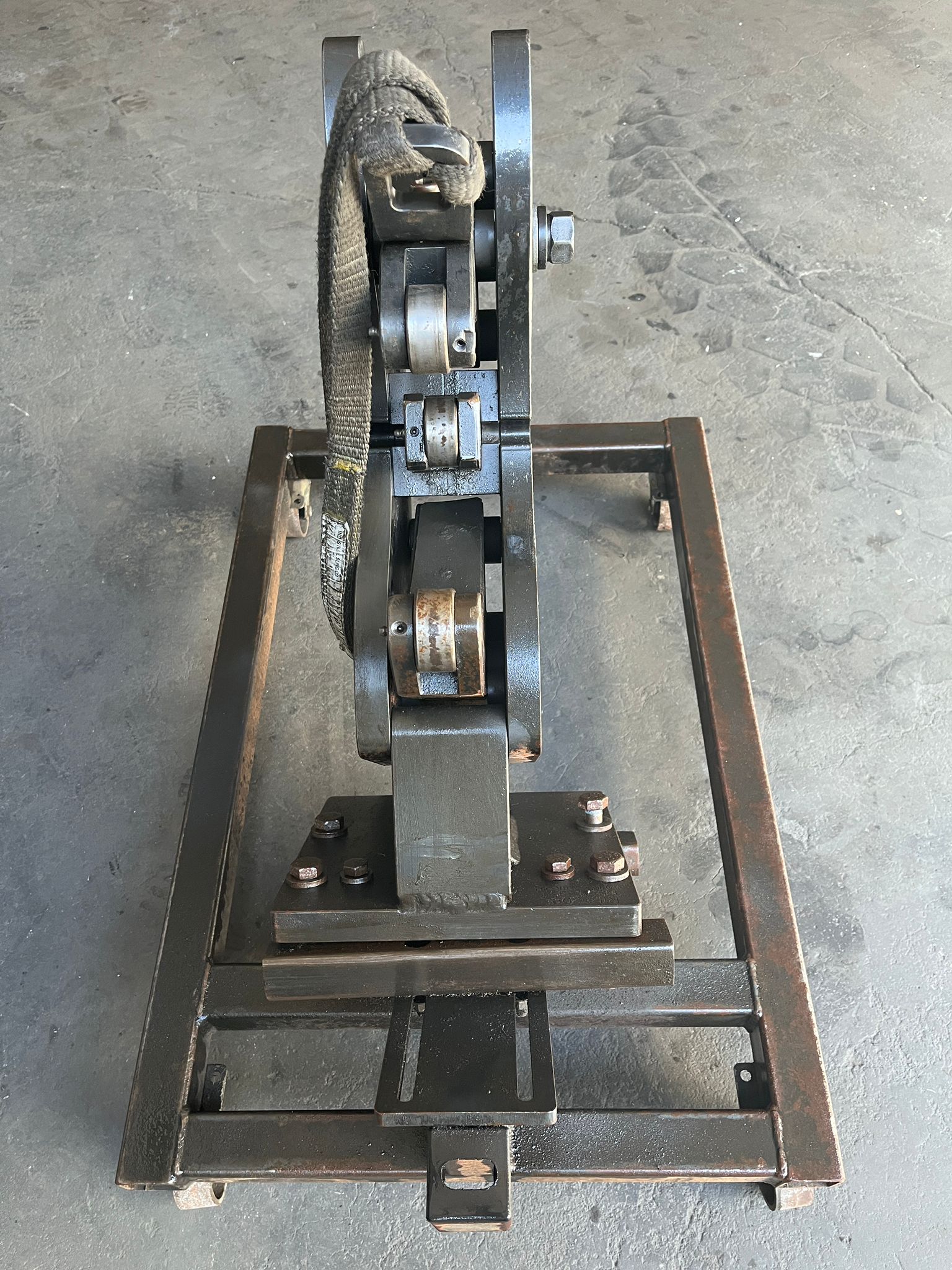

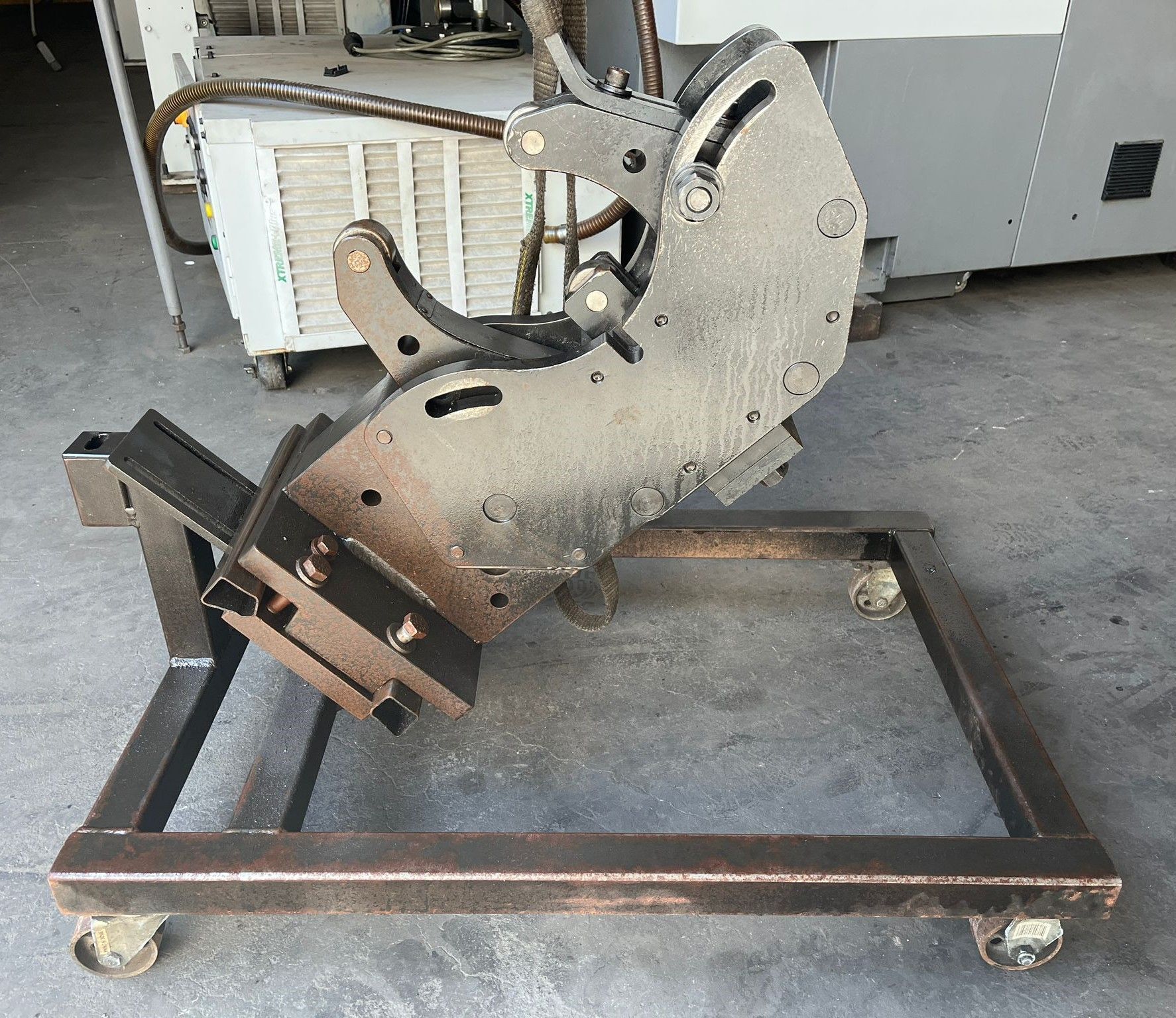

| 1″ – 12″ (Min – Max) Diameter Schmidt RIP – 112 Hydraulic Steady Rest |
| 30 HP High Torque Spindle |

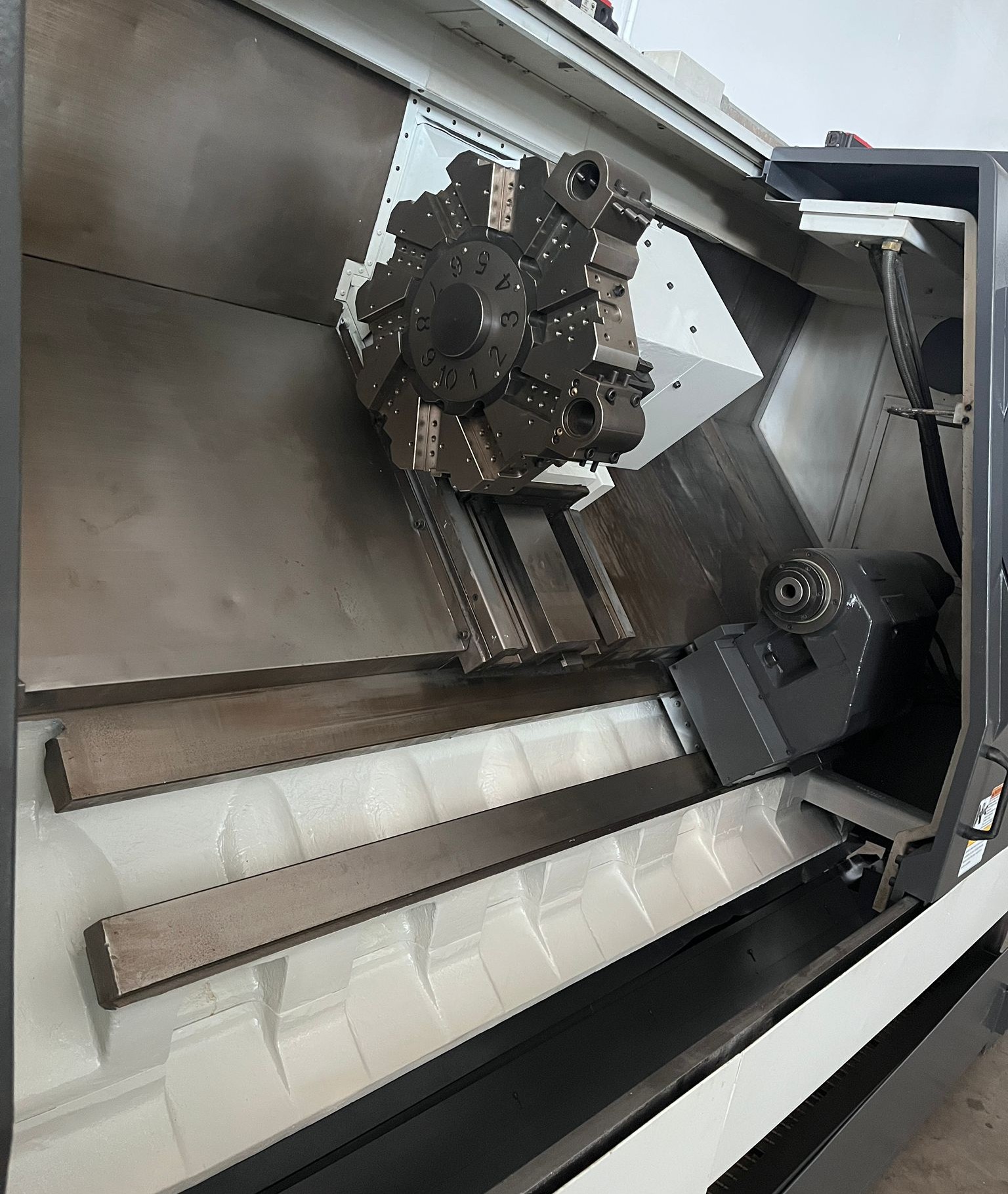

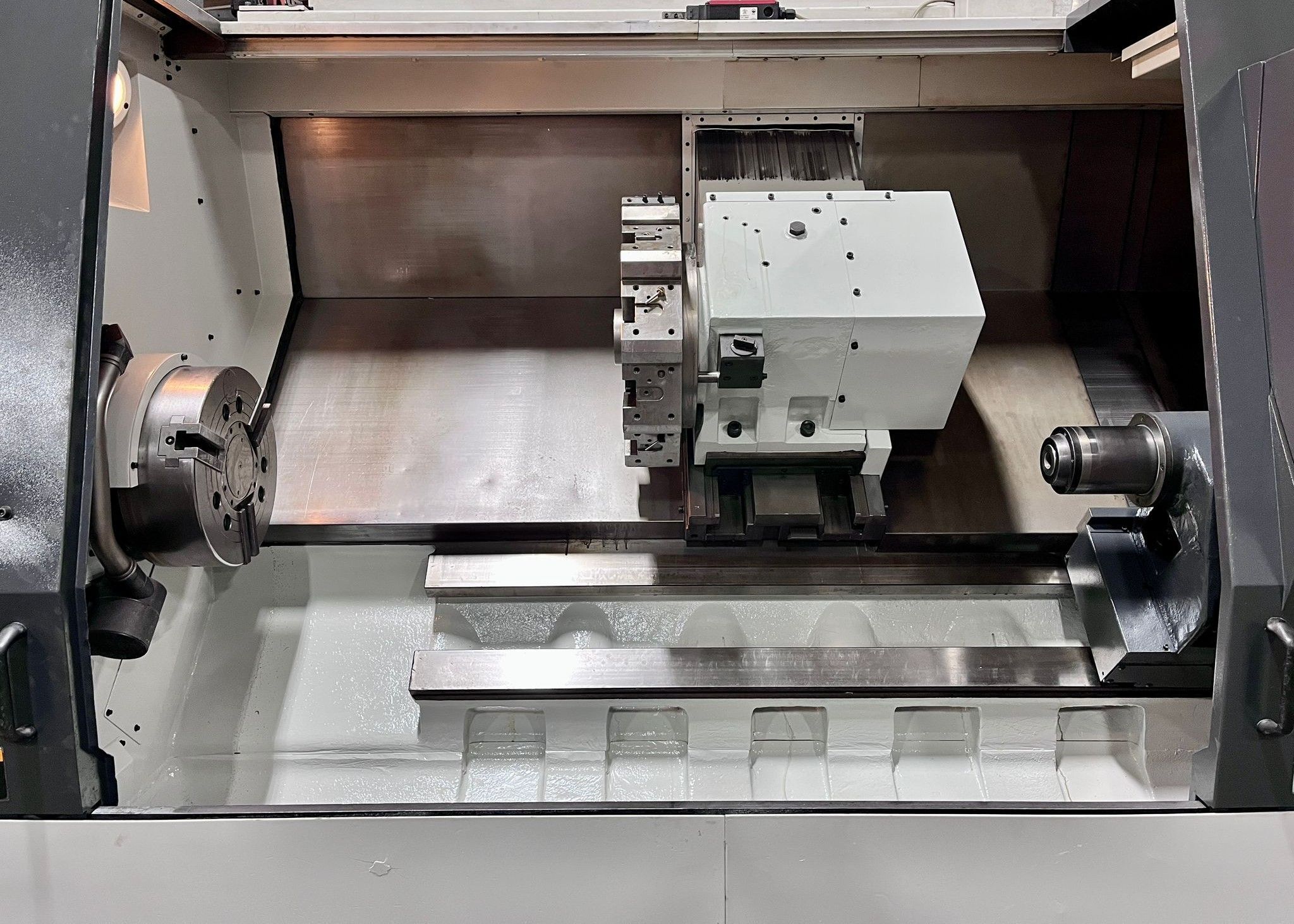

| 10 Station Automatic Turret |
| Tool Presetter |
| Tailstock |
| PCMCIA Card Interface |
| System |
| Coolant & Chip conveyor |
| (2) Boring Tool Holders Mounted on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 16.5″ |
| Max Turning Length: 60.2″ |
| Max Bar Capacity: 4.63″ |
| Swing Over Bed: 23.62″ |
| Travel: |
|---|
| X Axis Travel: 9.47″ |
| Z Axis Travel: 63.19″ |
| Rapid Traverse X Axis: 472 IPM |
| Rapid Traverse Z Axis: 591 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 5.20″ |
| Spindle Speed: 2000 RPM |
| Spindle Motor: 30 HP |

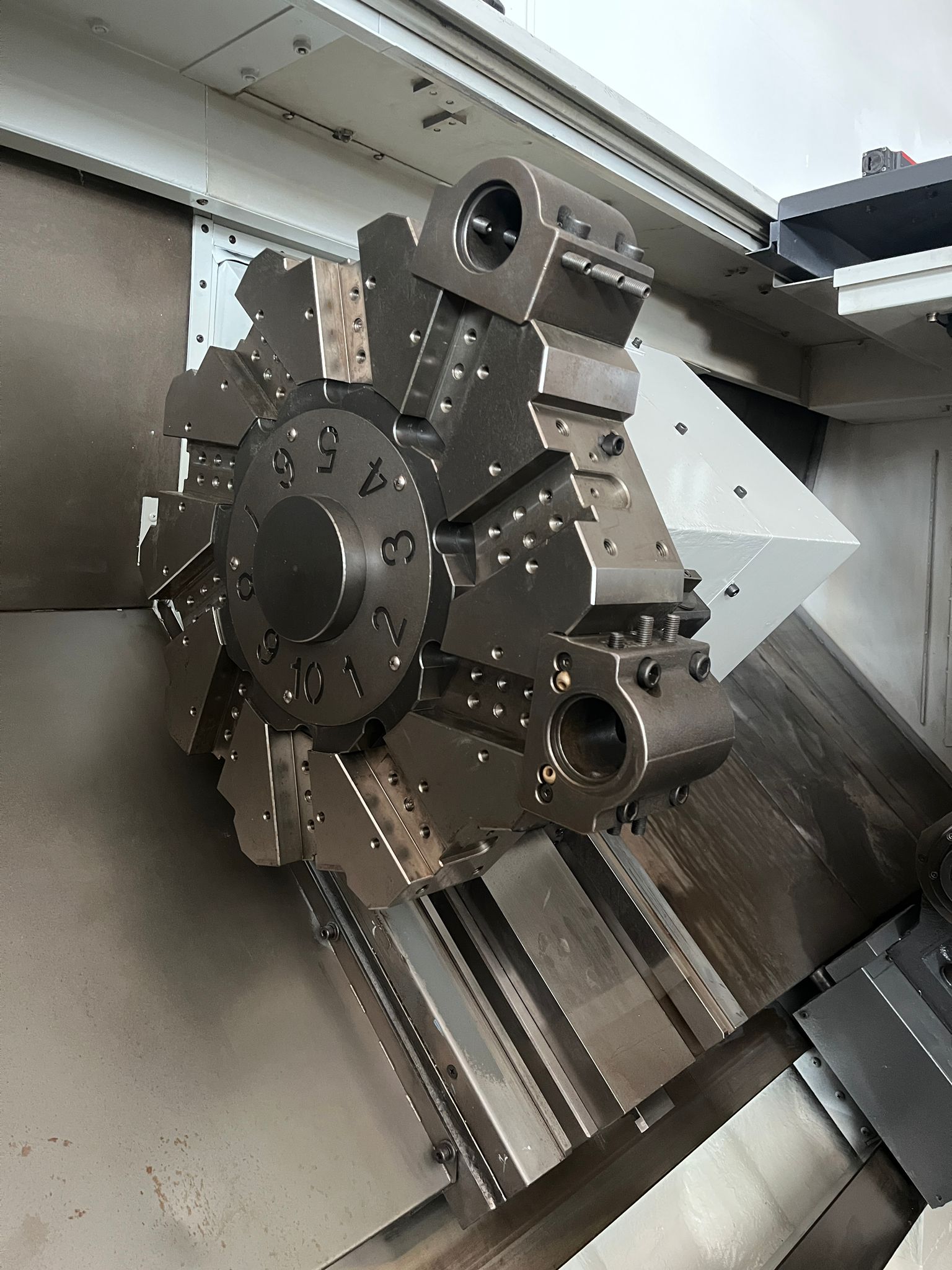

| Turret: |
|---|
| Capacity: 10 Station Turret |
| Turret Index Time: 0.15 Second |
| Tool Holders Type: BMT |

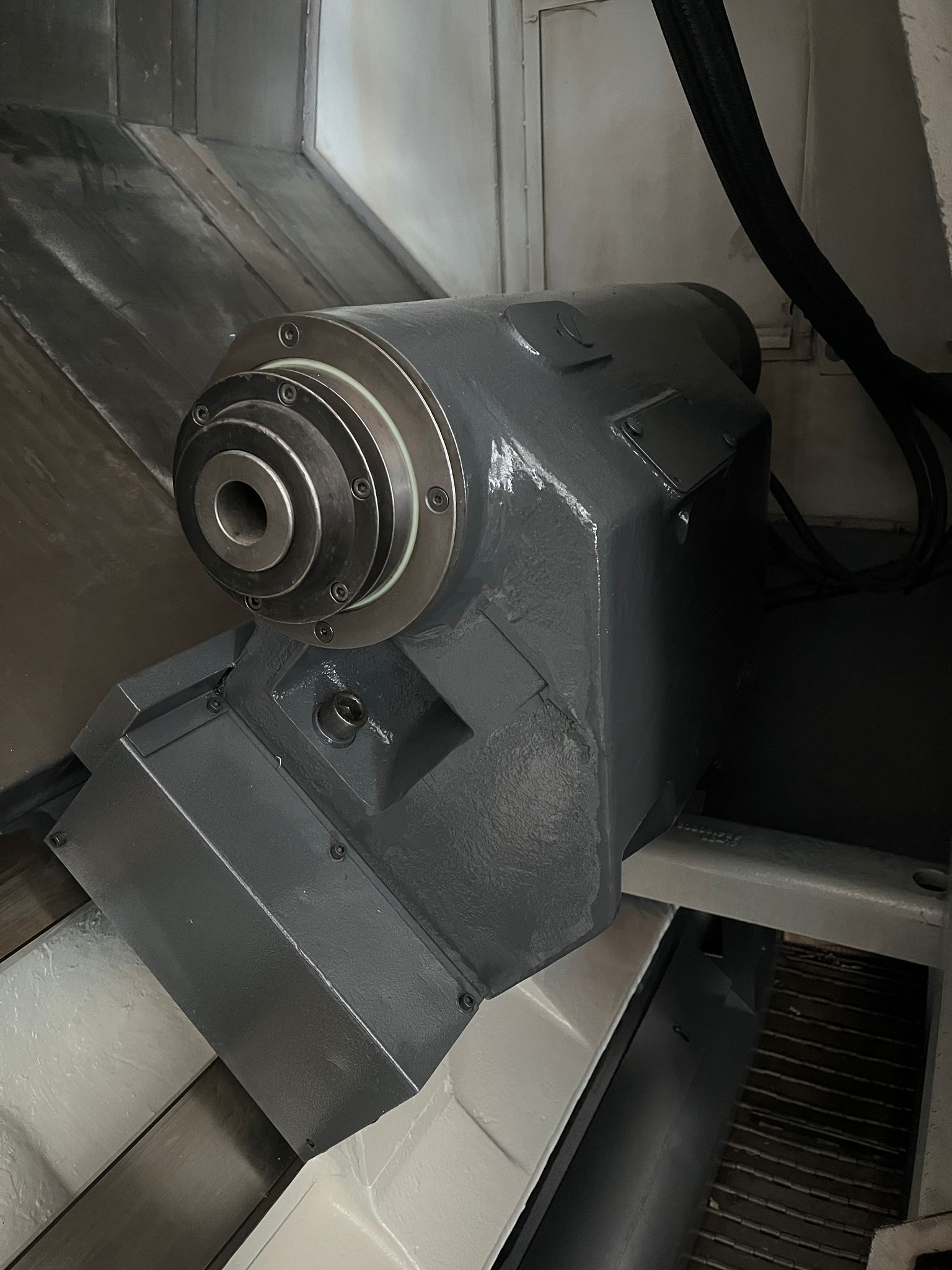

| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Tailstock Quill Dia.: 5.12″ |
| Tailstock Quill Travel: 4.70″ |
| General: |
|---|
| Power: 220v / kva / 3-Phase |
| Overall Dimensions: 197″ x 73″ x 80″ High Approx. |
| Weight: 19,800 lbs. Approx. |
