*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Features: |
|---|

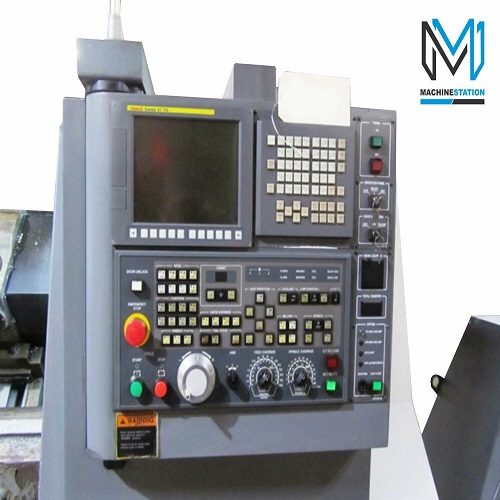

| Fanuc 0i-TD CNC Control |
| C Axis Live Tool Equipped |
| Long Bed Box Way Machine |
| 10″ 3 Jaw Chuck |
| Steady Rest |
| A2-8, 3500 RPM Spindle |
| 12 Station Live Tool Turret |
| Tool Presetter |
| Hydraulic Tailstock and Quill |
| PCMCIA Card Interface |
| USB Port |
| Foot Switch |
| Coolant System |
| Chip conveyor |
| Specifications: |
|---|
| Capacity |
| Max Turning Diameter: 15.75″ |
| Max Turning Length: 40.75″ |
| Max Bar Capacity: 3.03″ |
| Swing Over Bed: 26.8″ |
| Distance Between Centers: 44.3” |
| Travel: |
|---|
| X Axis Travel: 8.66″ |
| Z Axis Travel: 42.91″ |
| C Axis |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Tailstock Body Travel: 40.24″ |
| Tailstock Quill Dia.: 4.33″ |
| Tailstock Quill Travel: 3.94″ |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.38″ |
| Spindle Speed: 3500 RPM |
| Spindle Motor: 30 hp |
| Turret: |
|---|
| Turret Capacity: 12 Stations Live Tool Turret |
| Turret Index Time: 0.15 Second |
| Tool Size: 2″ |
| Live Tool Speed: 5000 RPM |
| General: |
|---|
| Power: 55 kva, 220v / 3-Phase |
| Overall Dimensions: ″ x ″ x ″ High |
| Weight: 15200 lbs |
