*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

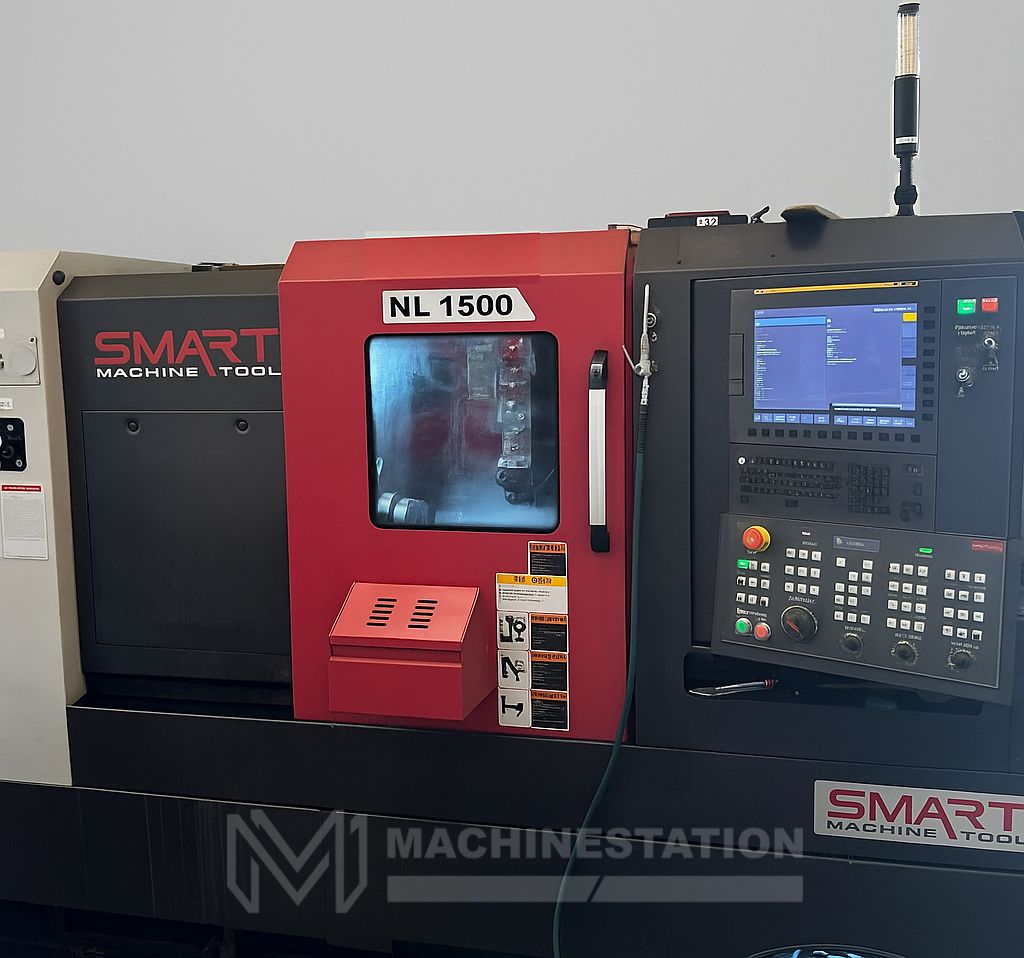

| Make: |
Smart |
| Model: |
NL-1500 |
| Year: |
2022 |
| Equipped With: |

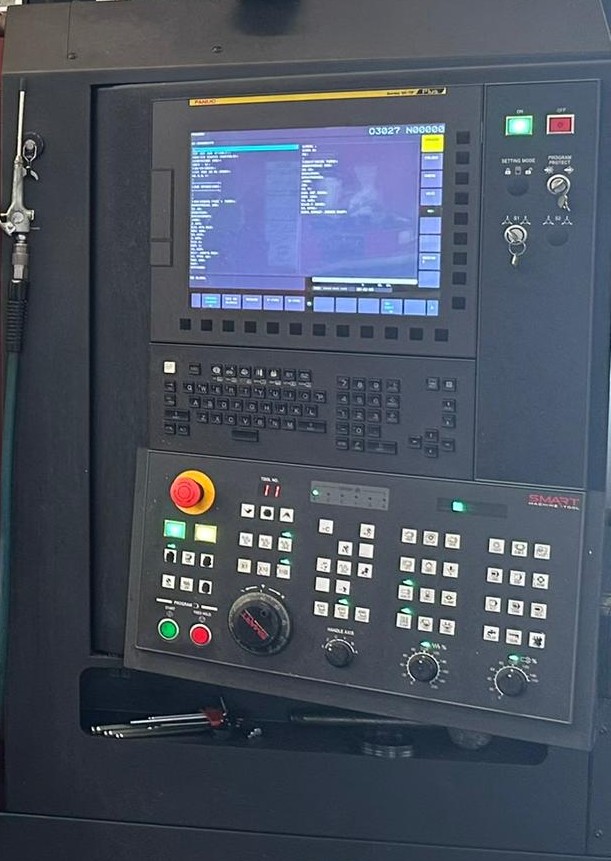

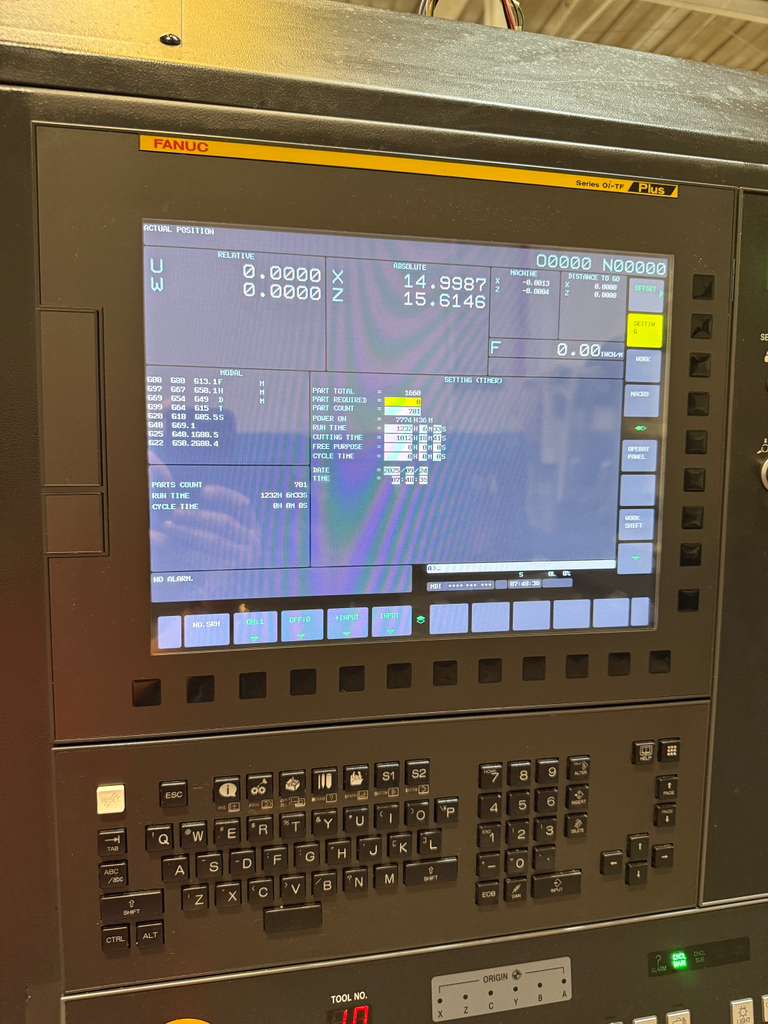

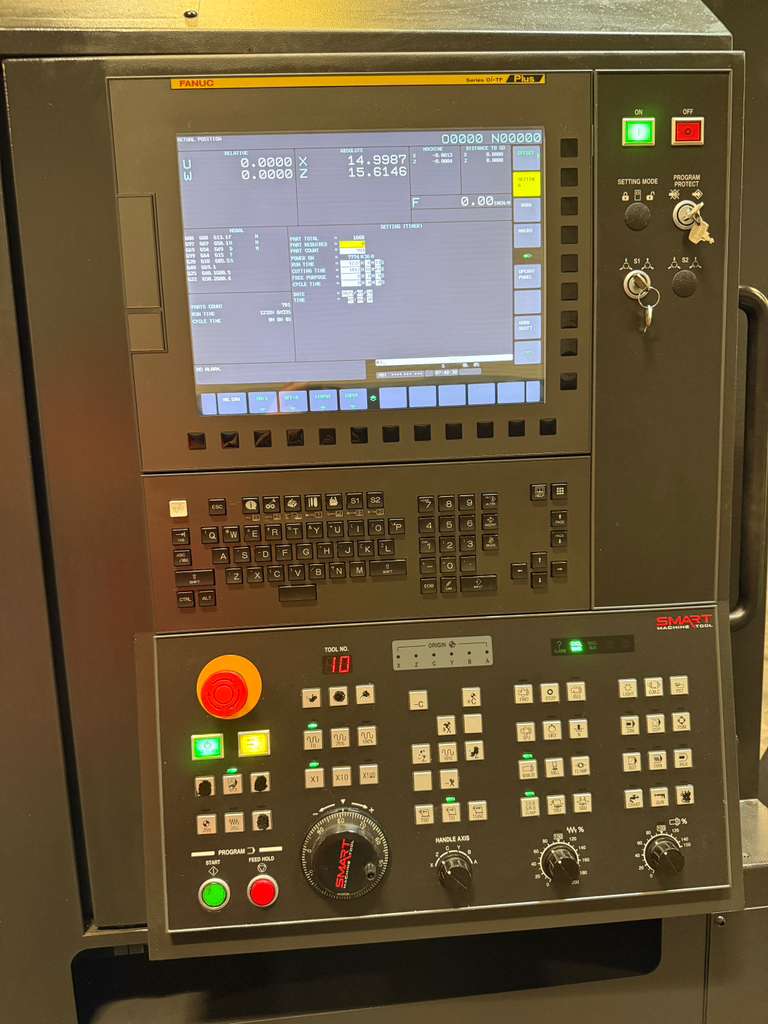

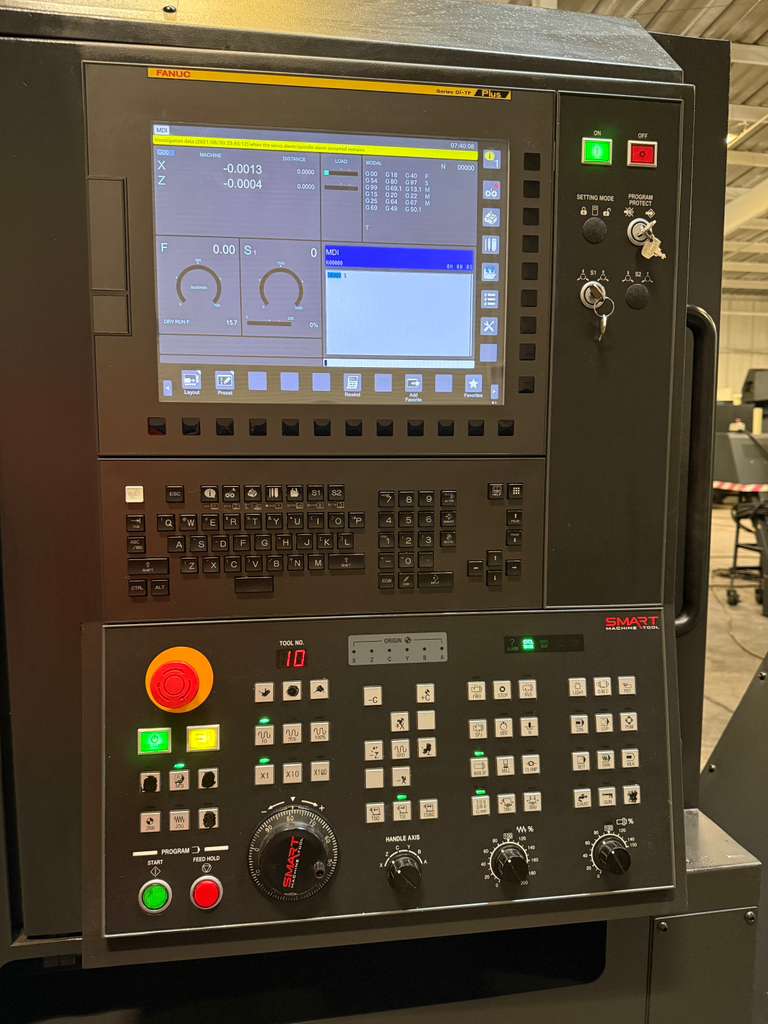

- Fanuc Oi-TF Plus Touch Screen CNC Control
- Box Way Construction

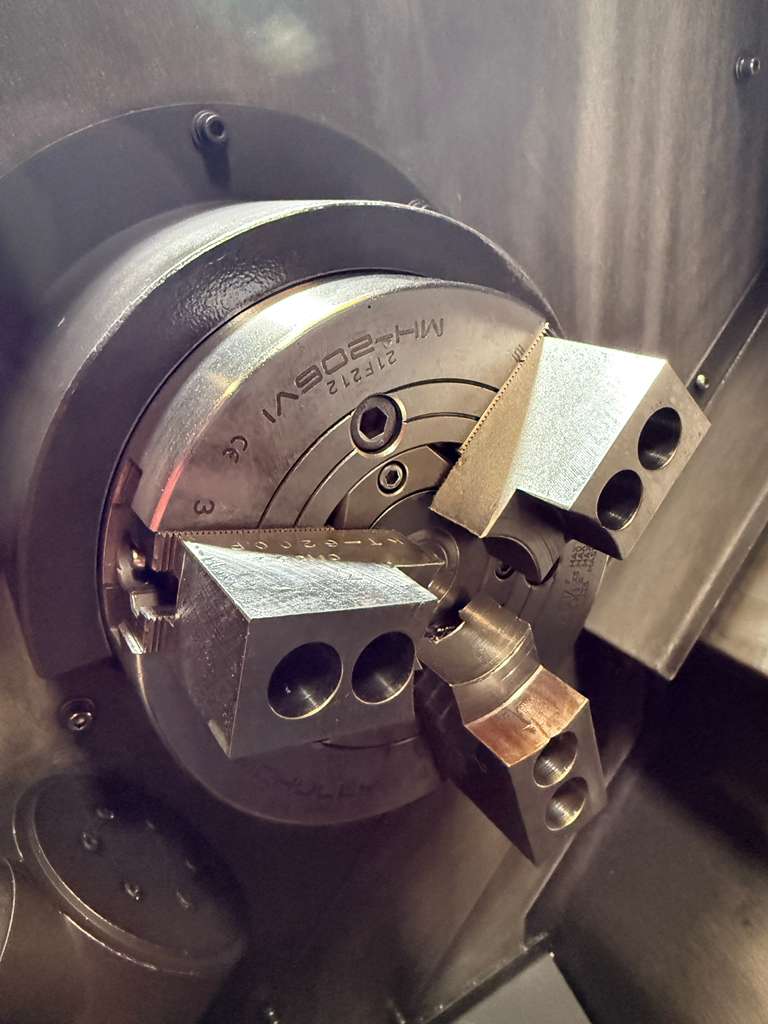

- Samchully MH-206VI 6″ 3-Jaw Power Chuck
- A2-5, 6,000 RPM Spindle

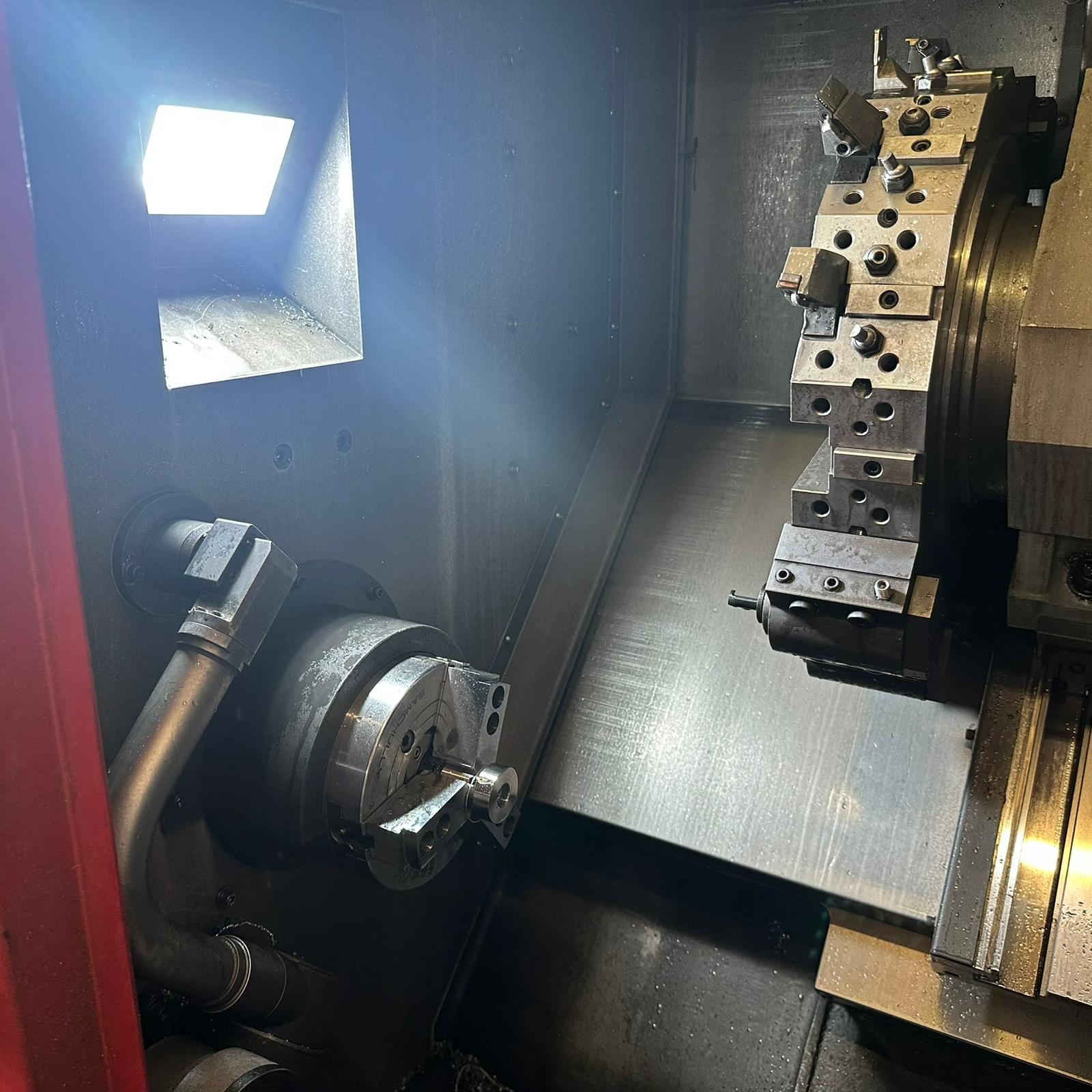

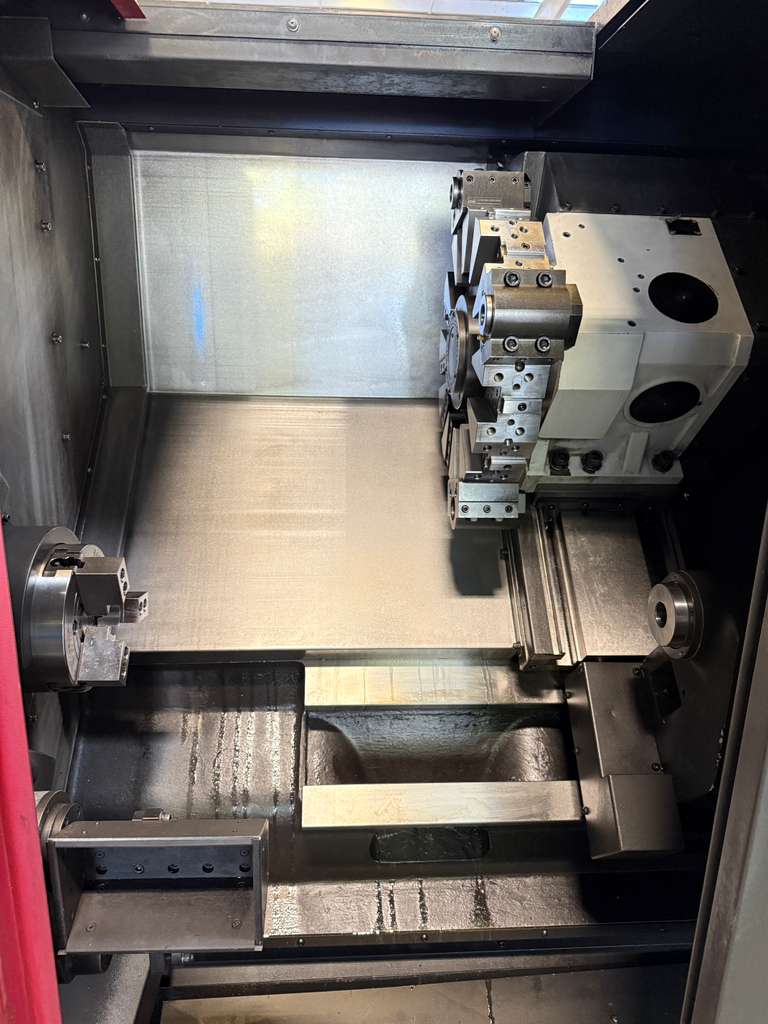

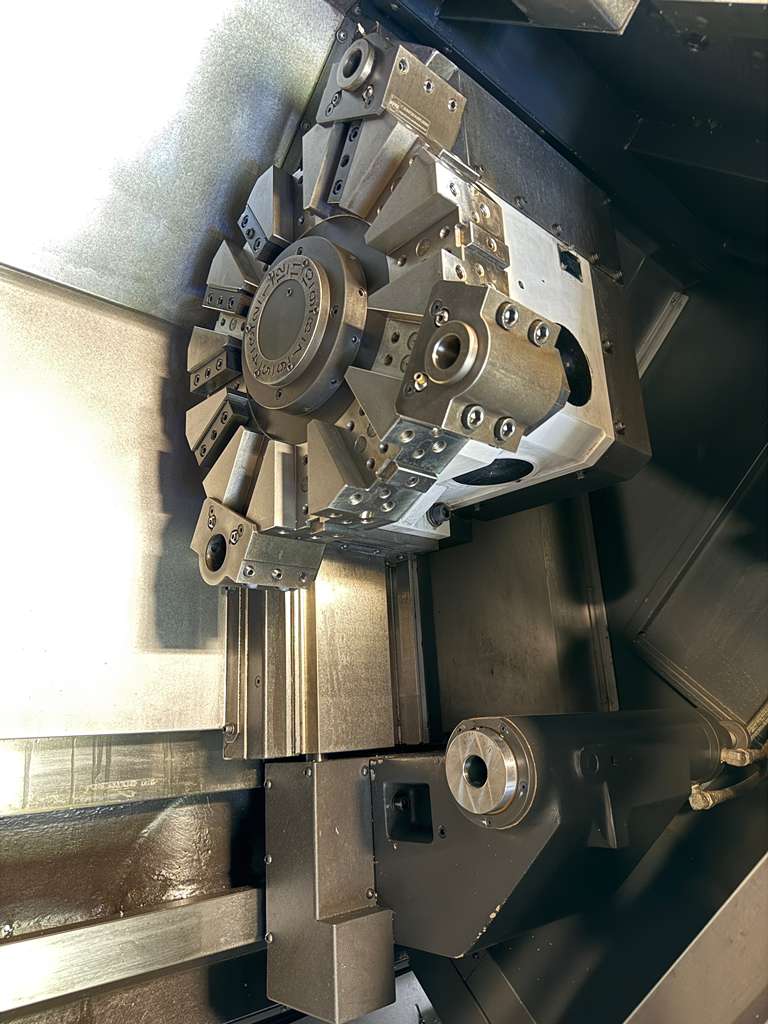

- 12 Station Automatic Turret
- Tool Presetter

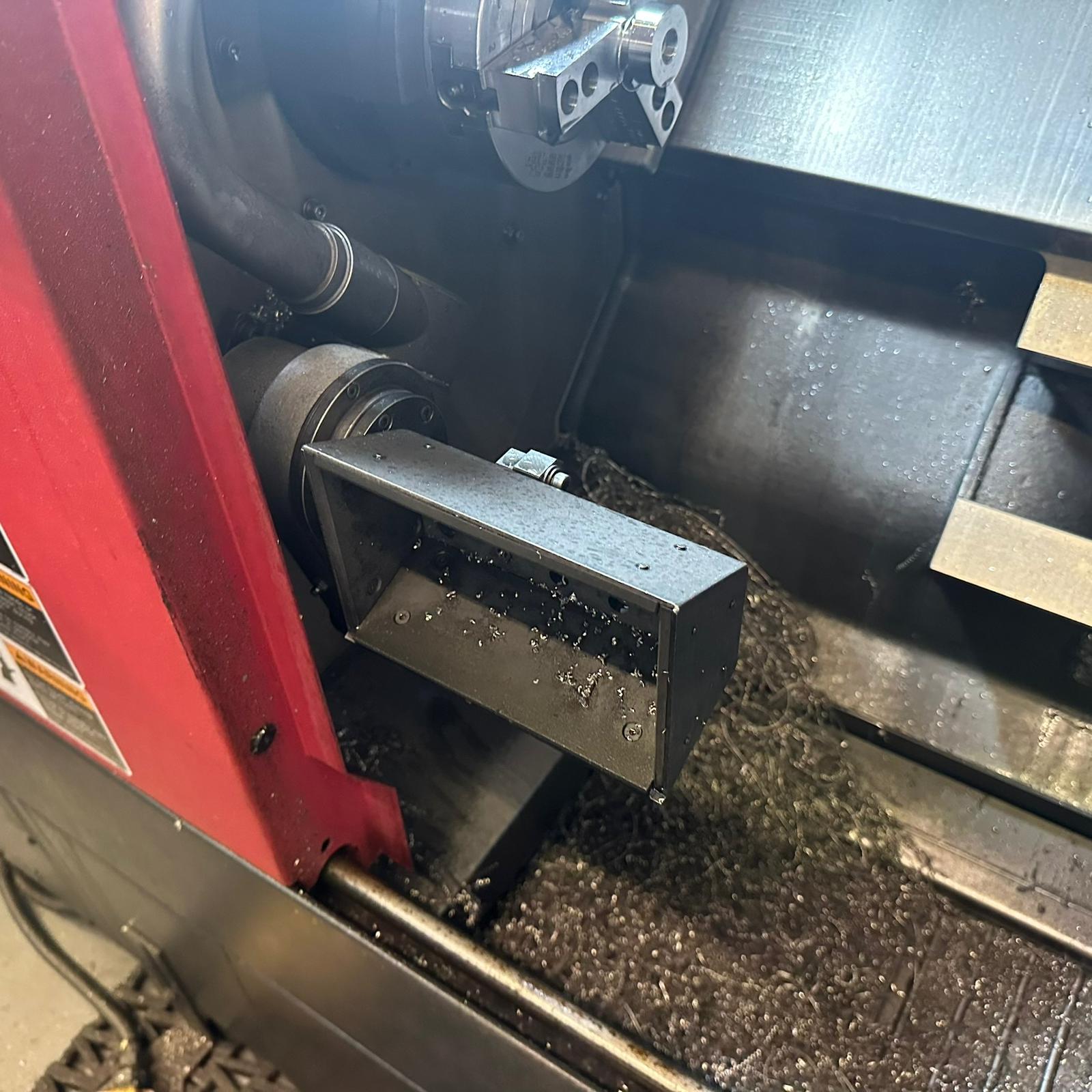

- Part Catcher

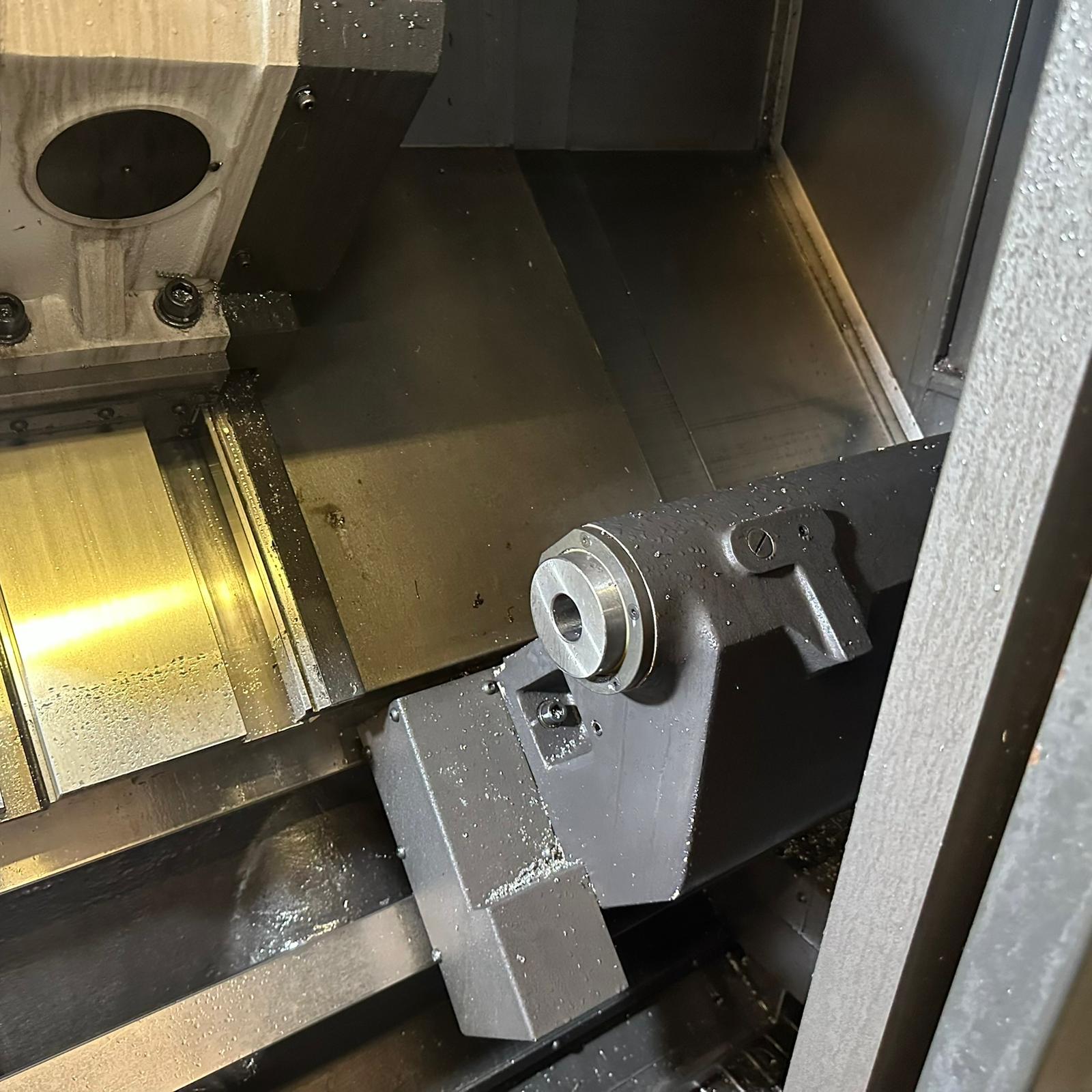

- Programmable Tailstock
- Rigid Tapping

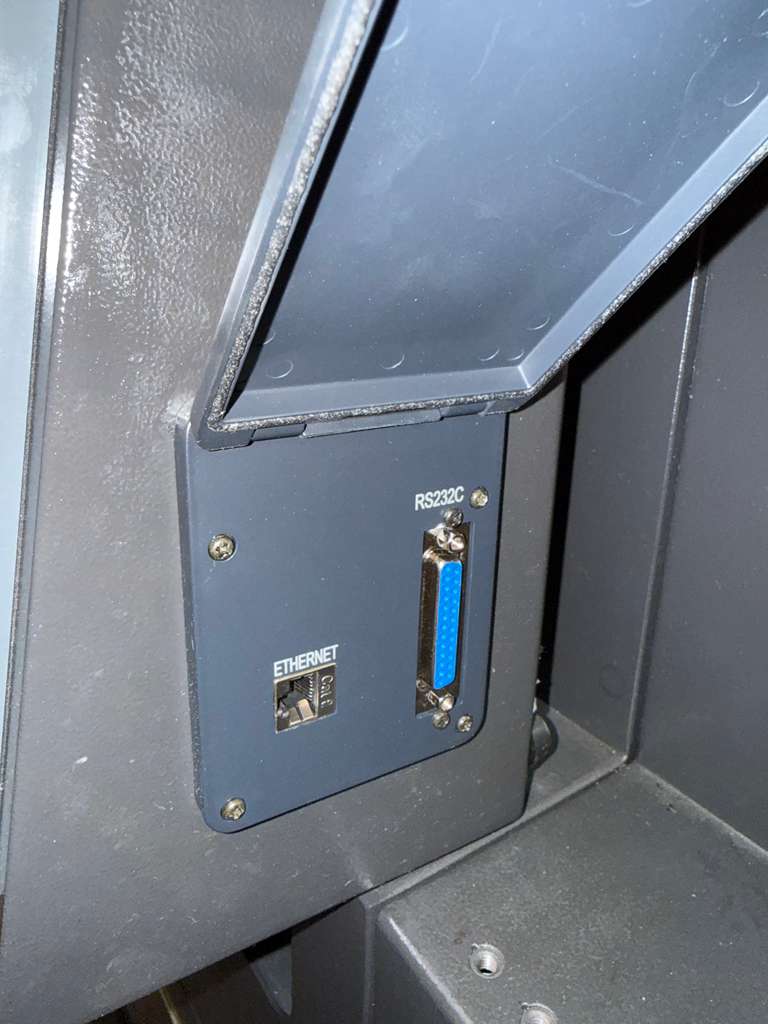

- RS-232C Port & Ethernet Port
- USB Port

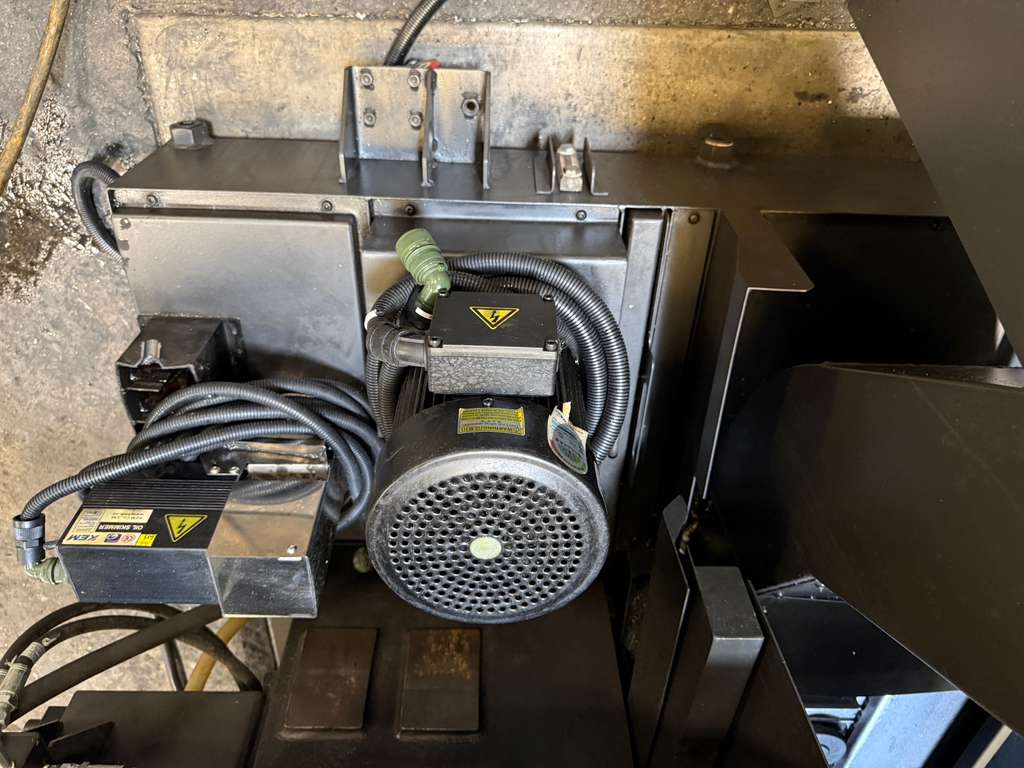

- Coolant System

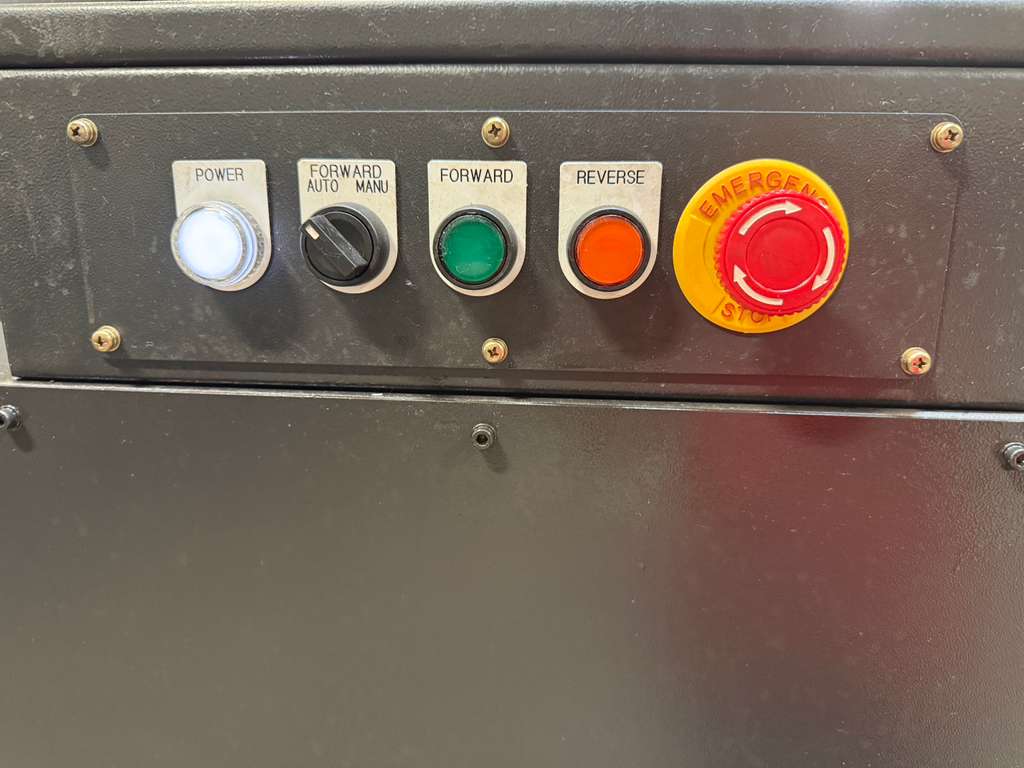

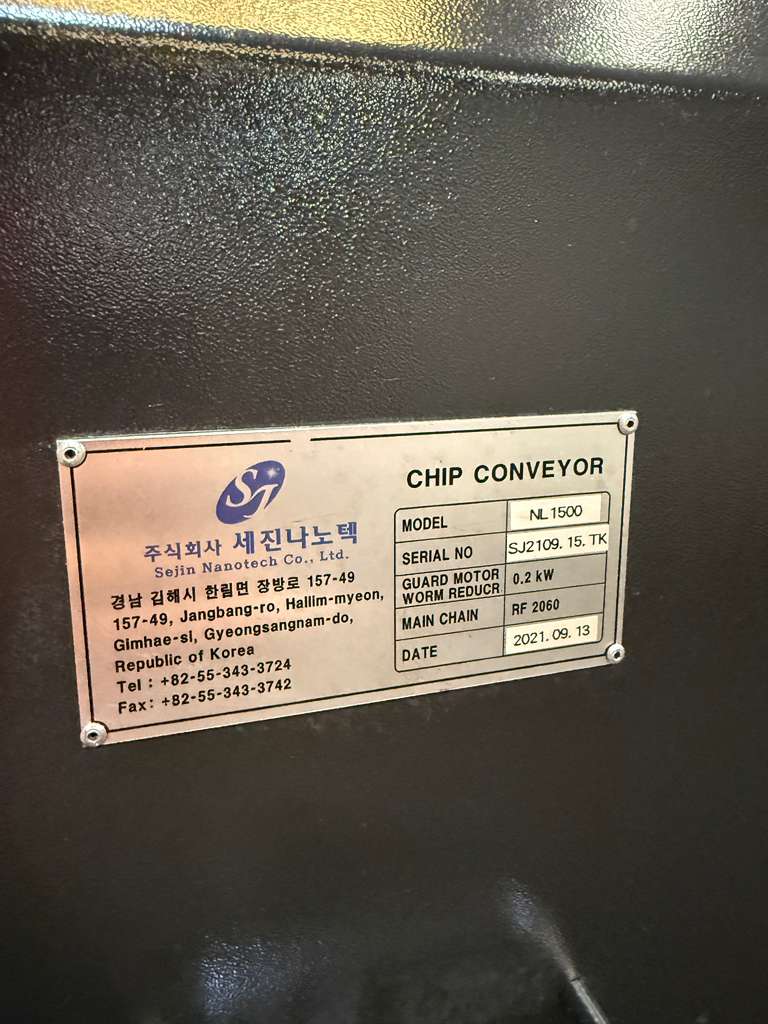

- Chip Conveyor
- Foot Switch
|
| Capacity: |
- Max Turning Diameter: 15.39″
- Max Turning Length: 22.05″
- Max Swing Over Bed: 22.44″
- Max Swing Over Cross Slide: 14.57″
- Max Bar Capacity: 2.01″
|
| Travels: |
- X Axis Travel: 9.06″
- Z Axis Travel: 22.83″
- Rapid Traverse X Axis: 945 IPM
- Rapid Traverse Z Axis: 1181 IPM
|
| Spindle: |
- Spindle Nose: A2-5
- Spindle Bore: 2.40″
- Spindle Speed: 6000 RPM
- Spindle Motor: 25 HP
|

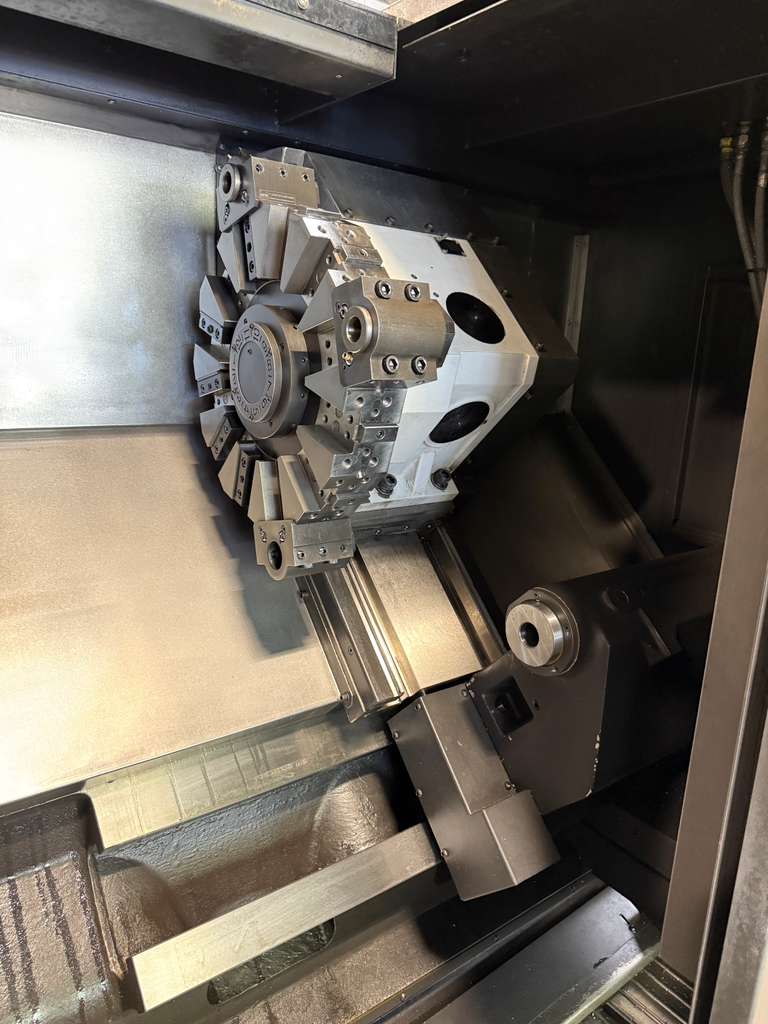

| Turret: |
- Turret Capacity: 12 Stations
- Turret Index Time: 0.35 Second
- Square Tool Size: 1.0″
- Round Tool Size: 1.5″
- Tool Holders Type: BMT
|
| Tailstock: |
- Tailstock Type: Programmable
- Tailstock Quill Travel: 3.15″
- Tailstock Quill Diameter: 3.15″
- Taistock Taper: MT-4
- Tailstock Body Travel: 17.72″
|
| General: |

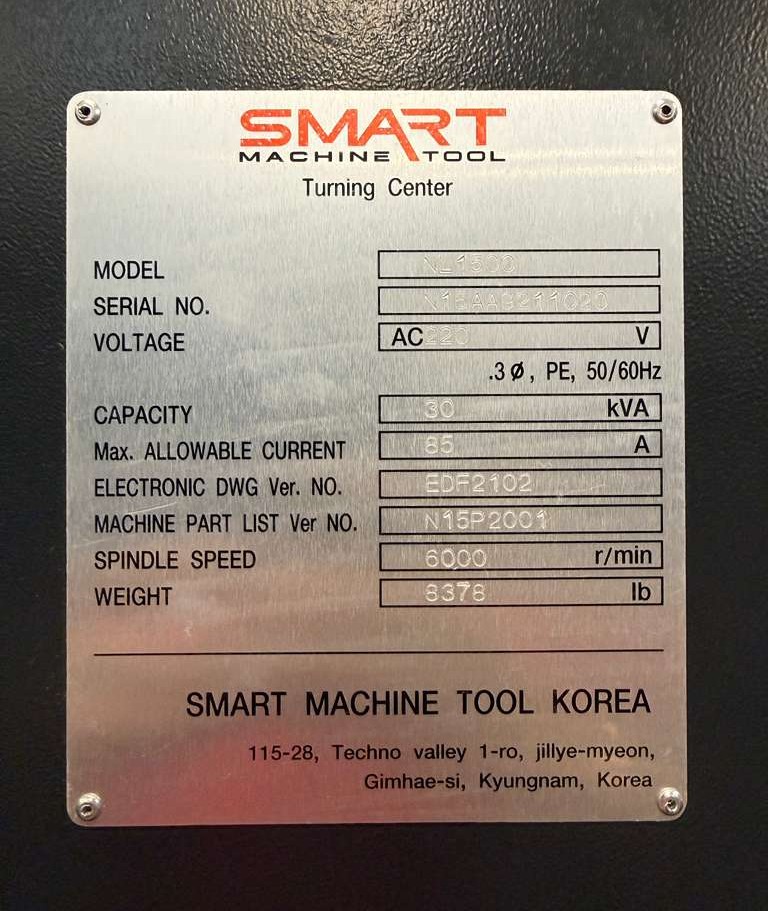

- Power: 50/60 HZ / 220v / 3-Phase / 30kva
- Overall Dimensions: 124″ x 62″ x 75″ High Approx.
- Weight: 8,378 lbs Approx.
|
