*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Takisawa |
| Model: | LA-300 |
| Year: | 2018 |
| Machine Type: | CNC Lathe / Turning Center |

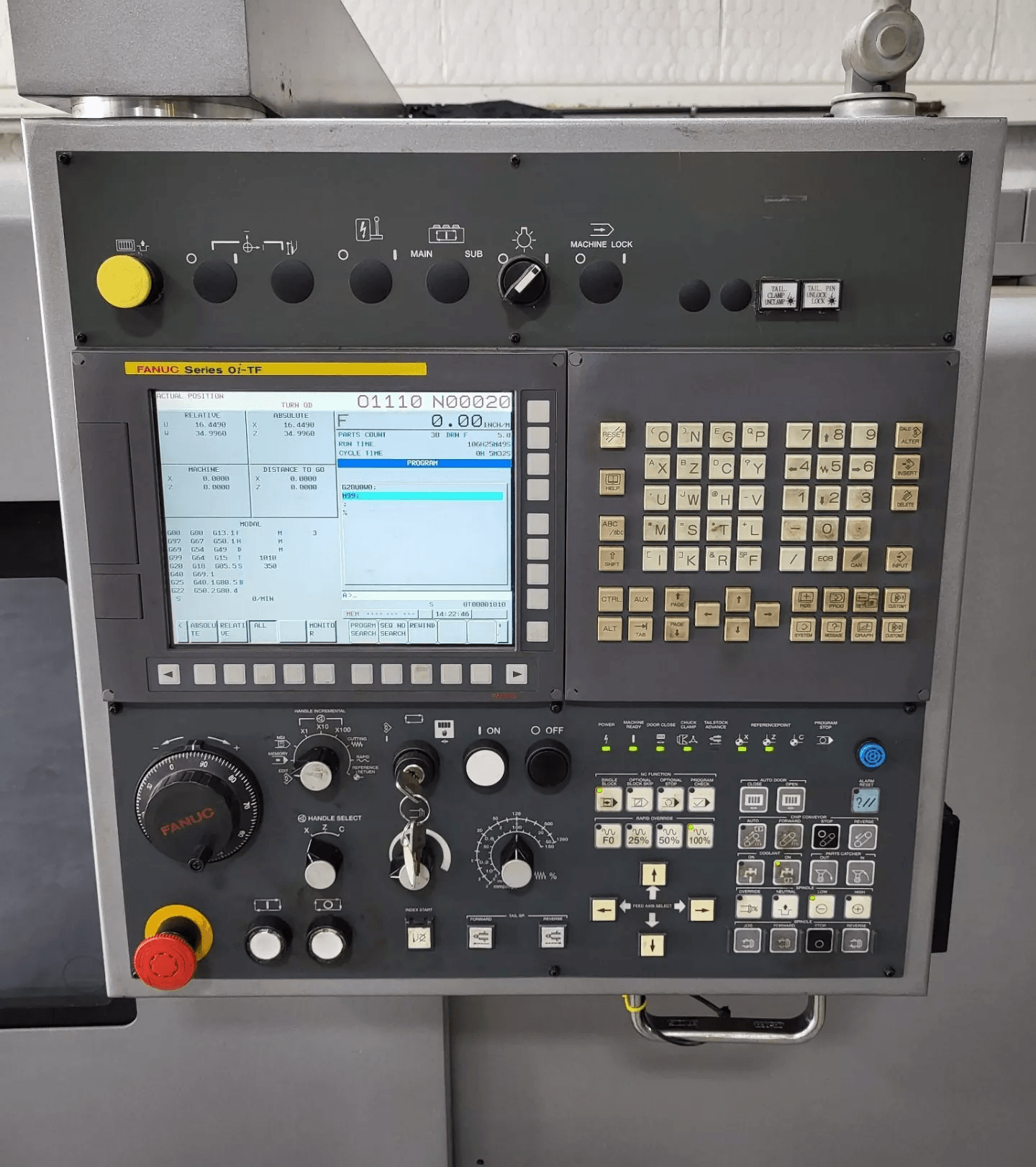

| Control: | Fanuc Series Oi-TF CNC Control |
| Equipped With: |
|---|
| Fanuc Series Oi-TF CNC Control |
| 12″ 3-Jaw Hydraulic Chuck |
| 12 Station Turret |
| Programmable Tailstock |
| Chip Conveyor |
| Coolant System |
| Full Enclosure |
| Hydraulic System |
| Automatic Lubrication System |
| Work Light |
| Remote Jog Handle |
| Capacity: |
|---|
| Maximum Swing : 22.83″ |
| Maximum Cutting Diameter : 17.72″ |
| Maximum Cutting Length : 42.79″ |
| Maximum Bar Capacity : 3.54″ |
| Travels: |
|---|
| X Axis Travel : 9.65″ |
| Z Axis Travel : 47.24″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis : 629 IPM |
| Rapid Traverse Z Axis : 787 IPM |
| Spindle: |
|---|
| Spindle Nose : A2-8 |
| Spindle Bore : 4.02″ |
| Spindle Speed : 3000 RPM |
| Spindle Motor : 18.5 / 22 kW |
| Turret: |
|---|
| Turret Capacity : 12 Stations |
| Tool Size : 25 x 25 mm |
| Tailstock: |
|---|
| Tailstock Body Travel : 42.52″ |
| Tailstock Quill Diameter : 4.33″ |
| Tailstock Quill Stroke : 5.91″ |
| Tailstock Taper : MT #5 |
| General: |
|---|
| Power Source : AC 220V / 3-Phase / 50/60 Hz |
| Power Requirement : 31 kVA / 47A |
| Machine Dimensions : 186.2″ x 78.9″ x 81.7″ High |
| Machine Weight : 16,535 lbs Approx. |
| Country of Origin : Taiwan |
