Name: Takisawa NEX-108 CNC Turning Center - 8" Chuck, Tool Presetter, Tailstock Lathe
SKU: 113512
Availability: InStock

Takisawa NEX-108 CNC Turning Center – 8″ Chuck, Tool Presetter, Tailstock Lathe

Reserve your machine by paying: $999 (Refundable)

(We’ll hold it for 7 business days while you inspect or finalize your purchase)

$999

In stock

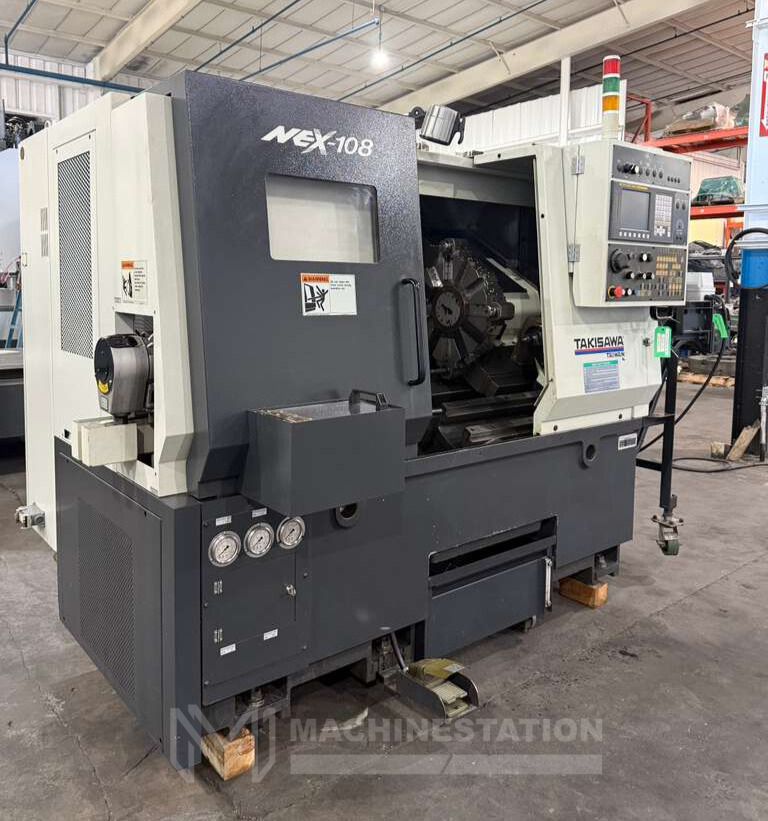

Used Takisawa NEX-108 CNC Turning Center For Sale

Location:	Lake Elsinore, CA
SKU:	113512

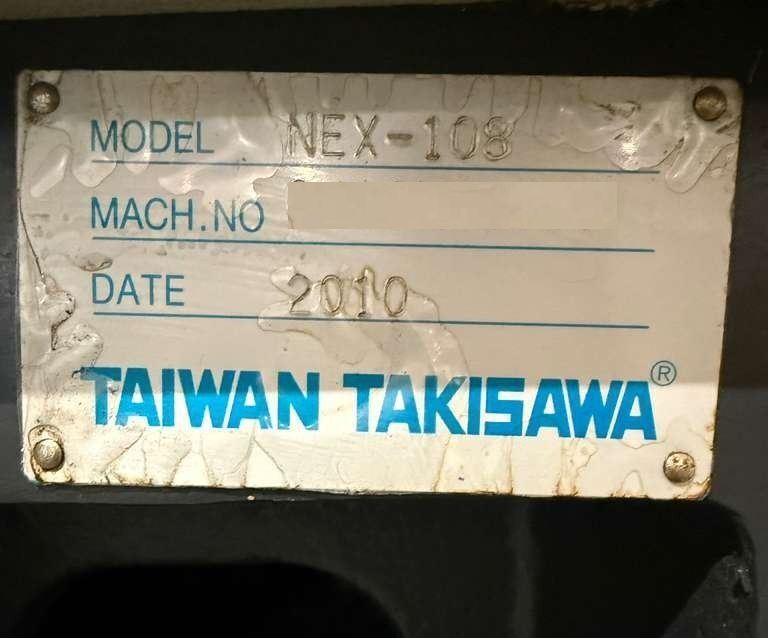

Make/Model:	Takisawa NEX-108
Year:	2010
Condition:	Used – Good
Video:	No Video

SKU: 113512

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Takisawa
Model:	NEX-108
Year:	2010
Condition:	Used – Good

Equipped With:

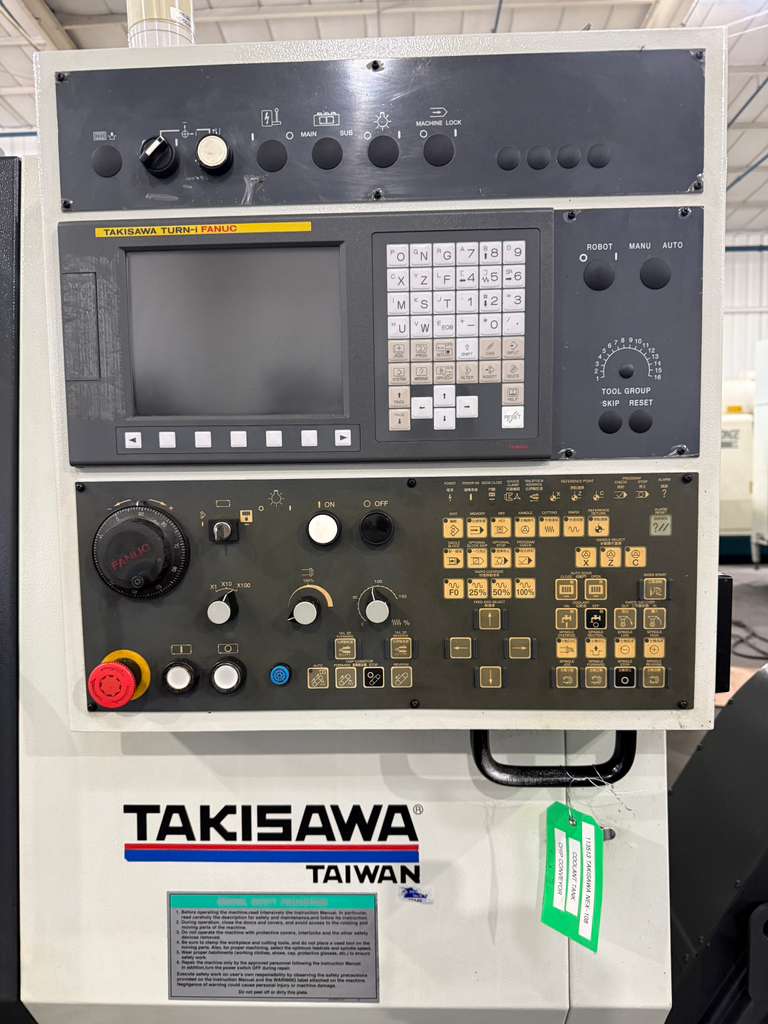

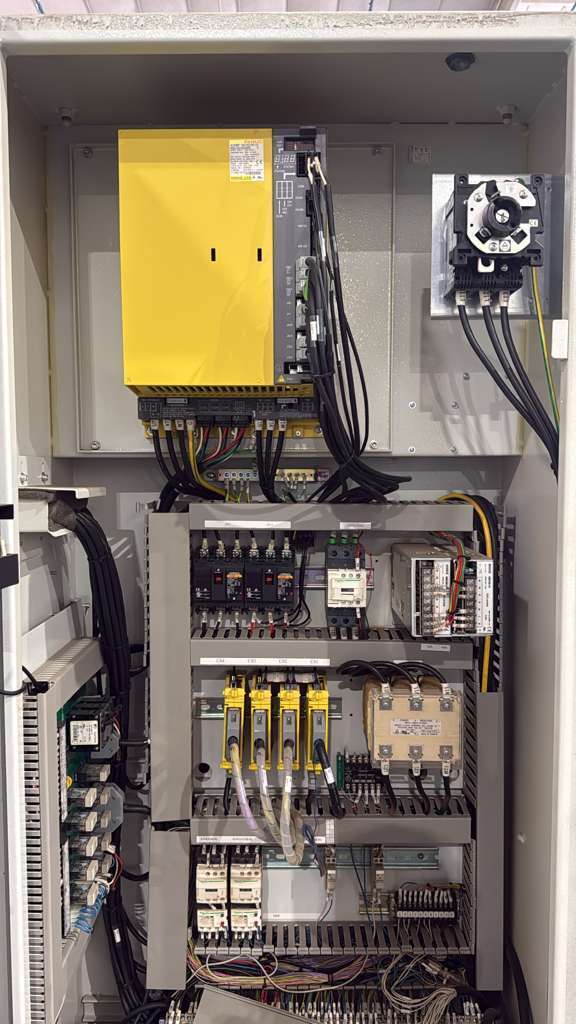

Takisawa Turn-i Fanuc CNC Control
Linear Ways Construction

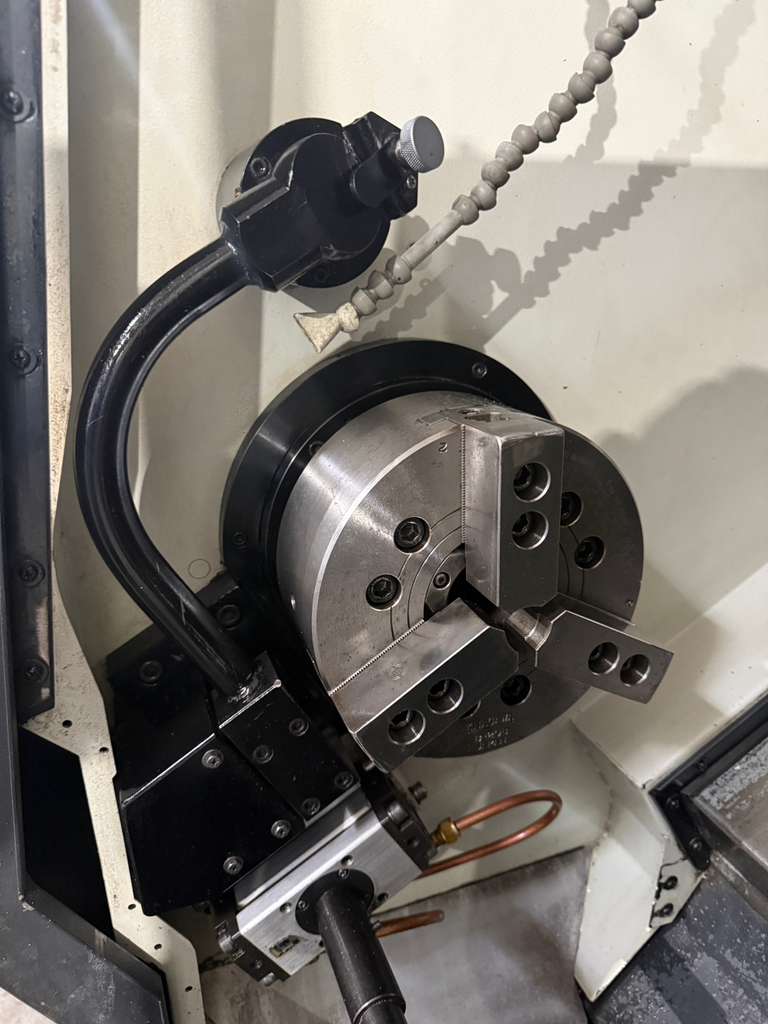

8″ 3-Jaw Hydraulic Chuck

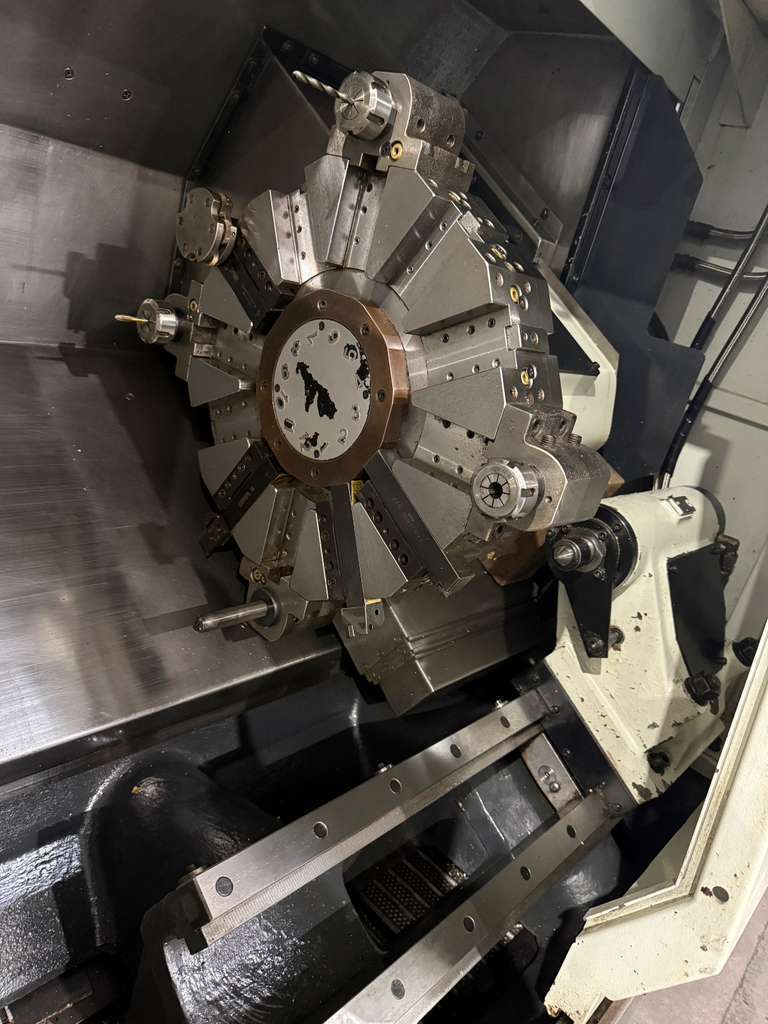

12-Station Automatic Turret
Tool Presetter
Tailstock
PCMCIA Card Interface
Rigid Tapping

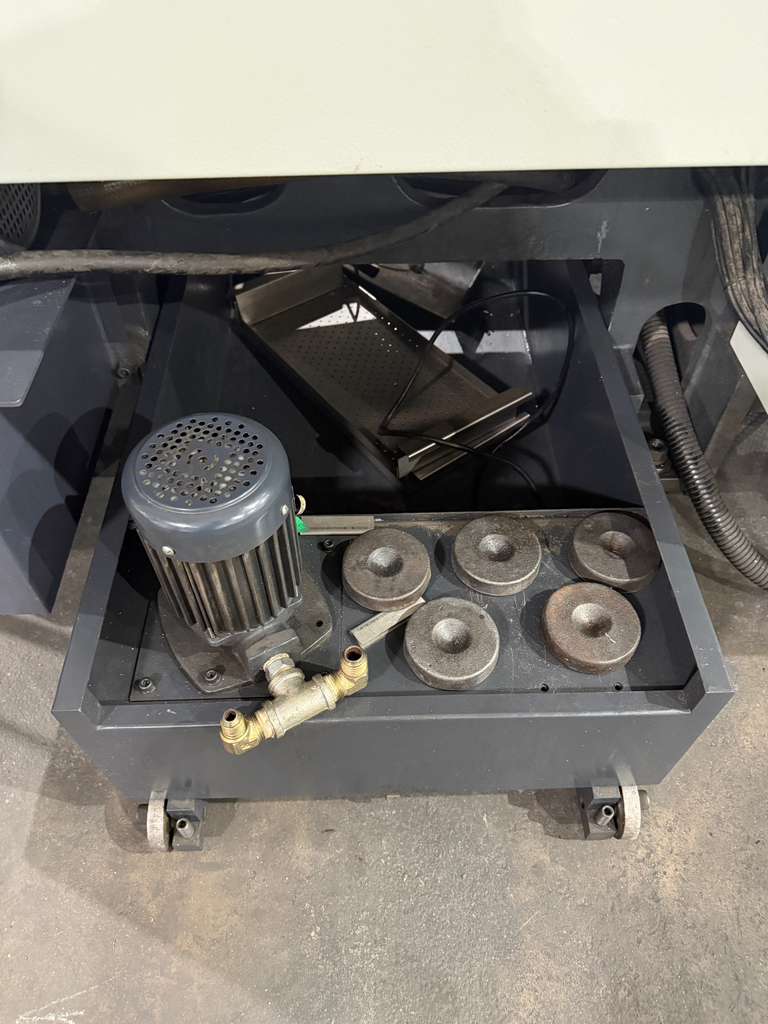

Coolant System
Automatic Lubrication system
Foot Switch

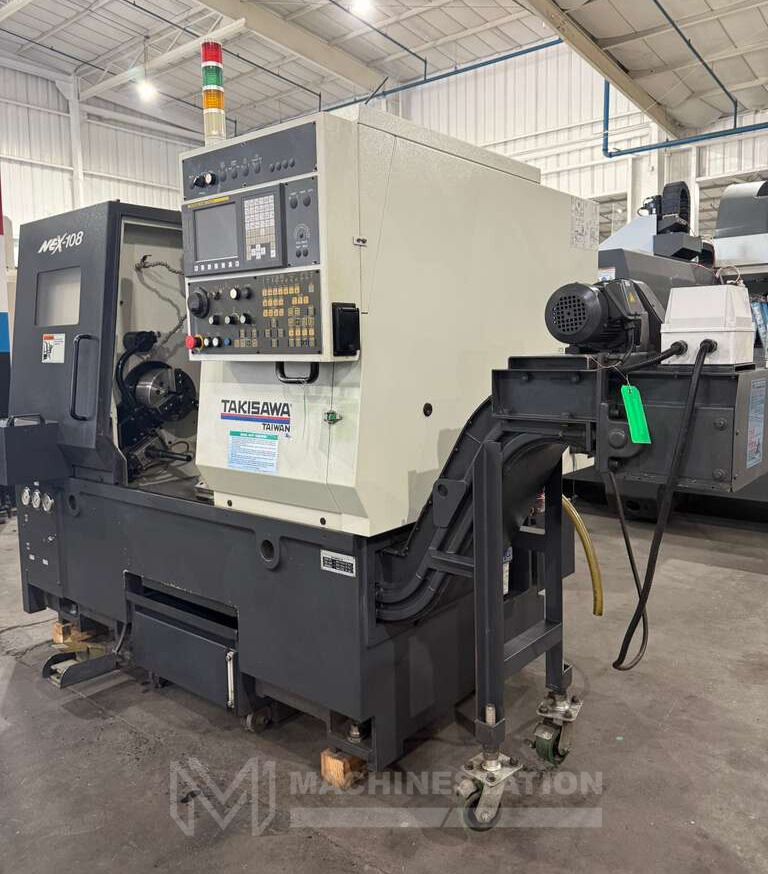

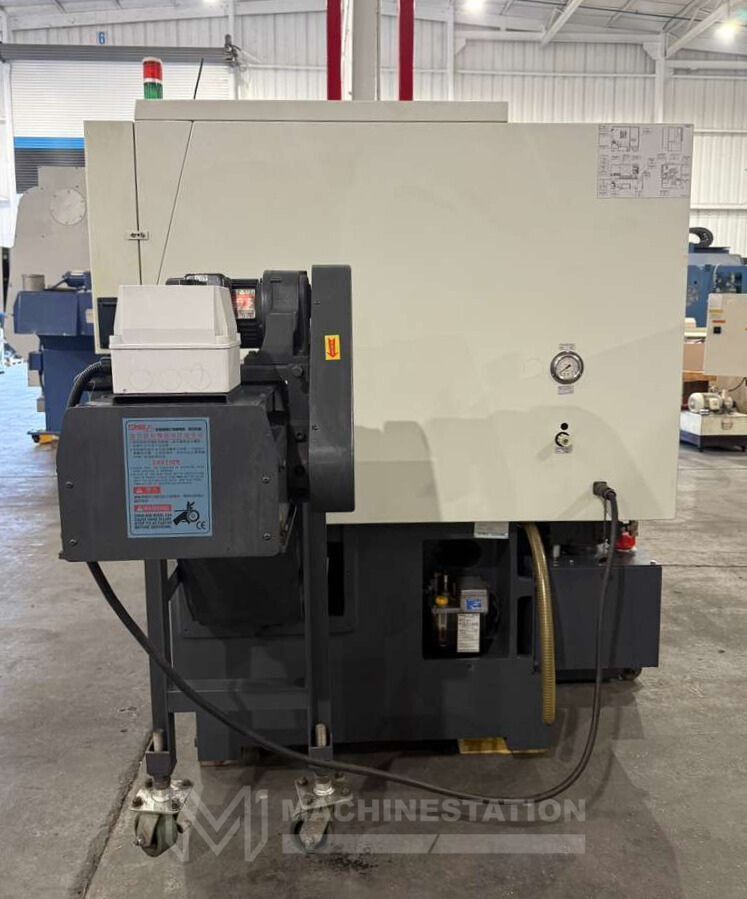

Chip Conveyor

Capacity:
Max Turning Diameter: 12.60″
Max Turning Length: 18.93″
Swing Over Bed: 15.75″
Swing Over Cross Slide: 12.60″
Max Bar Capacity: 2.04″

Travels:
X Axis Travel: 7.08″
Z Axis Travel: 20.87″
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 945 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.48″
Spindle Speed: 4,000 RPM
Spindle Motor: 15 HP

Turret:
Turret Capacity: 12 Stations
Turning Tool Shank: 1.0″
Boring Bar Shank Diameter: 1.57″
Tool Holders Type: Bolt Mounted

Tailstock:
Tailstock Taper: MT-4
Tailstock Body Travel: 16.73″
Tailstock Quill Diameter: 2.95″
Tailstock Quill Travel : 3.93″

General:
Power Source: AC 220 V, Three Phase, 50/60 Hz
Power Requirement: 21 kva
Overall Dimensions: 86″ x 65″ x 70″ High Approx.
Weight : 8,377 lbs Approx.
