All specifications are approximations and are subject to verification.
“This One Owner machine is in good running condition. It is equipped with 15″ Chuck, Tool Presetter, Tailstock ,Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition.”
Comes with 15″ Chuck, Tailstock & Chip Conveyor

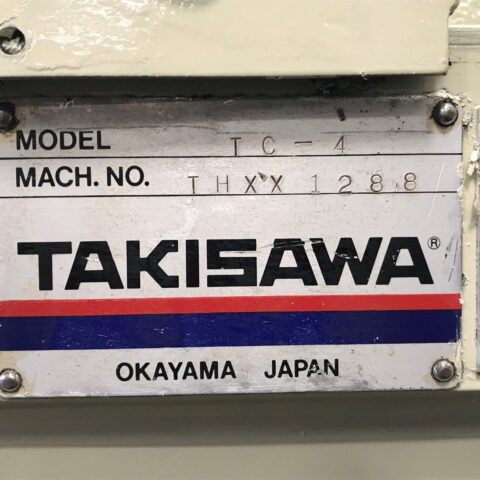

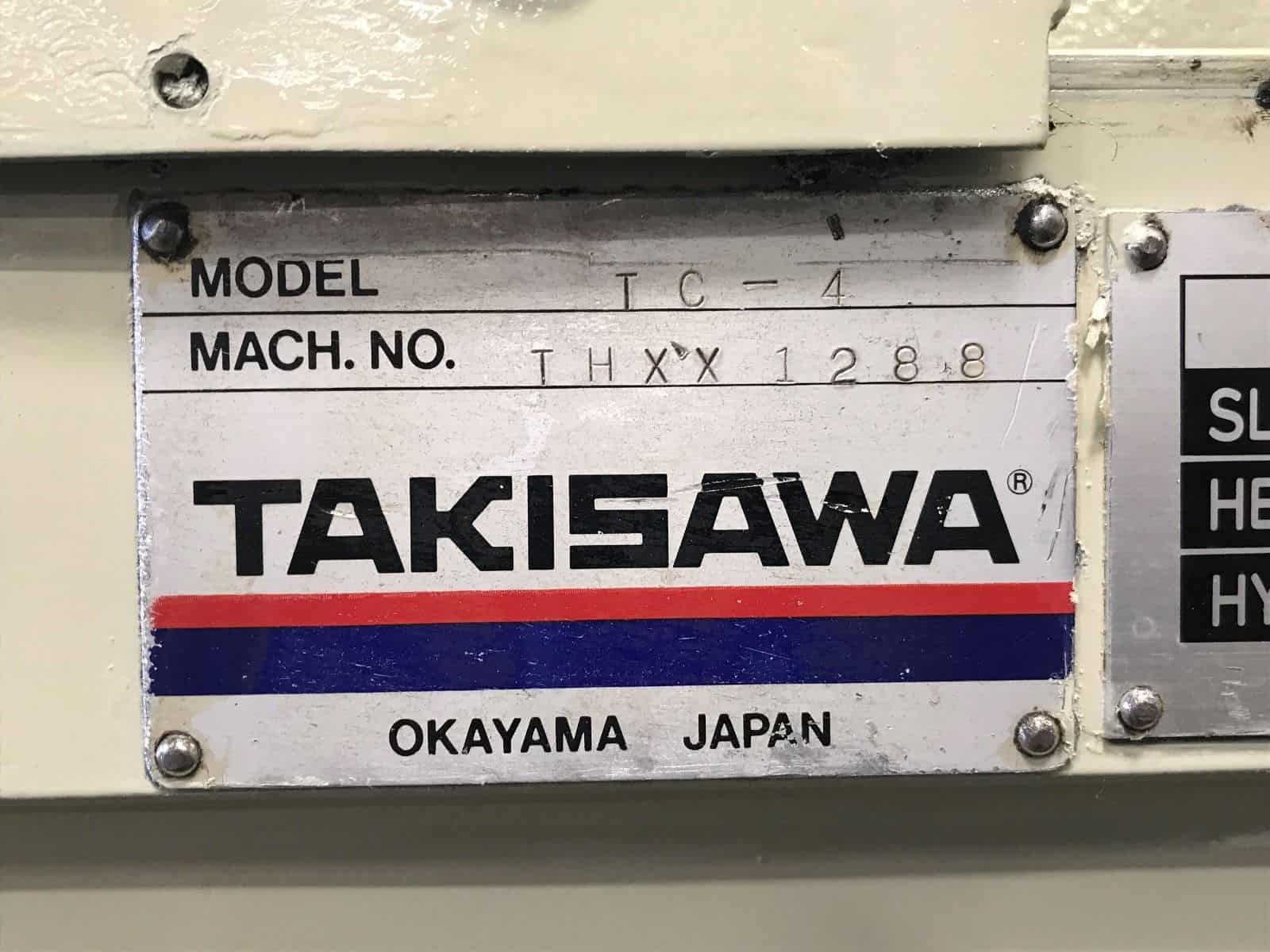

| Make | Takisawa |
| Model No. | TC-4 |
| Serial # | THXX 1288 |
| Condition | Very Good |
-

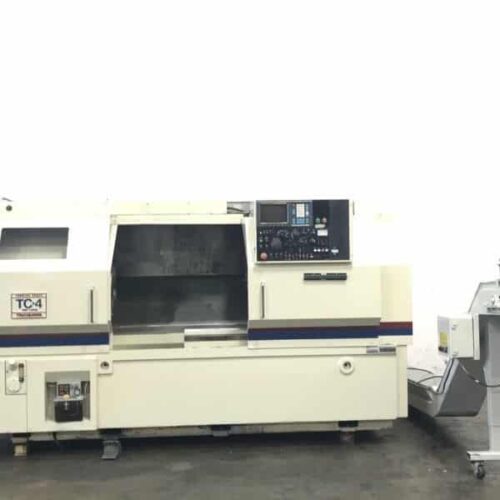

Takisawa TC-4 CNC Long Bed Turning Center Equipped With:

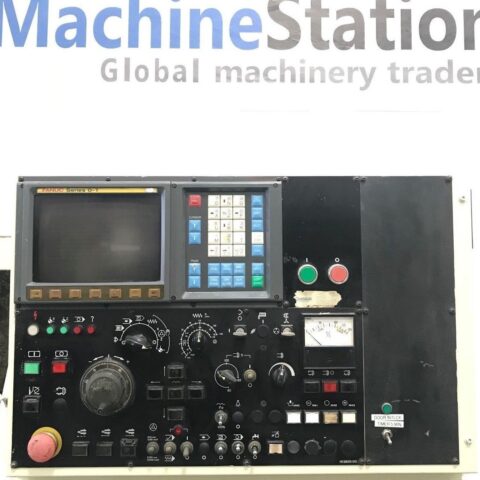

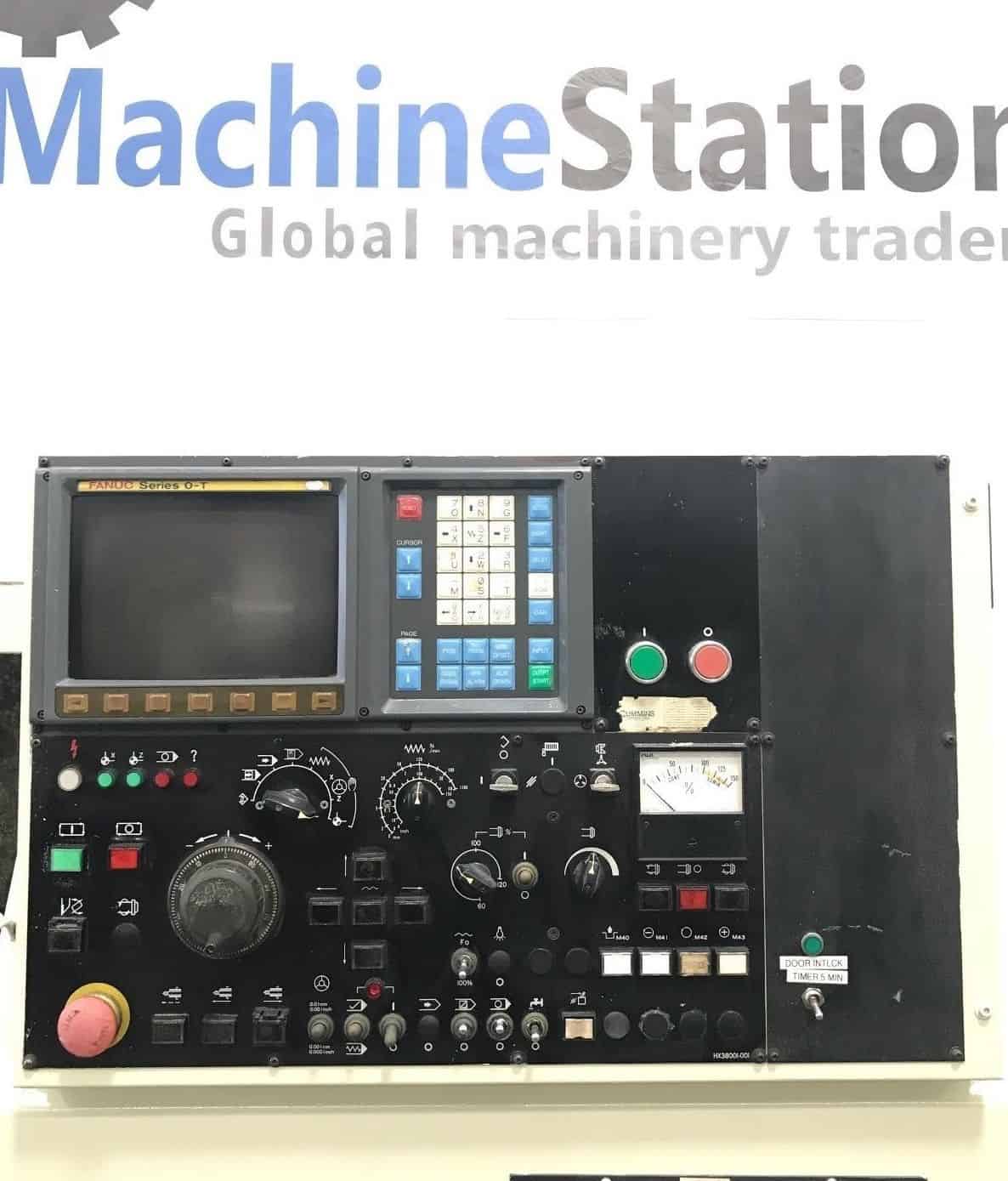

- Fanuc OT-C CNC Control

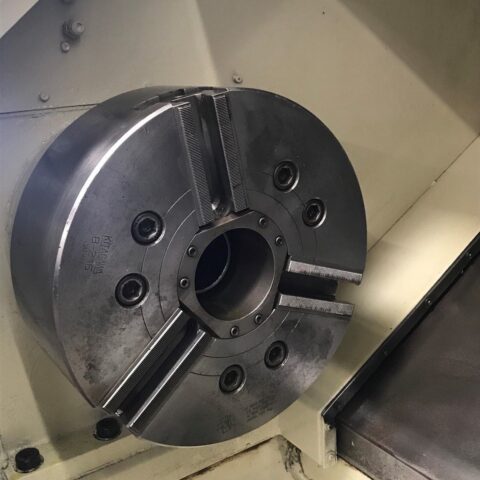

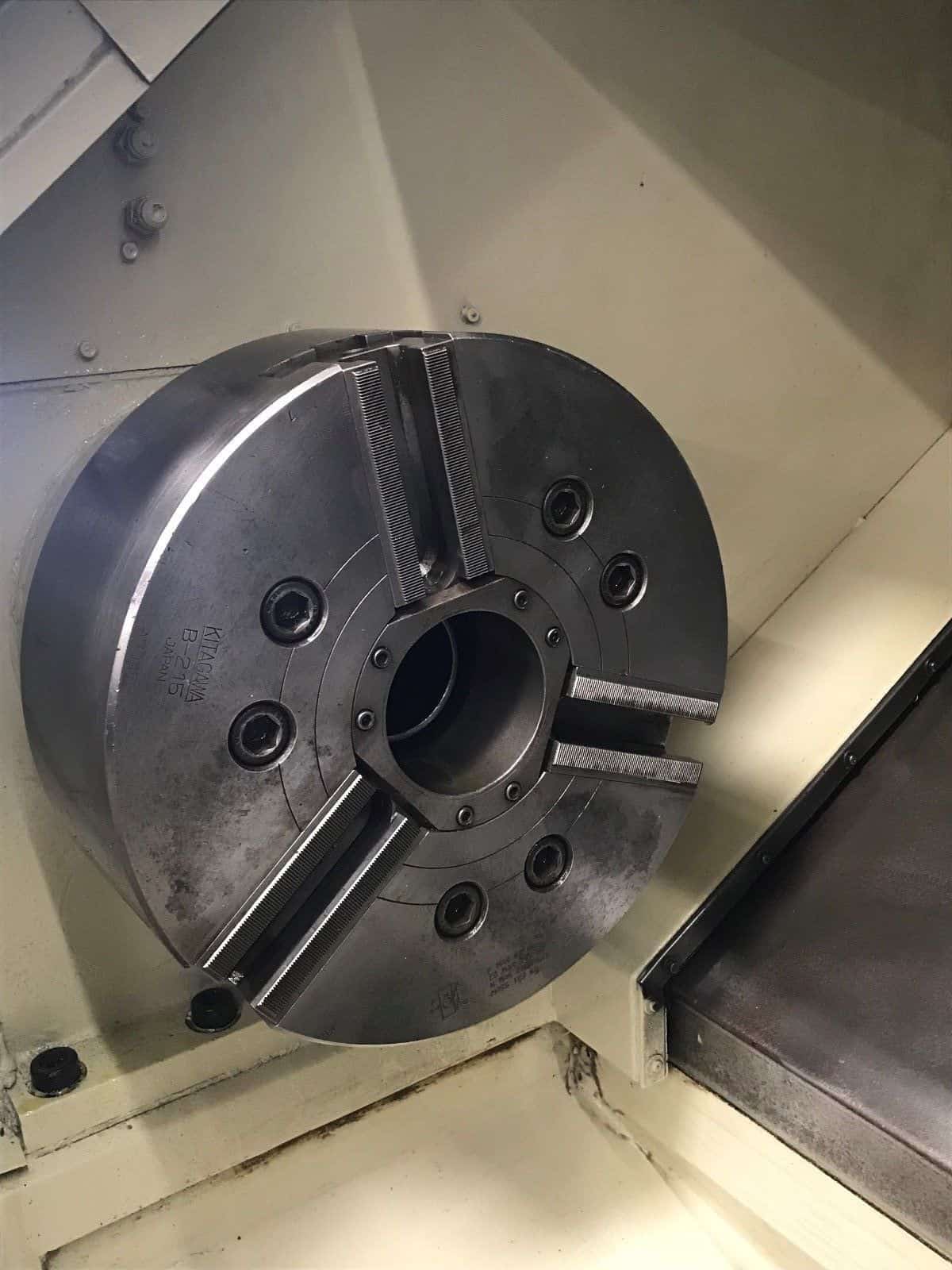

- 15″ 3 Jaw Hydraulic Chuck
- A2-11 Spindle
- Hydraulic Tailstock
- Coolant System
- Barfeed Interface
- RS-232 ports
- 8 Station Automatic Turret
- Foot Switch
- Chip Conveyor
-
Takisawa TC-4 CNC Long Bed Turning Center Specifications:
- Capacity:
- Max Turning Diameter: 17.32″
- Max Turning Length: 40.15″
- Max Bar Capacity: 3.5″
- Swing Over Bed: 23.62″
- Distance Between Centers: 44″
- X Axis Travel: 9.8″
- Z Axis Travel: 41.5 ”
- Rapid Traverse X Axis: 472 IPM
- Rapid Traverse Z Axis: 630 IPM
- Spindle Nose: A2-11
- Spindle Bore: 4.13″
- Spindle Speed: 25 – 2500 RPM
- Spindle Motor: 35 HP
- Turret Capacity: 10 Stations
- Turret Index Time: 1 Second
- Tailstock Taper: MT-5
- Tailstock Quill Dia.: 4.6″
- Tailstock Quill Travel: 7.1″
-
General:
- Power: 45 kva, 220v / 3-Phase
- Overall Dimensions: 140″ X 72″ X 72 ” High
- Overall Dimensions: 200″ X 72″ X 72″ High with Chip Conveyor
- Weight: 17500 lbs
