Traub TNK-36 CNC 9 Axis Swiss Screw Lathe Machine

$54,000.00

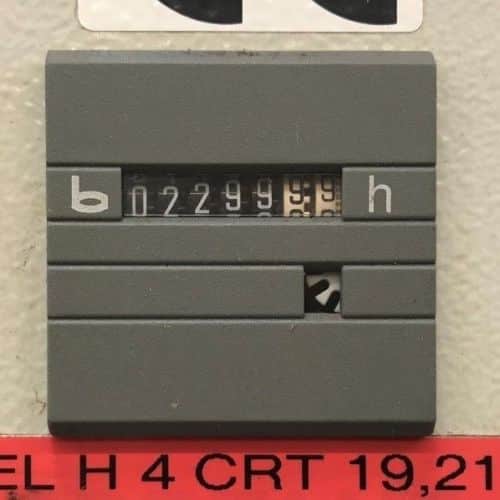

This 9 Axis Swiss type machine made in Germany is On Our Floor now, in very Good Condition. only 2299 hours comes with FMB Barfeeder.”

Qty =

Product Description

TRAUB TNK-36 CNC 9 AXIS SWISS SCREW LATHE MACHINE

Make: TRAUB
Model No.: TNK-36
Serial No.: 504
Year: 2004
Condition: Very Good

All specifications are approximations, and are subject to verification.

This 9 Axis Swiss type machine made in Germany is On Our Floor now, in very Good Condition. only 2299 hours comes with FMB Barfeeder.”
——————————————————-

TRAUB TNK-36 Equipped With:

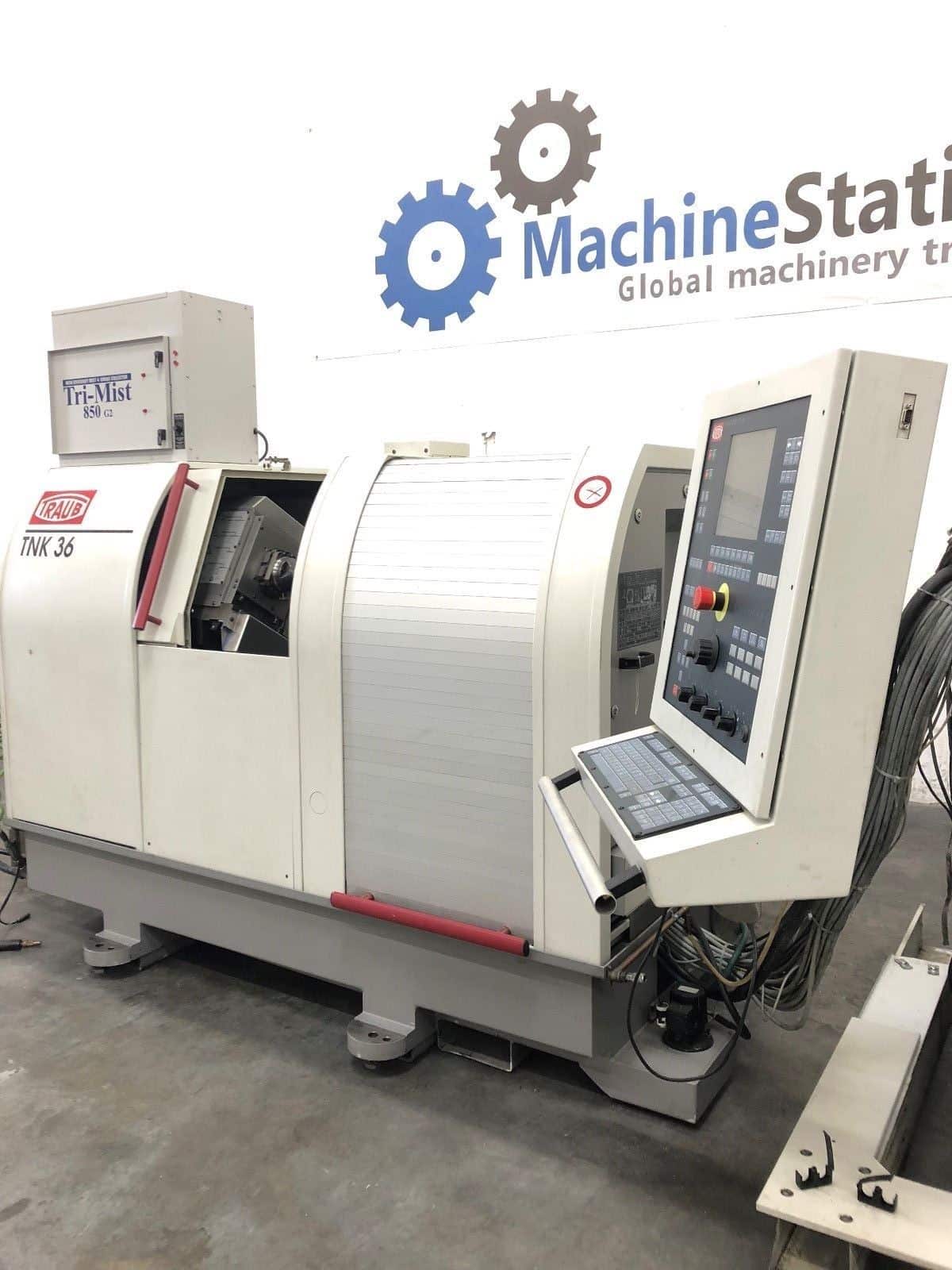

TRAUB TX8i CNC Control
2 X Spindles
9 X Axis
12 Station Live Tool Turret
FMB Turbo 5-42 12′ Bar Loader
Mist Collector
Chip Conveyor
High Pressure Coolant System
Parts Conveyors
Rigid Tapping
Presetting aid
Live Tooling
RS 232 Port
Floppy disk drive
Tool Holders

TRAUB TNK-36 Specifications:

Main Spindle:
Bar Capacity: 1.42″
Spindle Speed:  6,300 RPM
Drive Power at 100/25% Duty Cycle: 9.1/14.6 HP
Torque: 15/23 Ft. lbs.
C-Axis Resolution: 0.001 Degree
Resolution Electronic Positioning: 0.1 Degree

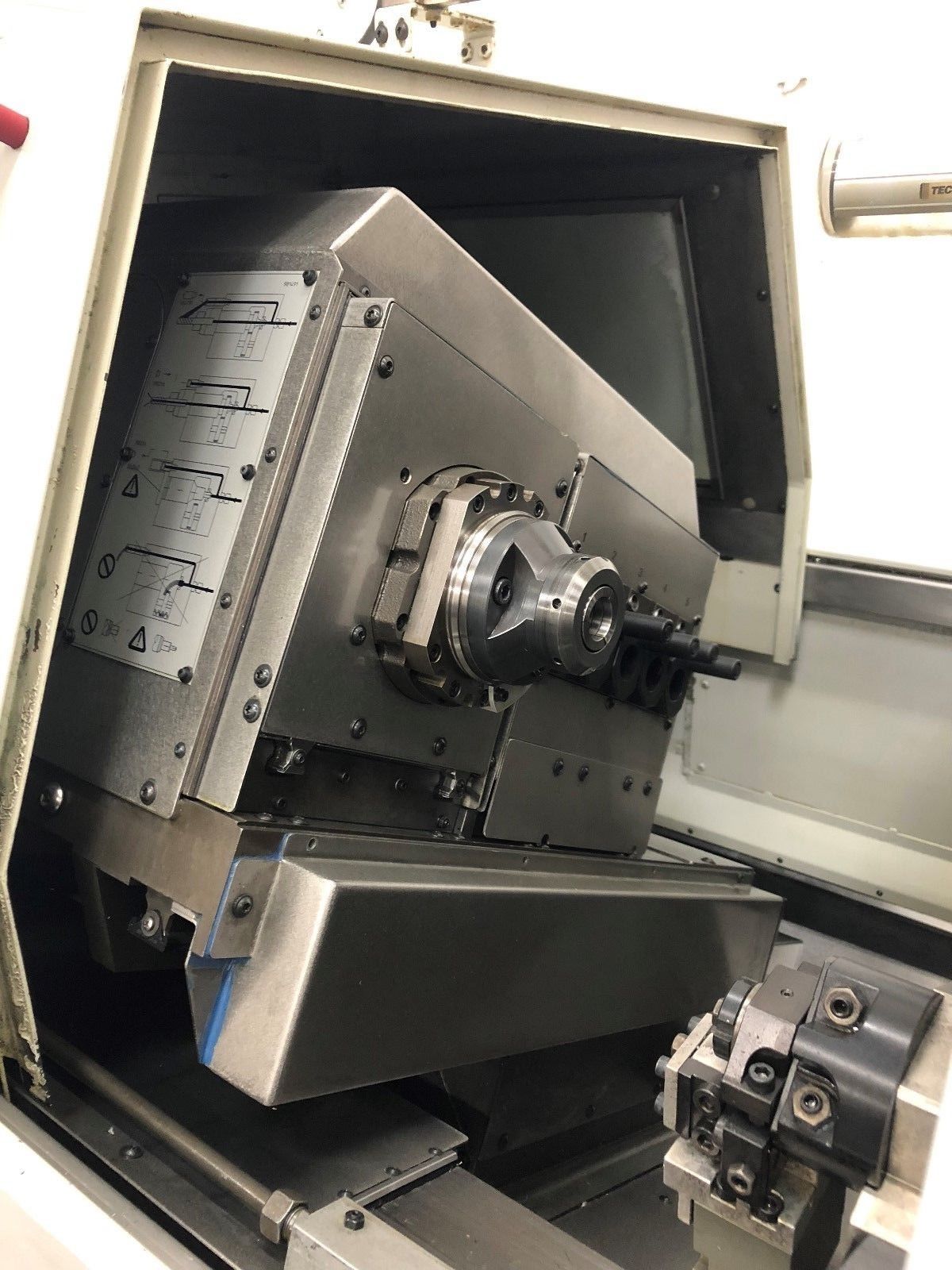

Counter Spindle:
Bar Capacity: 1.42″
Slide Travel Z4:  9.84″
Slide Travel X3:  14.57″
Spindle Speed:  6,300 RPM
Drive Power at 100/25% Duty Cycle: 9.1/14.6 HP
Torque: 15/23 Ft.Lbs
C-Axis Resolution: 0.001 Degree
Resolution Electronic Positioning: 0.1 Degree
Rapid Traverse X3/Z4: 1181/1181 IPM

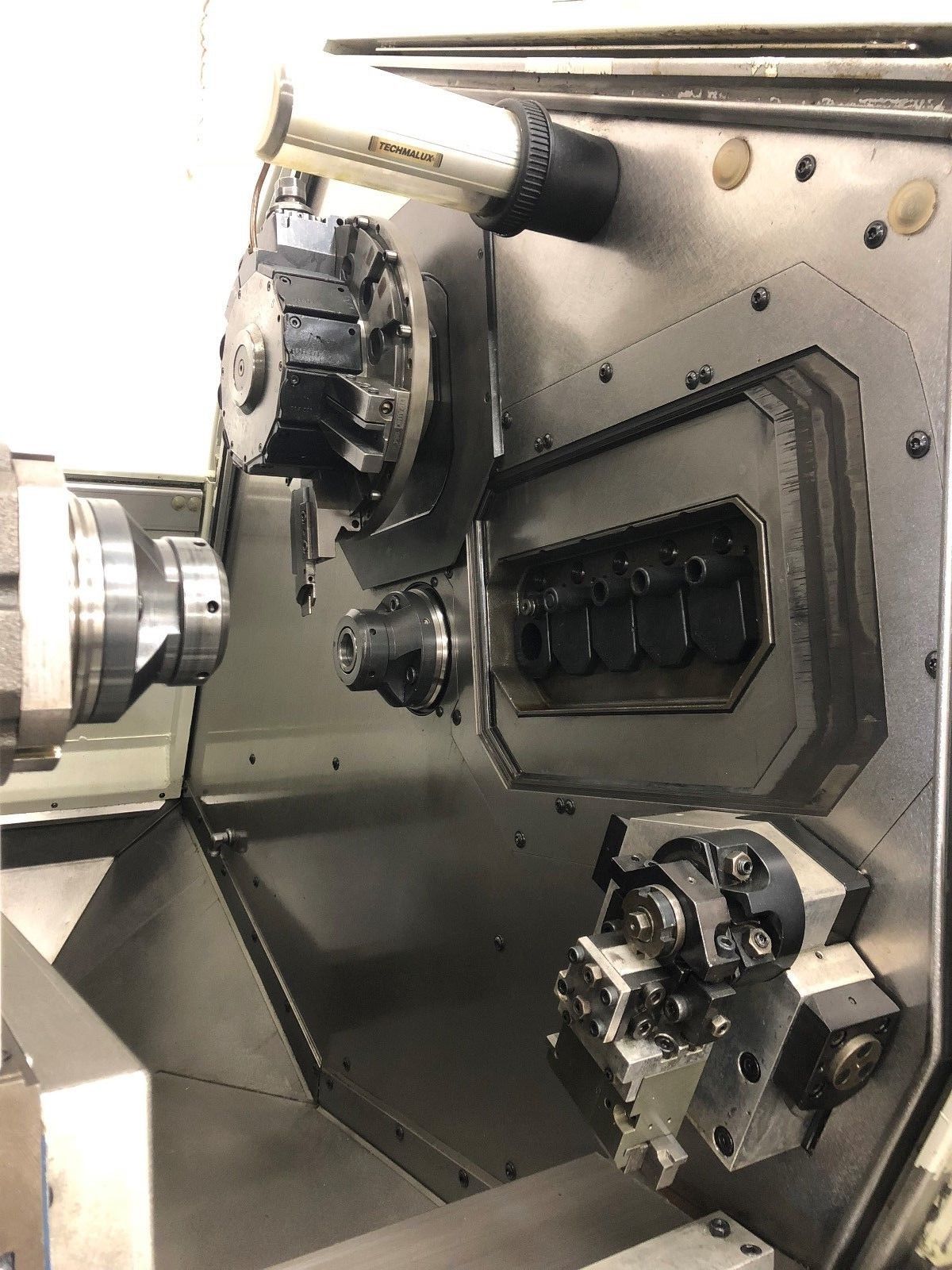

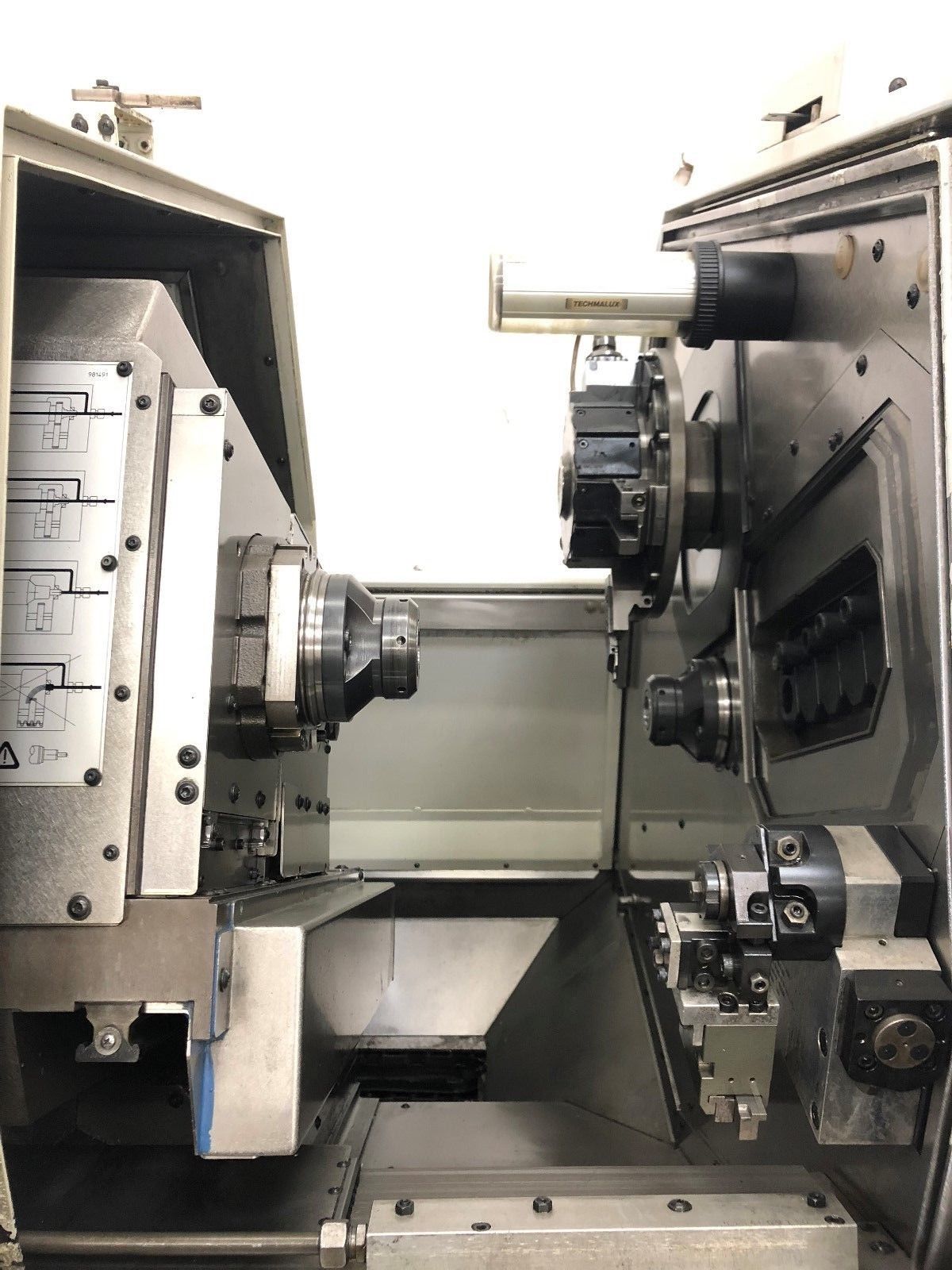

Turret:
Tool Stations:  12 (24)
Driven Tools:  12
Tool Shank:  1/2 Sq / 5/8 sq
Max Slide Travel Z1:  3.94″
Slide Travel X1:  1.97″
Rapid Traverse Z1:  1181 YPM
Rapid Traverse X1/Y1:  590 IPM
Chip to Chip Time:  0.55 Seconds

Front Attachment:
Tool Stations (w/ Counter Spindle):   5
Tool Stations (w/o Counter Spindle):  7
Driven Tools:   4/6
Tool Adapter DIA:  1.57″
Distance/Quills:  2.12″
Slide Travel X3:  14.57″
Slide Travel Z3:   9.84″
Rapid Traverse X3/Z3:  1181 IPM

Back working Station:
Tool Stations:   5
Driven Tools:   4
Tool Adapter DIA:   1.57″
Distance/Quills:    2.12″
Slide Travel X4:    2.87″
Slide Travel Y4:     1.97″
Rapid Traverse X4/Y4:   590 IPM
General:

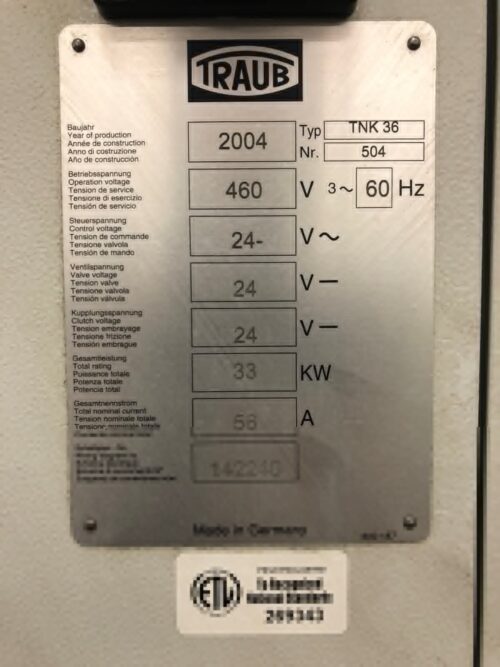

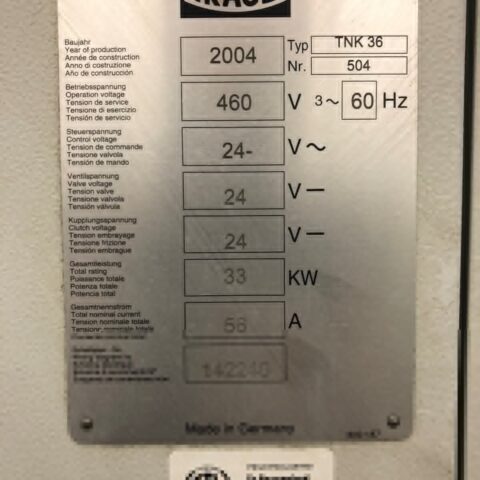

Power: 33kw/ 460V/ 3-Phase
Overall Dimensions: 132″ x 67″ x 72″ High
Overall Dimensions: 146″ x 67″ x 72″ High with Chip Conveyor
Weight: 9000 lbs

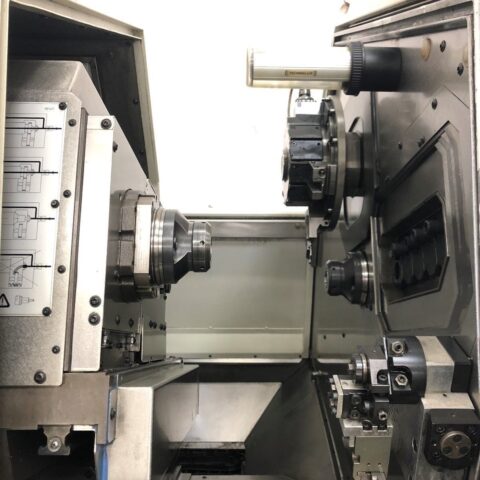

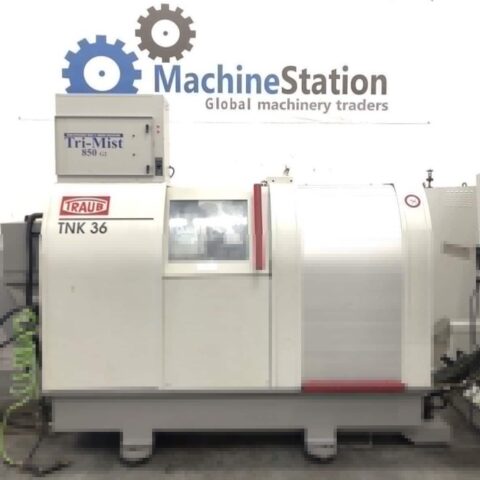

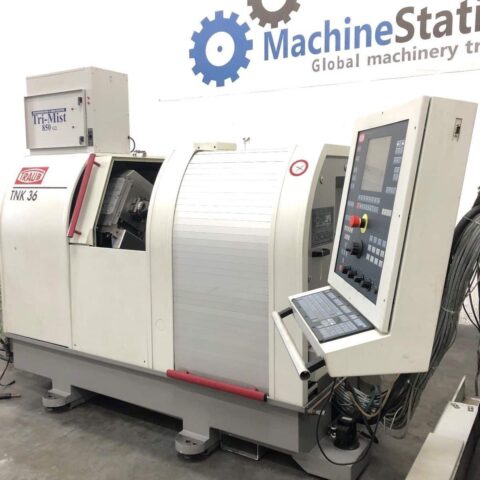

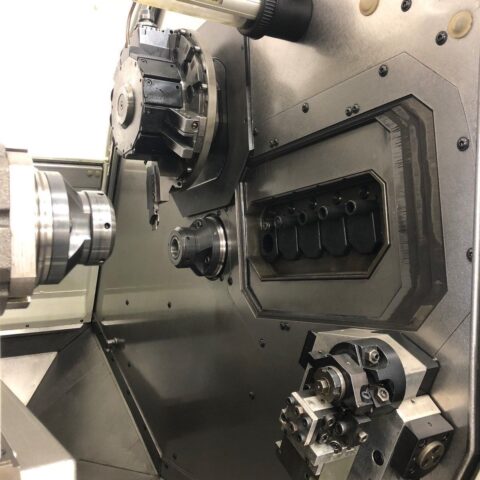

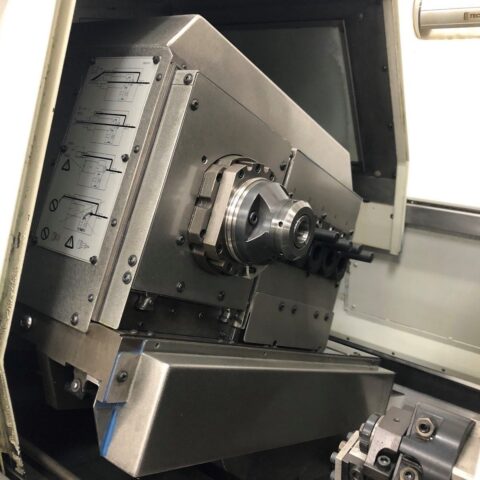

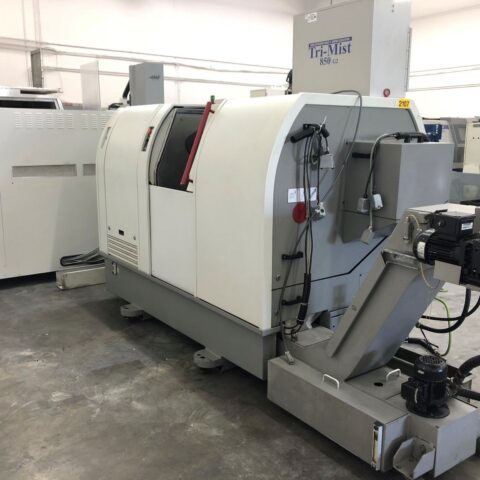

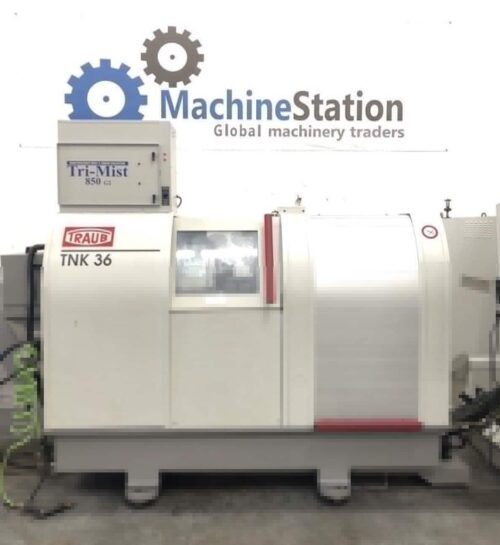

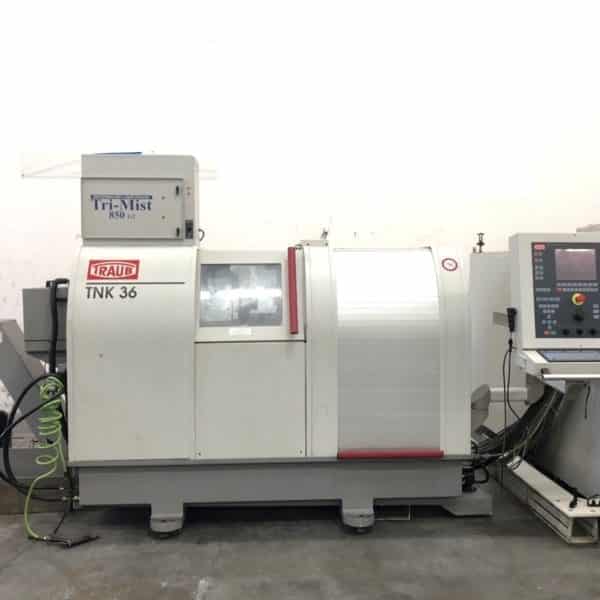

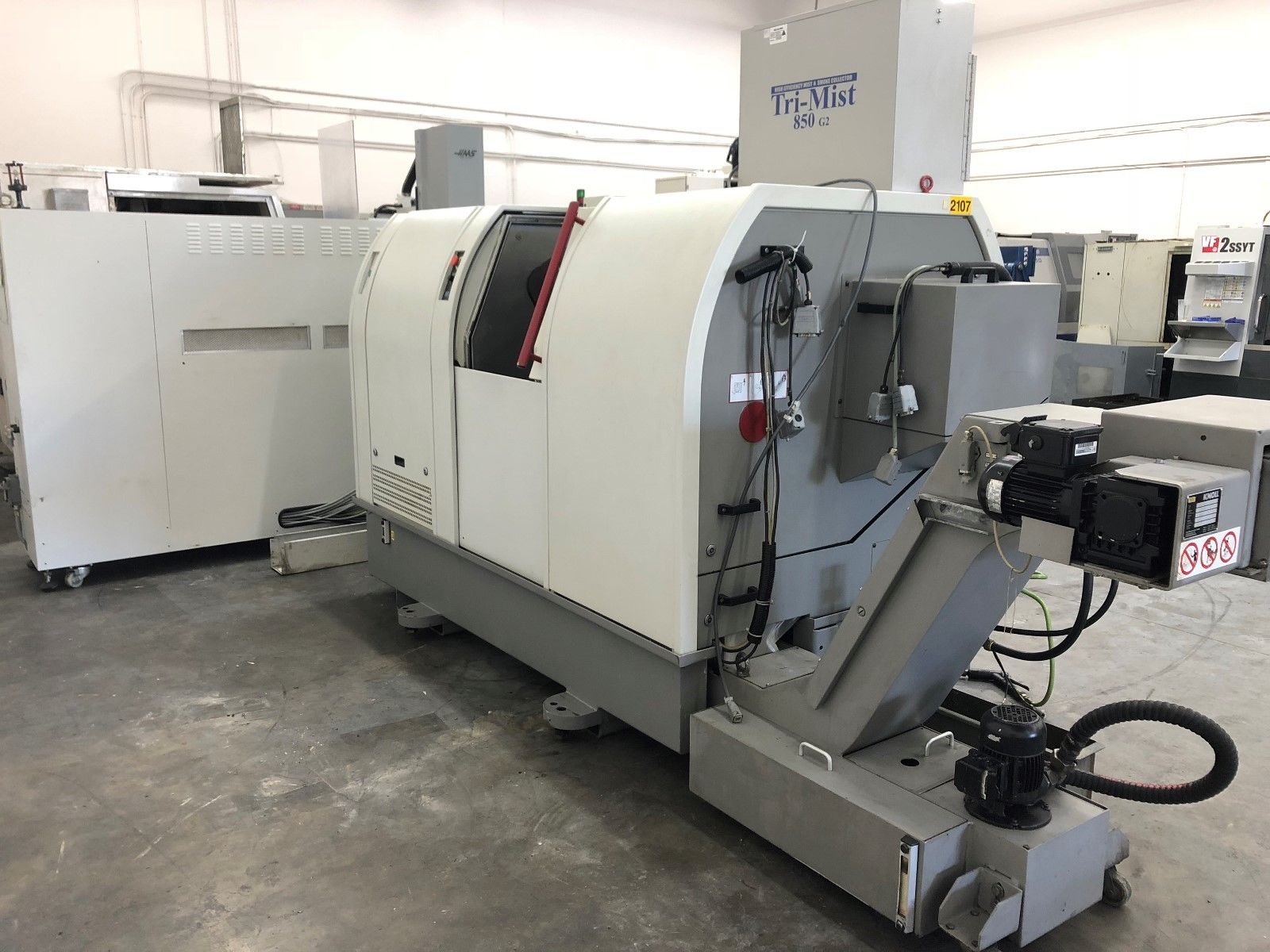

TRAUB TNK-36 Comes as shown in pictures..
