USED-CADILLAC GEARED HEAD ENGINE LATHE Model 1428

SKU:
1188
Categories: , ,

Out of stock

Product Description


Make: Cadillac
Model #: 1428
Serial #: 567233
Condition: Great!


Features:

  •  8″ Bison 3-Jaw Chuck #3215-8-5
  • Geared Headstock
  • Tailstock
  • Steadyrest
  • Compound Slide
  • Hardened and ground Bedways

Specifications:

Capacities:
Swing Over Bed: 14″
Distance Between Centers: 28″

Spindle:
Bore: 1.50″
Height from Floor to Center: 40-1/2″
No. of Speeds: 6
Spindle speed range: 55 – 1,800 rpm

Carriage:
Cross Slide Travel: 8″
Compound Slide Travel: 8-3/4″
T-Slot Dimensions: 1″ x 1-1/2″
Threading:
Inch Thread Ranges: 4 – 56 tpi
Metric Thread Ranges: 0.5 – 7mm
Tailstock:
Spindle Taper: #4 Morse Taper
Spindle Diameter: 2″
Spindle Travel: 5″
Bed:
Width of Bed Face: 10-7/8″
Length of Bed: 44″
General:
Motor: 10 Horsepower 220/440 1750 RPM 50/60 Hz
Electrical: 22/440V, 3-Phase
Overall Dimensions: 76″ x 34″ x 52″

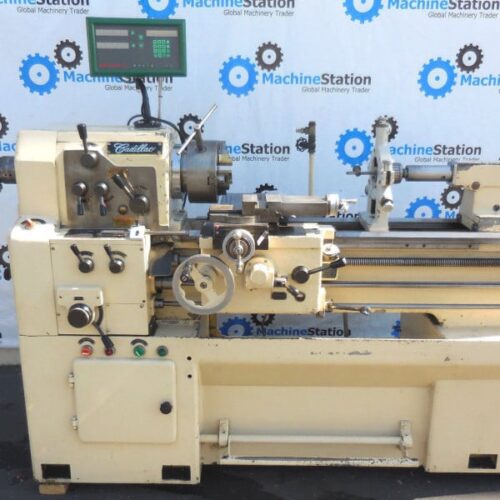

USED-CADILLAC GEARED HEAD ENGINE LATHE Model 1428 and Comes as shown in pictures.
