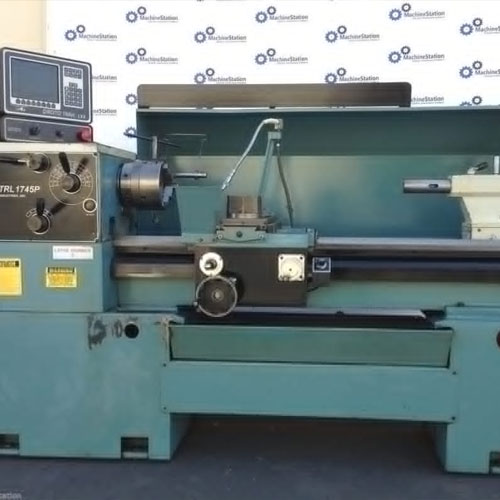

USED-SWI SOUTHWEST CNC TURNING Model TRAK TRL 1745P

Out of stock

Product Description


Make: Southwestern Industries
Country of Origin: Spain
Model #: TRAK TRL 1745P
Serial #: 96-70-9
Year of Manufacture: 1996
Condittion: Excellent


Features:

  • 8″ Three-Jaw Chuck.
  • Proto Trak LX2 Control.
  • Gap Bed.
  • Coolant System.

Specifications:

Capacities:
Swing Over Bed: 17-11/16″
Swing Over Cross Slide: 10-15/32″
Swing in Gap: 26″
Distance Between Centers: 45″

Spindle:
Spindle Nose: D1-6
Spindle Bore: 2″
Spindle Taper: 1 degree, 29 min., 15 seconds
Taper in Reduction Sleeve: #4 Morse Taper
Spindle Diameter / Front Bearing: 3.15″
Spindle Speeds: 40 to 2,200 rpm, 12 steps

Carriage:
Cross Slide Travel: 9″

Tailstock:
Center Taper: #4 Morse Taper
Quill Diameter: 2-15/16″
Quill Travel: 6-1/4″

Bed:
Width: 11-7/8″
Length: 65″ w/ 9-3/4″ gap

General:
Motor: 7.5 Horsepower
Electrical: 208 / 230 / 460 Volt, Three Phase, 60 Hz
Overall Dimensions: 90″ x 42″ x 64″ tall

USED-SWI SOUTHWEST CNC TURNING Model TRAK TRL 1745P and Comes as shown in pictures.


GUARANTEE: If any machine guaranteed by us does not prove satisfactory mechanically, the Purchaser may return it freight prepaid within 14 days from date of shipment and we will refund the purchase price in full. This does not apply to machine sold “as is” or “subject to inspection”. This guarantee applies only to machines which we own. The machine must be returned in the same condition that it left our warehouse. MachineStation shall not be responsible for any damage done by truckers, riggers, or other parties. Machine damaged in shipping are not covered under the return privilege.

WARRANTY: Seller makes no warranties of any kind whatever, expressed, or implied. All specifications and descriptions of said goods are approximate, not binding and meant only as a guide. It is the Buyer’s responsibility to inspect the goods and ascertain if the specifications, description and condition of the goods confirm to the Buyer’s requirement.

MACHINE USE AND SAFETY: Buyer acknowledges that the goods described herein are pre-owned used goods which were neither designed or manufactured by the Seller, nor has the Seller knowledge of, or control over, the prior use or misuse of said goods: nor does the Seller have knowledge or control over the application of these goods by the Buyer. It is the Buyer’s (user’s), responsibility to provide proper safety devices, equipment and instructions for any particular use, and to take all necessary steps to confirm to all Federal, State or Local Government Safety Standards and including OSHA.

BUYER IS RESPONSIBLE FOR SCHEDULING TRANSPORTATION OF THIS MACHINE, AS WELL AS ALL COST TO MOVE IT. IF YOU NEED HELP WITH SCHEDULING, PLEASE CONTACT US AND WE WILL ASSIST YOU. WE SHIP GLOBALLY.
