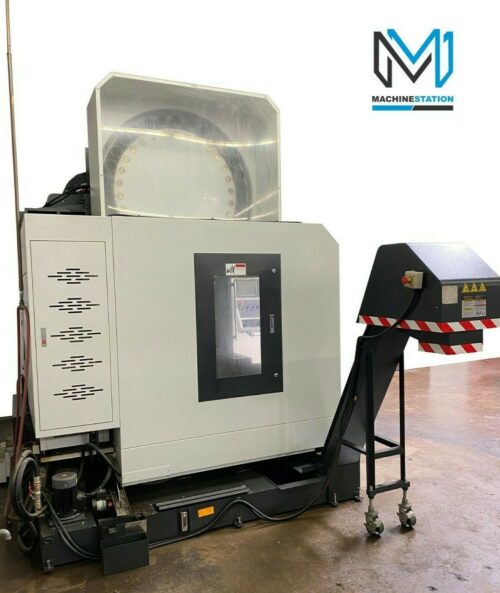

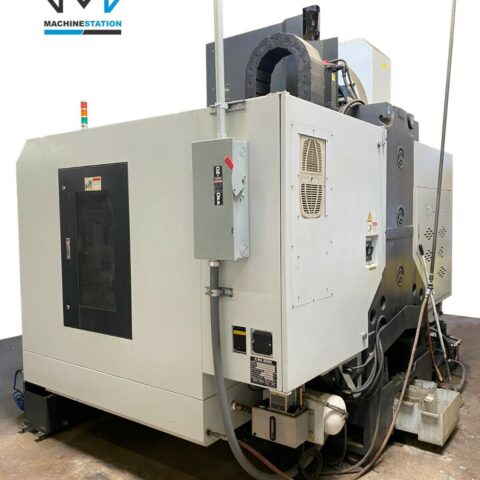

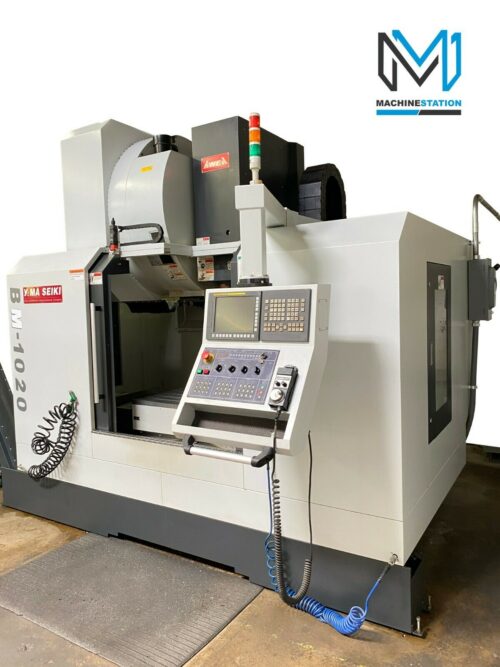

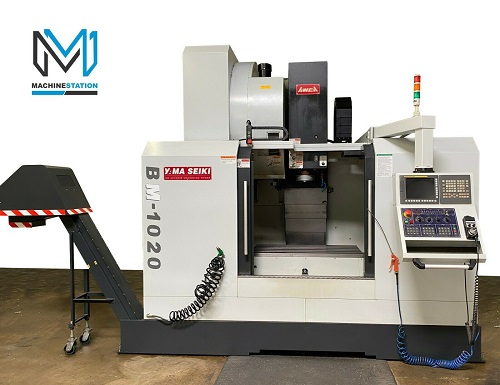

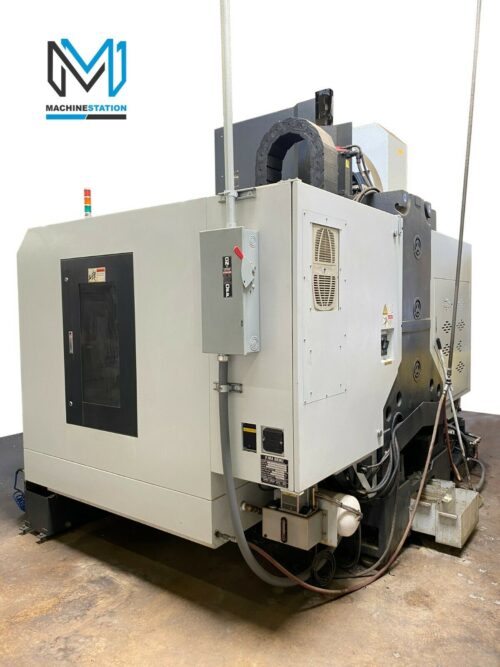

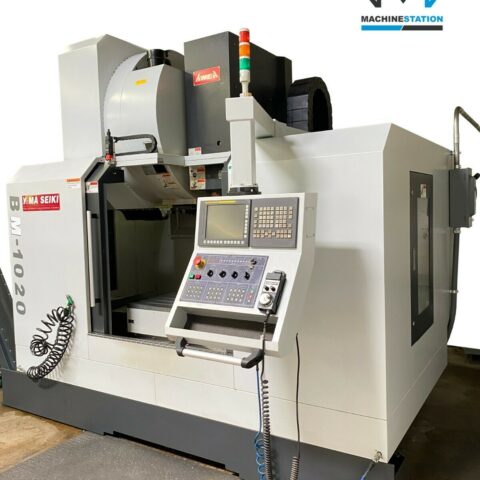

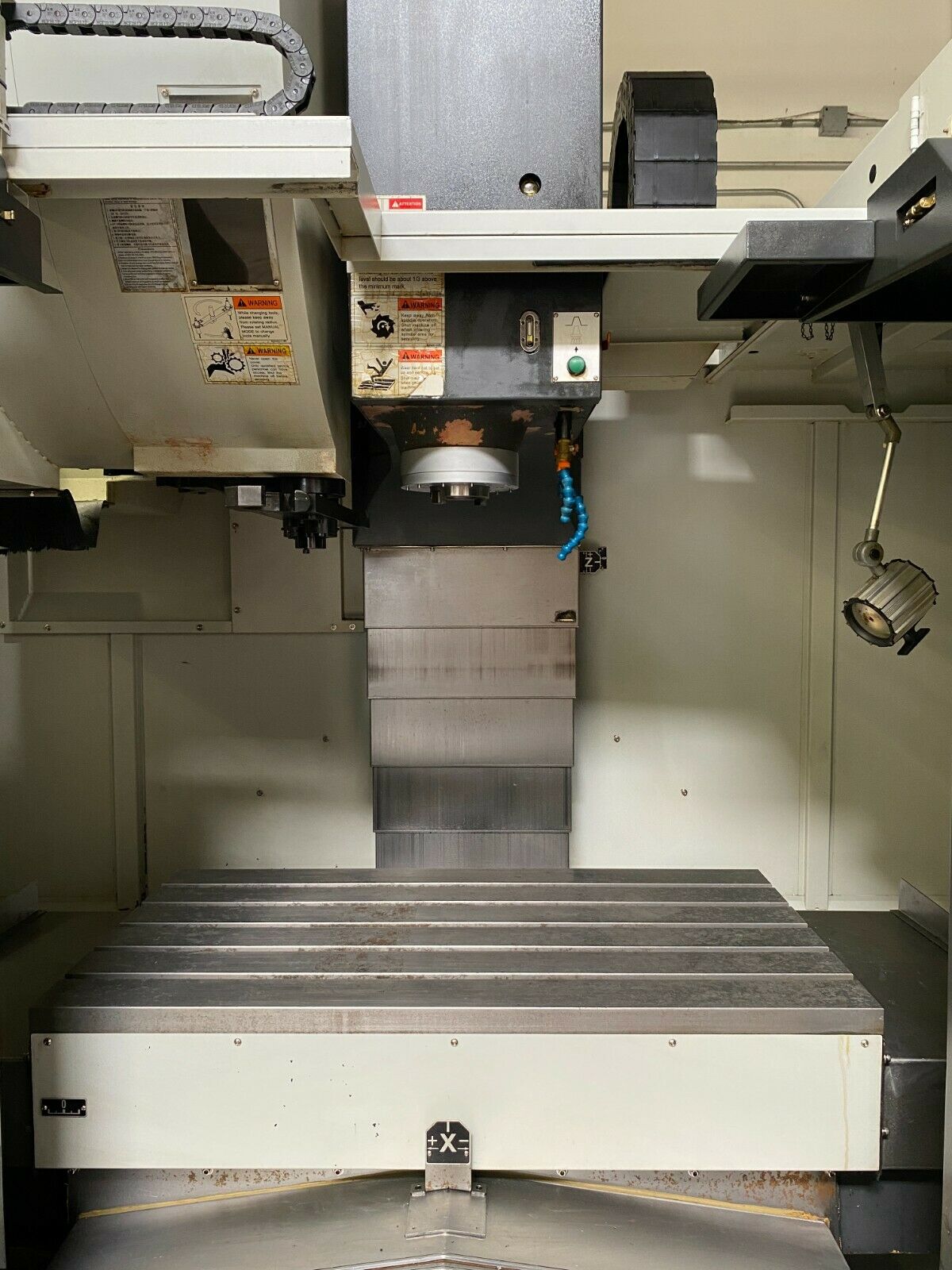

Yama Seiki BM-1020 CNC Vertical Machining Center
| Location | Lake Elsinore, CA |
| SKU | 105140 |

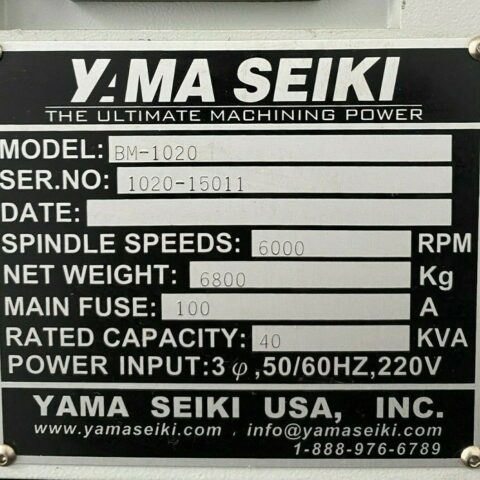

| Make | YAMA SEIKI |
| Model No. | BM-1020 |
| Year | 2016 |
| Condition | Used-Good |
| Cutting Hours: | 4214 |
All specifications are approximations and are subject to verification.
-
Features:

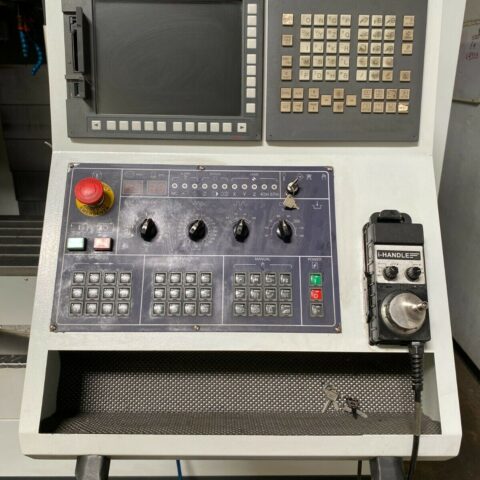

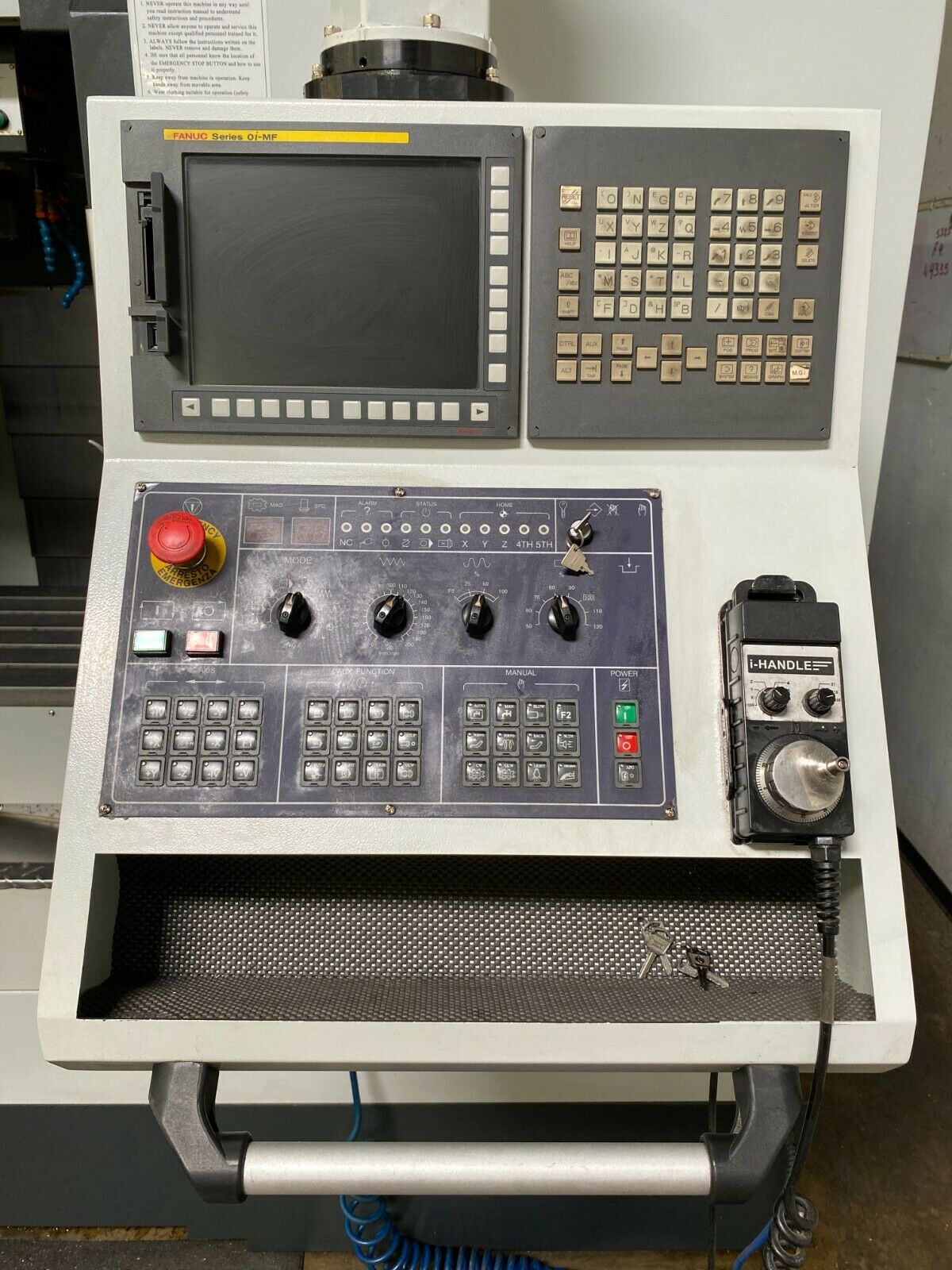

- Fanuc 0i-MF CNC Control
- Box Way Construction

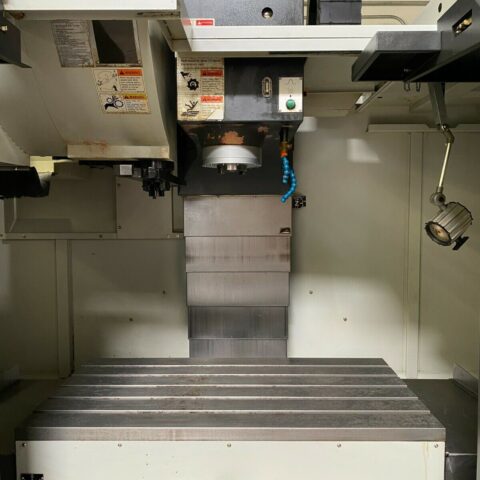

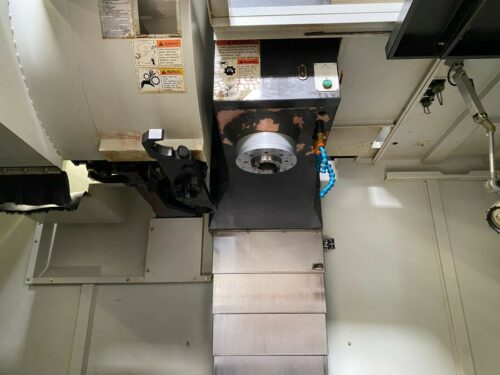

- CAT-50 Taper Gear Head Spindle
- TSC Prepped
- 4th Axis Pre Wired
- MPG Control
- USB & PCMCIA Interface

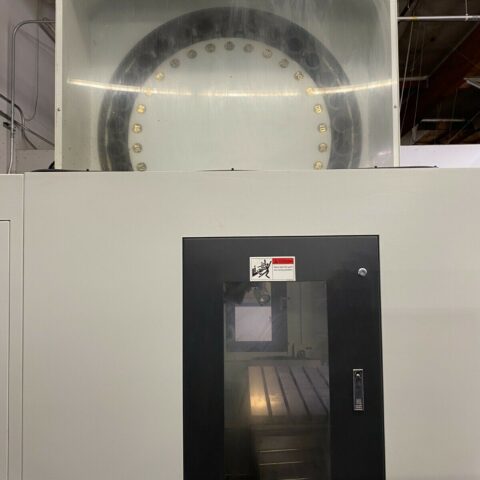

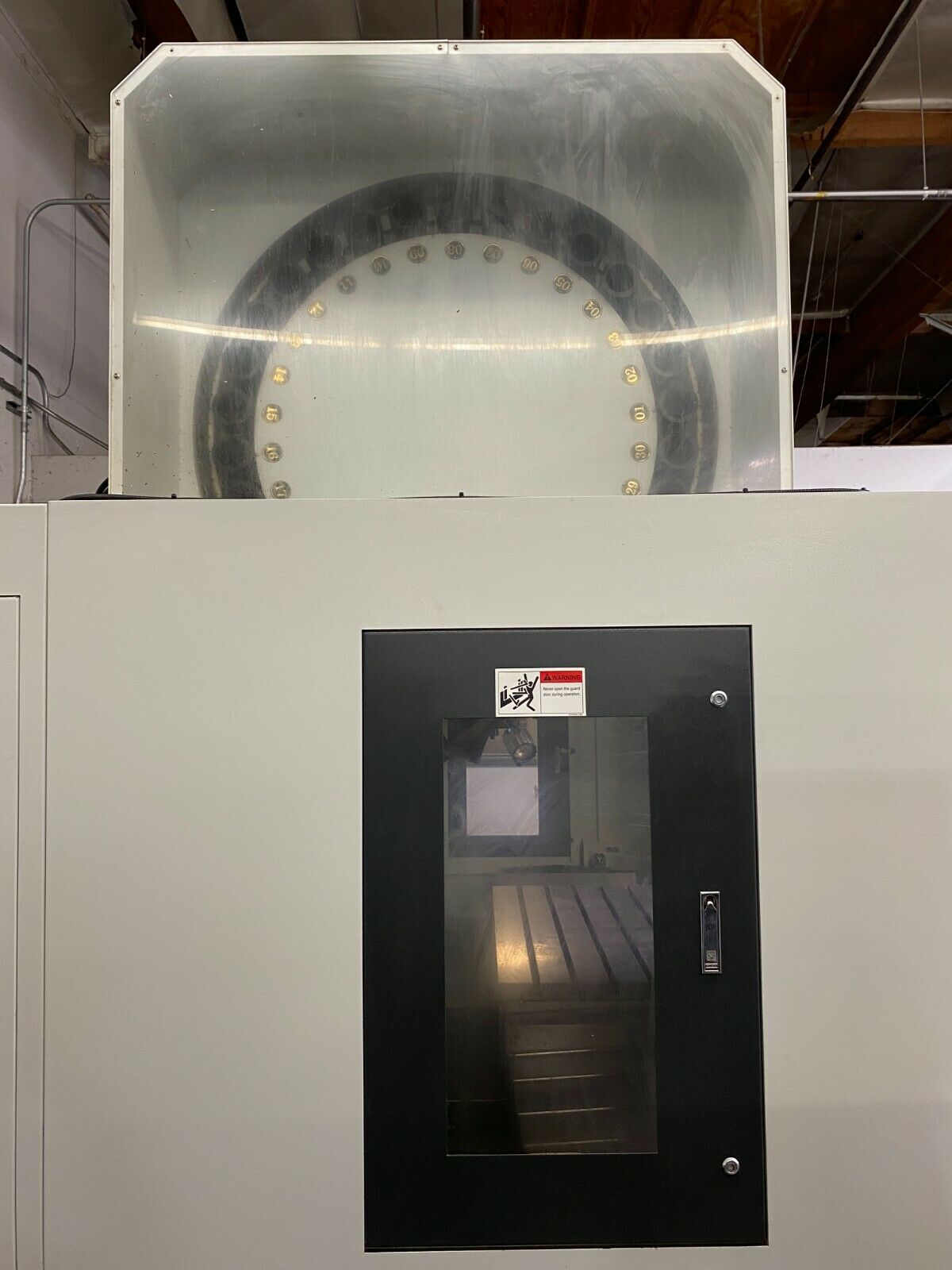

- 30 Station tool changer ( $12,500 Value Upgrade )
- Rigid Tapping
- Spindle Orientation
- Telescopic way covers
- Oil Chiller Unit
- Coolant tank and pumps

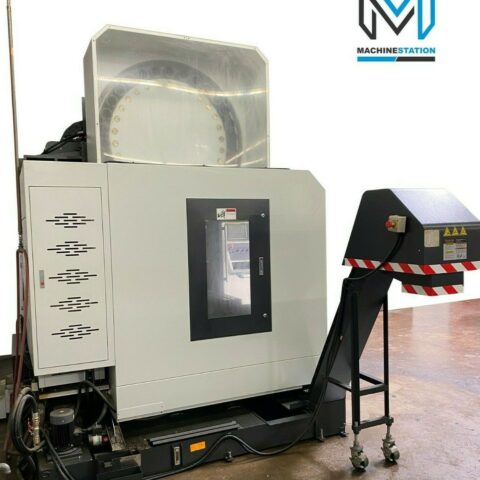

- Chip Conveyor
-
Specifications:
- Travels:
- X-Axis: 40.2″
- Y-Axis: 23.6″
- Z-Axis: 23.6″
- Rapid Traverse Rates: 945 Inch Per Minute
- Cutting Feed Rates: 788 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4.9″ – 28.5″
-

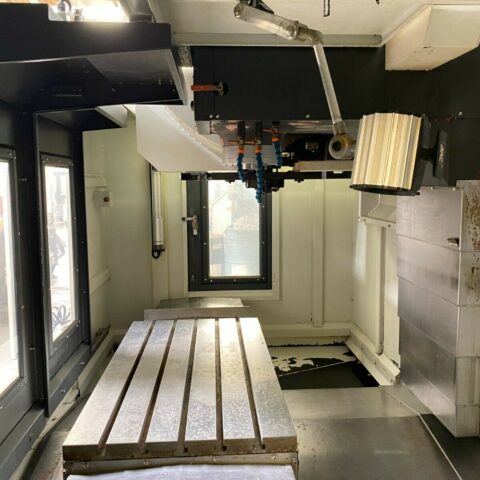

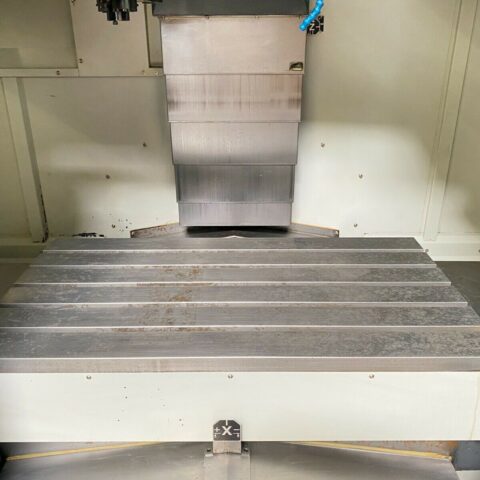

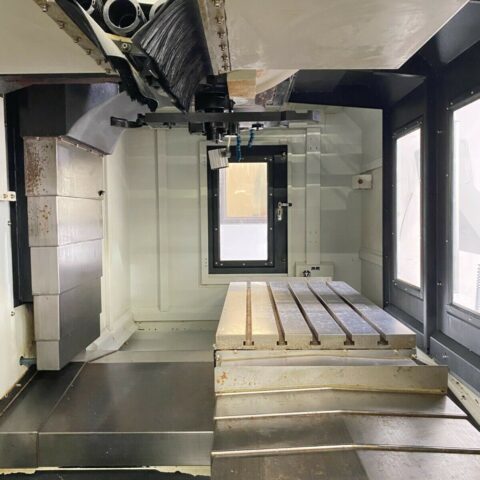

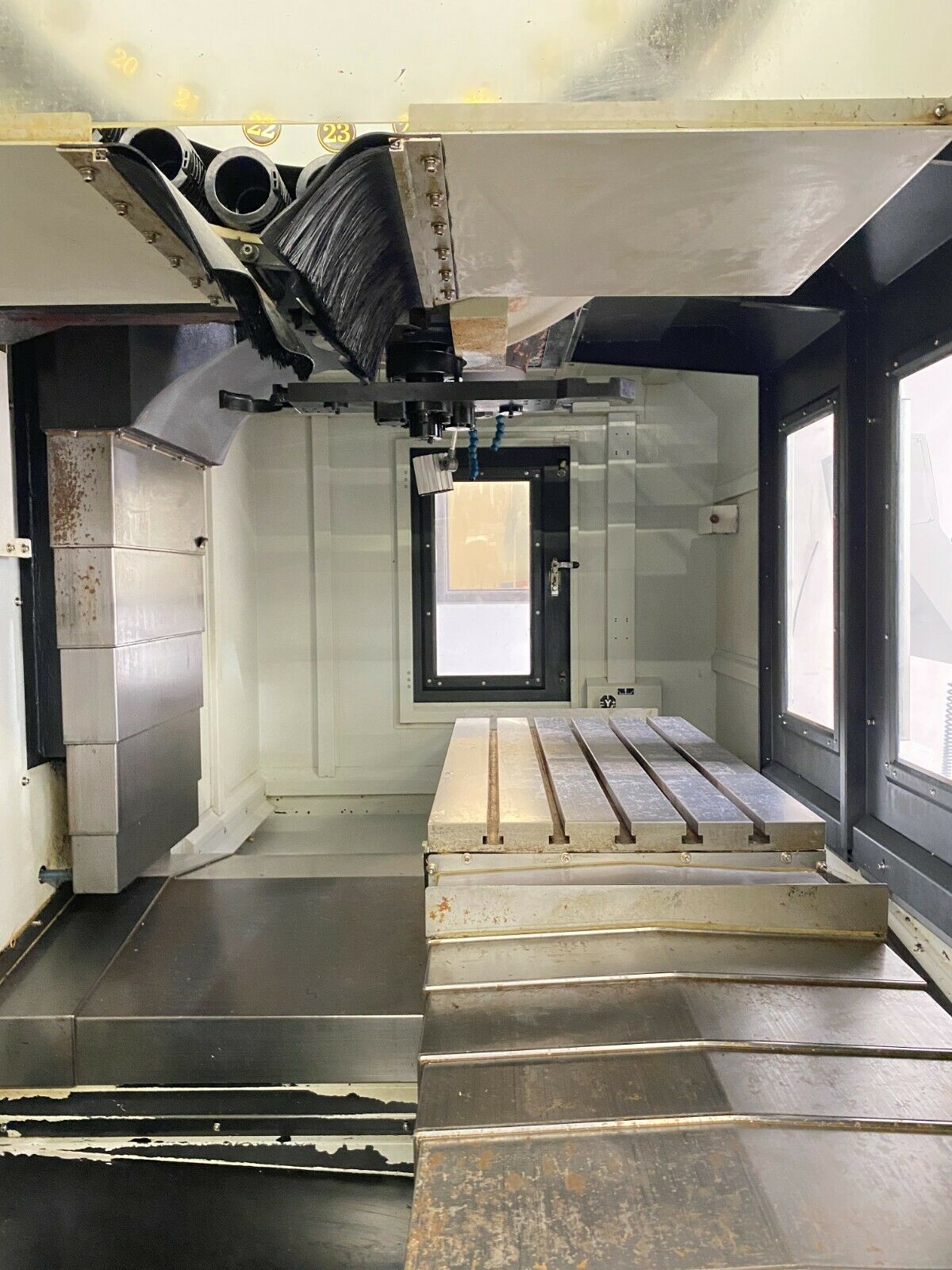

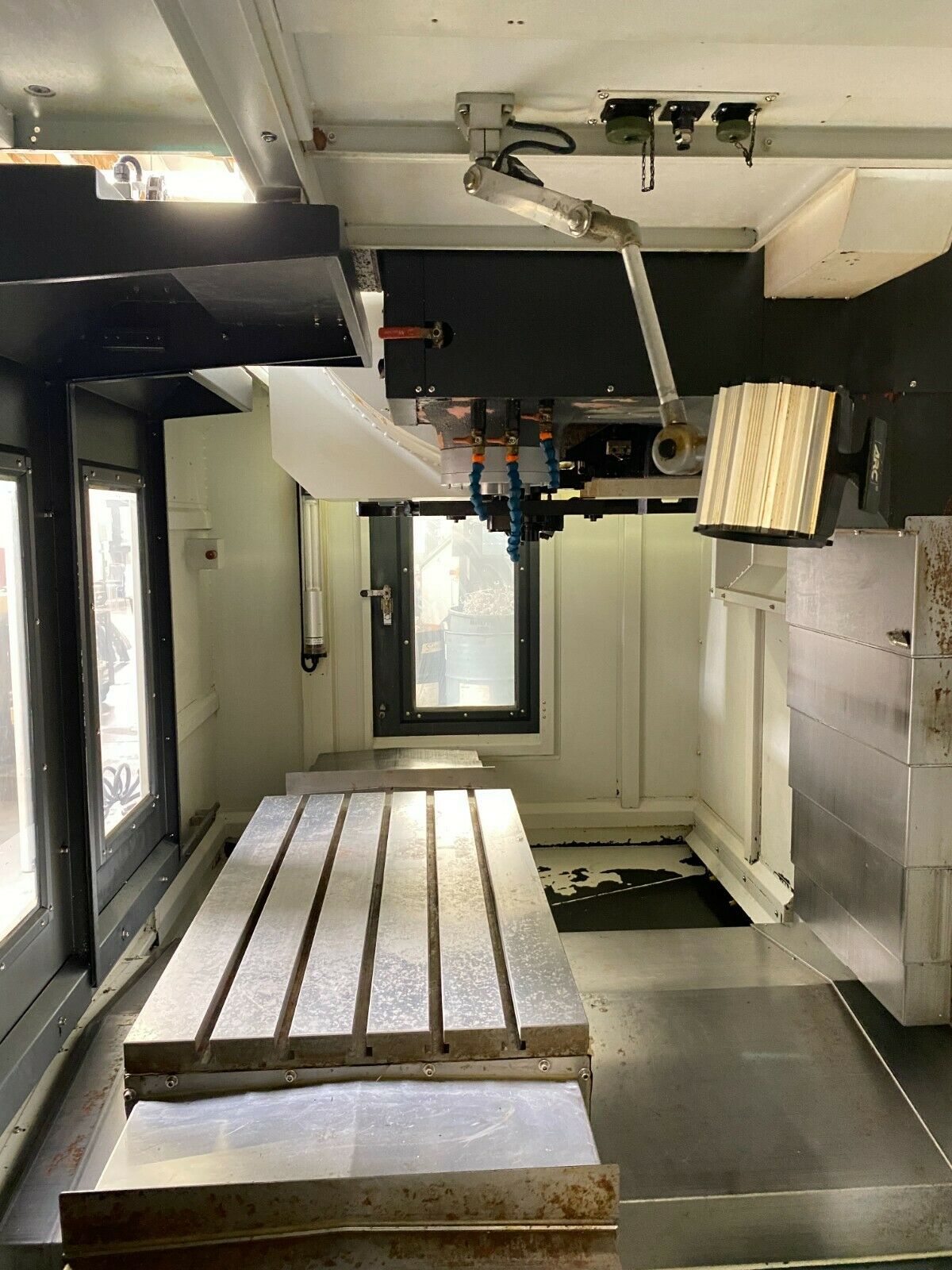

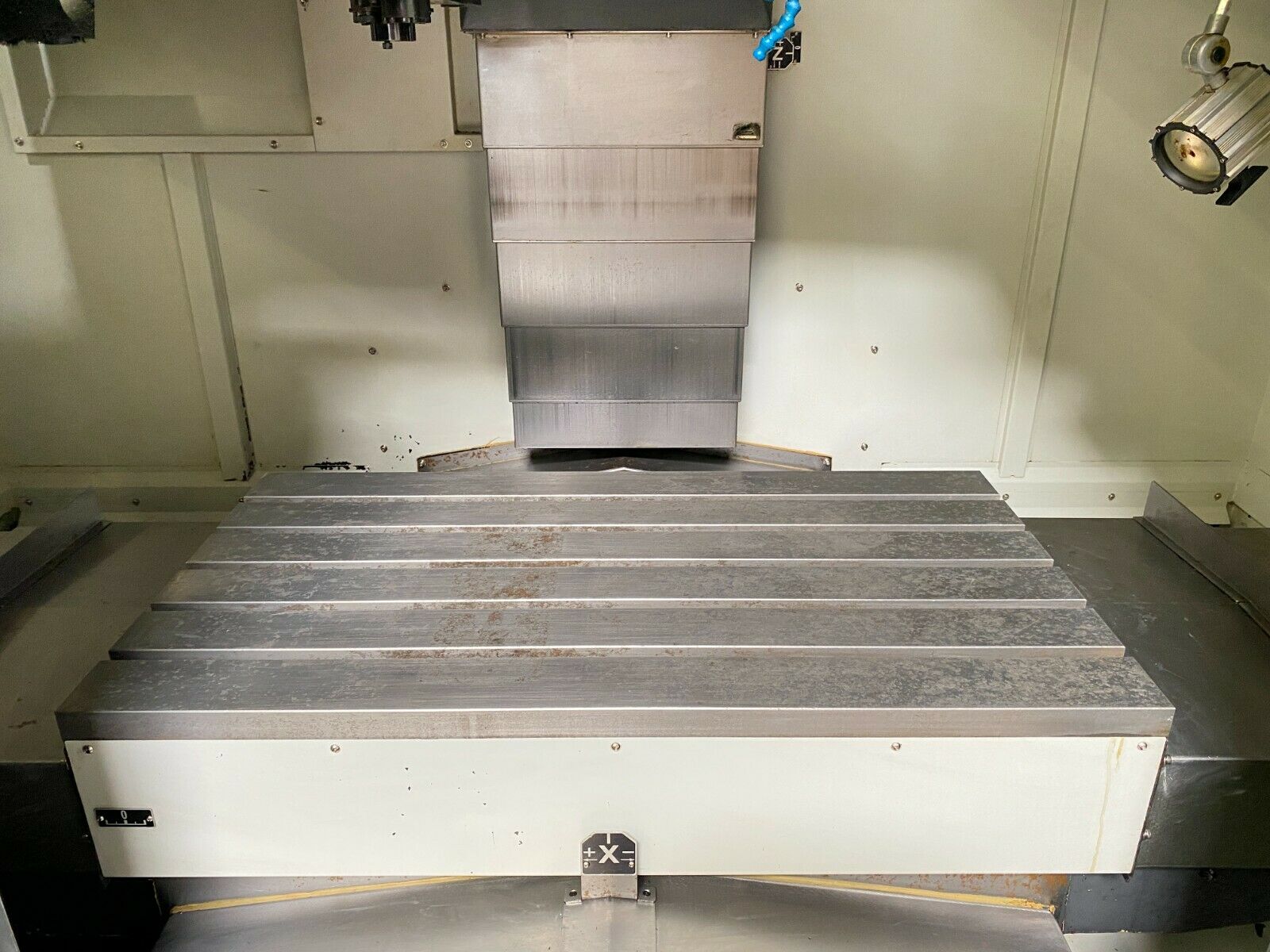

Table:
- Length: 44.1″
- Width: 23.6″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 2200 lbs

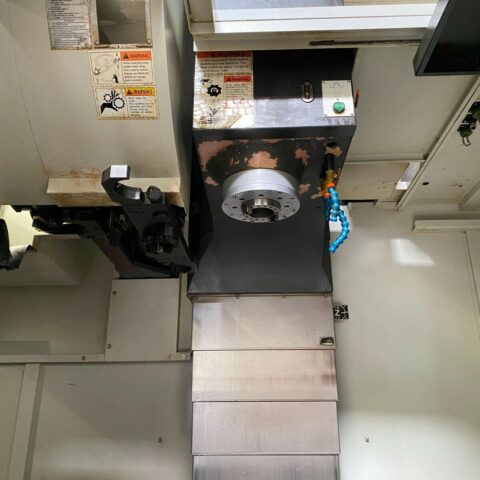

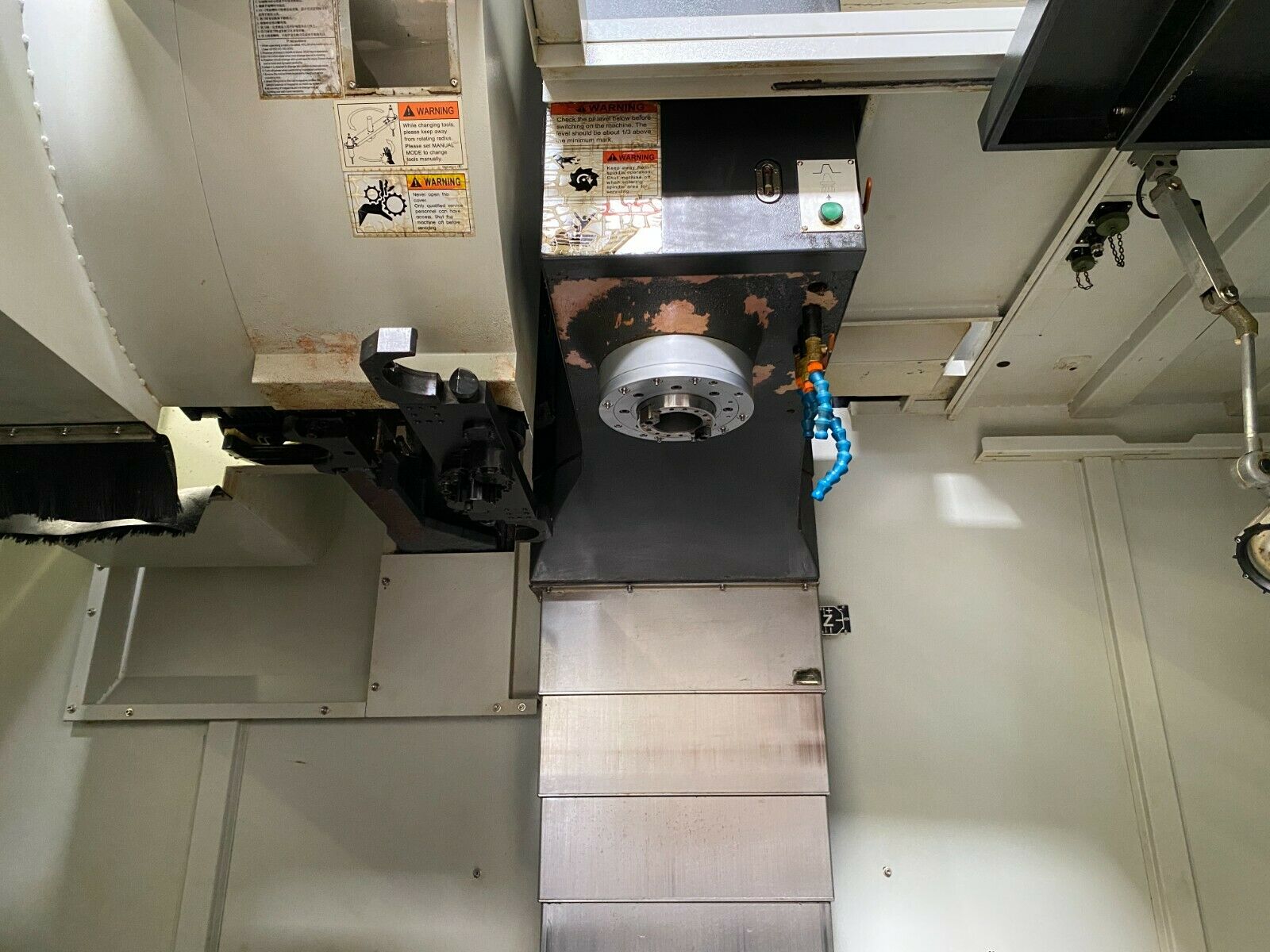

- Spindle:
- Taper Size: CAT-50
- Speed Range: 6000 RPM
- Spindle Power: 25 HP
- Automatic Tool Changer:
- Capacity: 30
- Max Tool Weight: 33 lbs
- Max Tool Dia: 7.8″
- Max Tool Length: 11.8″
- Tool Changing Time: 2.7 Seconds
-
General:
- Air Required: 85 psi, 6 scfm

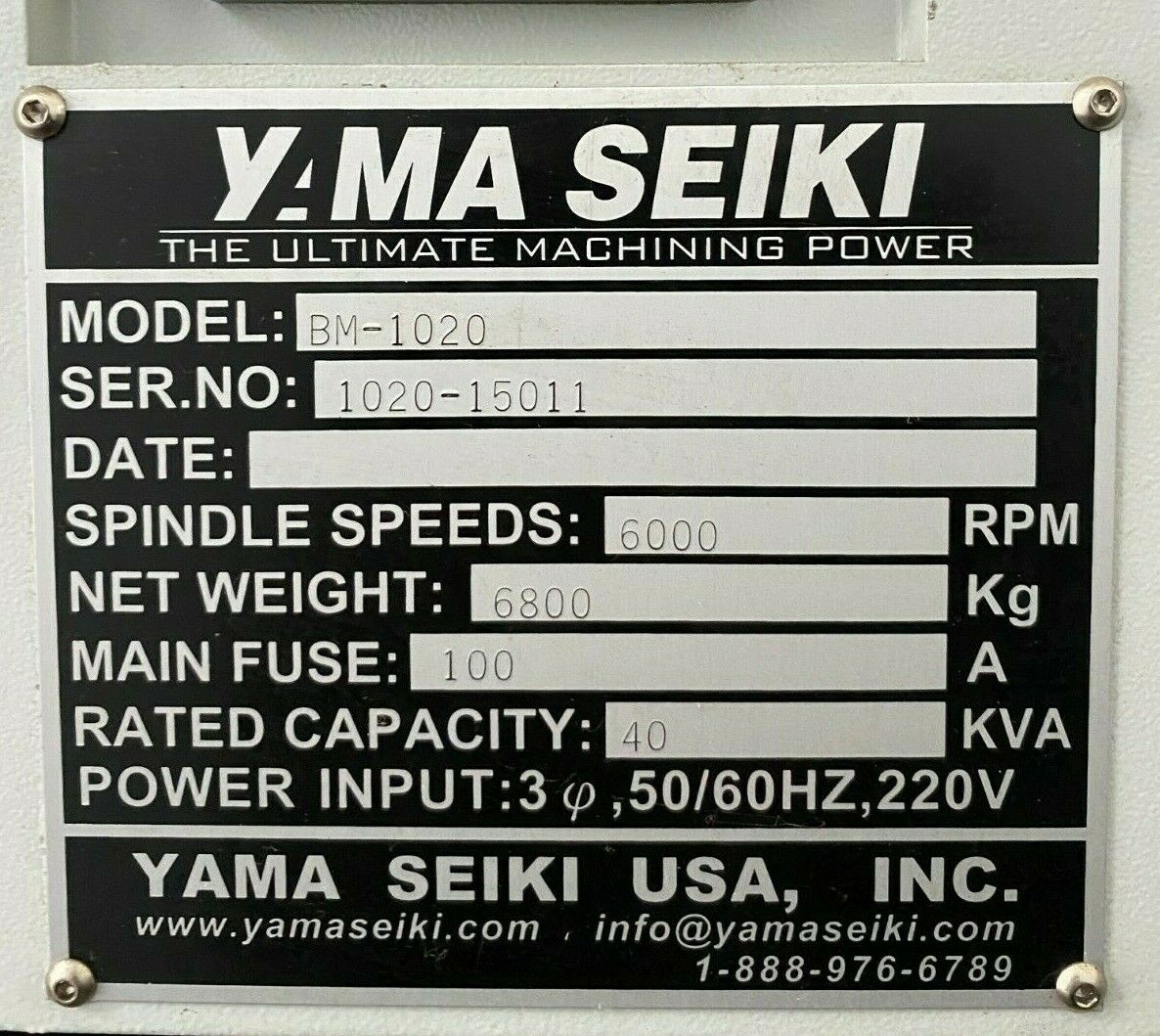

- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 128″ x 98″ x 110″ High
- Weight: 15000 lbs
No detailed specifications listed for this machine yet — call us for full specs.
| Make | Yama Seiki |
|---|
