All specifications are approximations and are subject to verification.
-
Features:

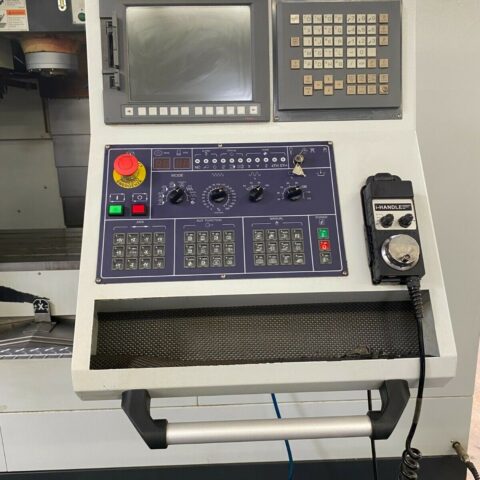

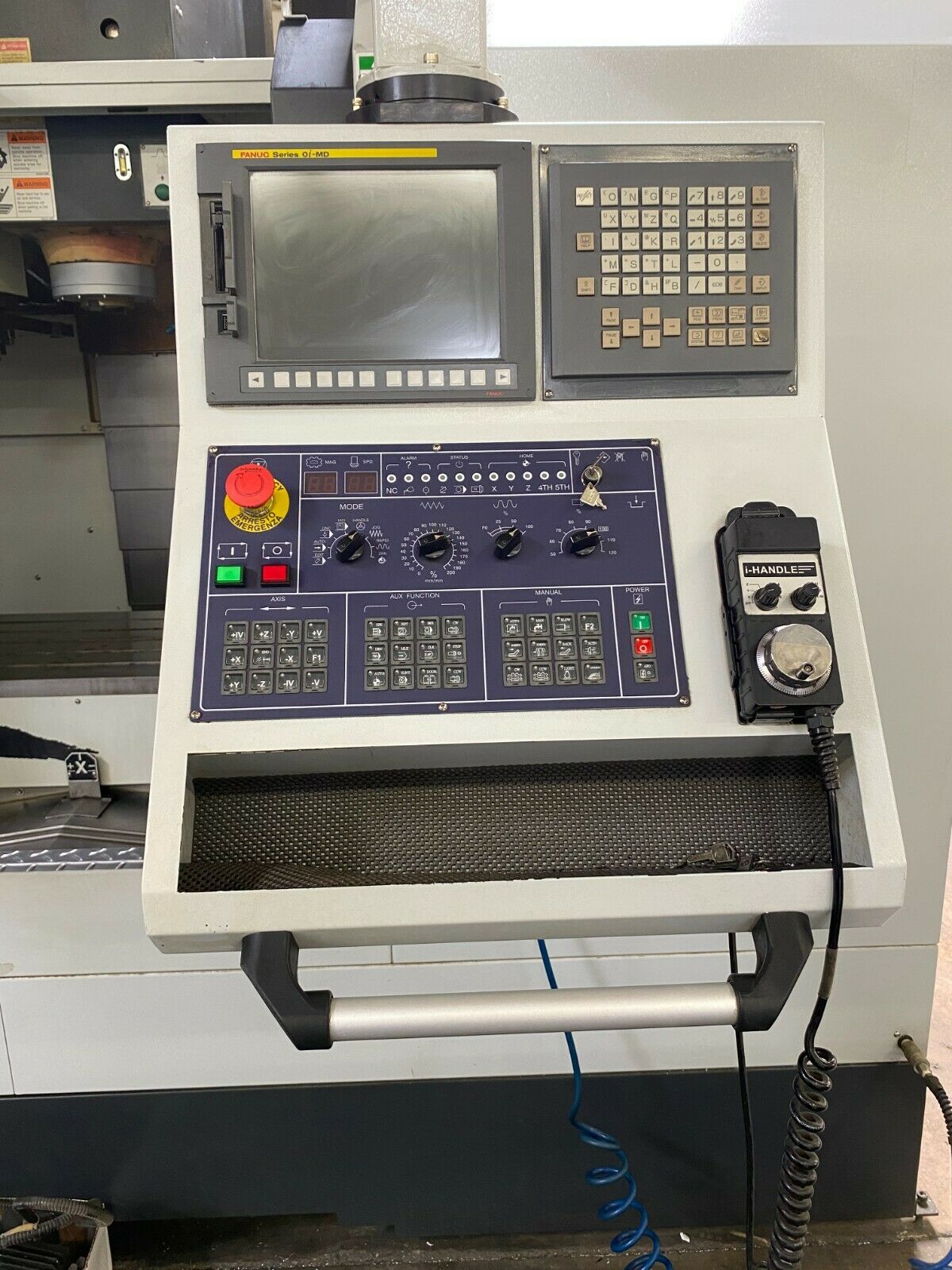

- Fanuc 0i-MD CNC Control
- Box Way Construction

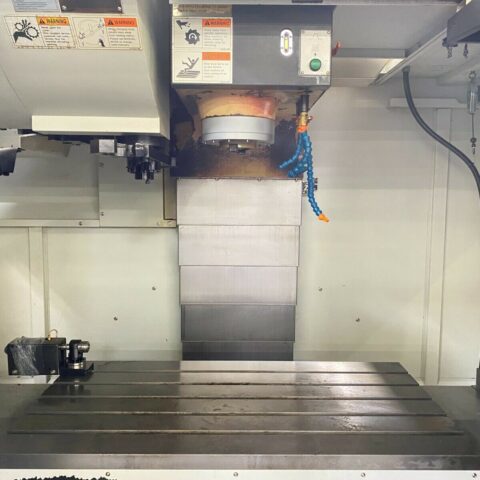

- CAT-50 Taper Gear Head Spindle
- TSC Prepped

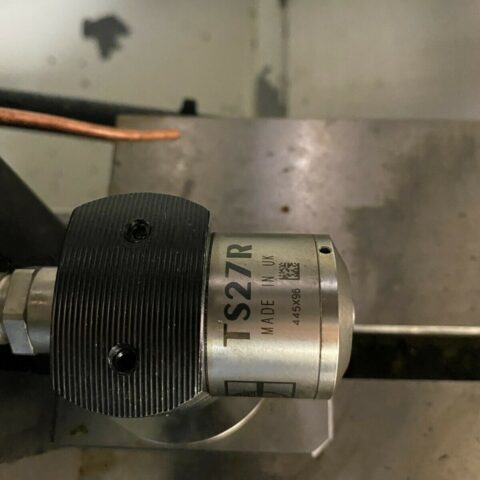

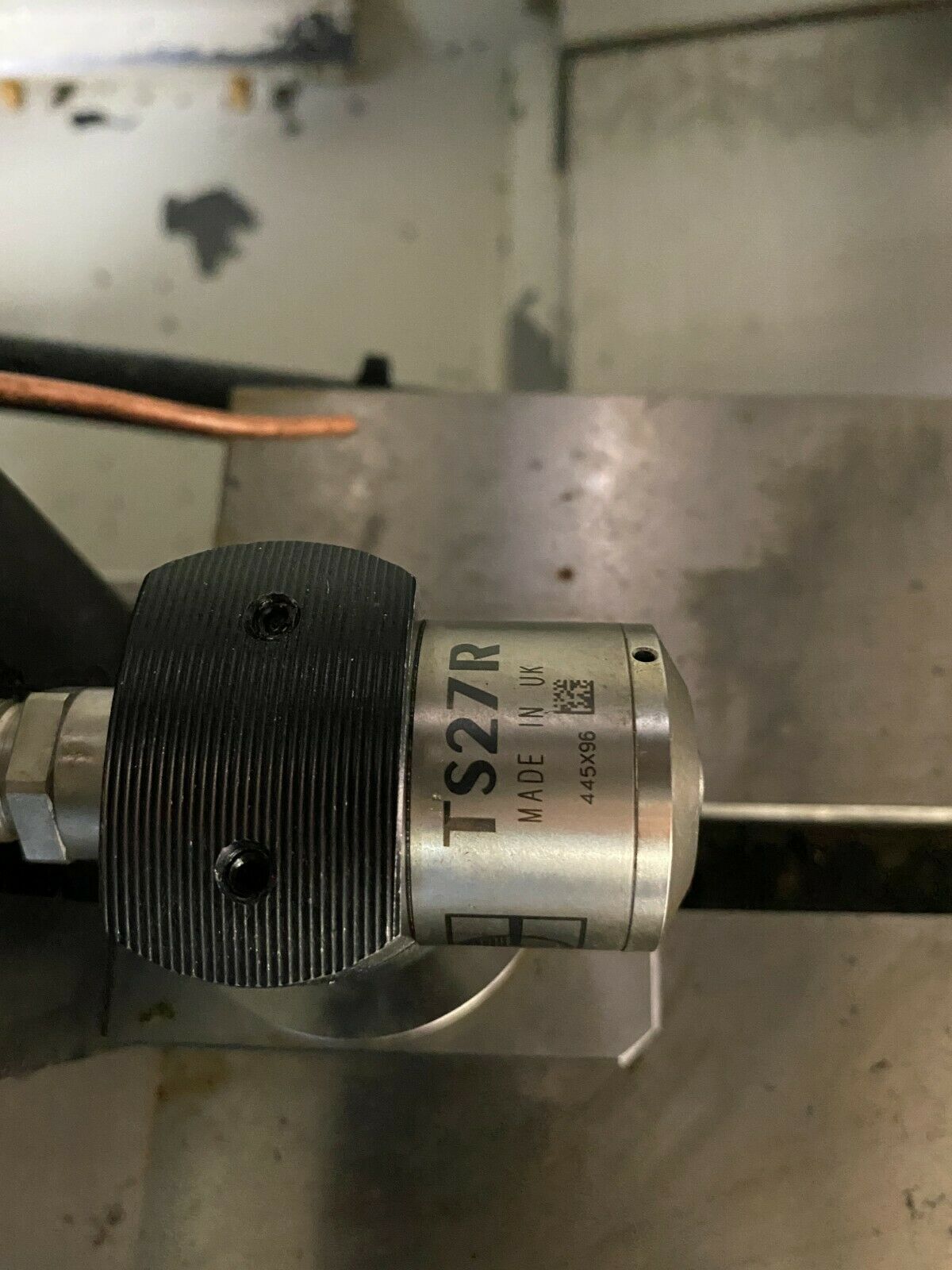

- Renishaw TS27R Tool Presetter
- 4th Axis Pre Wired
- MPG Control
- USB & PCMCIA Interface

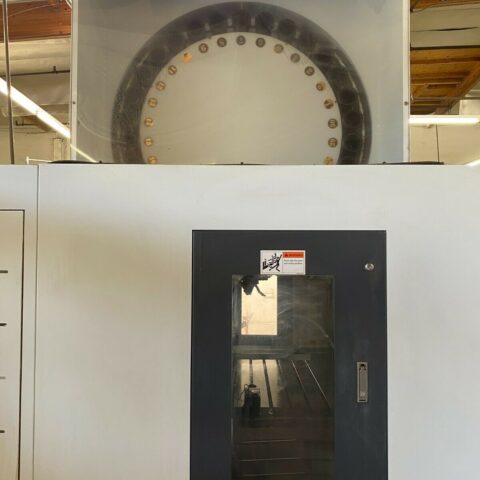

- 30 Station tool changer ( $12,500 Value Upgrade )
- Rigid Tapping
- Spindle Orientation
- Telescopic way covers
- Oil Chiller Unit
- Coolant tank and pumps

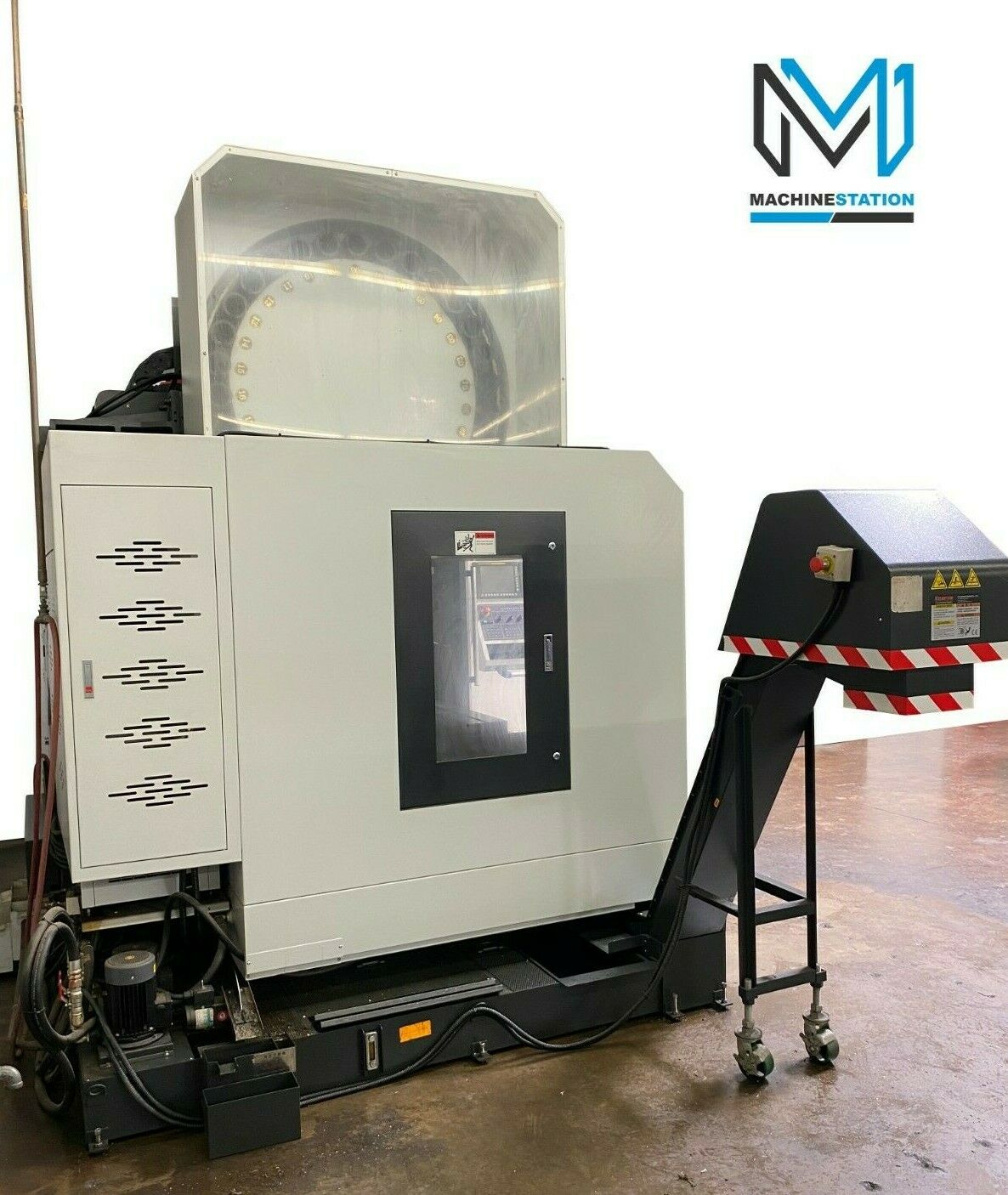

- Chip Conveyor
-
Travels:
- X-Axis: 40.2″
- Y-Axis: 23.6″
- Z-Axis: 23.6″
- Rapid Traverse Rates: 945 Inch Per Minute
- Cutting Feed Rates: 788 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4.9″ – 28.5″
-

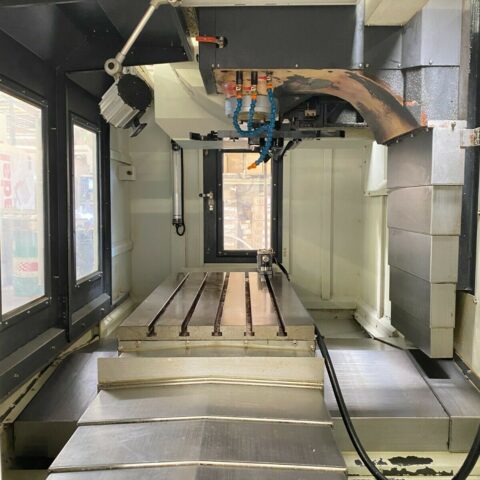

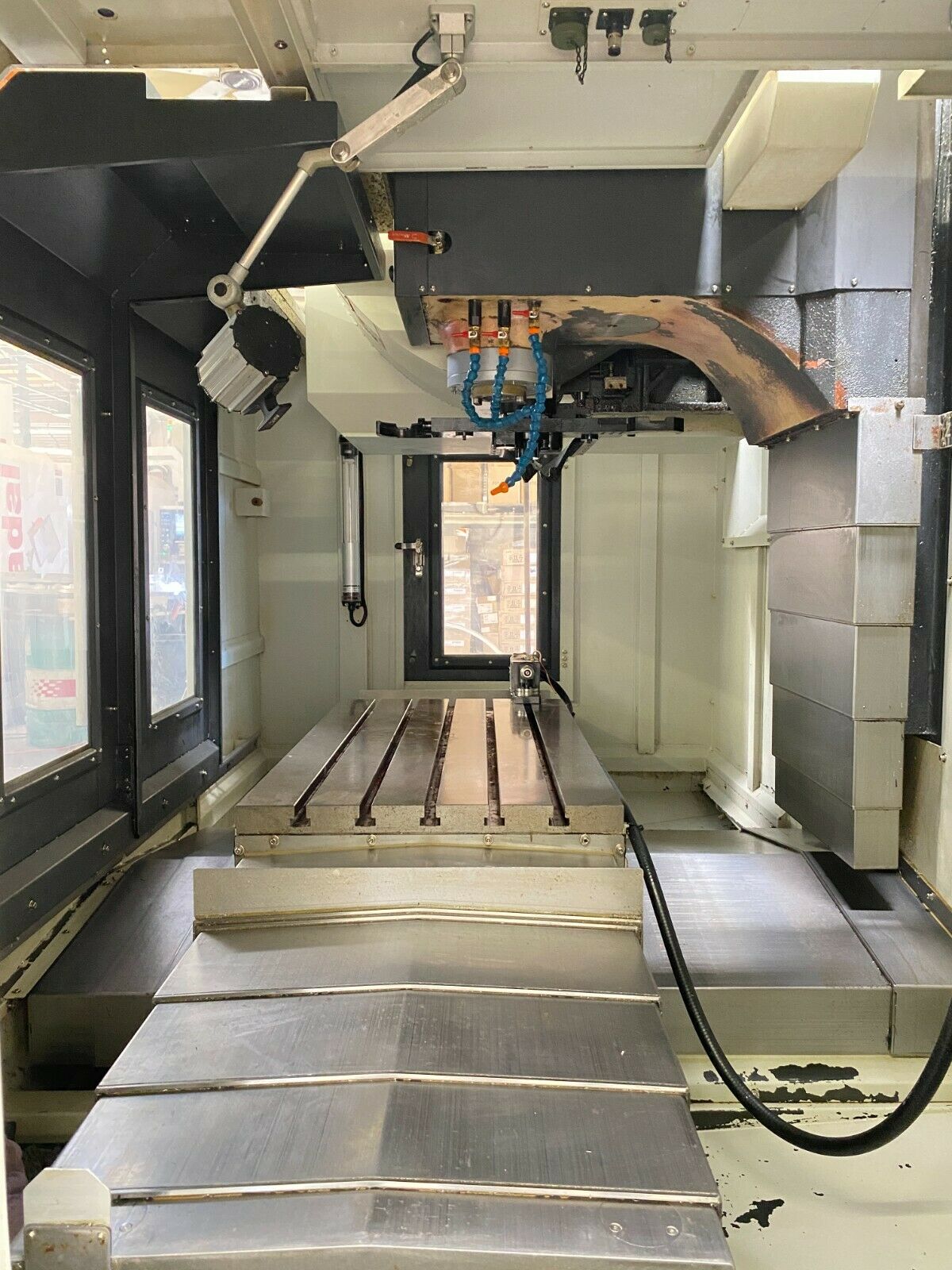

Table:
- Length: 44.1″
- Width: 23.6″ Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 2200 lbs
-

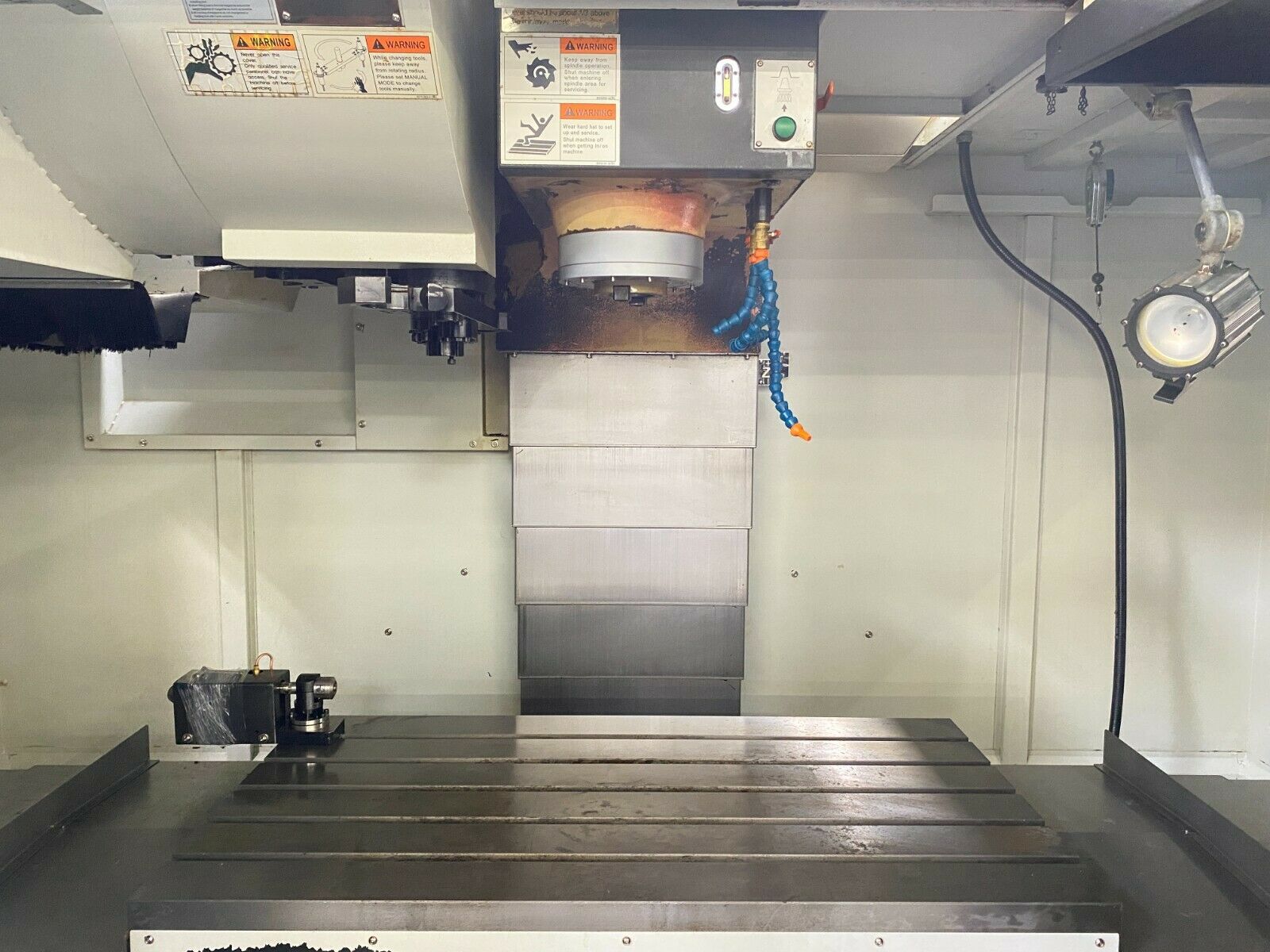

Spindle:
- Taper Size: 50
- Speed Range: 6,000 RPM
- Spindle Power: 25 HP
-

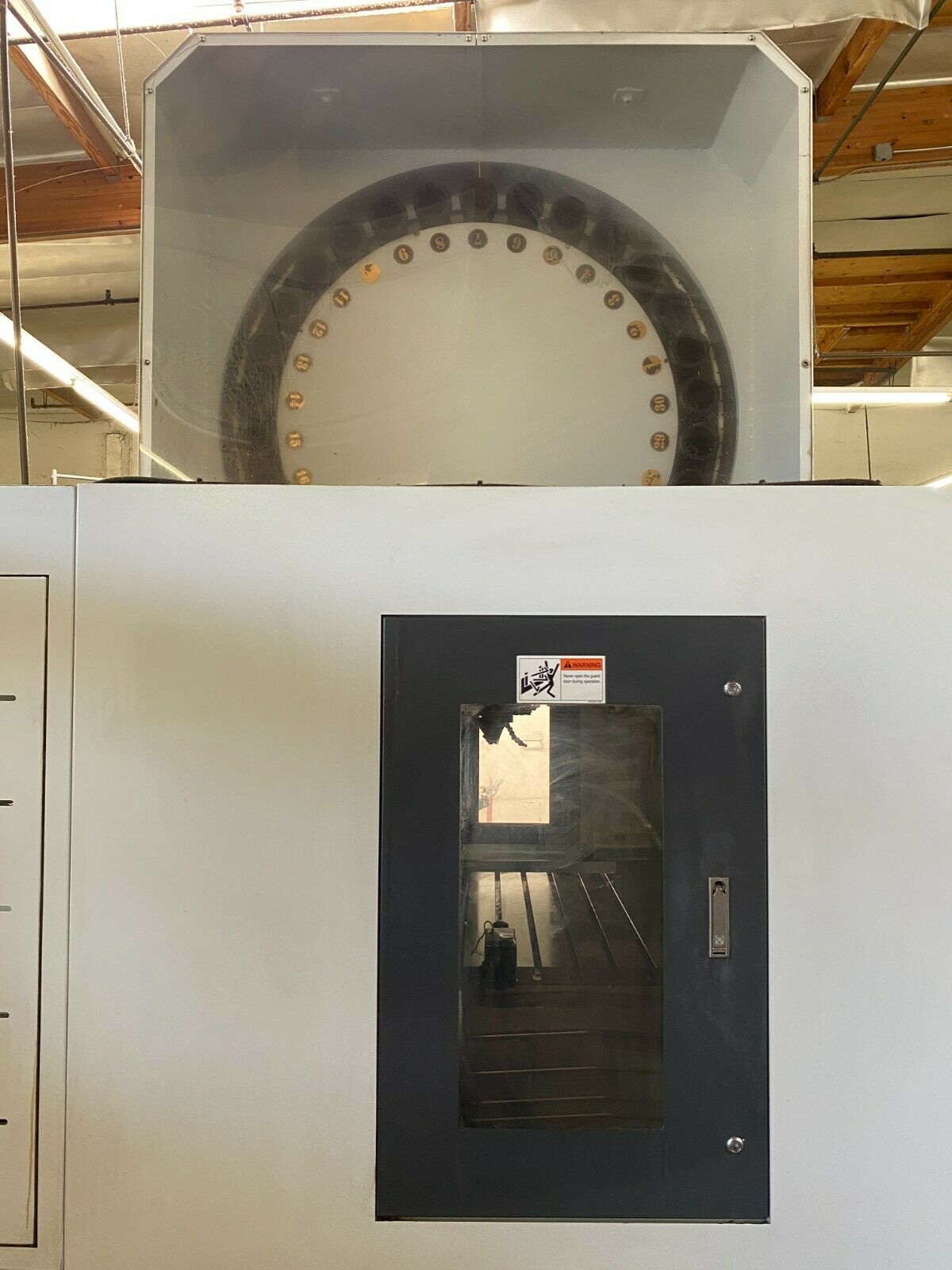

Automatic Tool Changer:
- Capacity: 30
- Max Tool Weight: 33 lbs
- Max Tool Dia: 7.8″
- Max Tool Length: 11.8″
- Tool Changing Time: 2.7 Seconds Feed rates:
-
General:
- Air Required: 85 psi, 6 scfmd

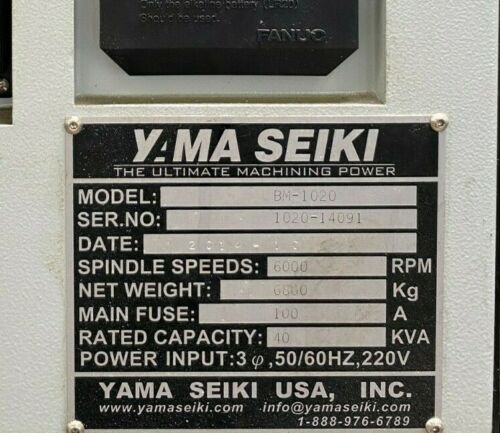

- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 128″ x 98″ x 110″ High
- Weight: 15000 lbs
“No Charges for loading at list Price”

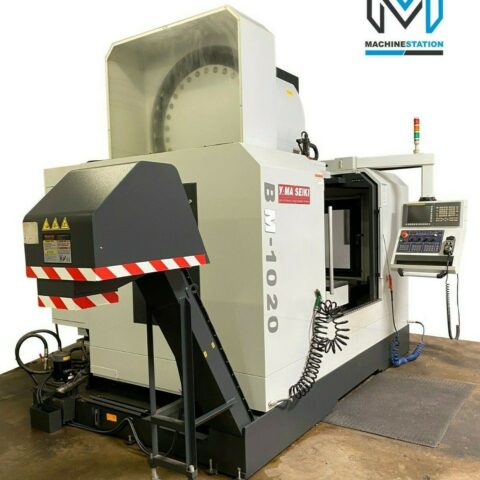

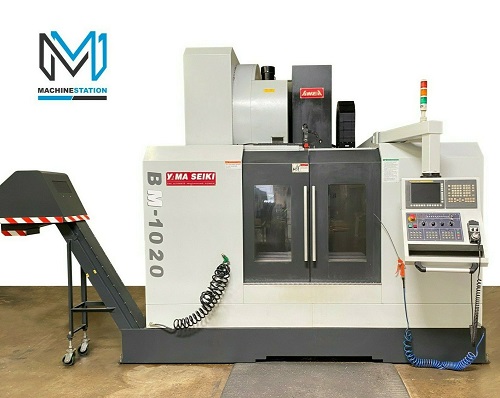

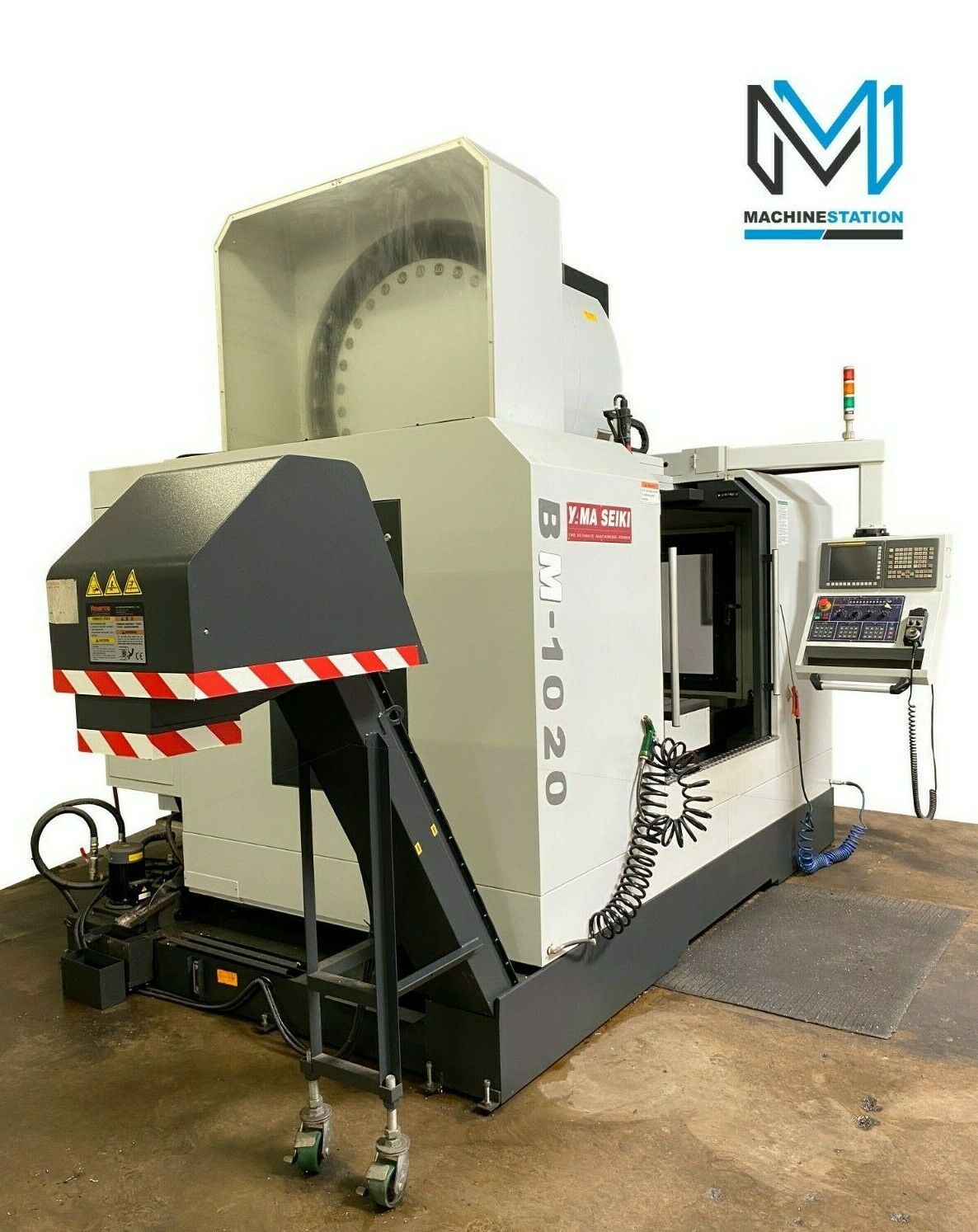

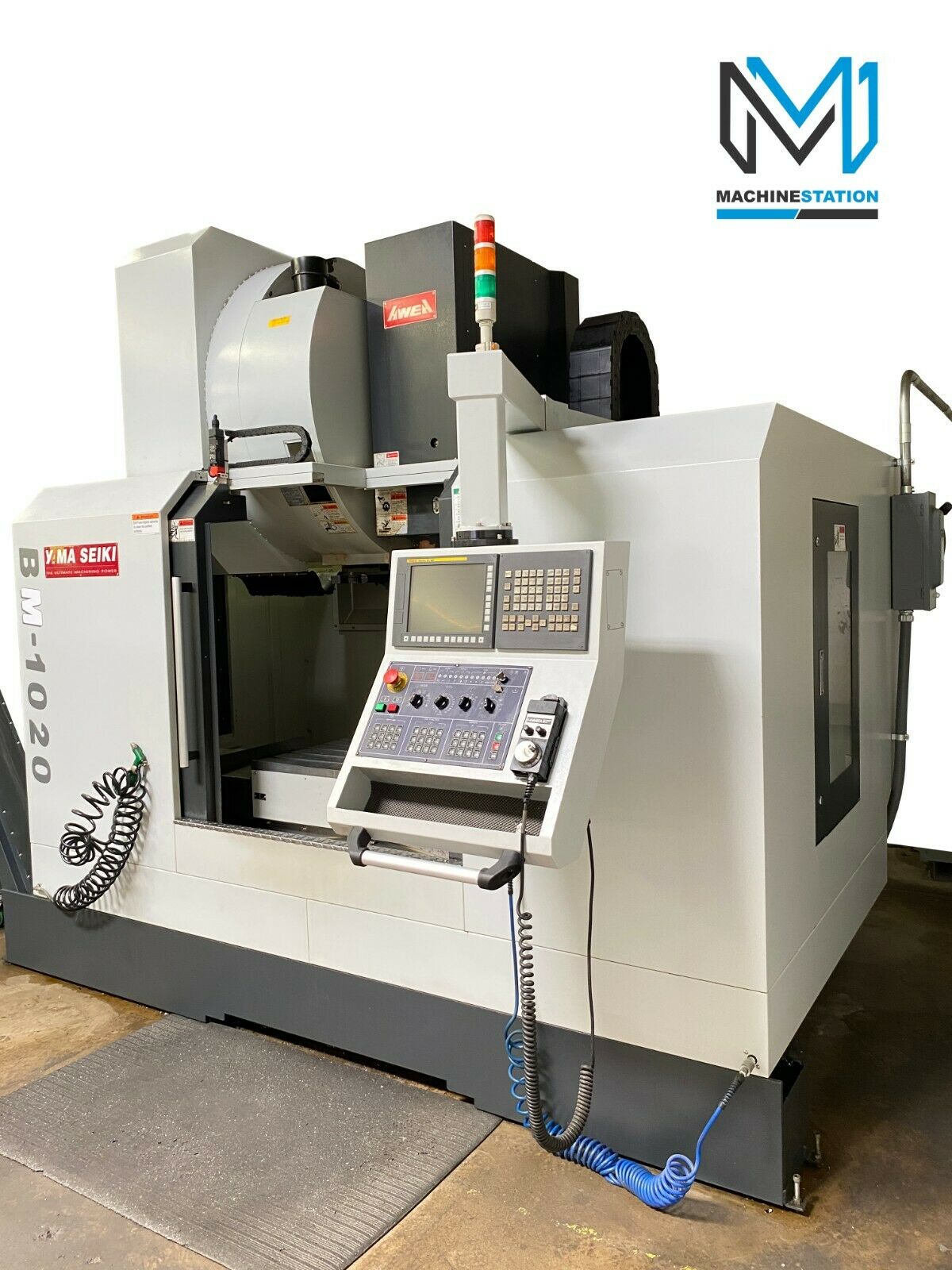

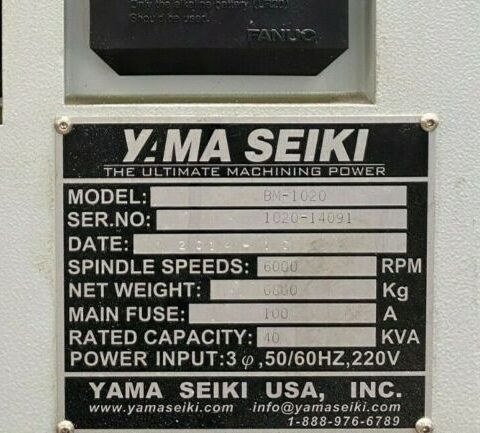

YAMA SEIKI BM-1020 VERTICAL MACHINING CENTER Comes as shown in pictures..
