Sold

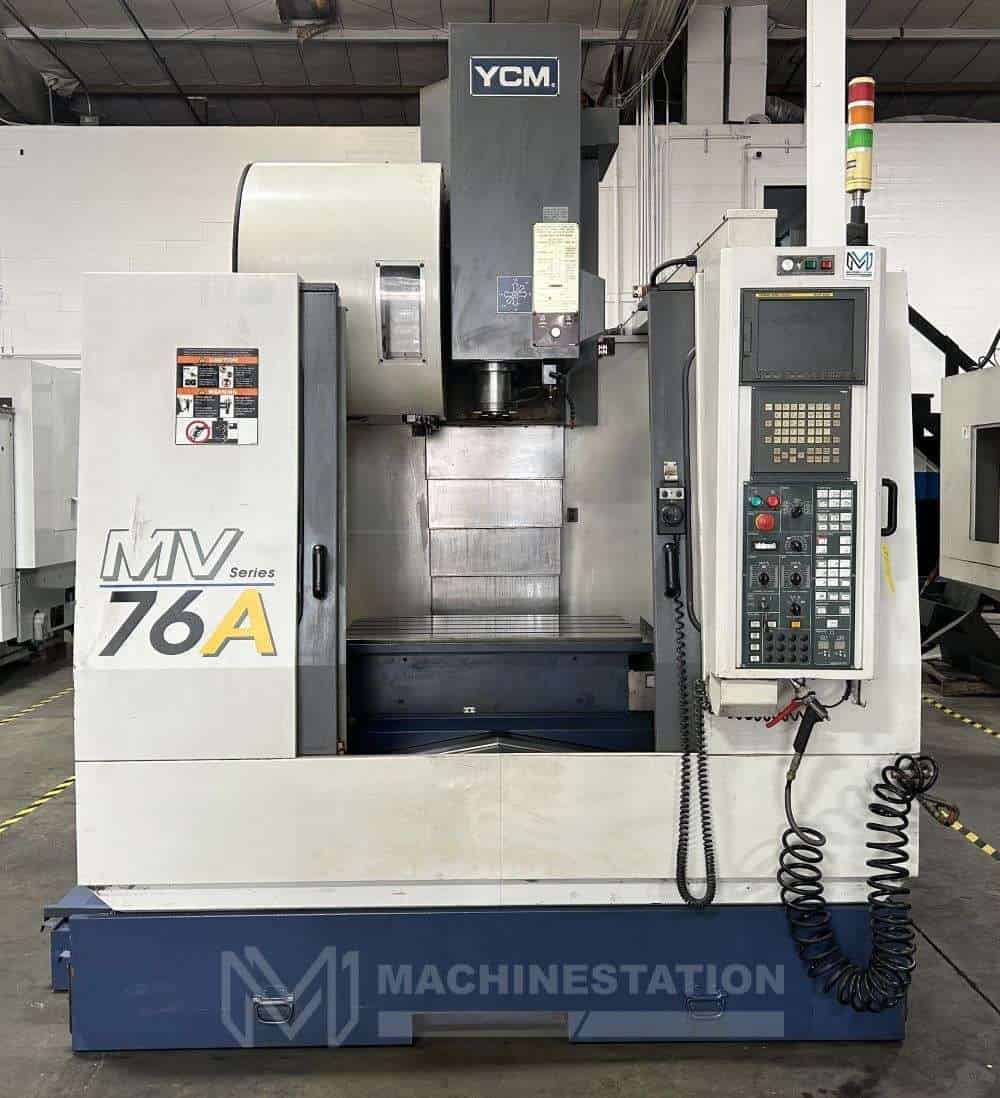

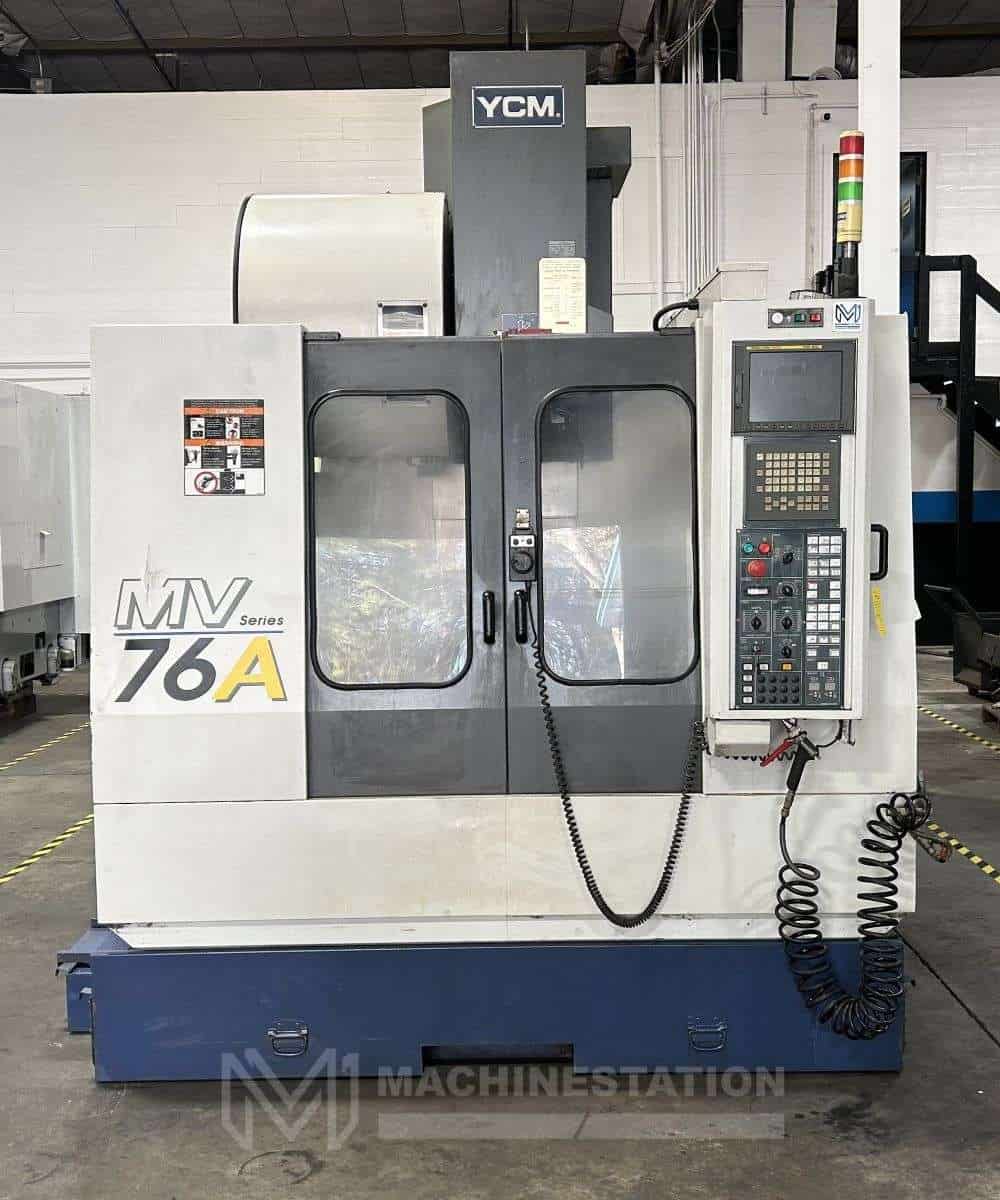

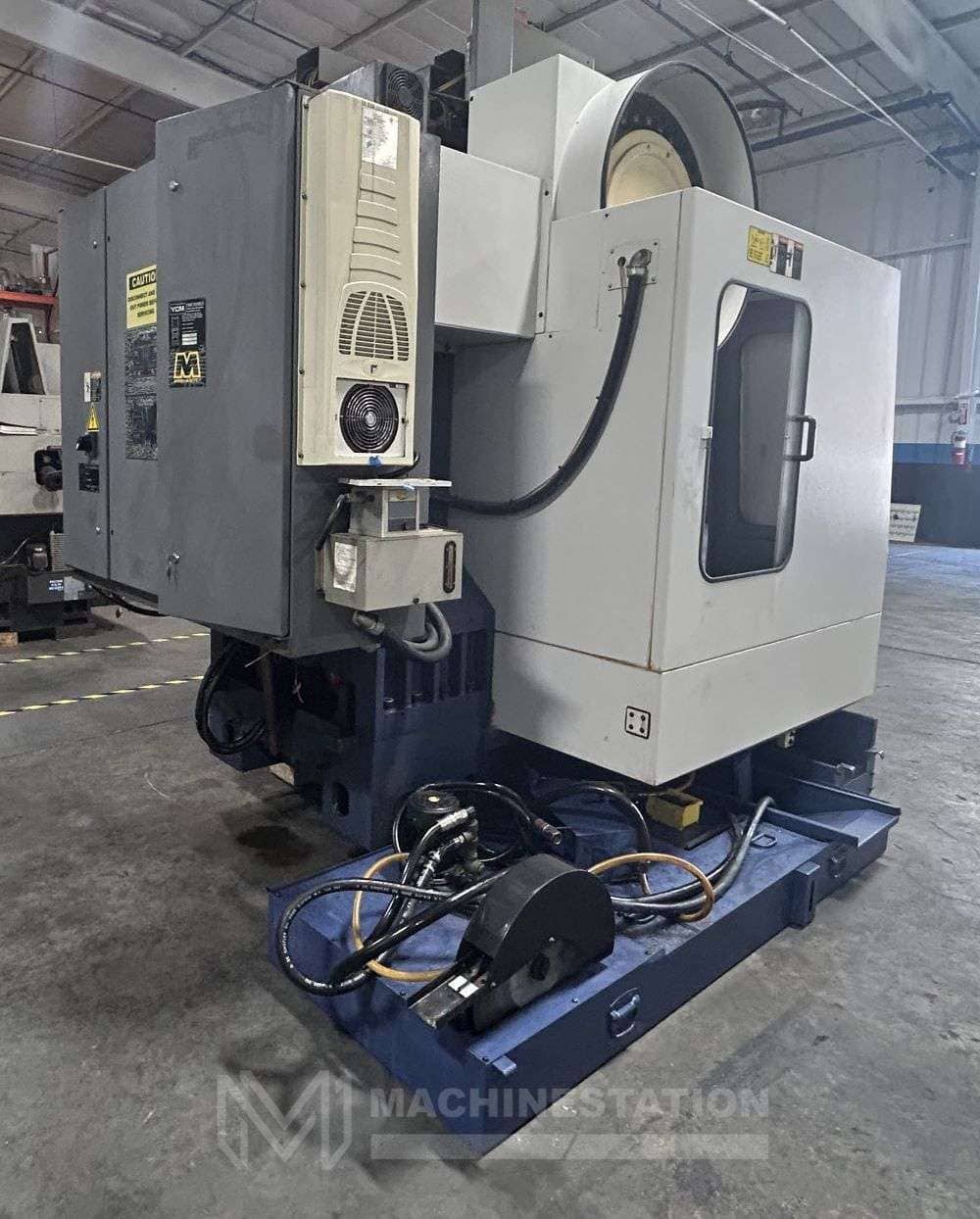

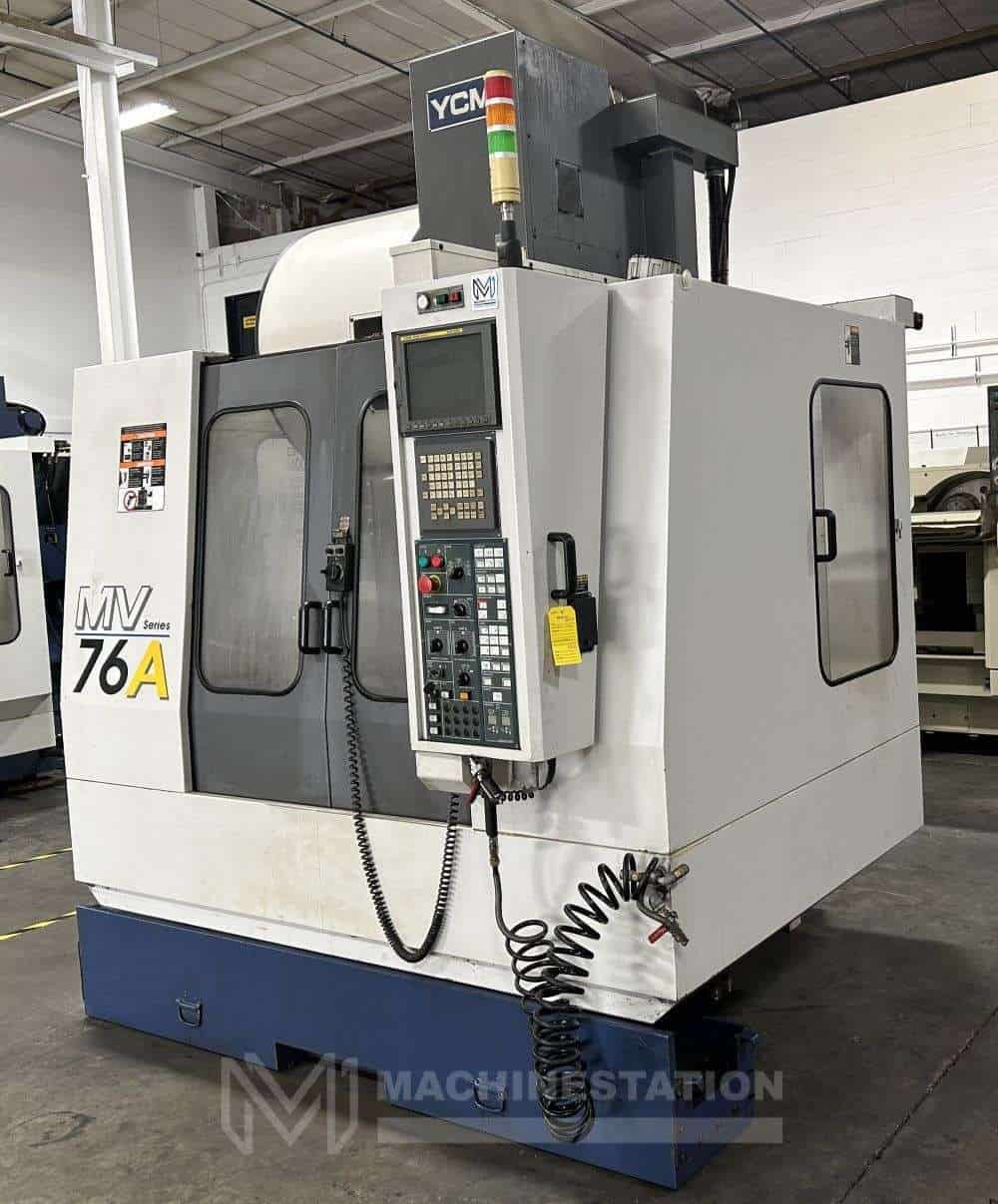

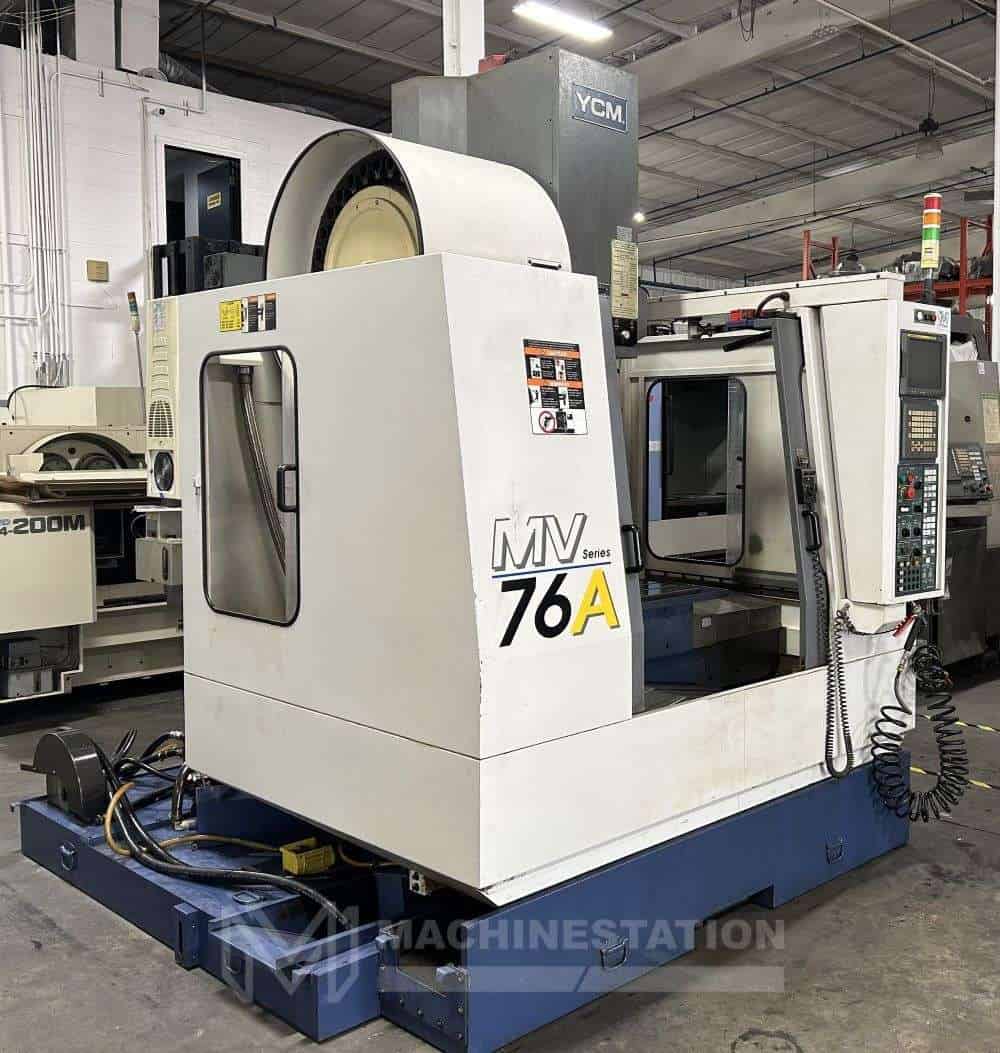

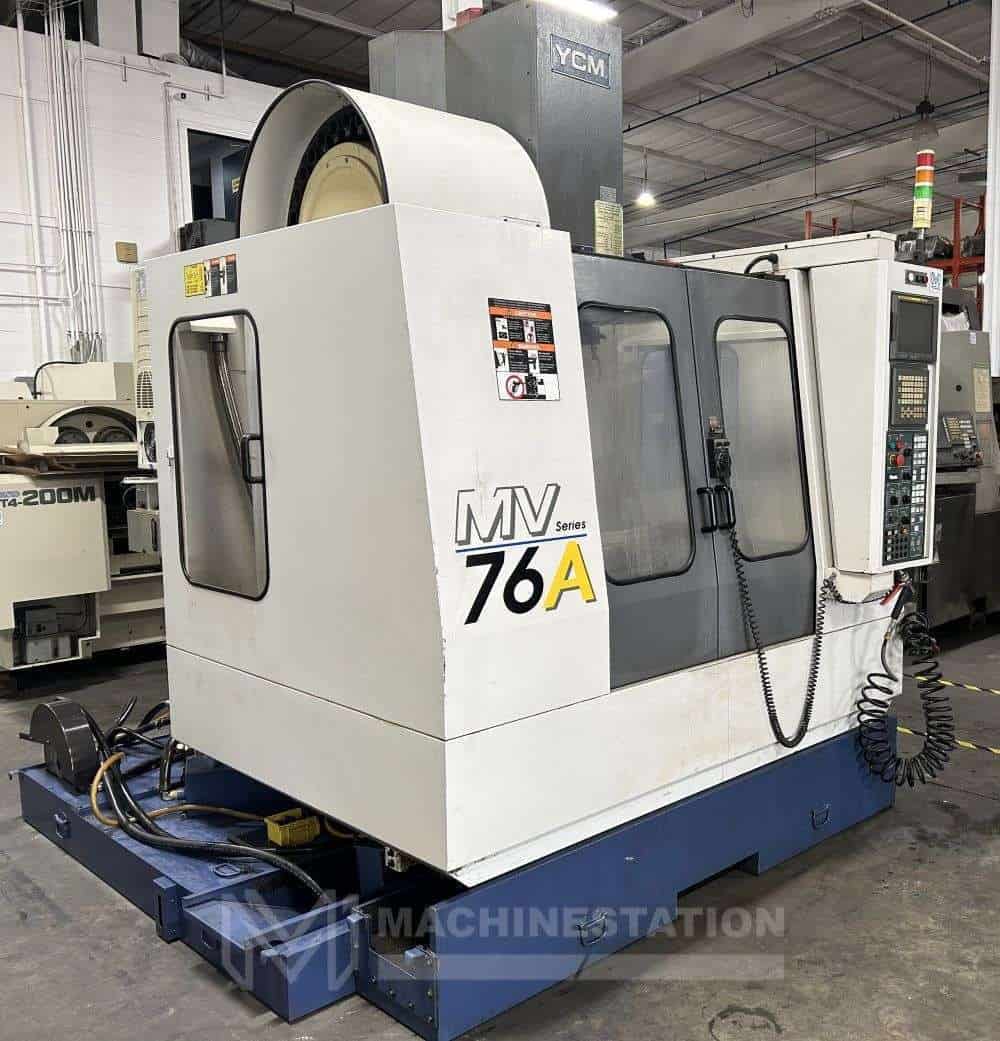

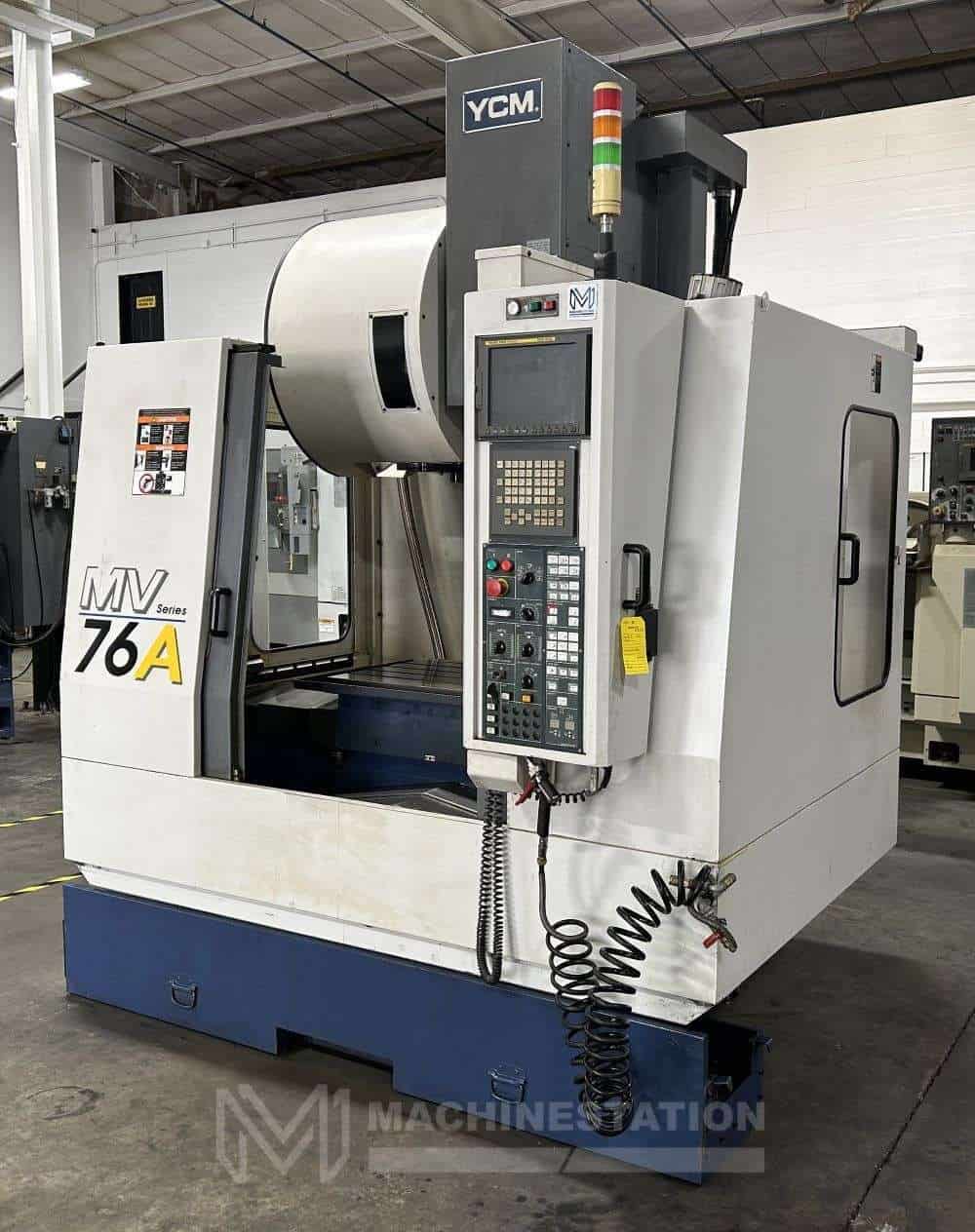

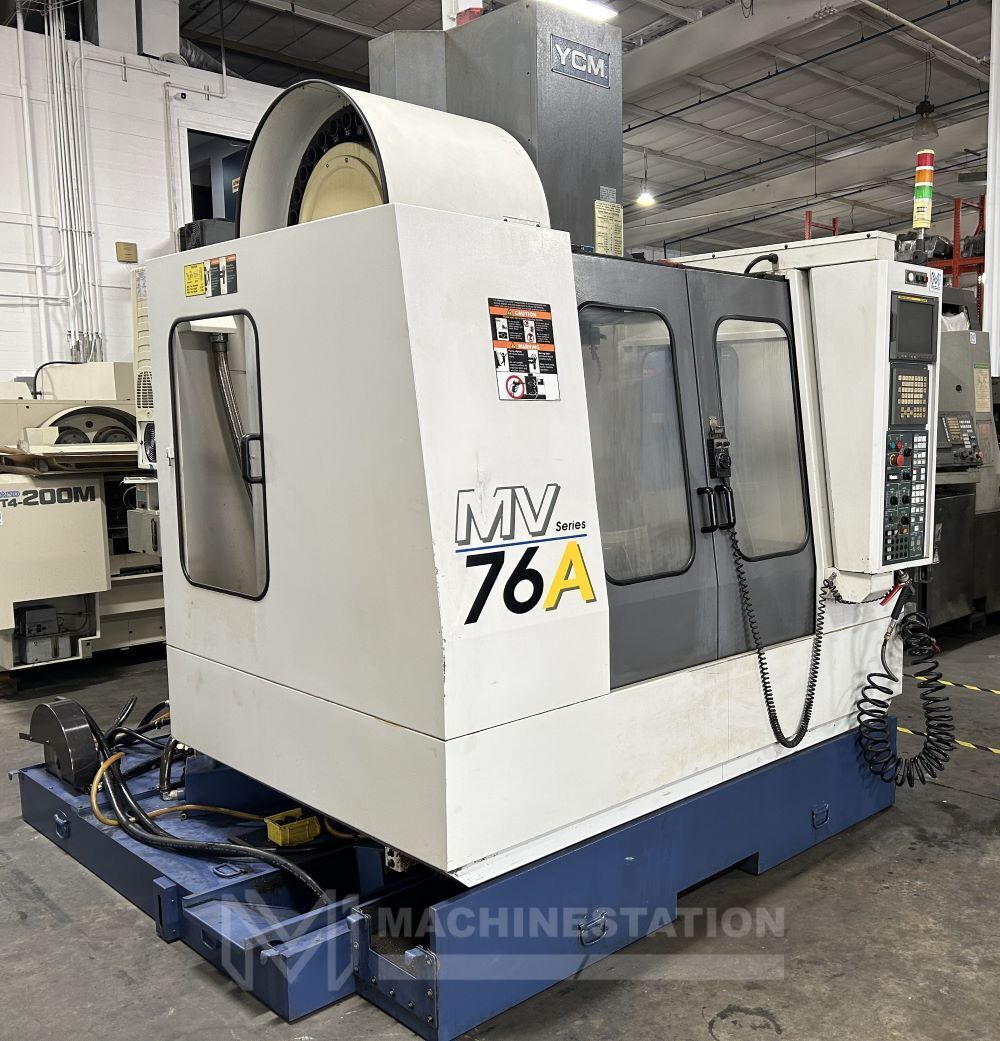

YCM MV-76A CNC Vertical Machining Center – Mill
Location
Brea, CA
SKU
112480
Make
YCM
Model
MV-76A
Year
2006
Cutting Time
9,226 Hours
Video
On Request
Out of stock
| Location: | Brea, CA |
| SKU: | 112480 |
| Make: | YCM |
| Model: | MV-76A |
| Year: | 2006 |
| Cutting Time: | 9,226 Hours |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | YCM |
| Model: | MV76A |
| Year: | 2006 |
| Condition: | Used – Good |
| Features: |
|---|

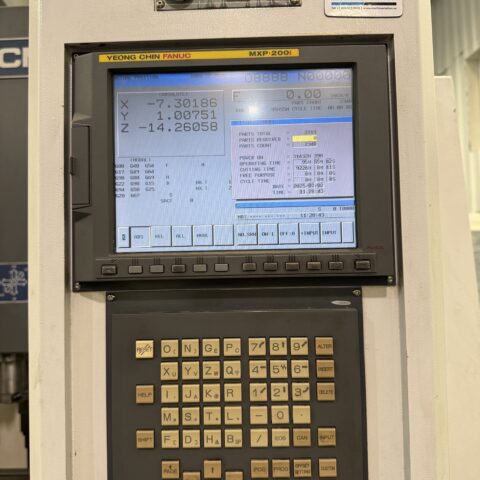

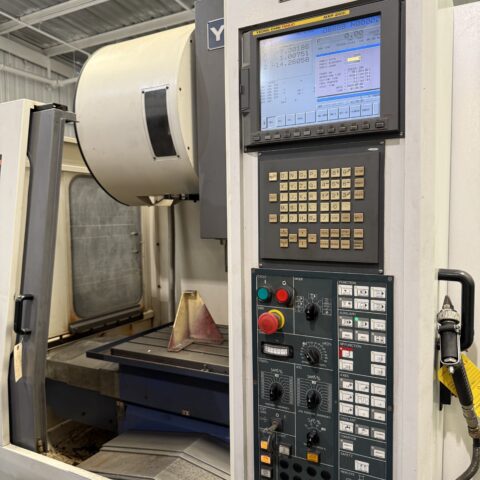

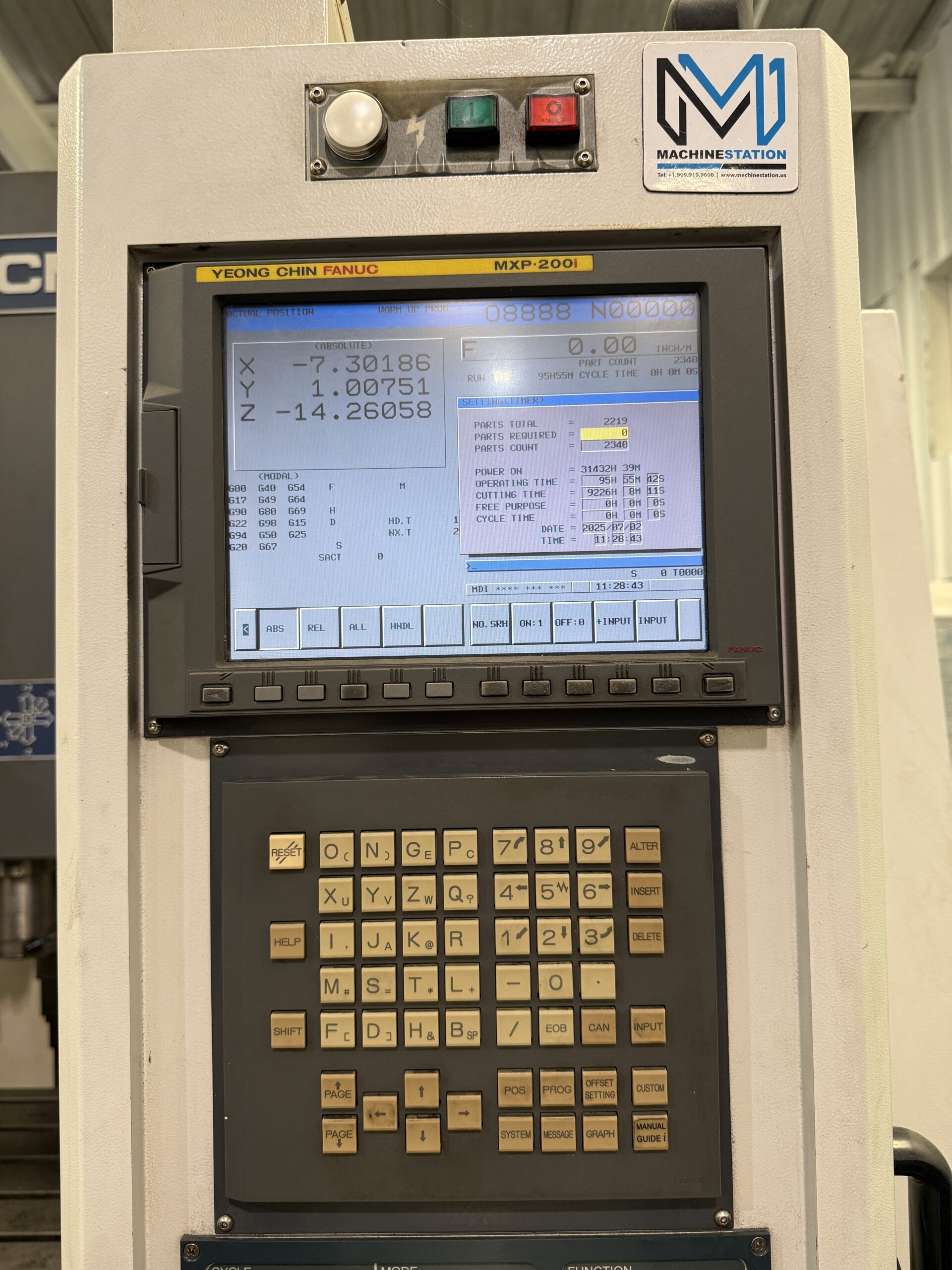

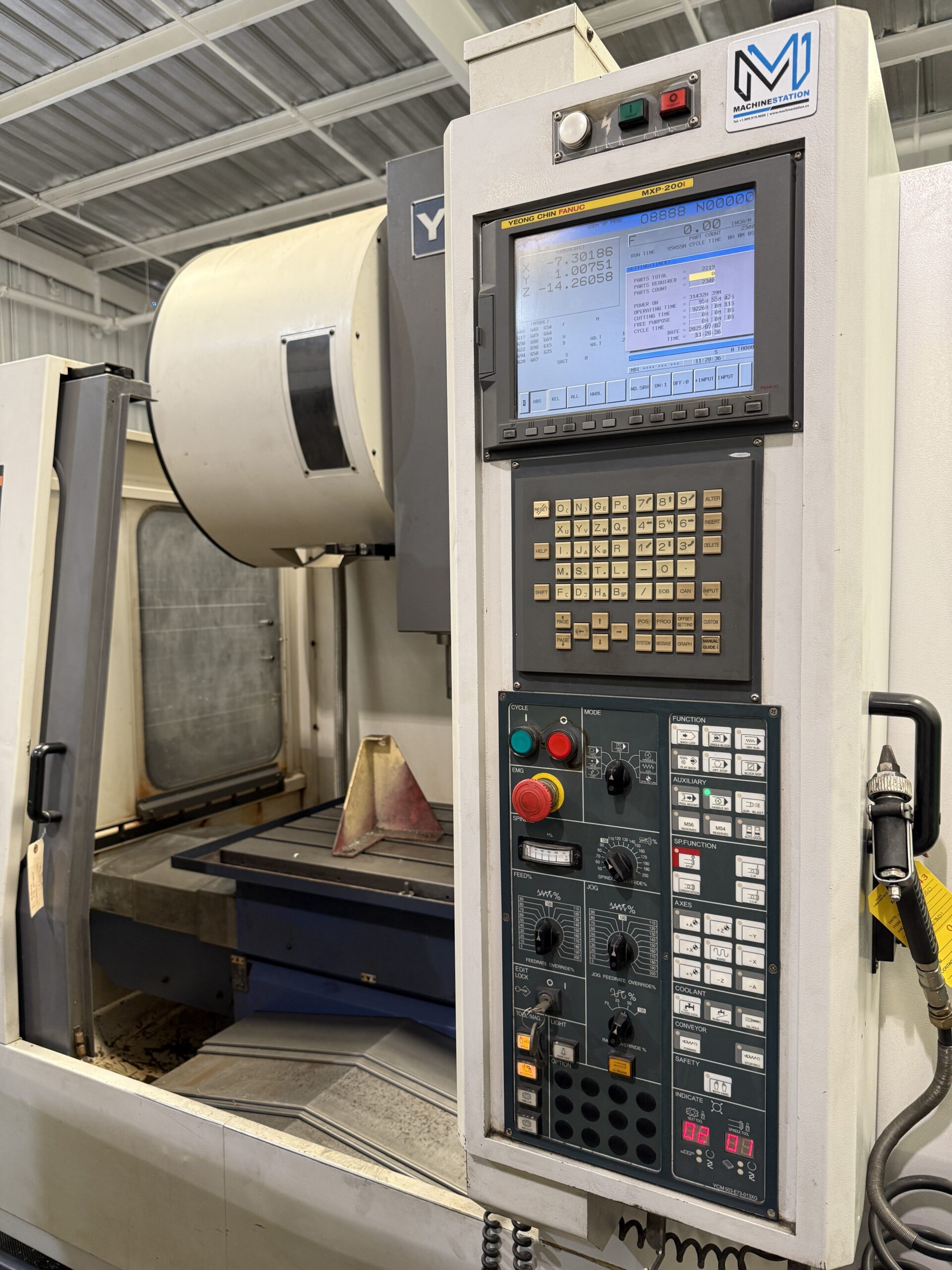

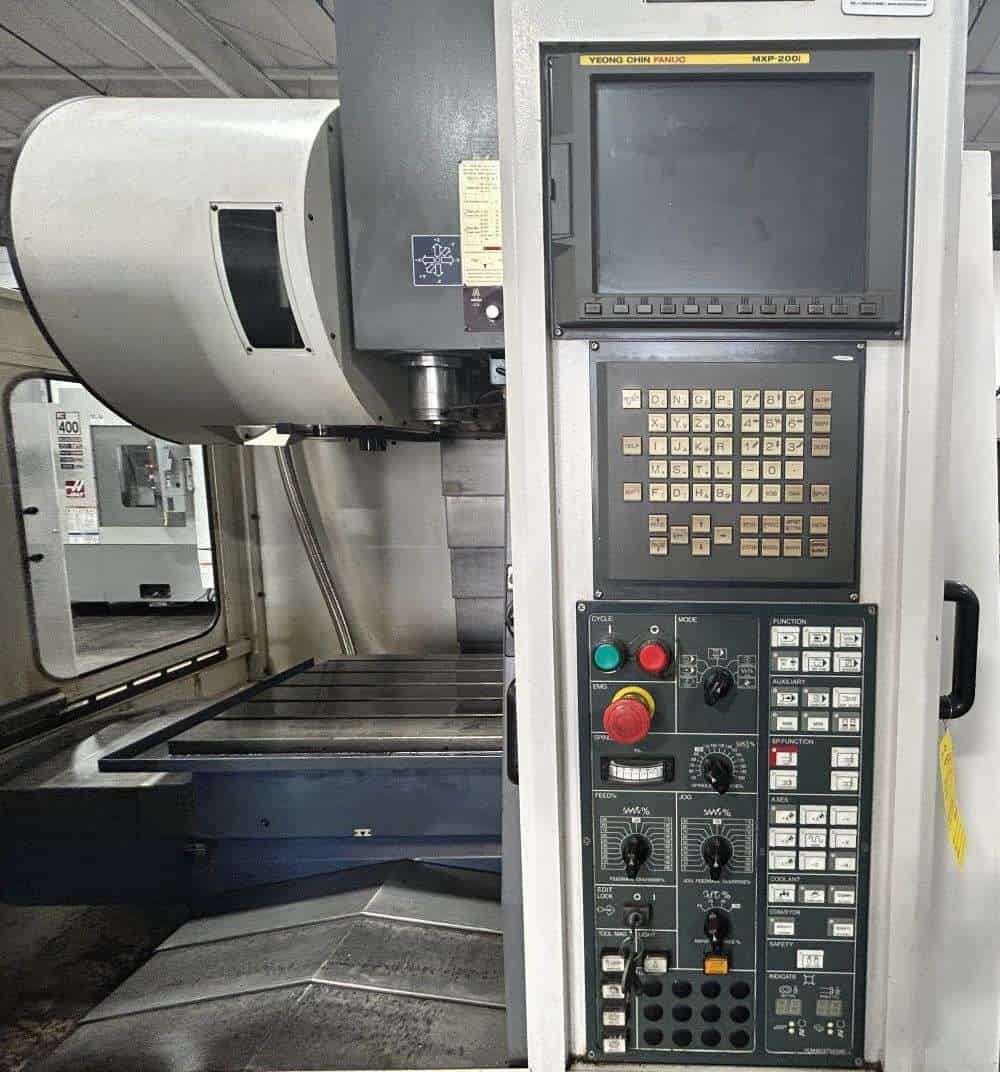

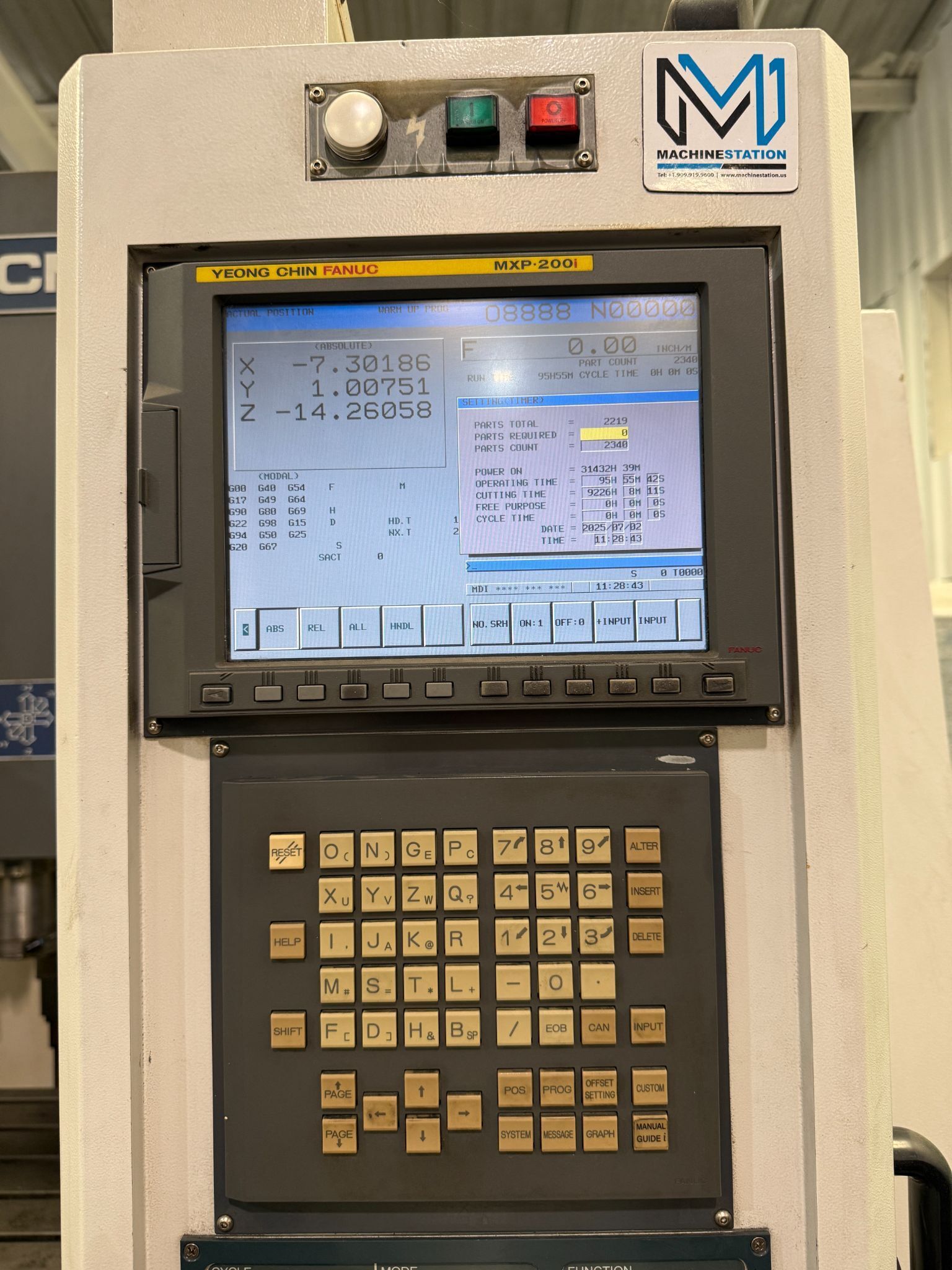

| Fanuc MXP-200i CNC Control |
| Box Way Construction |
| 8000 RPM Gear Head Spindle |
| 30 Station Automatic tool changer |
| PCMCIA Card Slot |
| MPG Control |
| Rigid Tapping |
| Spindle Orientation |
| Telescopic way covers |
| Coolant system |
| Coolant Tank |
| Travels: |
|---|
| X-Axis: 30.0″ |
| Y-Axis: 20.08″ |
| Z-Axis: 22.05″ |
| Rapid Traverse Rates X Y Axis: 1181 Inch Per Minute |
| Rapid Traverse Rates Z Axis: 945 Inch Per Minute |
| Cutting Feed Rates: 394 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4.72″ – 26.77″ |
| Table: |
|---|
| Length: 36″ |
| Width: 22″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1102 lbs |
| Spindle: |
|---|
| Spindle: Taper Size: 40 |
| Speed Range: 0 – 8000 RPM |
| Spindle Type: Gear Head |
| Spindle Power: 15 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Tools |
| Tool Weight: 15.4 lbs |
| Max Tool Dia: 3.54″ |
| Max Tool Length: 11.8″ |
| Tool Changing Time: 2.5 Seconds |
| General: |
|---|
| Air Required: 80 psi 4 scfm |
| Power: 220v / 25 kva / 3-Phase |
| Overall Dimensions: 90″ x 84″ x 111″ High |
| Weight: 11243 lbs |
| Travels: |
|---|
| X-Axis: 762 mm |
| Y-Axis: 510 mm |
| Z-Axis: 560 mm |
| Rapid Traverse Rates X Y Axis: 1181 Inch Per Minute |
| Rapid Traverse Rates Z Axis: 945 Inch Per Minute |
| Cutting Feed Rates: 394 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 120 mm – 680 mm |
| Table: |
|---|
| Length: 914 mm |
| Width: 559 mm |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/203 mm |
| Max Weight on Table: 1102 lbs |
| Spindle: |
|---|
| Spindle: Taper Size: 40 |
| Speed Range: 0 – 8000 RPM |
| Spindle Type: Gear Head |
| Spindle Power: 15 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Tools |
| Tool Weight: 15.4 lbs |
| Max Tool Dia: 90 mm |
| Max Tool Length: 300 mm |
| Tool Changing Time: 2.5 Seconds |
| General: |
|---|
| Air Required: 80 psi 4 scfm |
| Power: 220v / 25 kva / 3-Phase |
| Overall Dimensions: 2,286 mm x 2,134 mm x 2,819 mm High |
| Weight: 11243 lbs |
| Make | YCM |
|---|---|
| Model | MV-76A |
| Categories | CNC Vertical Machining Centers |
- Fanuc MXP-200i CNC Control
- Box Way Construction
- 8000 RPM Gear Head Spindle
- 30 Station Automatic tool changer
- PCMCIA Card Slot
- MPG Control
- Rigid Tapping
- Spindle Orientation
- Telescopic way covers
- Coolant system
- Coolant Tank
