*All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

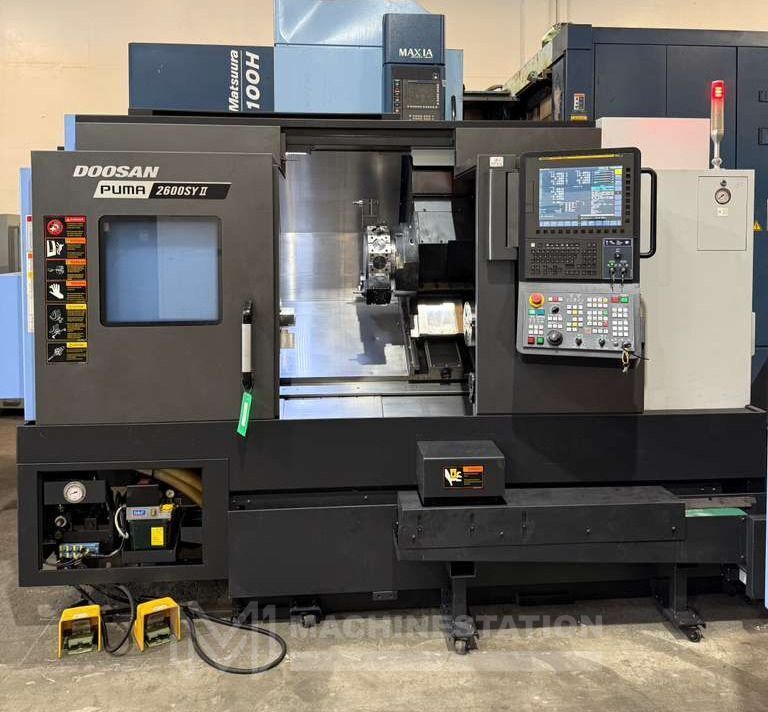

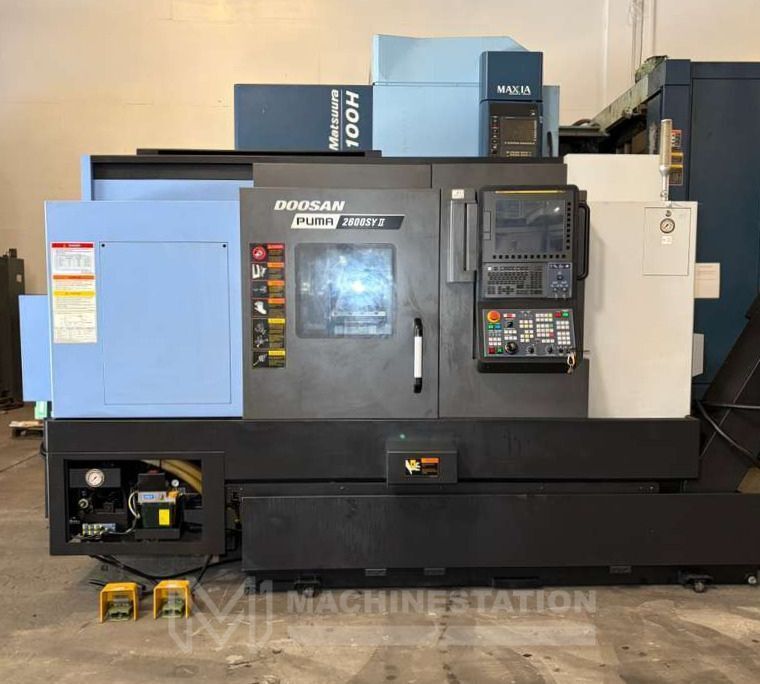

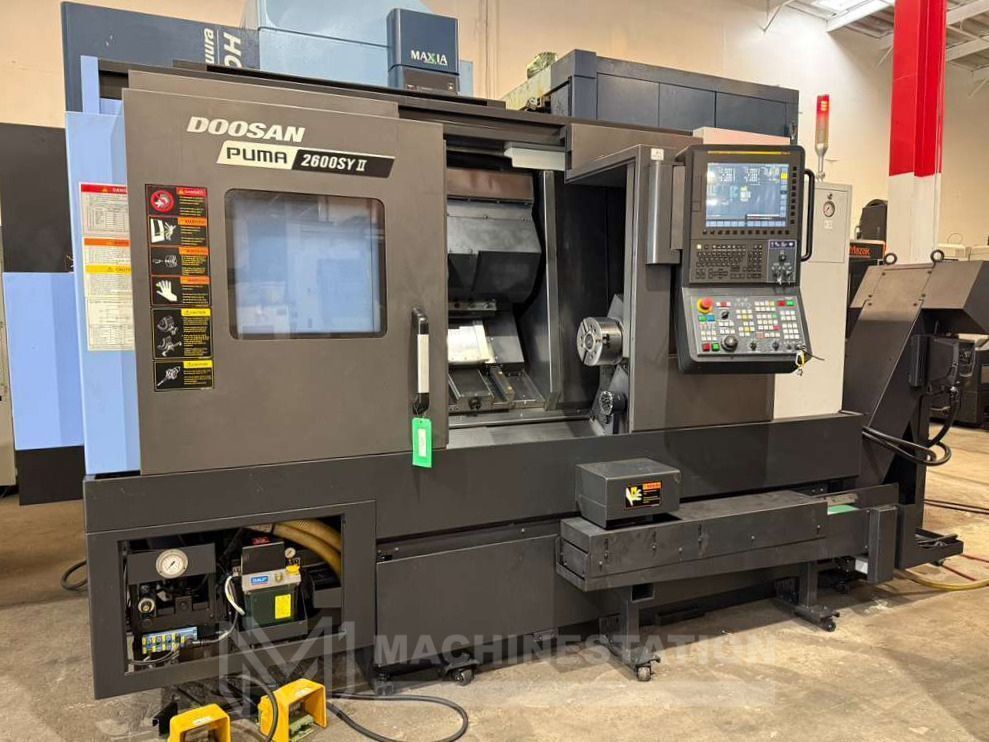

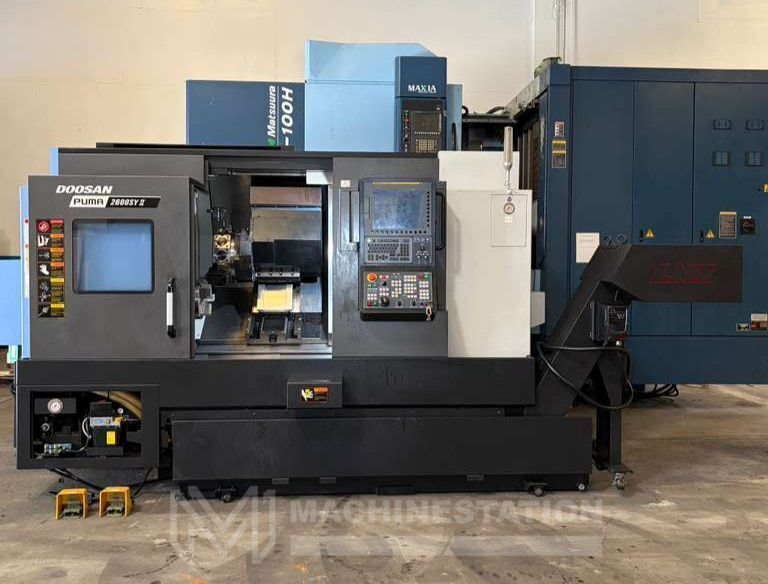

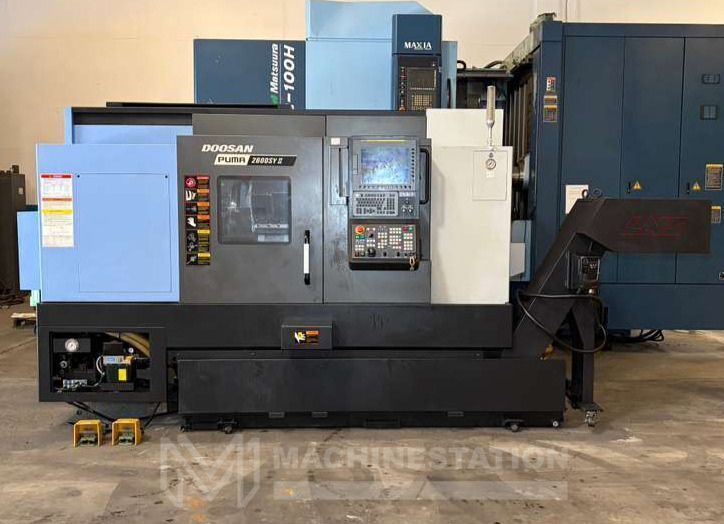

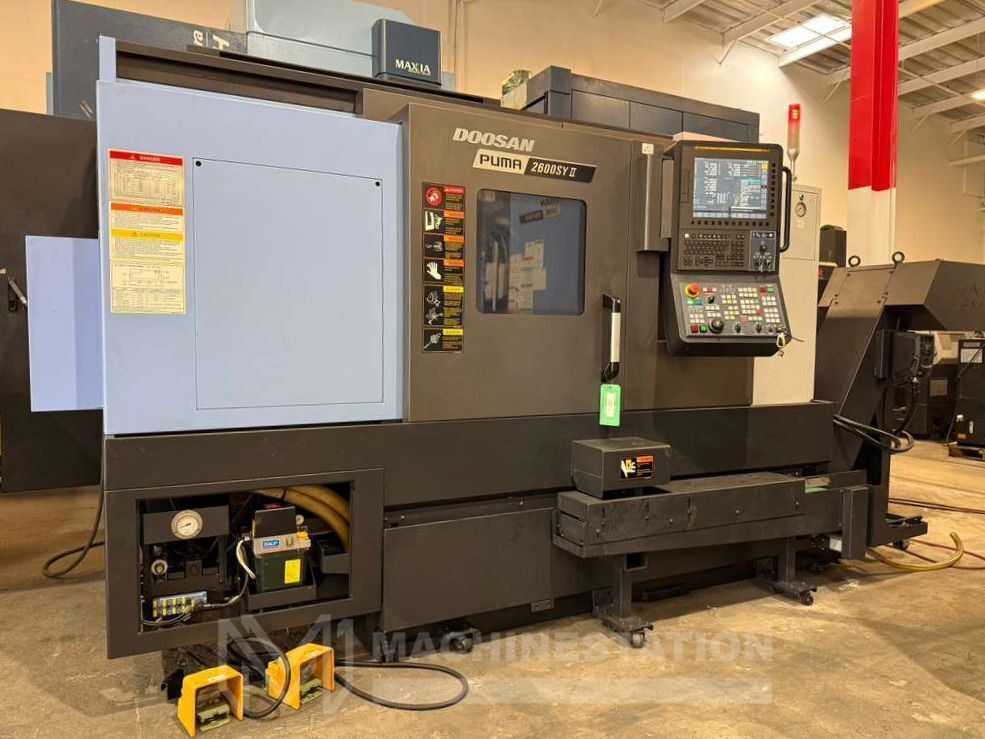

| Make: | Doosan |
| Model No.: | Puma Series |
| Equipped With: |
|---|

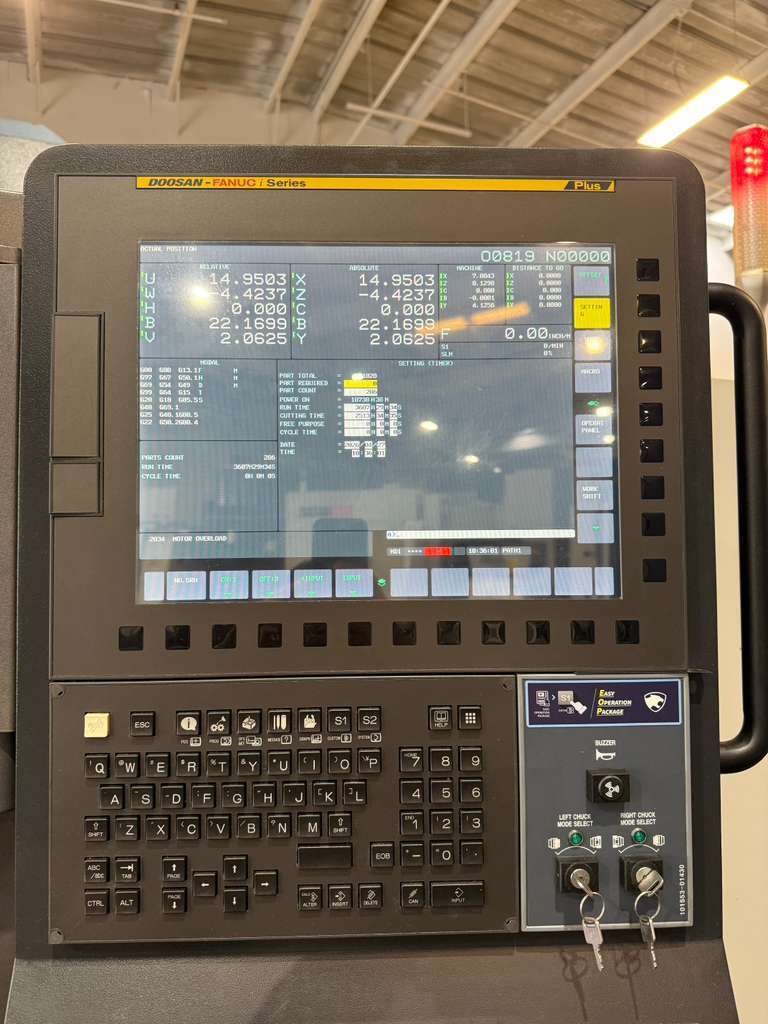

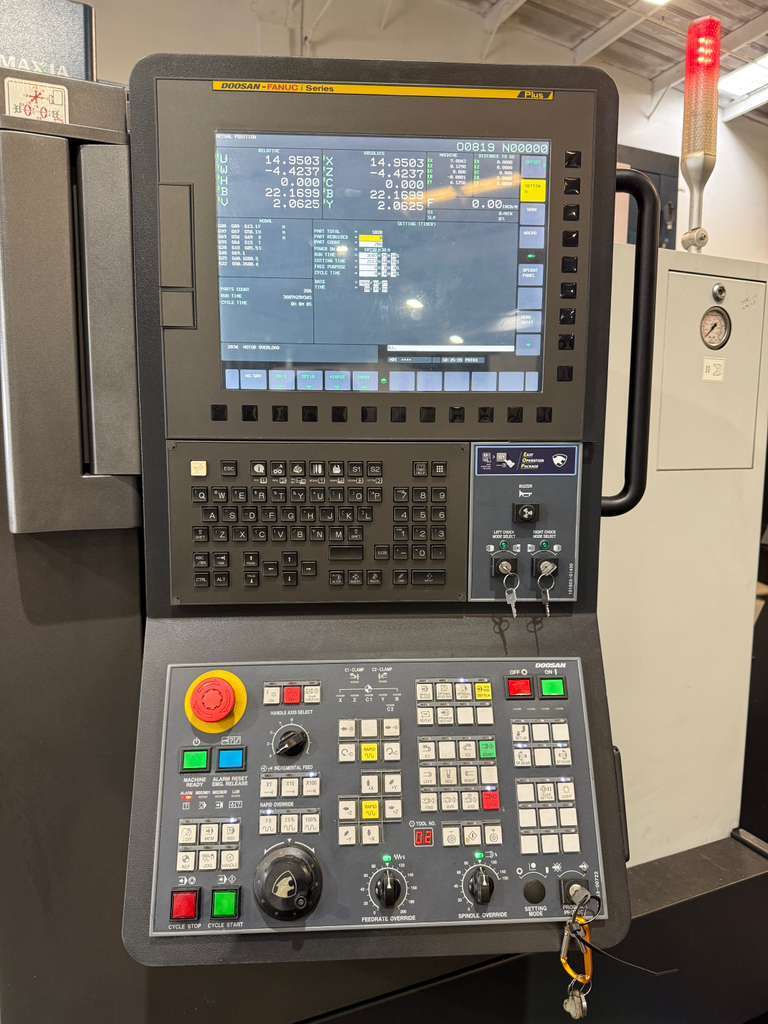

| Doosan-Fanuc i-Plus Series CNC Control |

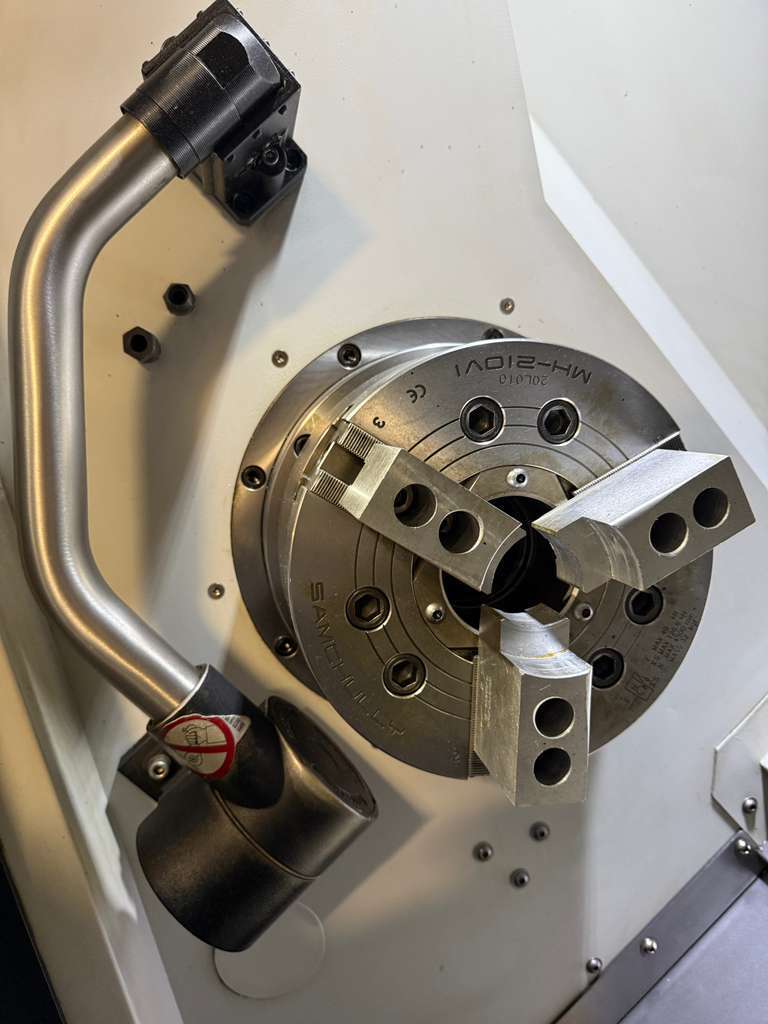

| 10″ 3-Jaw Chuck on Main Spindle |

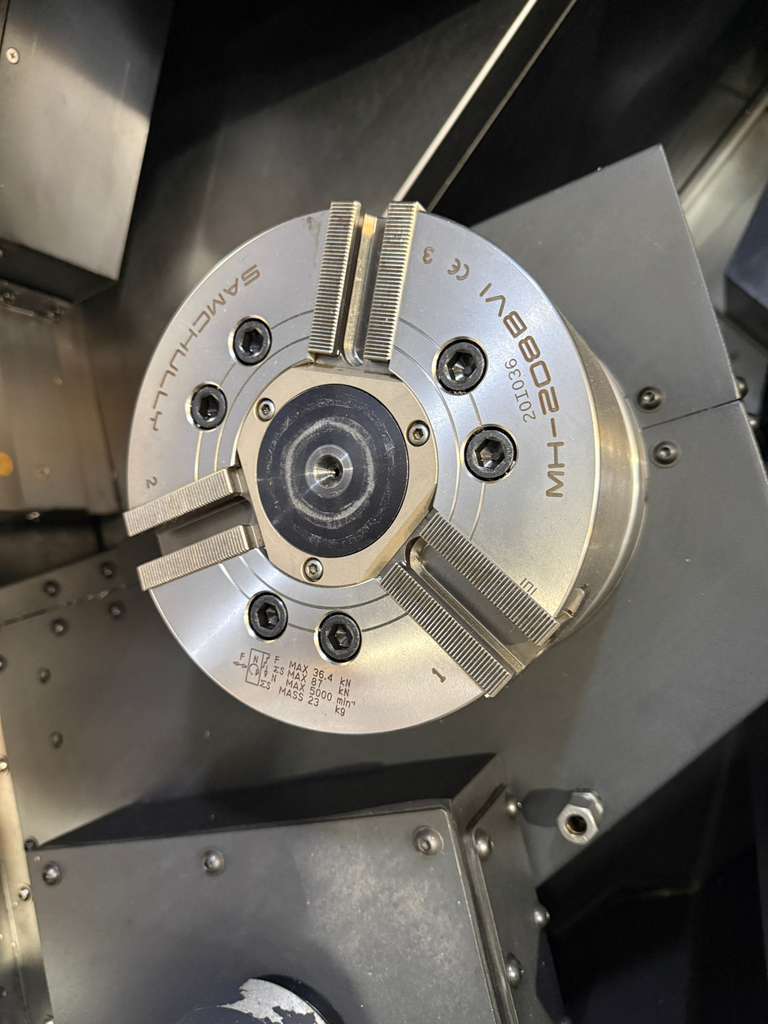

| 8″ 3-Jaw Chuck on Sub Spindle |

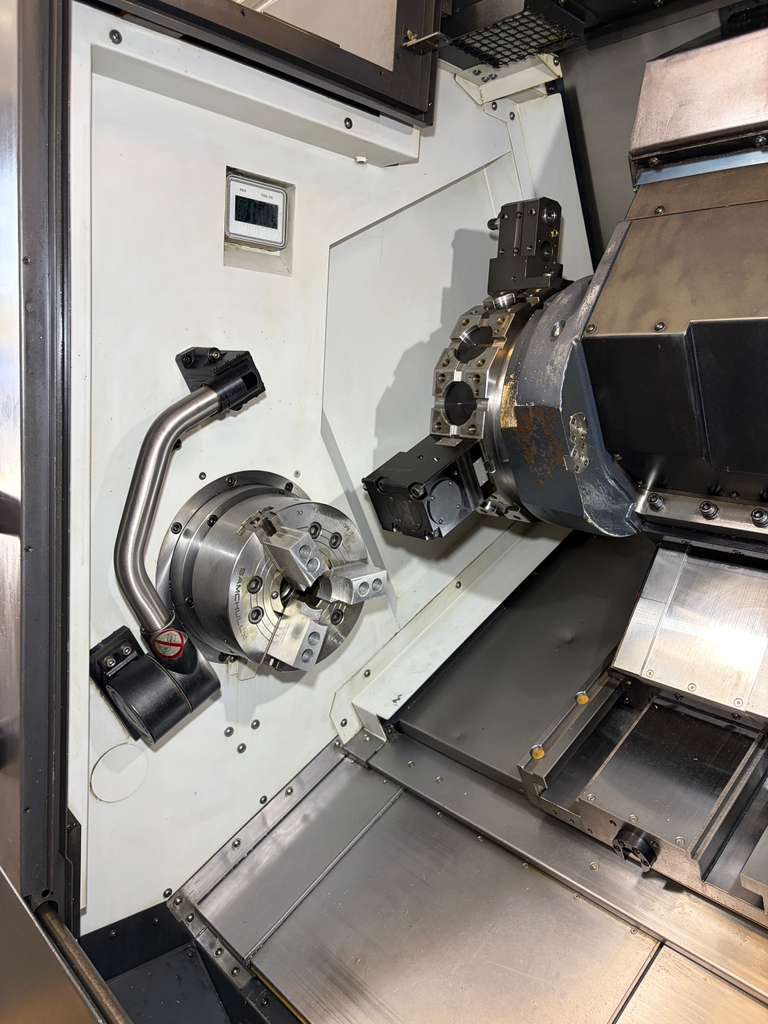

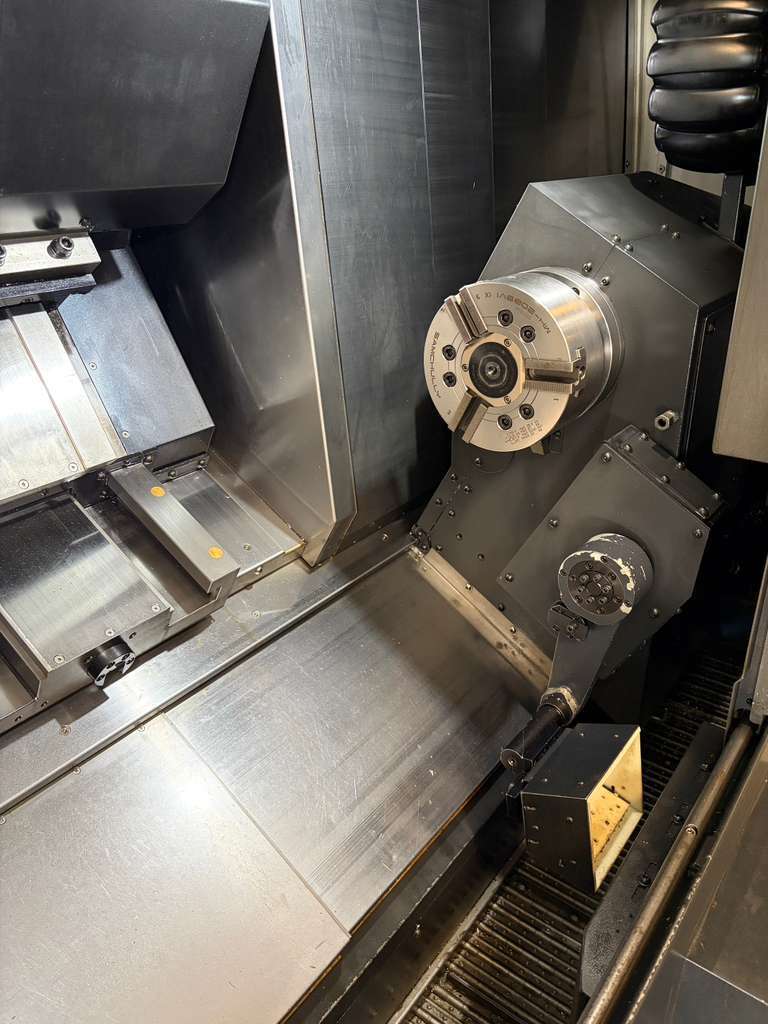

| Sub Spindle |
| Sub Spindle Parts Ejector |
| Servo Controlled Full C-Axis on Both Spindles |

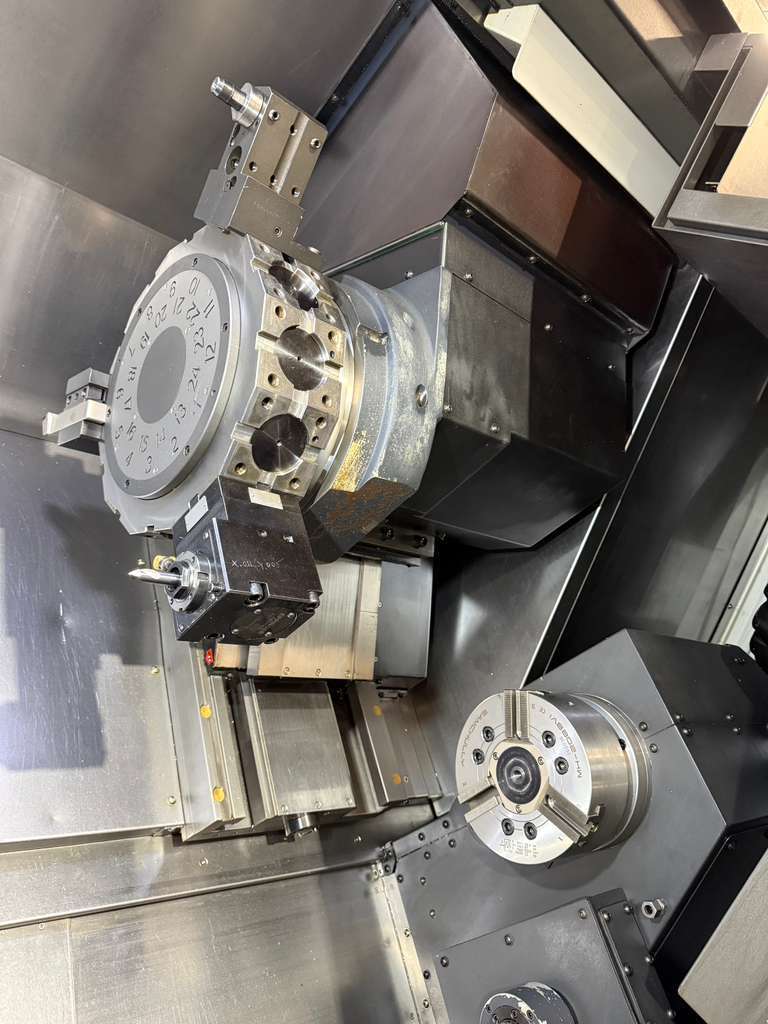

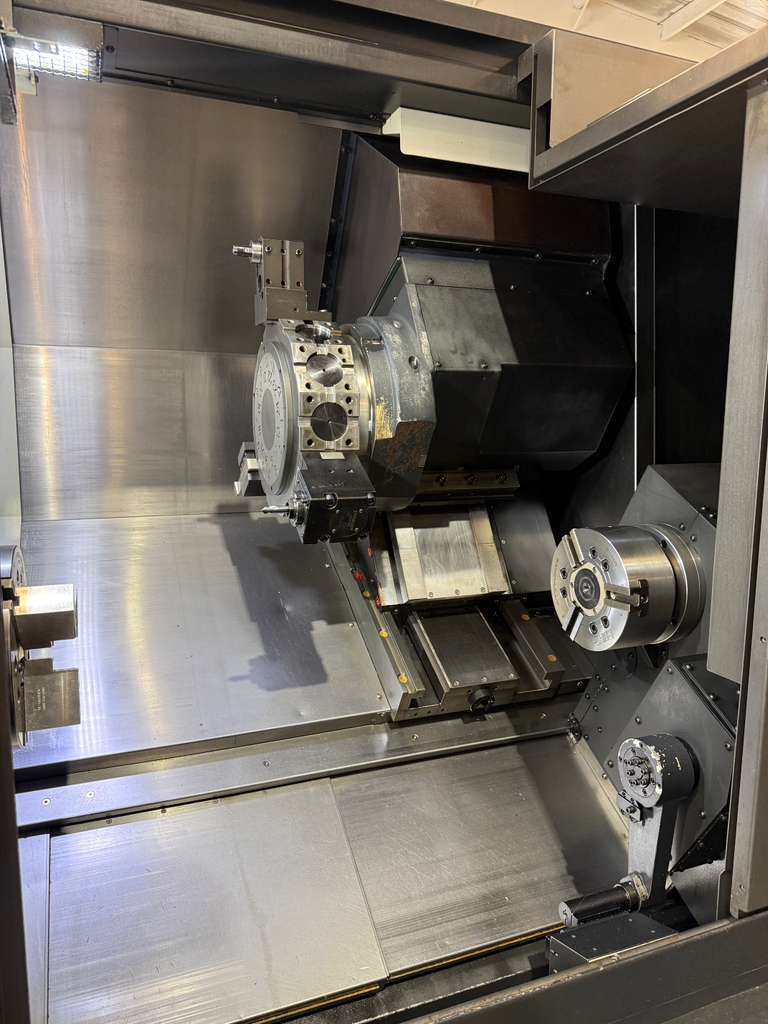

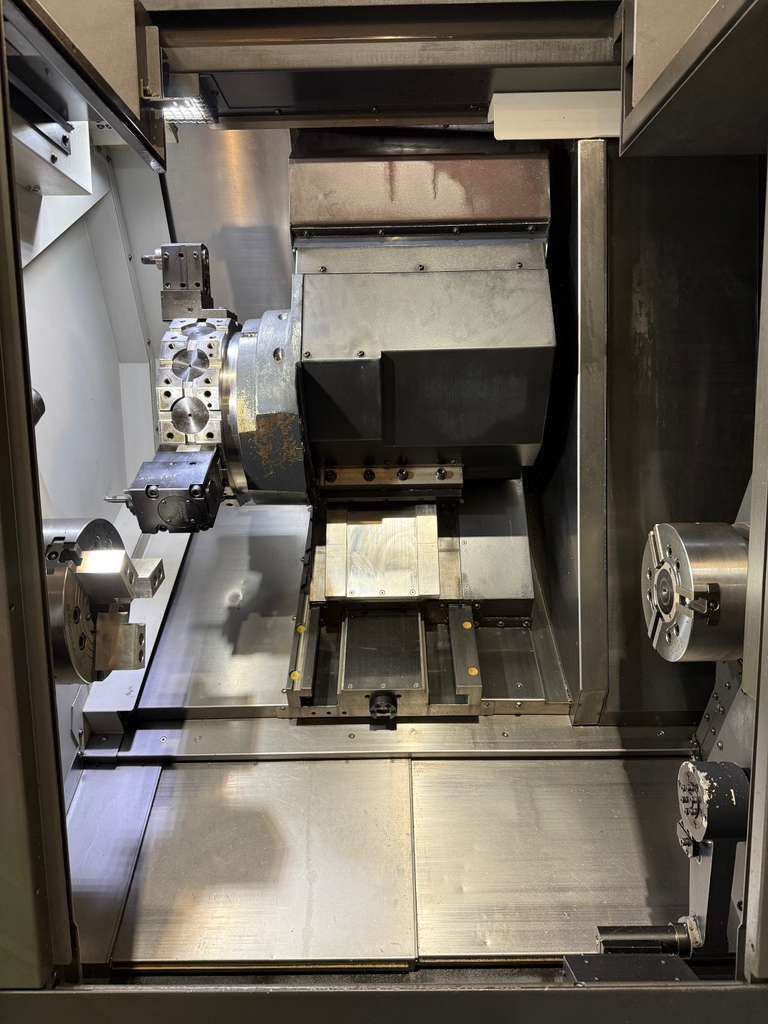

| 12-Station (24 Positions) Live Tool Turret |
| Y Axis Capable |

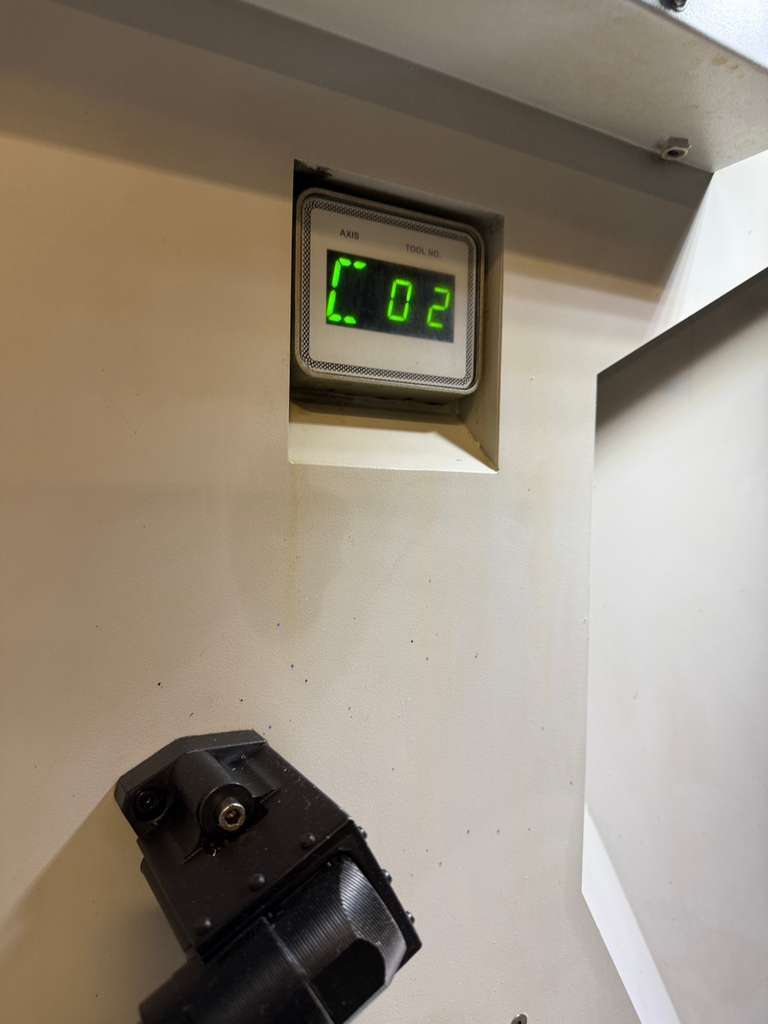

| Tool Presetter |
| Parts Catcher |
| Parts Conveyor |
| Bar Feeder Interface |

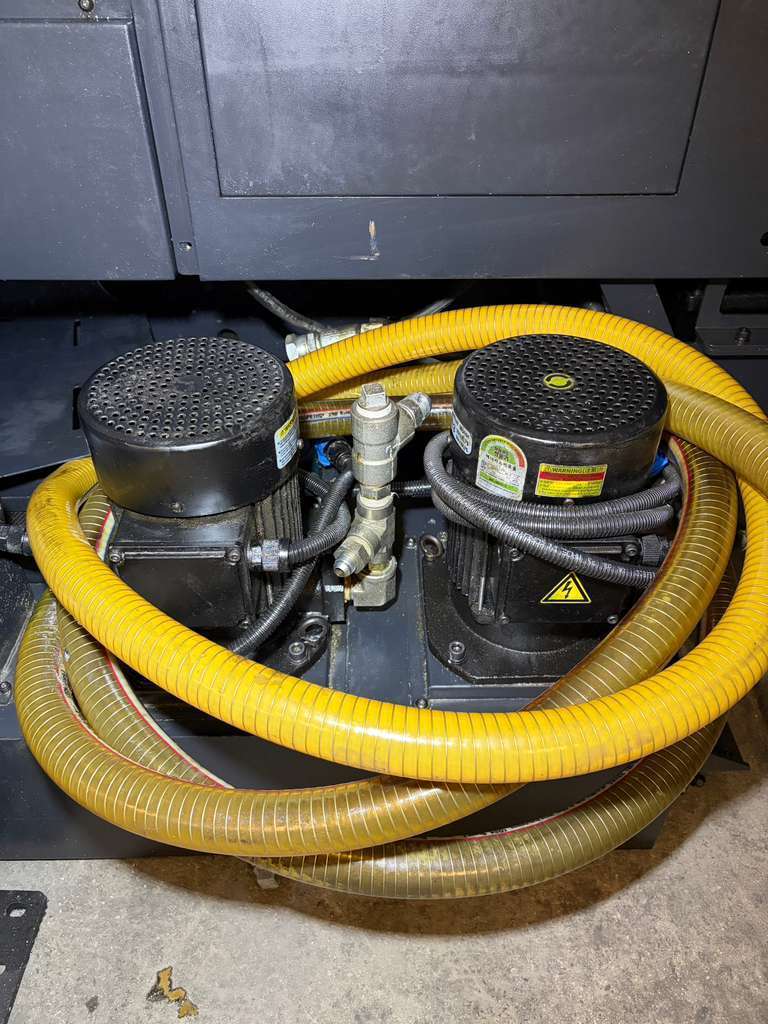

| MP Systems VR8 High Pressure Coolant |
| Coolant Tank |

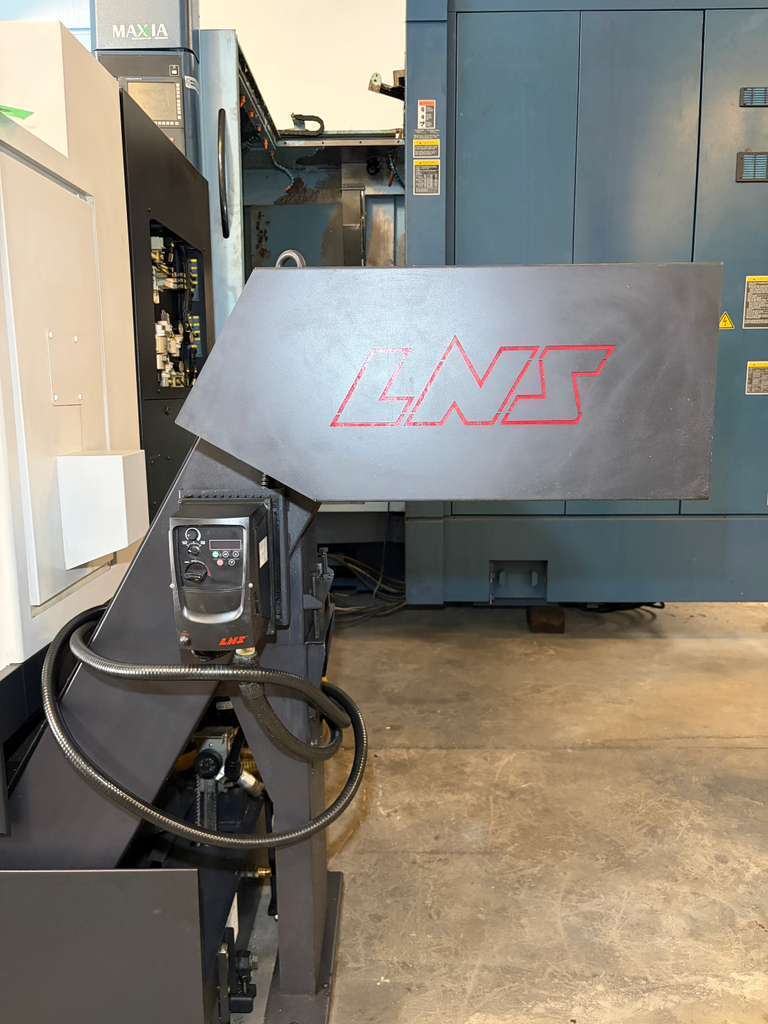

| LNS Chip Conveyor |
| Rigid Tapping on Both Spindles |
| Foot Operated Control for Chuck |
| Capacity: |
|---|
| Max Turning Diameter: 14.80″ |
| Max Turning Length: 29.90″ |
| Swing Over Bed: 30.70″ |
| Swing Over Saddle: 24.80″ |
| Max Bar Capacity: 3.20″ |
| Travels: |
|---|
| X Axis Travel: 10.20″ |
| Z Axis Travel: 32.70″ |
| Y Axis Travel: 4.10″ (+2.10″ / -2.10″) |
| B Axis Travel: 32.70″ (Sub Spindle) |
| C Axis: 360° (0.001°) Both Spindles |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 1,181 IPM |
| Rapid Traverse Z Axis: 1,181 IPM |
| Rapid Traverse Y Axis: 394 IPM |
| Rapid Traverse B Axis: 1,181 IPM |
| Rapid Traverse C Axis: 200 RPM |
| Main Spindle: |
|---|
| Main Spindle Nose: A2-8 |
| Main Spindle Bore: 3.60″ |
| Main Spindle Bar Capacity: 3.20″ |
| Main Spindle Speed: 4,000 RPM |
| Main Spindle Power: 30 HP |
| Sub Spindle: |
|---|
| Sub Spindle Nose: A2-5 |
| Sub Spindle Bore: 2.40″ |
| Sub Spindle Bar Capacity: 1.96″ |
| Sub Spindle Speed: 6,000 RPM |
| Sub Spindle Power: 20 HP |
| Turret: |
|---|
| Capacity: 12 Stations (24 Positions) |
| Turret Index Time: 0.15 Second |

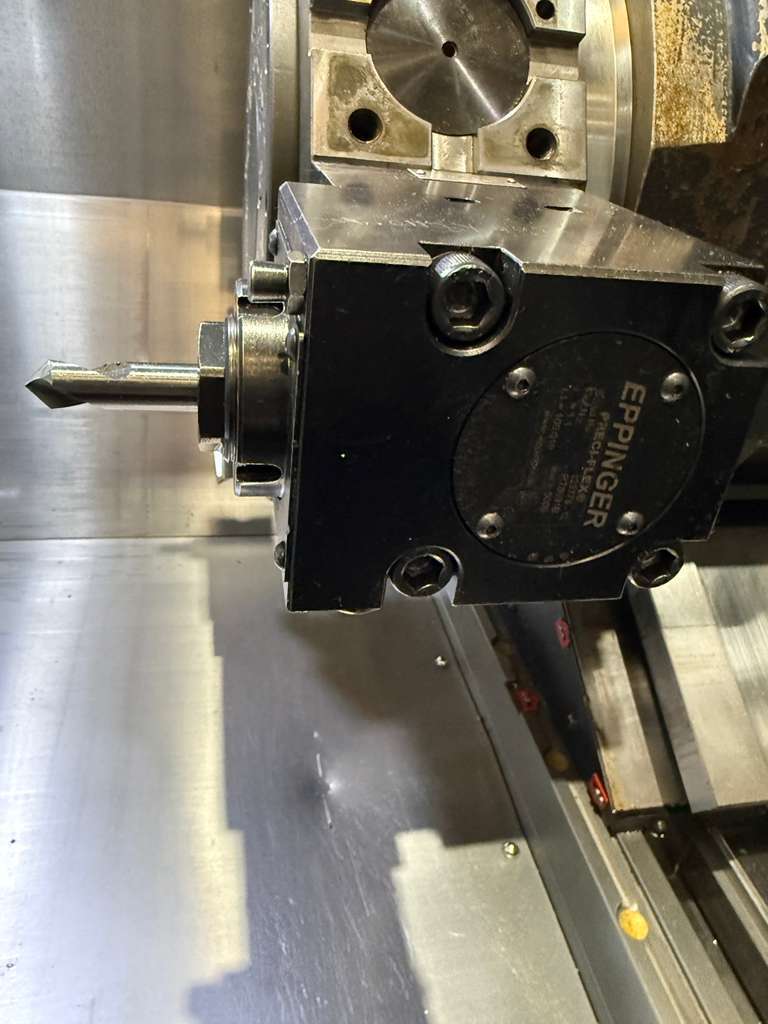

| Live Tool Speed: 5,000 RPM |
| Live Tool Spindle Power: 10 HP |
| Tool Holders Type: BMT-65P |
| General: |
|---|

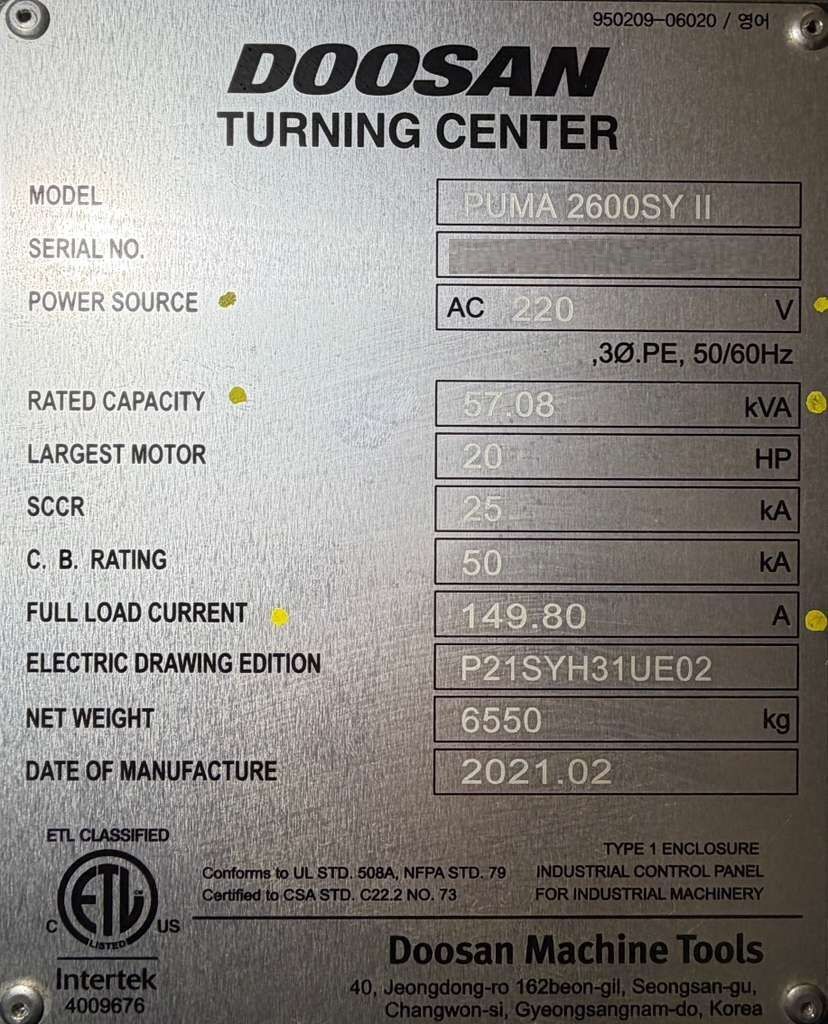

| Power Source: 220V / 3-Phase / 60 Hz / 57.08 kVA |
| Overall Dimensions: 142″ x 75″ x 85″ High Approx. |
| Weight: 14,220 lbs Approx. |
