All specifications are approximations and are subject to verification.
“On our Floor now, fully powered / tested & is in Great working condition.”
-

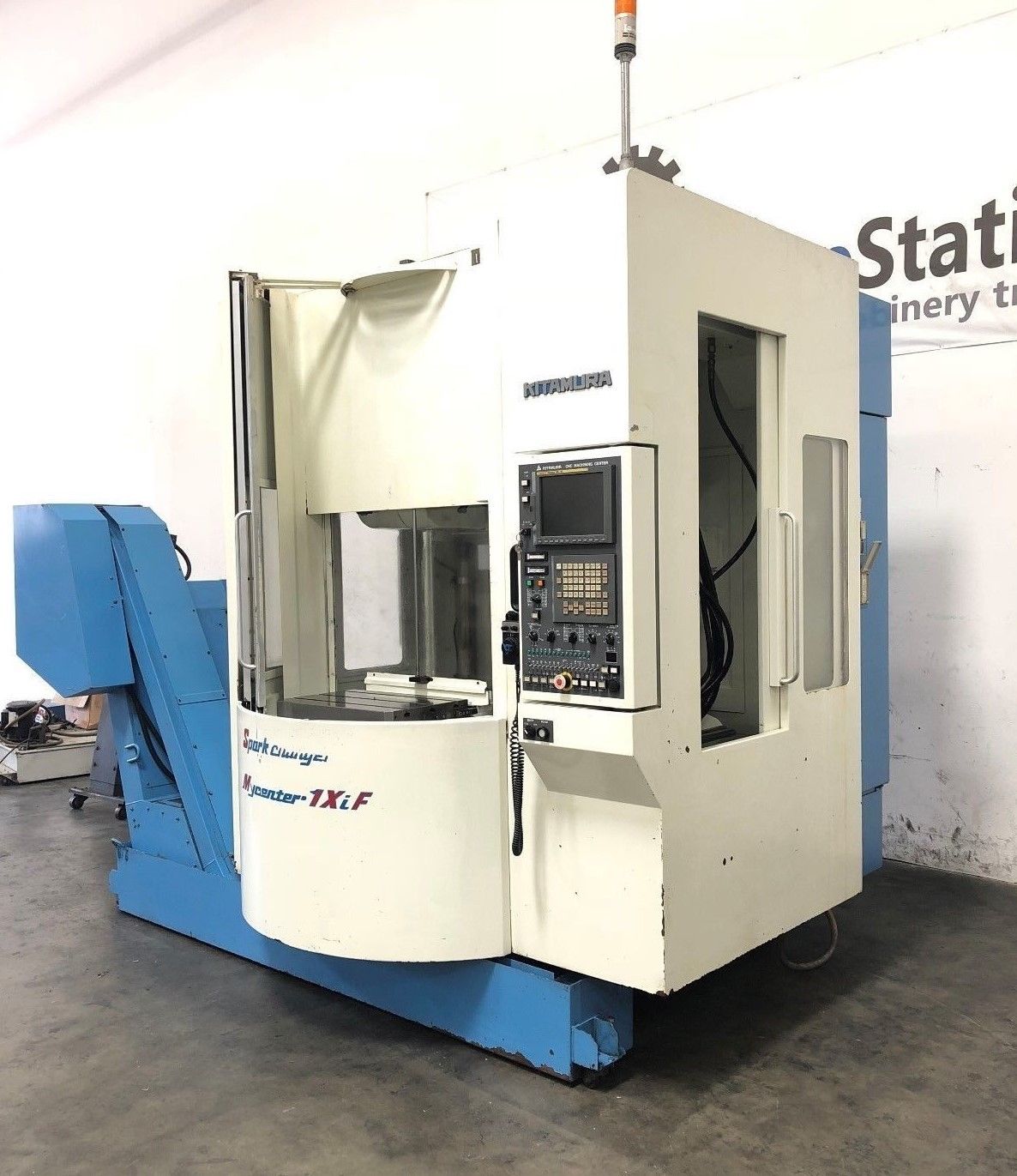

Kitamura MyCenter 1xiF Features:
- Fanuc 16iM CNC Control
- 30 Tools Side Mount High Speed Tool Changer
- High precision 15,000 RPM Spindle
- 180° Rotary Type Pallet Changer
- Manual Pulse Generator (MPG)
- PCMCIA Card Slot
- 128 MB Memory
- Box Way Construction All Axis
- Powerful 15 hp high torque spindle motor
- Spindle Chiller
- Spindle Orientation
- Helical Interpolation
- Rigid Tapping
- Absolute Incremental Programming
- Fast Rapid Traverse Rate
- Flood coolant with large separate coolant tank
- Chip Conveyor
- Work light
- Books and Manuals
-
Kitamura MyCenter 1xiF Specifications:
- Travels:
- X-Axis: 20.19″
- Y-Axis: 13.97″
- Z-Axis: 18.19″
-
Table:
- Length: 22.04″
- Width: 14.0″
- Max Weight on Table: 220 lbs
-
Spindle:
- Taper Size: 30
- Speed Range: 20 – 15,000 RPM
- Spindle Power: 15 HP
-
Feed rates:
- Rapid X,Y & Z: 1969/1417 inch/P.M
- Cutting Feedrate: 1417″ inch/ P.M
-
Automatic Tool Changer:
- 30 Taper
- Capacity: 30
- Max Tool Dia.: 3.1″
- Tool Change Time: 1.7 Second
-
General:
- Air Required: 80 psi, 4 scfm
- Power: 25kva / 205-220v / 66FLA / 3-Phase
- Overall Dimensions: 100 x 97 x 110″ High
- Weight: 11500 lbs
