*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Kitamura |
| Model: | MyCenter 3XiF |
| Year: | 2010 |
| Machine Type: | CNC Vertical Machining Center |

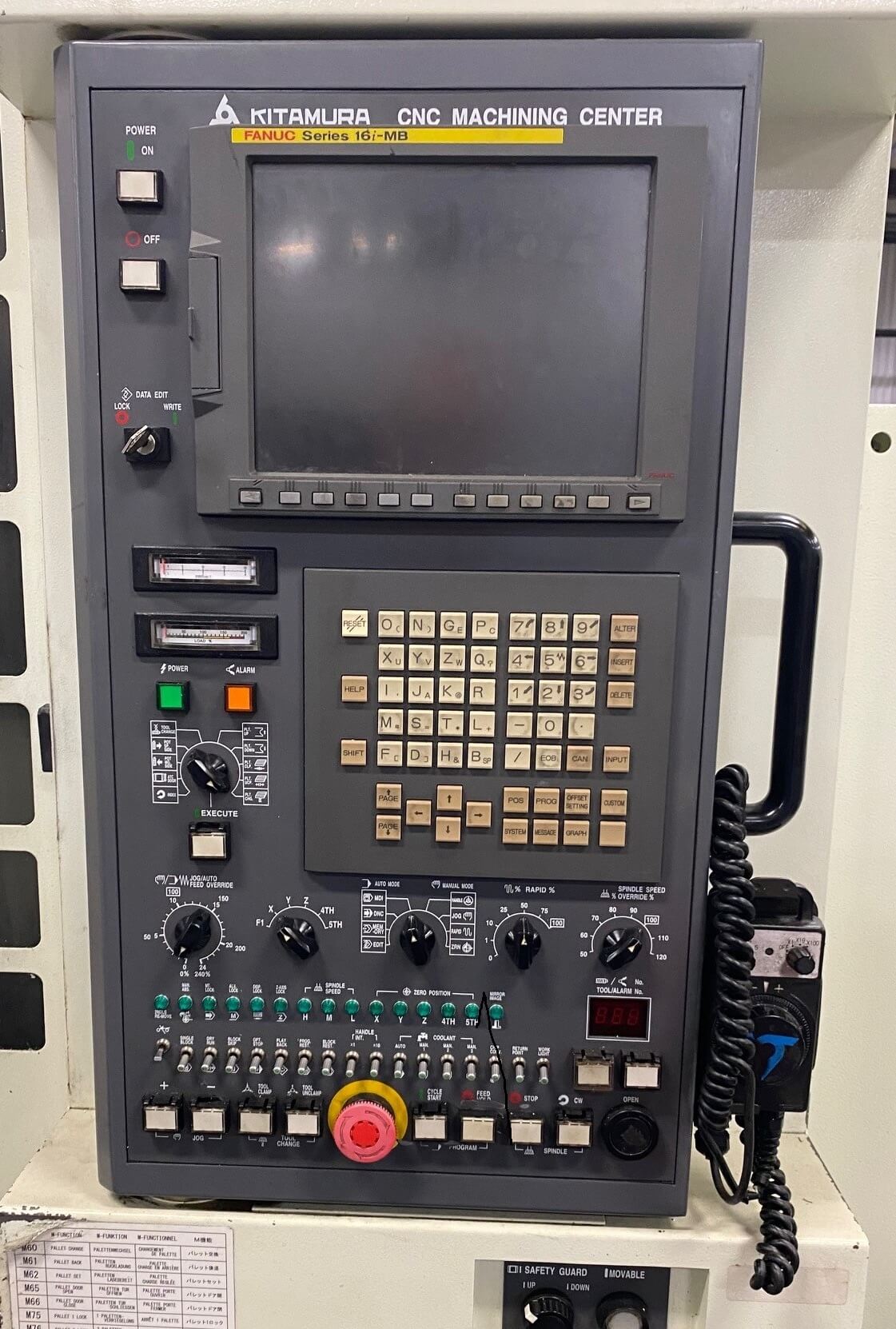

| CNC Control: | Fanuc 16i-MB |
| Features: |
|---|
| Fanuc 16i-MB CNC Control |
| 20,000 RPM High-Speed Spindle |
| CAT 40 Spindle Taper |
| 30-Tool Automatic Tool Changer (Side-Mount) |
| High-Speed Tool Changer |
| Two-Pallet System |
| Washdown Coolant |
| Enclosed Work Area |
| Chip Conveyor |
| Table: |
|---|
| Table Size (Approx.): 35″ × 16.1″ |
| Number of Pallets: 2 |
| Travels: |
|---|
| X-Axis Travel: 30″ |
| Y-Axis Travel: 17.9″ |
| Z-Axis Travel: 18.1″ |
| Rapid Traverse Rate (X/Y): 1,969 IPM |
| Rapid Traverse Rate (Z): 1,417 IPM |
| Spindle: |
|---|
| Maximum Spindle Speed: 20,000 RPM |
| Spindle Taper: CAT 40 |
| Automatic Tool Changer: |
|---|
| Tool Magazine Capacity: 30 Tools |
| Tool Changer Type: Side-Mount |
| Maximum Tool Diameter: 3.15″ |
| Maximum Tool Weight: 17.6 lbs. |
| Electrical: |
|---|
| Power Supply: AC 200/220 V |
| Phase: 3-Phase |
| Frequency: 50/60 Hz |
| Power Requirement: 26 kVA |
| General: |
|---|
| Machine Dimensions (Approx.): 105.8″ L × 97.8″ W × 119.2″ H |
| Machine Weight (Approx.): 13,860 lbs. |
