*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Kitamura |
| Model: | Mycenter-HX500i |
| Machine Type: | CNC Horizontal Machining Center |
| CNC Control: | FANUC Series 16-MB |
| Features: |
|---|
| FANUC Series 16-MB CNC Control |
| 4-Axis Horizontal Machining Configuration |
| 500 × 500 mm Rotary Pallet |
| Automatic Pallet Changer |
| Automatic Tool Changer |
| Enclosed Work Area |
| Chip Conveyor |
| Coolant System |
| CNC Rotary Table |
| 50 Spindle Taper |
| Table: |
|---|
| Pallet Size: 19.69″ × 19.69″ |
| Rotary Table: 4th Axis |
| Number of Pallets: 2 |
| Maximum Workpiece Load: 1,760 lbs. |
| Travels: |
|---|
| X-Axis Travel: 34.25″ |
| Y-Axis Travel: 27.95″ |
| Z-Axis Travel: 25.98″ |
| B-Axis: 360° 4th Axis |
| Spindle: |
|---|

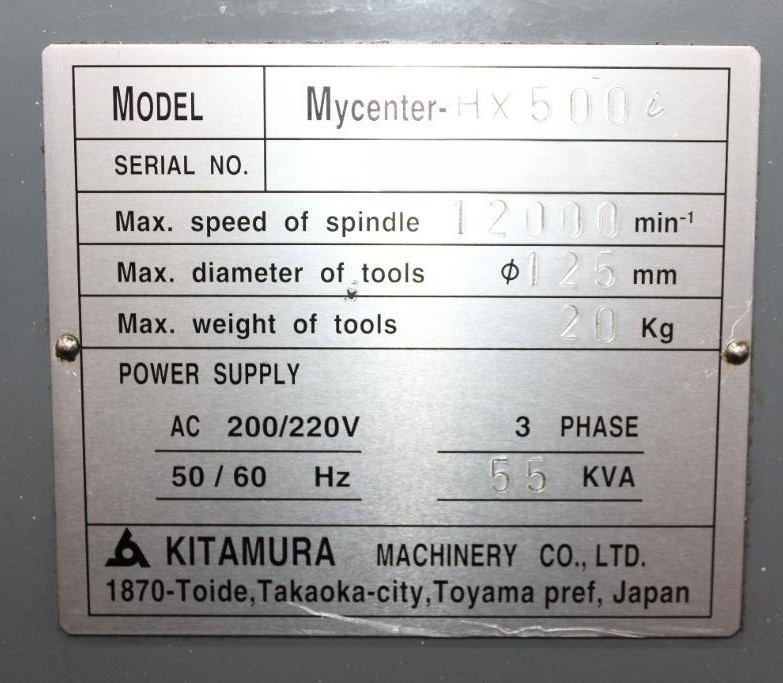

| Maximum Spindle Speed: 12,000 RPM |
| Spindle Taper: 50 |
| Maximum Tool Diameter: 4.92″ |
| Maximum Tool Weight: 44 lbs. |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 50 Stations |
| Type: 2-Pallet System Automatic Changer |
| Electrical: |
|---|
| Power Supply: AC 200/220V |
| Phase: 3-Phase |
| Frequency: 50/60 Hz |
| Rated Capacity: 55 kVA |
