Kitamura MyCenter 1xiF SparkChanger CNC Mill

Kitamura MyCenter 1xiF SparkChanger CNC Mill

Out of stock

On our Floor now, fully powered / tested & is in Great working condition.”

SKU: 1685 Category:

Description

Kitamura MyCenter 1xiF SparkChanger CNC Mill
MakeKitamura
Model No.Mycenter 1xif
Year of Manufacture:2002
ConditionVery Good

“On our Floor now, fully powered / tested & is in Great working condition.”

  • Kitamura MyCenter 1xiF Features:

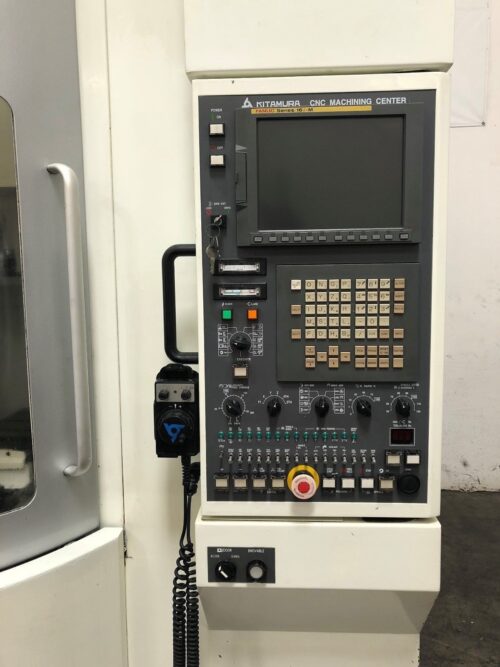

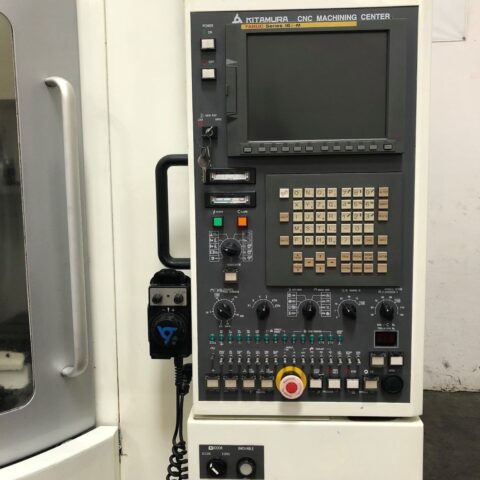

  • Fanuc 16iM CNC Control
  • 30 Tools Side Mount High Speed Tool Changer
  • High precision 15,000 RPM Spindle
  • 180° Rotary Type Pallet Changer
  • Manual Pulse Generator (MPG)
  • PCMCIA Card Slot
  • 128 MB Memory
  • Box Way Construction All Axis
  • Powerful 15 hp high torque spindle motor
  • Spindle Chiller
  • Spindle Orientation
  • Helical Interpolation
  • Rigid Tapping
  • Absolute Incremental Programming
  • Fast Rapid Traverse Rate
  • Flood coolant with large separate coolant tank
  • Chip Conveyor
  • Work light
  • Books and Manuals
  • Kitamura MyCenter 1xiF Specifications:
  • Travels:
  • X-Axis: 20.19″
  • Y-Axis: 13.97″
  • Z-Axis: 18.19″
  • Table:
  • Length: 22.04″
  • Width: 14.0″
  • Max Weight on Table: 220 lbs
  • Spindle:
  • Taper Size: 30
  • Speed Range: 20 – 15,000 RPM
  • Spindle Power: 15 HP
  • Feed rates:
  • Rapid X,Y & Z: 1969/1417 inch/P.M
  • Cutting Feedrate: 1417″ inch/ P.M
  • Automatic Tool Changer:
  • 30 Taper
  • Capacity: 30
  • Max Tool Dia.: 3.1″
  • Tool Change Time: 1.7 Second
  • General:
  • Air Required: 80 psi, 4 scfm
  • Power: 25kva / 205-220v / 66FLA / 3-Phase
  • Overall Dimensions: 100 x 97 x 110″ High
  • Weight: 11500 lbs

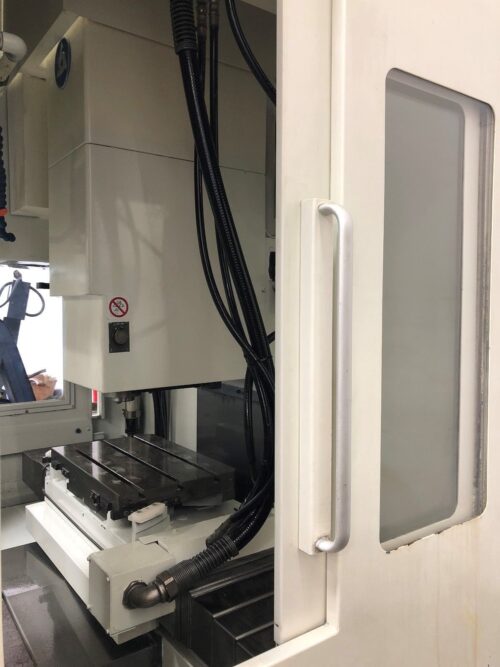

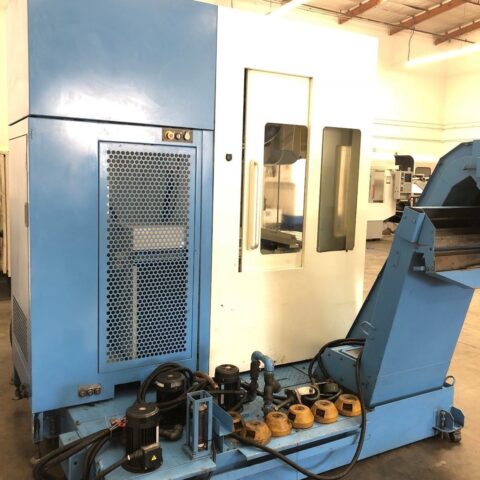

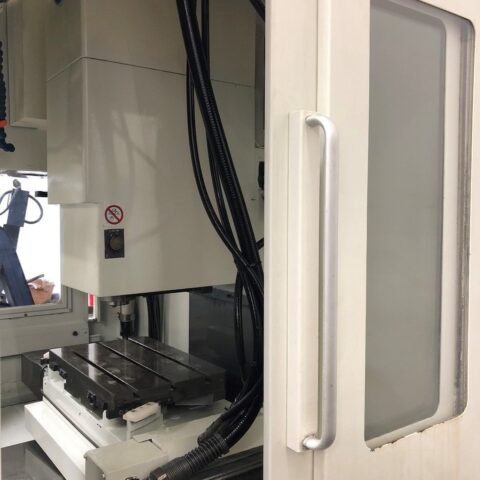

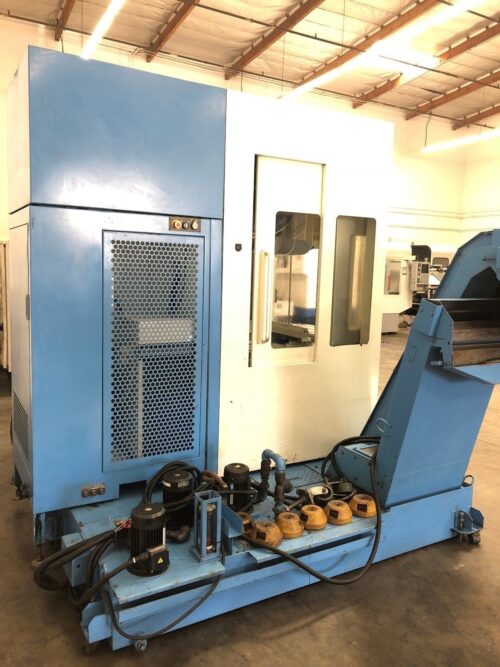

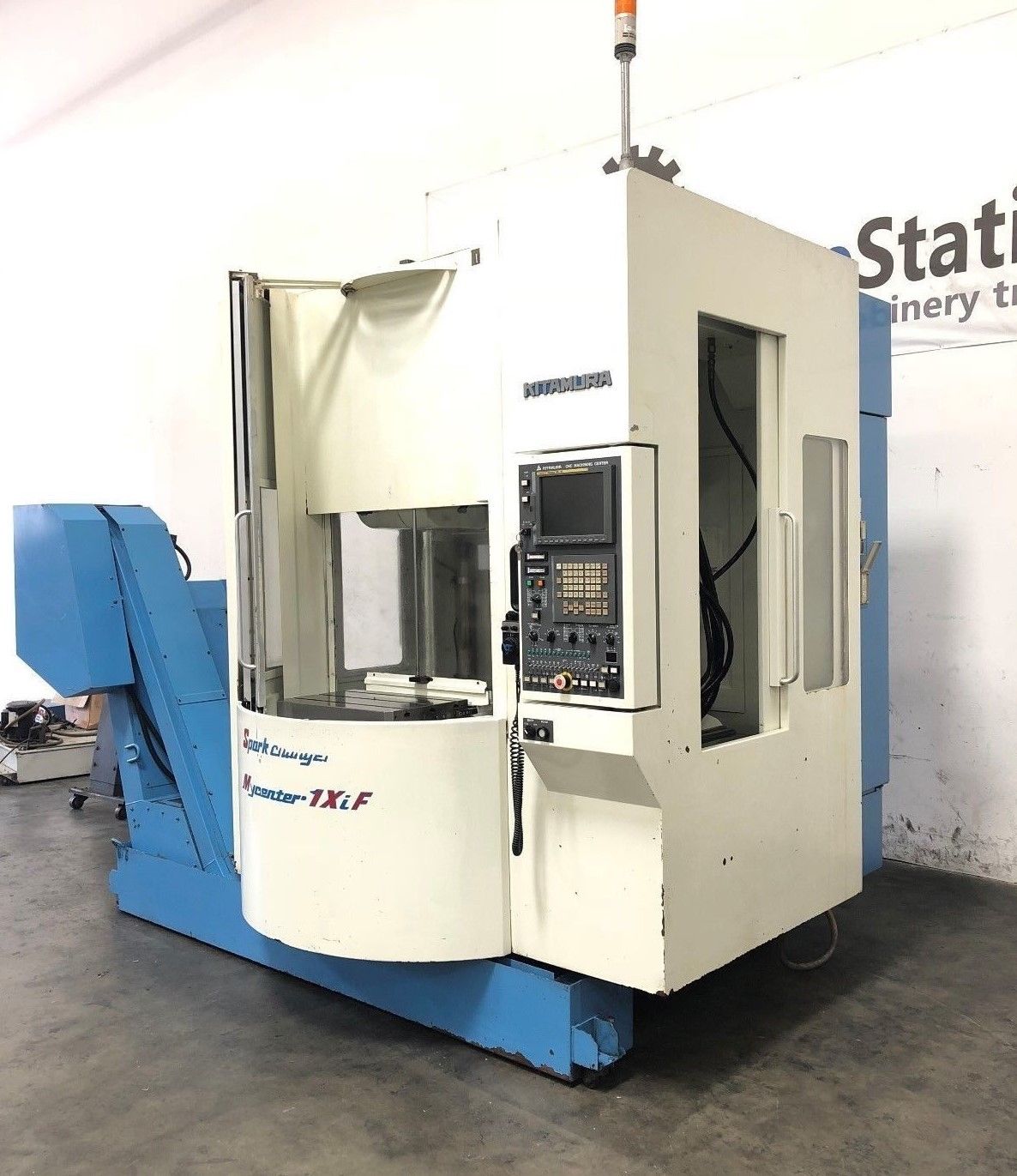

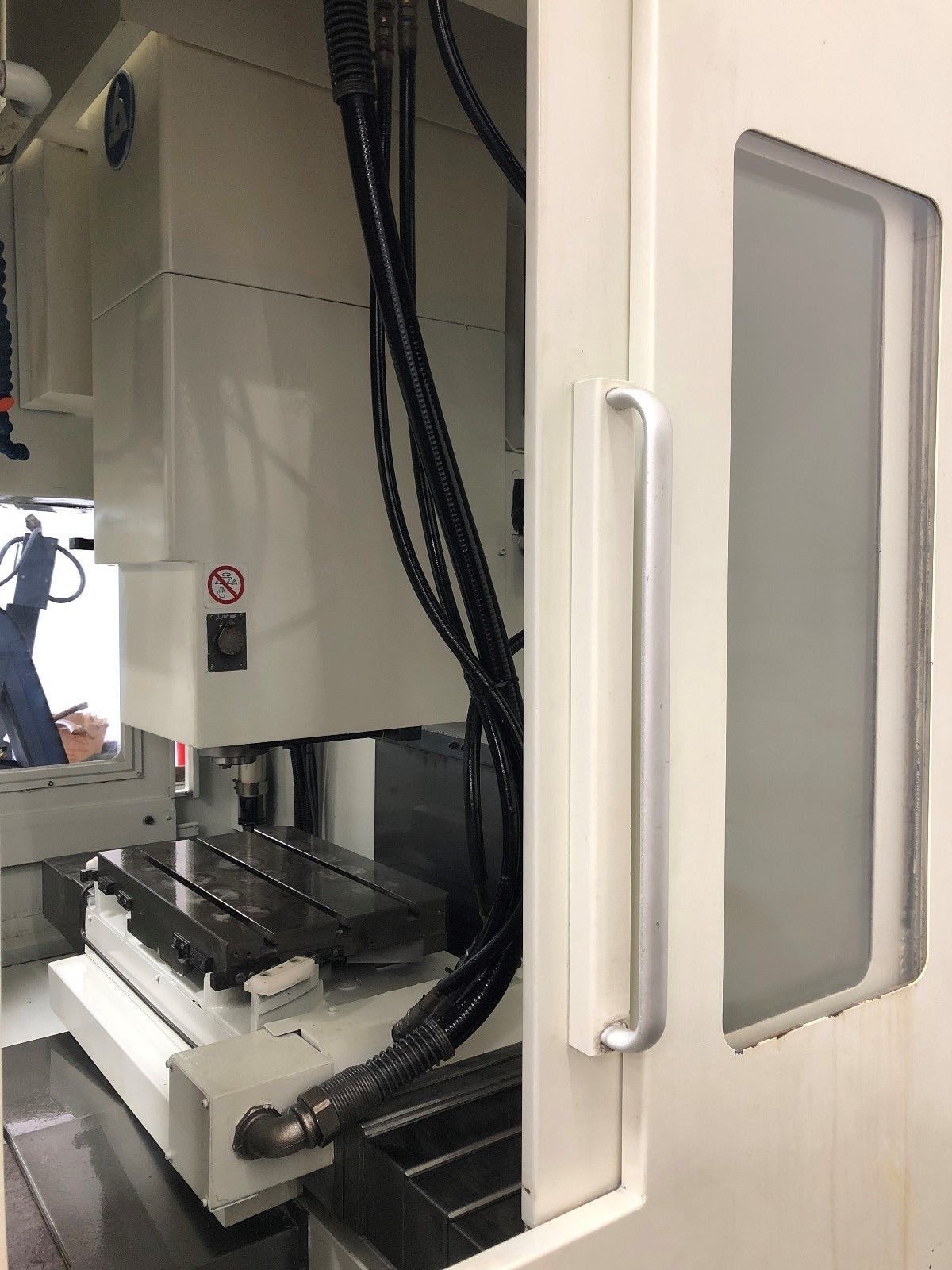

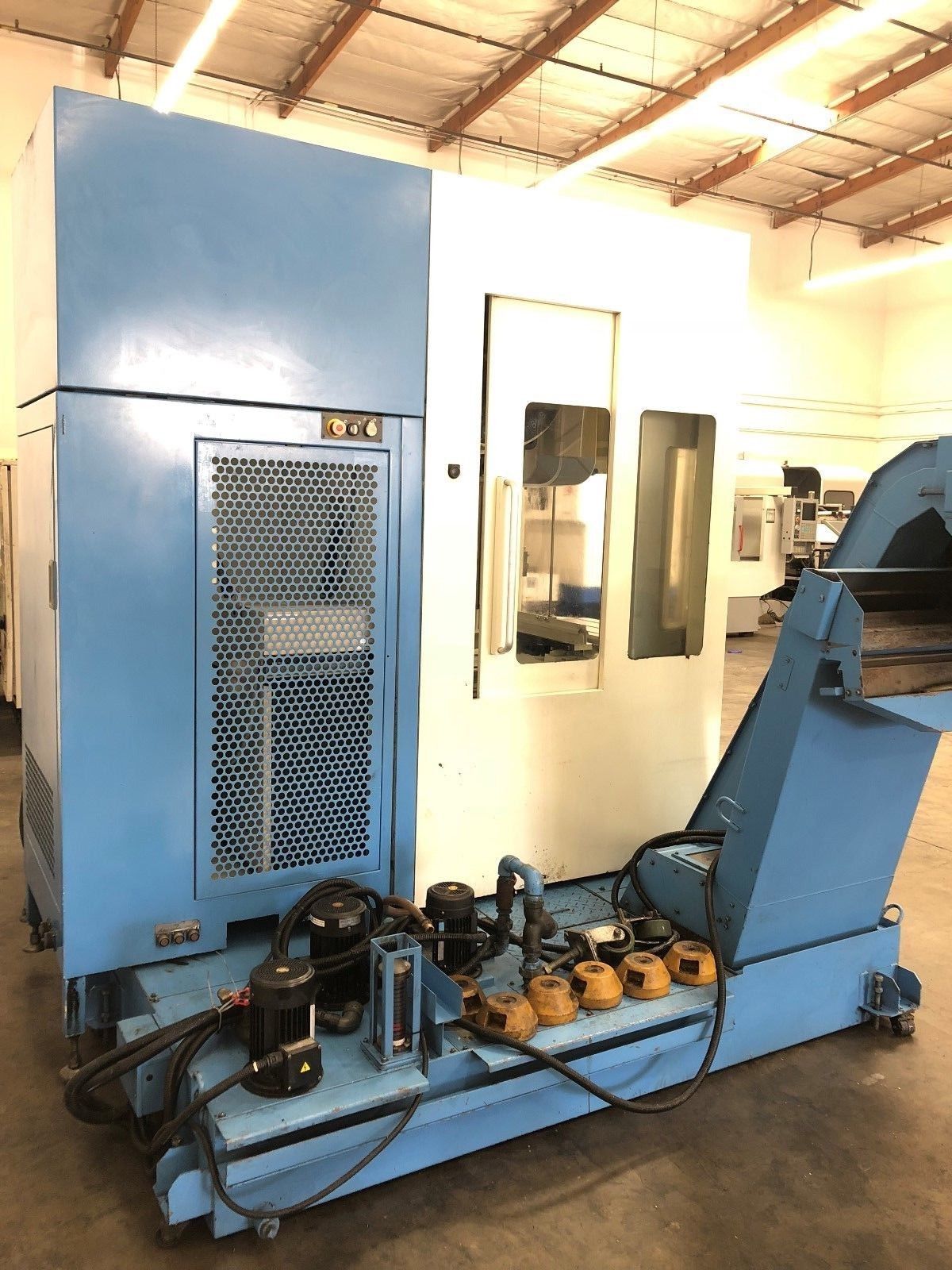

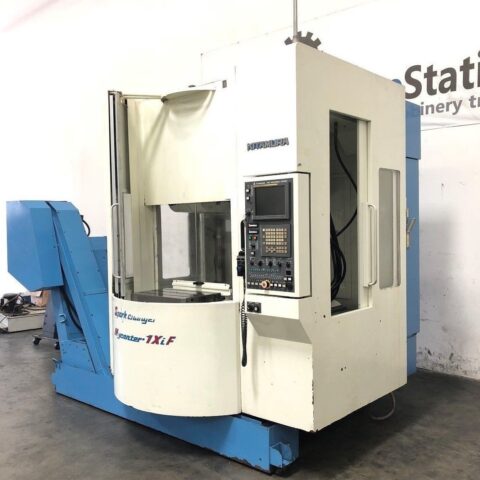

Kitamura MyCenter 1xiF Comes as shown in pictures..
