*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

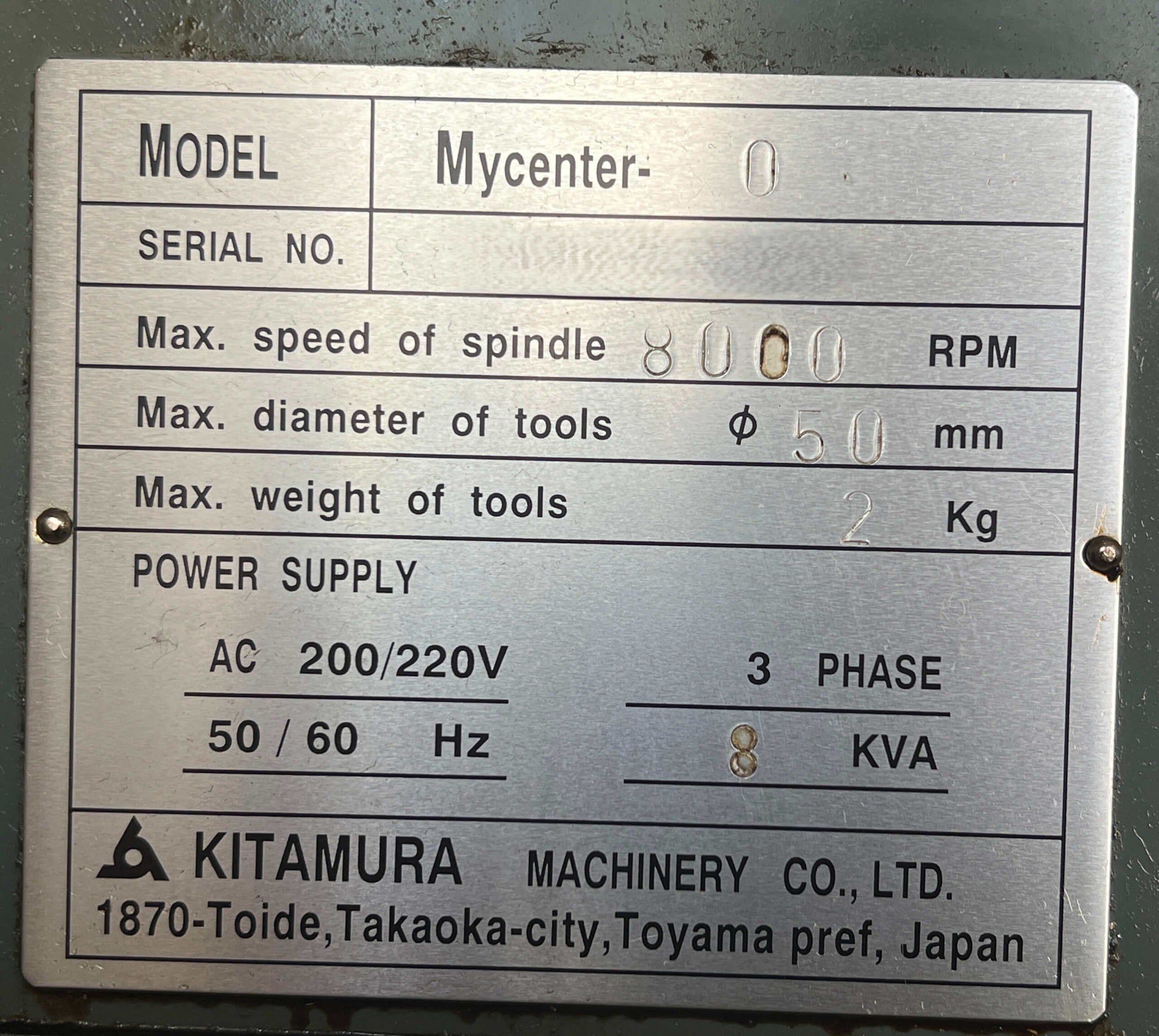

| Make: | Kitamura |
| Model: | Mycenter-0 Sparkcharger |
| Machine Type: | CNC Vertical Machining Center |
| CNC Control: | Yasnac I80 |
| Features: |
|---|
| Yasnac I80 CNC Control |
| BT30 Spindle Taper |
| 8,000 RPM Maximum Spindle Speed |
| Sparkchanger Automatic Table-Changing System |
| Enclosed Machining Area |
| Coolant Nozzles |
| Machine-Mounted Operator Control Panel |
| Table: |
|---|
| Number of Tables/Pallets: 2 |
| Table Size: 12″ × 18″ Each |
| Maximum Pallet Load: 132 lbs |
| Travels: |
|---|
| X-Axis Travel: 12″ |
| Y-Axis Travel: 10″ |
| Z-Axis Travel: 12″ |
| Spindle Nose to Table: 5.2″–17.2″ |
| Spindle: |
|---|
| Maximum Spindle Speed: 8,000 RPM |
| Spindle Taper: BT30 |
| Spindle Motor Power: 5 HP |
| Automatic Tool Changer: |
|---|
| Tool Storage Capacity: 16 Tools |
| Maximum Tool Diameter: 1.97″ |
| Maximum Tool Weight: 4.4 lbs |
| Electrical: |
|---|
| Power Supply: 200/220 VAC |
| Phase: 3-Phase |
| Frequency: 50/60 Hz |
| Power Requirement: 8 kVA |
