*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Kitamura |
| Model: | MyCenter HX400iF |
| Year: | 2006 |
| Condition: | Used |
| Machine Type: | CNC Horizontal Machining Center |

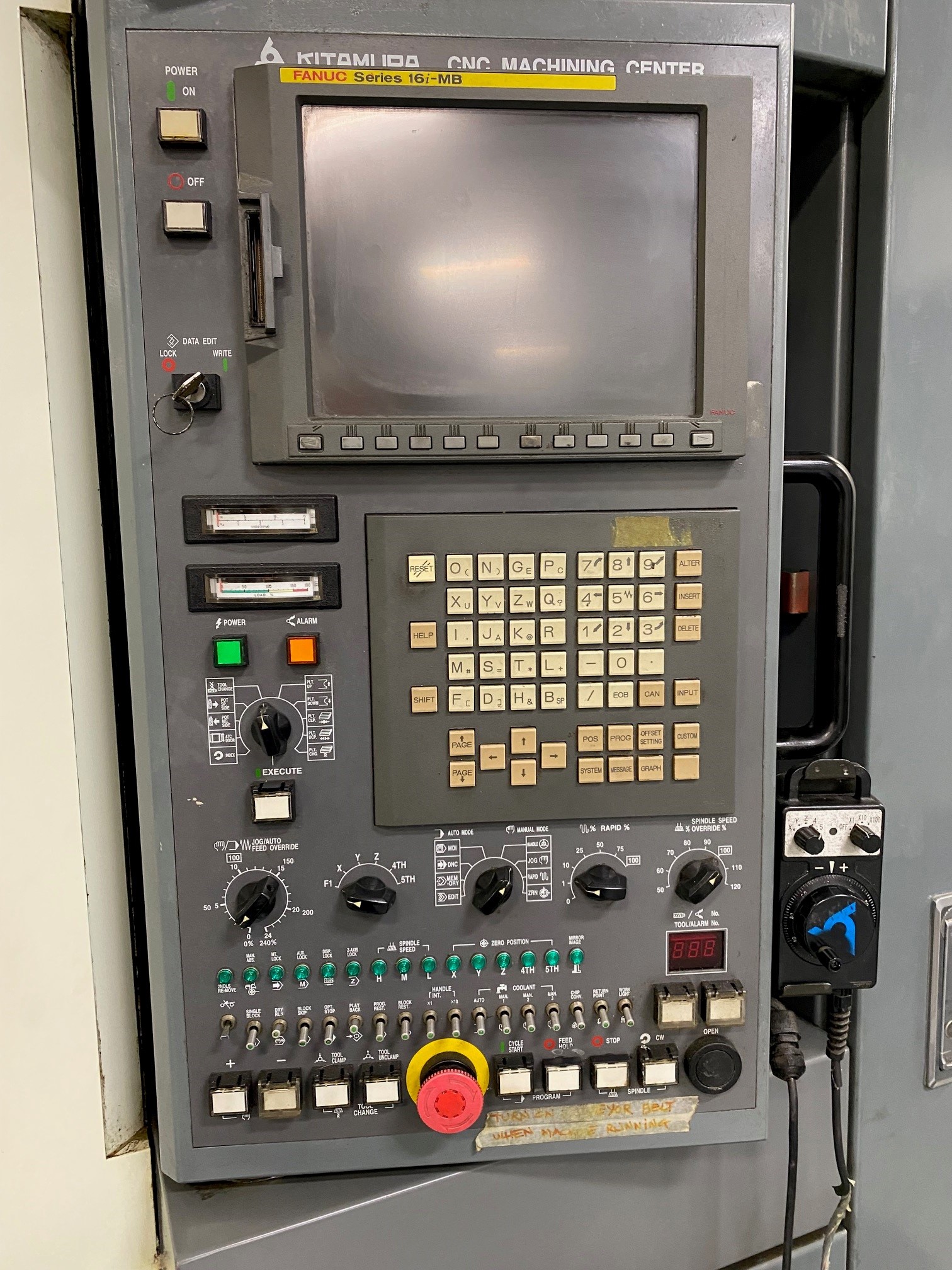

| CNC Control: | Fanuc Series 16i-MB |
| Features: |
|---|
| Fanuc 16i-MB CNC Control |
| 13,000 RPM Spindle |
| BT40 Spindle Taper |
| 50-Tool Automatic Tool Changer (ATC) |
| 15.7″ × 15.7″ Pallets |
| Through-Spindle Coolant (TSC) |
| Chip Conveyor |
| Enclosed Machine Work Area |
| Pallet: |
|---|
| Pallet Size: 15.7″ × 15.7″ |
| Number of Pallets: 2-Station |
| Maximum Pallet Load: Approx. 880 lbs. |
| Maximum Workpiece Envelope: Approx. 27.5″ Diameter × 37.8″ Height |
| Travels: |
|---|
| X-Axis Travel: 28.9″ |
| Y-Axis Travel: 24.0″ |
| Z-Axis Travel: 24.0″ |
| B-Axis: 360° Indexing, 0.001° |
| Rapid Traverse Rate (X/Y/Z): 1,969 IPM |
| Spindle: |
|---|
| Maximum Spindle Speed: 13,000 RPM |
| Spindle Taper: BT40 |
| Spindle Drive Power: 20 HP |
| Maximum Tool Diameter: 3.74″ |
| Maximum Tool Weight: 22 lbs. |
| Automatic Tool Changer: |
|---|
| Tool Changer Capacity: 50 Tools |
| Tool Changer Type: Automatic Tool Changer |
| Maximum Tool Diameter: 3.74″ |
| Maximum Tool Weight: 22 lbs. |
| Electrical: |
|---|
| Power Supply: 200/220 VAC |
| Phase: 3-Phase |
| Frequency: 50/60 Hz |
| Rated Capacity: 50 kVA |
| General: |
|---|
| Machine Dimensions (Approx.): 160″ L × 120″ W × 108″ H |
| Machine Weight (Approx.): 22,000 lbs. |
