*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

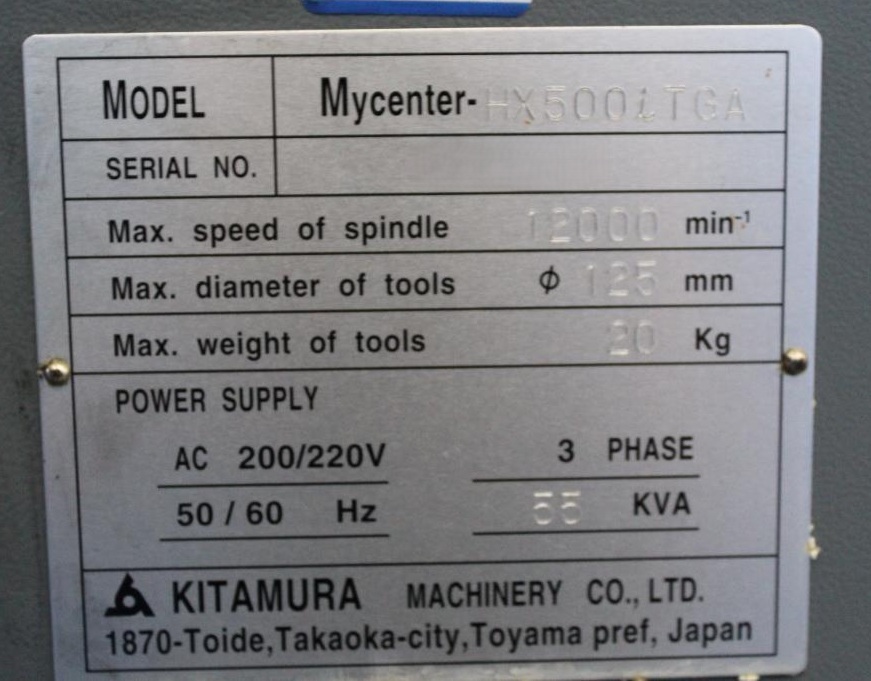

| Make: | Kitamura |
| Model: | Mycenter-HX500iTGA |
| Machine Type: | CNC Horizontal Machining Center |
| CNC Control: | FANUC Series 16i-MB |
| Features: |
|---|
| FANUC Series 16i-MB CNC Control |
| 4-Axis CNC Horizontal Machining |
| 500 × 500 mm Rotary Table |
| Full 4th-Axis Rotary Table |
| Automatic Tool Changer |
| 50-Tool Standard Tool Magazine |
| Enclosed Work Area |
| Gear-Driven Spindle |
| 12,000 RPM Maximum Spindle Speed |
| NST No. 50 Spindle Taper |
| Precision Boxway Construction |
| Twin Ballscrew / Twin Servo Configuration |
| Coolant System |
| Chip Conveyor |
| Hydraulic System |
| Automatic Lubrication System |
| High-Speed Rapid Traverse |
| Table: |
|---|
| Table Size: 19.69″ × 19.69″ |
| Rotary Axis: B-Axis / 4th Axis |
| B-Axis Rotation: 360° |
| Maximum Workpiece Size: Approx. Ø31.50″ × 42.91″ |
| Travels: |
|---|
| X-Axis Travel: 34.25″ |
| Y-Axis Travel: 27.95″ |
| Z-Axis Travel: 25.98″ |
| Rapid Traverse X/Y/Z: 1,969 IPM |
| B-Axis Rapid: 12,000°/min |
| Spindle: |
|---|
| Spindle Type: Gear Drive, 4-Step |
| Spindle Taper: NST No. 50 |
| Spindle Speed Range: 35–12,000 RPM |
| Maximum Spindle Speed: 12,000 RPM |
| Optional Spindle Speed: 8,000 RPM |
| Automatic Tool Changer: |
|---|
| Tool Storage Capacity: 50 Tools Standard |
| Optional Tool Capacity: 100 / 150 / 200 Tools |
| Maximum Tool Diameter: 4.92″ |
| Maximum Tool Weight: 44.09 lbs. |
| Tool-to-Tool Change Time: 2.5 sec. |
| General: |
|---|
| Power Source: 200/220V / 3-Phase / 50/60 Hz |
| Overall Dimensions (Approx.): 150″ L × 131″ W × 180″ H |
| Machine Weight (Approx.): 37,500 lbs. |
