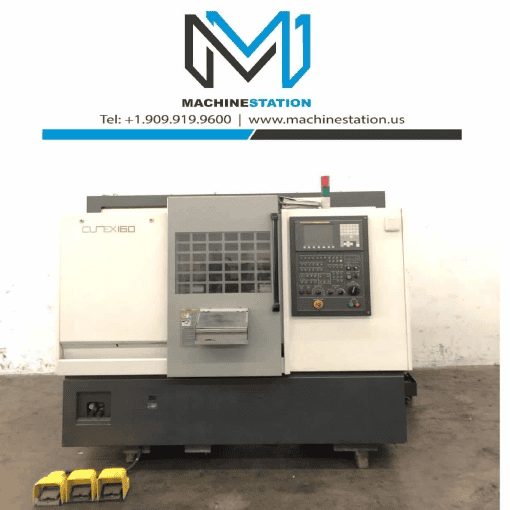

Hwacheon Cutex 160 CNC Turning Center

Location Lake Elsinore, CA

SKU 105263

Make Hwacheon

Model No. Cutex 160

Out of stock

Location	Lake Elsinore, CA
SKU	105263
Make	Hwacheon
Model No.	Cutex 160

SKU: 105263

All specifications are approximations and are subject to verification.

HWACHEON CUTEX 160 Equipped With:
Fanuc Oi-TC CNC Control
6″ 3 Jaw Hydraulic Chuck
PCMCIA Card Slot
A2-6 Spindle
Programmable Hydraulic Tailstock
Coolant System
Barfeed Interface
RS-232 ports
12 Station Automatic Turret
Foot Switch
Manuals

HWACHEON CUTEX 160 Specifications:
Capacity:
Max Turning Diameter: 11.81″
Max Turning Length: 11.81″
Max Bar Capacity: 2.0″
Swing Over Bed: 21.65″
X Axis Travel: 6.69″
Z Axis Travel: 13.19″
Rapid Traverse X Axis: 1417 IPM
Rapid Traverse Z Axis: 1417 IPM
Spindle Nose: A2-5
Spindle Bore: 2.20″
Spindle Speed: 0 – 6000 RPM
Spindle Motor: 7.5/11kw
Turret Capacity: 12 Stations
Turret Index Time: .20 Second
Tailstock Taper: MT-4
Tailstock Quill Dia.: 2.362″
Tailstock Quill Travel: 3.14″

General:
Power: 220v / 3-Phase
Overall Dimensions: 86″ x 60″ x 67″ High
Weight: 7000 lbs

No detailed specifications listed for this machine yet — call us for full specs.
