Sold
DMG Mori Seiki NLX 2500MC/700 CNC Turn Mill Center – 10″ Chuck Lathe
Location
Shreveport, LA
SKU
112389
Make
MORI SEIKI
Model
NLX2500MC/700
Year
2012
Cutting Time
6,466 Hours
Video
On Request
Out of stock
| Location: | Shreveport, LA |
| SKU: | 112389 |
| Make: | MORI SEIKI |
| Model: | NLX2500MC/700 |
| Year: | 2012 |
| Cutting Time: | 6,466 Hours |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mori Seiki |
| Model: | NLX2500MC/700 |
| Year: | 2012 |
| Equipped With: |
|---|
| Mori Seiki MSX-853IV CNC Control |
| 10″ 3-Jaw Kitagawa BB210 Chuck |
| C Axis Capable |
| 12 Station High Speed Live Tool Turret |
| 25 HP Spindle Power |
| Tool Presetter |
| PCMCIA Card Slot |
| Programmable Tailstock |
| Rigid Tapping |
| Coolant System |
| LNS Chip Conveyor |
| Foot Switch |
| Misc. Tool Holders (Mounted on Turret as shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 14.4″ |
| Max Turning Length: 27.7″ |
| Max Bar Capacity: 3.1″ |
| Swing Over Bed: 23.2″ |
| Distance Between Centers: 31.5″ |
| Travels: |
|---|
| X Axis Travel: 10.2″ |
| Z Axis Travel: 31.2″ |
| C Axis Travel: 360 Degree (0.001) |
| Rapid Traverse Rate X & Z Axis: 1181 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.6″ |
| Spindle Speed: 4000 RPM |
| Spindle Motor: 25 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.5 Second |
| Rotary Tool Speed: 6000 RPM |
| Rotary Tool Motor: 7.5 HP |
| Turret Type: BMT |
| Tailstock: |
|---|
| Tailstock Body Travel: 28.8″ |
| Tailstock Quill Dia.: 3.34″ |
| Tailstock Quill Stroke: 3.1″ |
| Tailstock Taper: MT-4 |
| General: |
|---|

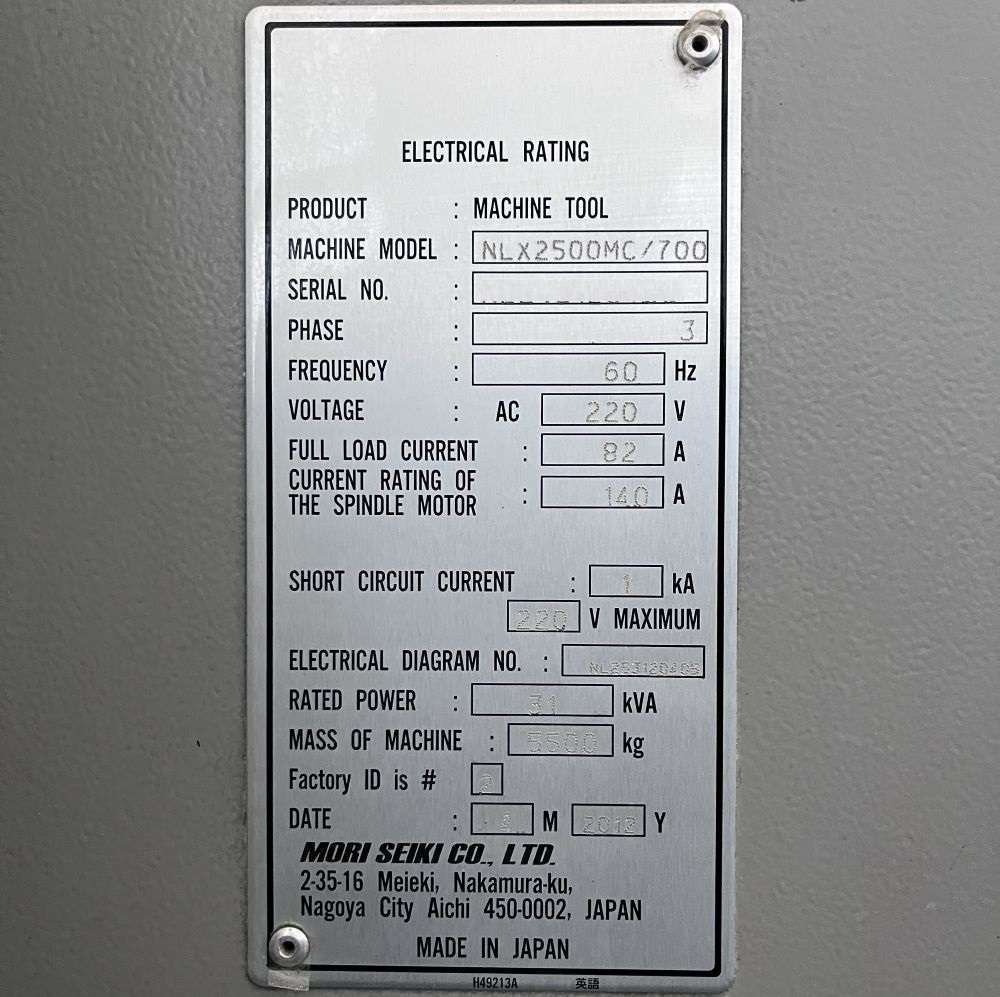

| Power Source: AC 220 V Three Phase 60 Hz |
| Power Requirement: 31 kva |
| Overall Dimensions: 156.7″ x82.9 ″ x 86.6″ High With Chip Conveyor |
| Weight : 12125 lbs Approx. |
Tags:DMG, DMG MORI, DMG Mori Seiki
| Equipped With: |
|---|
| Mori Seiki MSX-853IV CNC Control |
| 254 mm 3-Jaw Kitagawa BB210 Chuck |
| C Axis Capable |
| 12 Station High Speed Live Tool Turret |
| 25 HP Spindle Power |
| Tool Presetter |
| PCMCIA Card Slot |
| Programmable Tailstock |
| Rigid Tapping |
| Coolant System |
| LNS Chip Conveyor |
| Foot Switch |
| Misc. Tool Holders (Mounted on Turret as shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 366 mm |
| Max Turning Length: 704 mm |
| Max Bar Capacity: 79 mm |
| Swing Over Bed: 589 mm |
| Distance Between Centers: 800 mm |
| Travels: |
|---|
| X Axis Travel: 259 mm |
| Z Axis Travel: 792 mm |
| C Axis Travel: 360 Degree (0.001) |
| Rapid Traverse Rate X & Z Axis: 1181 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 91 mm |
| Spindle Speed: 4000 RPM |
| Spindle Motor: 25 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.5 Second |
| Rotary Tool Speed: 6000 RPM |
| Rotary Tool Motor: 7.5 HP |
| Turret Type: BMT |
| Tailstock: |
|---|
| Tailstock Body Travel: 732 mm |
| Tailstock Quill Dia.: 85 mm |
| Tailstock Quill Stroke: 79 mm |
| Tailstock Taper: MT-4 |
| General: |
|---|
| Power Source: AC 220 V Three Phase 60 Hz |
| Power Requirement: 31 kva |
| Overall Dimensions: 3,980 mm x2,106 mm x 2,200 mm High With Chip Conveyor |
| Weight : 12125 lbs Approx. |
| Make | Mori Seiki |
|---|---|
| Model | NLX2500MC/700 |
| Categories | CNC Lathes & Turning Centers |
