*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

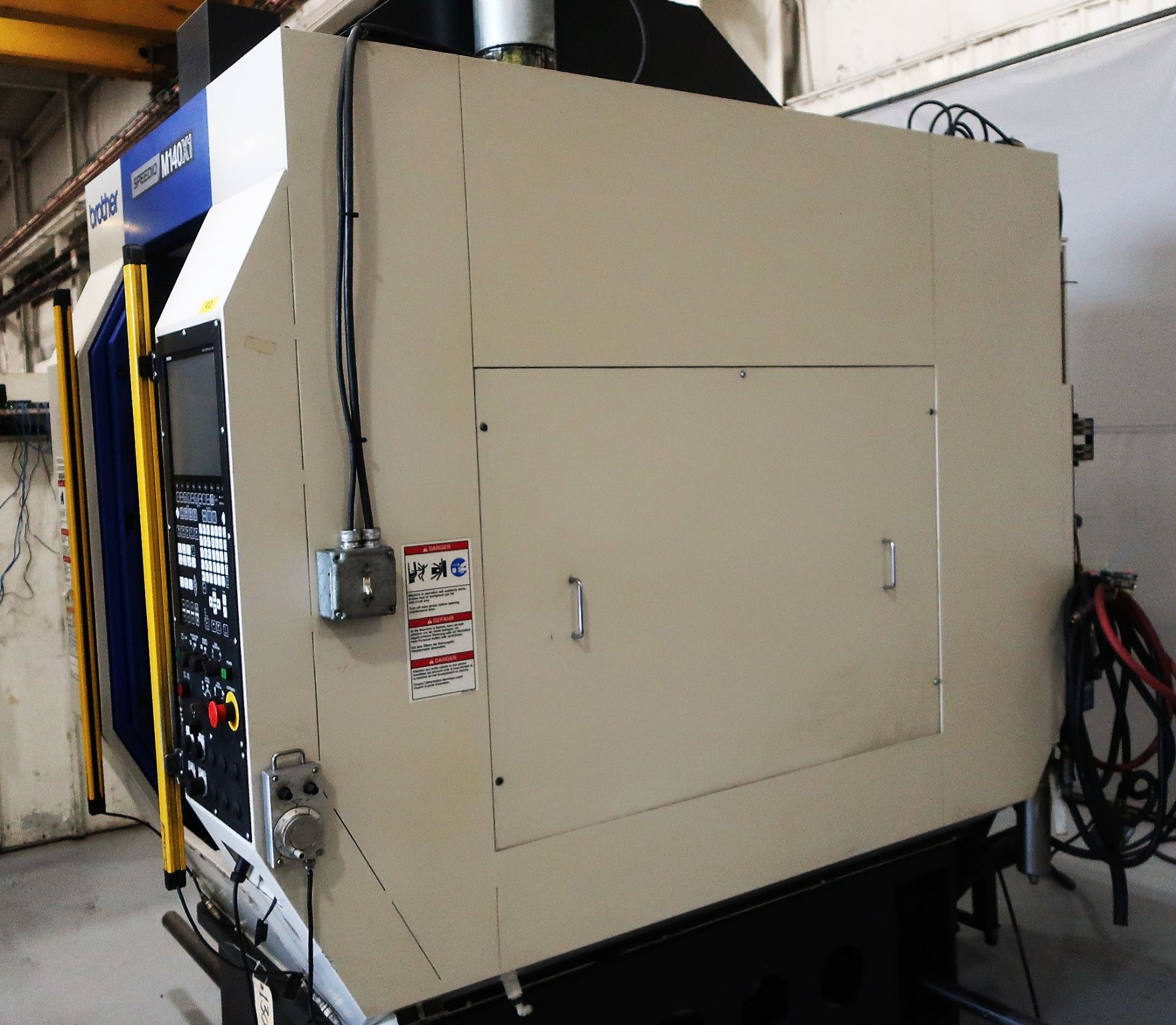

| Make: | Brother |
| Model: | Speedio M140X1 |
| Condition: | Used |
| Machine Type: |
|---|
| Compact Machining Center with Turning Function |
| 5-Axis Configuration (X, Y, Z, A, C) |
| Simultaneous Control: 4-Axis (Linear) / 3-Axis (Helical & Conical) |
| Travels: |
|---|
| X-Axis Travel: 7.9″ |
| Y-Axis Travel: 17.3″ |
| Z-Axis Travel: 12.0″ |
| A-Axis Travel: +5° to −95° |
| C-Axis Travel: 360° |
| Table: |
|---|
| Table Size / Work Area: Ø5.5″ |
| Table Standard: ISO 702-4 / JIS B6109-2 No.5 |
| Max Table Load: 88.2 lbs |
| Max Table Inertia: 1,093 lb·in² |
| Milling Spindle: |
|---|
| Spindle Speed: 10 – 10,000 RPM |
| Max Tapping Speed: 6,000 RPM |
| Spindle Taper: BT30 |
| Tool Shank Type: MAS-BT30 |
| Pull Stud Type: MAS-P30T-2 |
| Coolant Through Spindle: Optional |
| Turning Spindle: |
|---|
| Max Turning Speed: 2,000 RPM |
| Built-In Direct Drive Motor |
| Constant Peripheral Speed Control |
| Feedrates: |
|---|
| Rapid Traverse X/Y/Z: 1,969 IPM |
| Cutting Feedrate X/Y: 0.04 – 394 IPM |
| Cutting Feedrate Z: 0.04 – 787 IPM |
| Indexing Feedrate A-Axis: 60 RPM |
| Indexing Feedrate C-Axis: 200 RPM |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 22 Tools |
| Max Tool Length: 7.9″ |
| Max Tool Diameter: 3.15″ (Adjacent) / 7.87″ (Empty Pocket) |
| Max Tool Weight: 6.6 lbs |
| Tool Selection: Random Shortcut Method |
| Tool-to-Tool Time: 0.9 sec |
| Chip-to-Chip Time: 1.4 sec |
| Motors: |
|---|
| Main Spindle Motor: 9 HP (10-Min) / 6 HP (Continuous) |
| Axis Feed Motors: X/Y 1.3 HP · Z 2.4 HP · A 2.4 HP |
| Turning Spindle Motor: 5.6 HP |
| Accuracy: |
|---|
| Positioning Accuracy (X/Y/Z): 0.00024″ – 0.00079″ |
| Repeatability (X/Y/Z): ≤ 0.00016″ |
| Positioning Accuracy (A/C): ≤ 28 sec |
| Repeatability (A/C): ≤ 16 sec |
| Power & Utilities: |
|---|
| Power Capacity (Continuous): 9.5 kVA |
| Air Pressure Required: 58 – 87 PSI (Recommended 73 PSI) |
| Required Air Flow: 4.6 CFM |
| General: |
|---|
| Machine Height: 98.9″ |
| Floor Space Required: 50.4″ × 144.7″ |
| Machine Weight (Approx.): 5,226 lbs |
