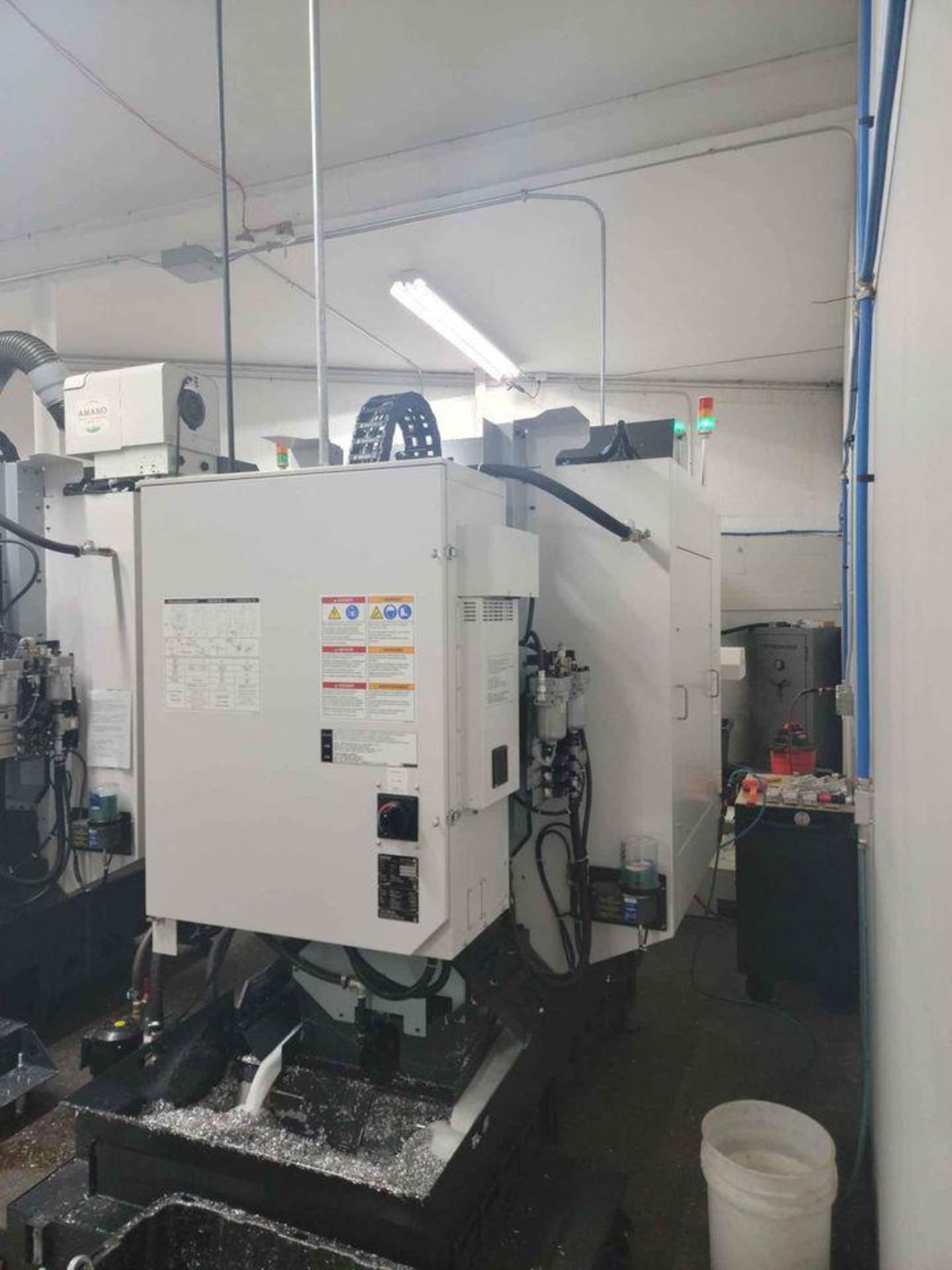

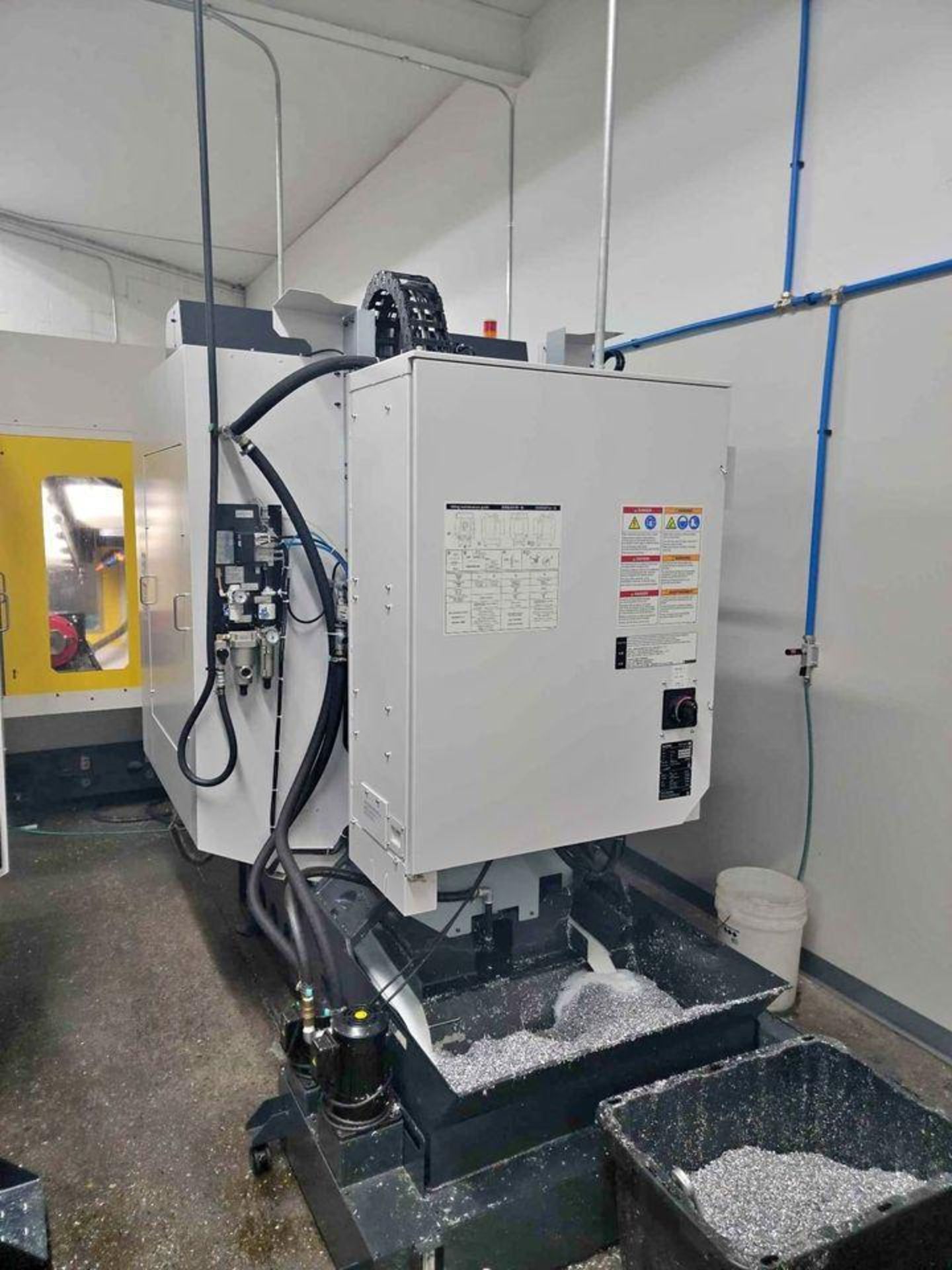

BROTHER SPEEDIO S500X2 4-AXIS CNC DRILL TAP Vertical Machining Center – 2020

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

• Features:

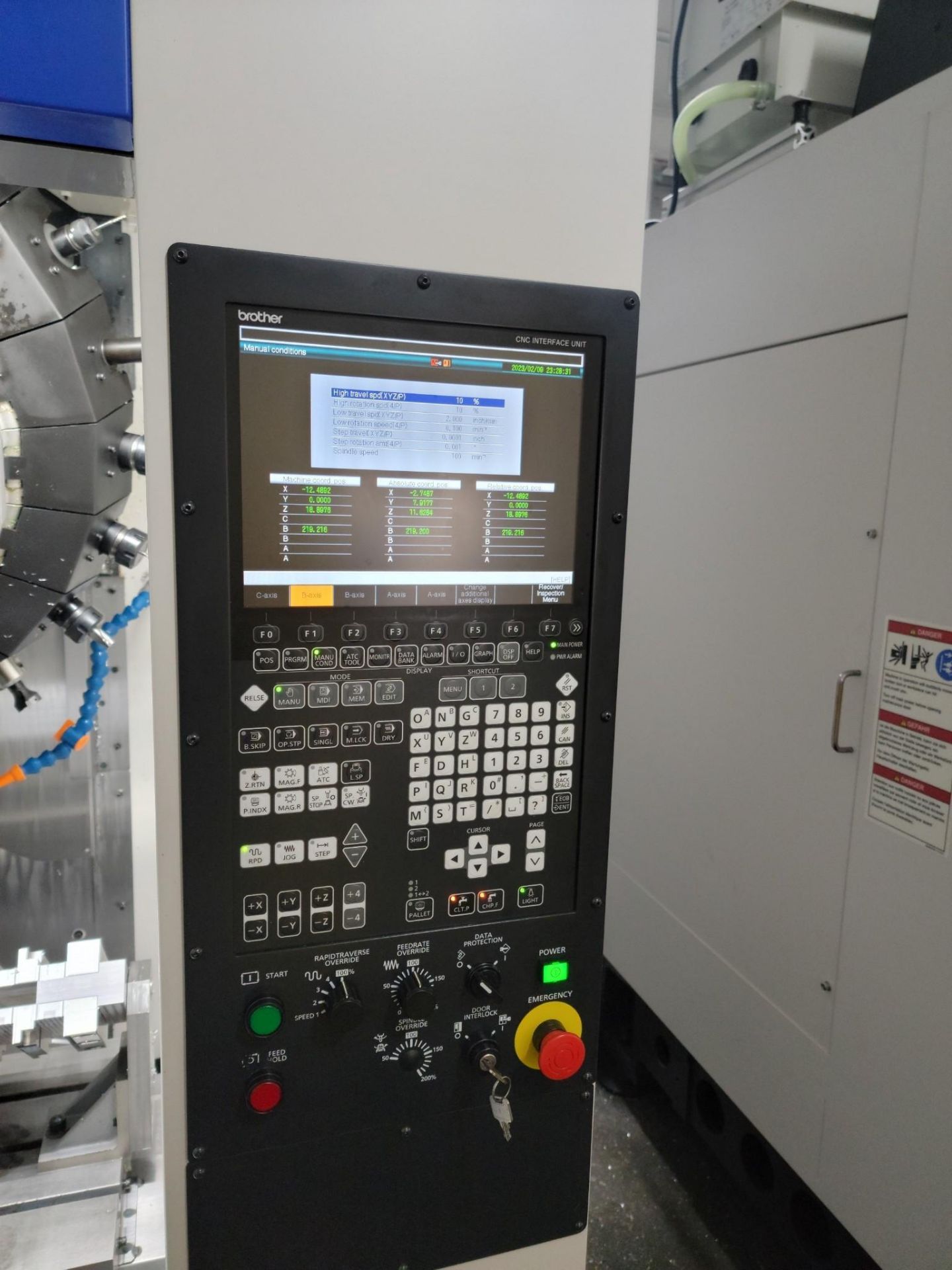

• Brother CNC Control (CNC-D00)
• 4-Axis Ready (Rotary Table Capable)
• High-Speed Drill/Tap Machining Center
• Rigid Tapping
• High-Speed Spindle Acceleration
• Automatic Tool Changer
• Ethernet & USB Interface
• Full Enclosure
• Coolant System

• Travels:

• X-Axis Travel: 19.7″
• Y-Axis Travel: 15.7″
• Z-Axis Travel: 11.8″
• Spindle Nose to Table: 5.9″ – 17.7″
• Rapid Traverse X/Y/Z: 1,969 IPM

• Table:

• Table Size: 23.6″ × 15.7″
• Max Table Load: 992 lbs
• T-Slots: 3 × 0.55″

• Spindle:

• Spindle Taper: BT30
• Spindle Speed: 10,000 RPM (Optional 16,000 RPM)
• Spindle Power: 10 HP
• Direct-Drive Spindle Motor

• Feedrates:

• Rapid Traverse X/Y/Z: 1,969 IPM
• Max Cutting Feedrate: 1,181 IPM

• Automatic Tool Changer:

• Tool Capacity: 14 Tools
• Tool-to-Tool Time: 0.7 Seconds
• Chip-to-Chip Time: 1.4 Seconds
• Max Tool Weight: 6.6 lbs

• General:

• Power Requirement: 200–220V / 3-Phase
• Air Requirement: 72 psi
• Machine Dimensions (Approx.): 79″ × 74″ × 94″
• Machine Weight (Approx.): 4,300 lbs

• Notes:

• Specifications are based on the Brother Speedio S500X2 standard configuration.
• 4th-axis rotary table shown only if equipped.
