*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Brother |
| Model: | Speedio S500X2 |
| Year: | 2020 |
| Condition: | Used – Excellent |
-
Features:

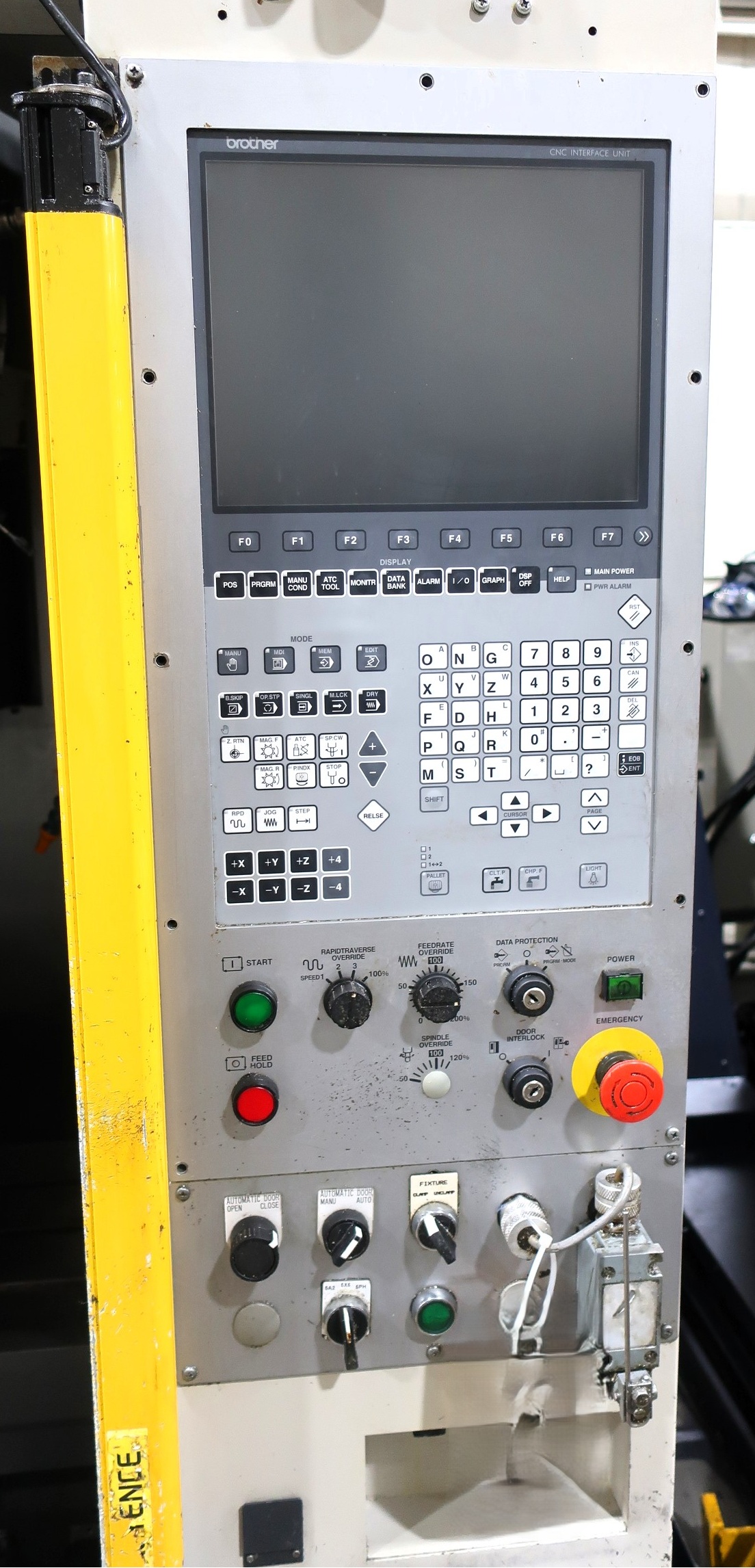

- Brother CNC Control (CNC-D00)
- 4-Axis Ready (Rotary Table Capable)
- High-Speed Drill/Tap Machining Center
- Rigid Tapping
- High-Speed Spindle Acceleration
- Automatic Tool Changer
- Ethernet & USB Interface
- Full Enclosure
- Coolant System
-
Travels:
- X-Axis Travel: 19.7″
- Y-Axis Travel: 15.7″
- Z-Axis Travel: 11.8″
- Spindle Nose to Table: 5.9″ – 17.7″
- Rapid Traverse X/Y/Z: 1,969 IPM
-
Table:
- Table Size: 23.6″ × 15.7″
- Max Table Load: 992 lbs
- T-Slots: 3 × 0.55″
-
Spindle:
- Spindle Taper: BT30
- Spindle Speed: 10,000 RPM (Optional 16,000 RPM)
- Spindle Power: 10 HP
- Direct-Drive Spindle Motor
-
Feedrates:
- Rapid Traverse X/Y/Z: 1,969 IPM
- Max Cutting Feedrate: 1,181 IPM
-
Automatic Tool Changer:
- Tool Capacity: 14 Tools
- Tool-to-Tool Time: 0.7 Seconds
- Chip-to-Chip Time: 1.4 Seconds
- Max Tool Weight: 6.6 lbs
-
General:
- Power Requirement: 200–220V / 3-Phase
- Air Requirement: 72 psi
- Machine Dimensions (Approx.): 79″ × 74″ × 94″
- Machine Weight (Approx.): 4,300 lbs
-
Notes:
- Specifications are based on the Brother Speedio S500X2 standard configuration.
- 4th-axis rotary table shown only if equipped.
