*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Brother |
| Model No.: | Speedio S700X1 |
| Year of Manufacture: | 2020 |
| Condition: | Used – Excellent |
| Machine Type: | CNC Drill & Tap Vertical Machining Center |
| CNC Control: | Brother CNC-C00 Control |
| Equipped With: |
|---|
| Brother CNC-C00 Control |
| 16,000 RPM High-Speed Spindle |
| BT30 Spindle Taper |
| 21-Station Automatic Tool Changer |
| High-Speed Drill & Tap Package |
| Rigid Tapping |
| Through-Spindle Coolant Capability |
| High-Speed Tool Changer (0.8 sec Tool-to-Tool) |
| High-Accuracy Mode |
| Ethernet / USB Interface |
| Automatic Lubrication System |
| Full Machine Enclosure |

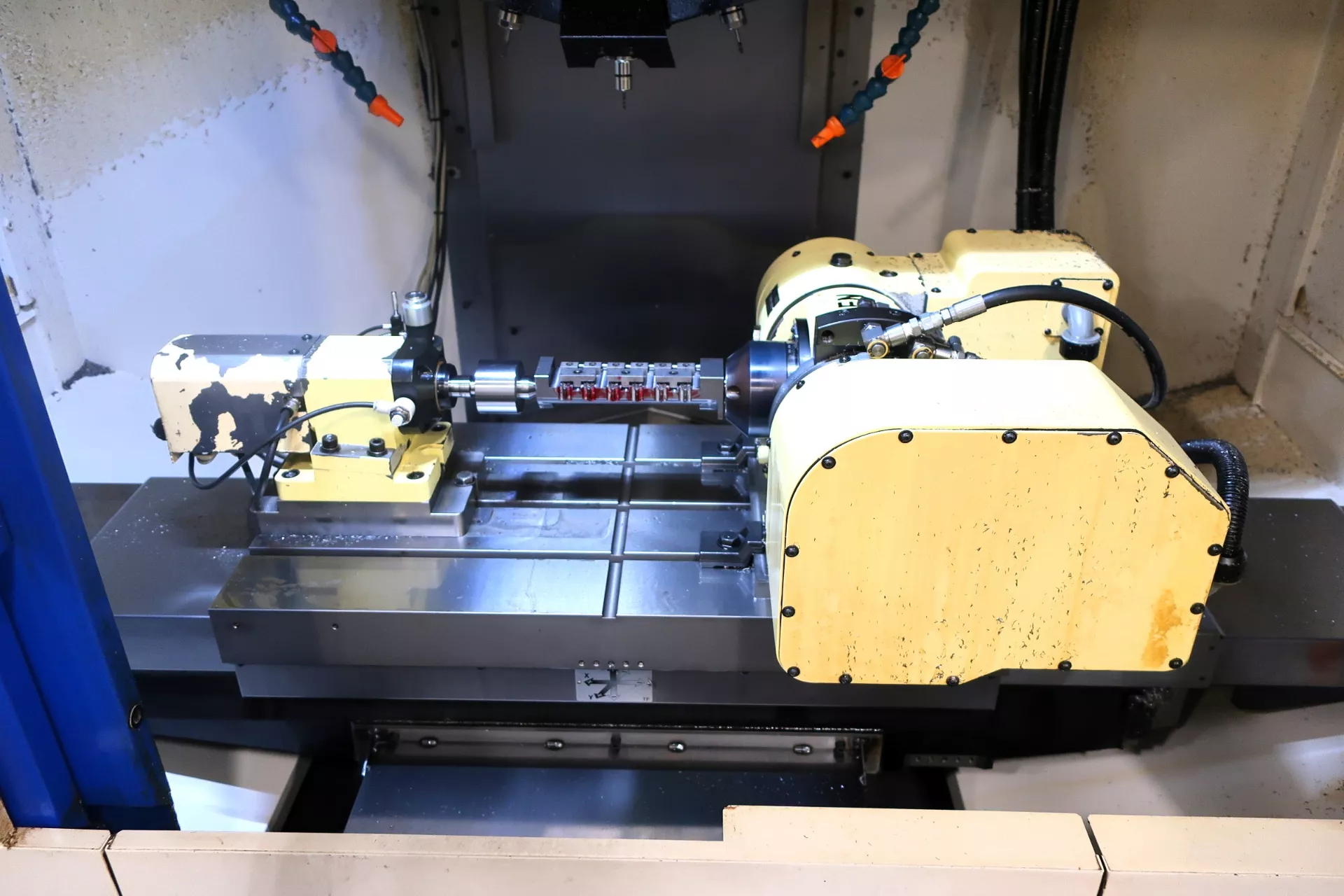

| 5-Axis Rotary Trunnion Table (Installed) |
| Travel: |
|---|
| X-Axis Travel: 27.6″ (700 mm) |
| Y-Axis Travel: 15.7″ (400 mm) |
| Z-Axis Travel: 11.8″ (300 mm) |
| Table: |
|---|
| Table Size: 31.5″ × 15.7″ (800 × 400 mm) |
| Maximum Table Load: Approx. 661 lbs (300 kg) |
| Spindle: |
|---|
| Spindle Speed: Up to 16,000 RPM |
| Optional Spindle Speed: Up to 27,000 RPM (Model Dependent) |
| Spindle Motor: Approx. 10 HP (7.5 kW) |
| Spindle Taper: BT30 |
| Tool Changer: |
|---|
| Tool Capacity: 21 Tools |
| Tool Change Time: 0.8 sec (Tool-to-Tool) |
| Chip-to-Chip Time: Approx. 1.4 sec |
| Feedrates: |
|---|
| Rapid Traverse (X / Y): 1,969 IPM (50 m/min) |
| Rapid Traverse (Z): 2,205 IPM (56 m/min) |
| Electrical: |
|---|
| Power Requirement: AC 200–230 V |
| Phase: 3-Phase |
| Frequency: 50 / 60 Hz |
| Power Capacity: 9.5 kVA |
| Spindle Motor Rated Capacity: 4.9 kW |
| General: |
|---|
| Machine Weight: Approx. 5,300 lbs (2,400 kg) |
| Floor Space: Approx. 80″ × 87″ |
| Features: |
|---|
| Ultra-fast tool change (0.8 sec) designed for high-volume production |
| High-speed BT30 spindle ideal for aluminum and small precision parts |
| Compact footprint with large work envelope |
| Excellent for tapping, drilling, and light milling operations |
| Compatible with 4th / 5th axis automation and robotic loading |
