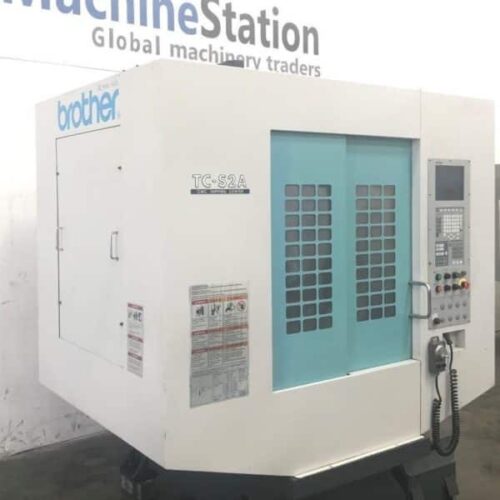

| BROTHER TC-S2 A CNC DRILL TAP MACHINING CENTER | |
|---|---|
| Make | Brother |
| Model No. | TC-S2A |
| Year of Manufacture: | 2001.04 |
| Serial # | 112628 |
| Condition | Very Good |
All specifications are approximations and are subject to verification.
“This One Owner Machine has Low Cutting Hours, Extended X Travels, 10,000rpm, 14 Tool Turret, Original Paint MAchine, expanded Memory and many more features. On our Floor now fully powered / tested & is in Great working condition.”
- BROTHER TC-S2 Features:

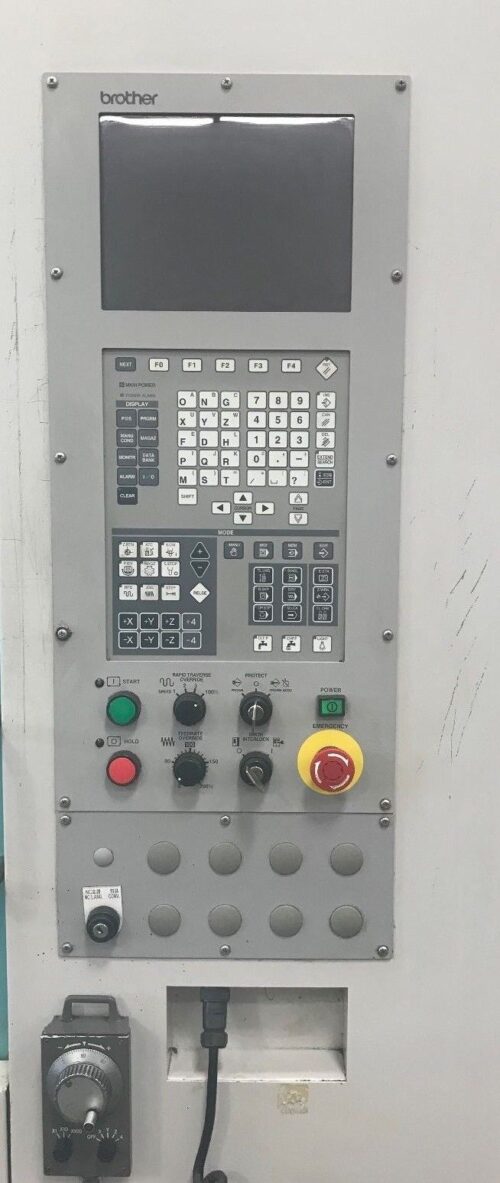

- Brother A00 CNC Control
- 14 Tools Tool Changer
- High precision 10,000 RPM Spindle
- Extended X Travel Model
- Powerful high torque spindle motor
- 10.4″ LCD Monitor
- Manual Pulse Generator
- Conversational & G-Code Programming
- RS-232 Port
- Rigid Tapping
- Fast Rapid Traverse Rate
- Flood coolant with large separate coolant tank
- BROTHER TC-S2 Specifications:
- Travels:
- X-Axis: 27.5″
- Y-Axis: 14.2″
- Z-Axis: 10.6″
- Rapid Feed Rate: 1969 Inch Per Minute

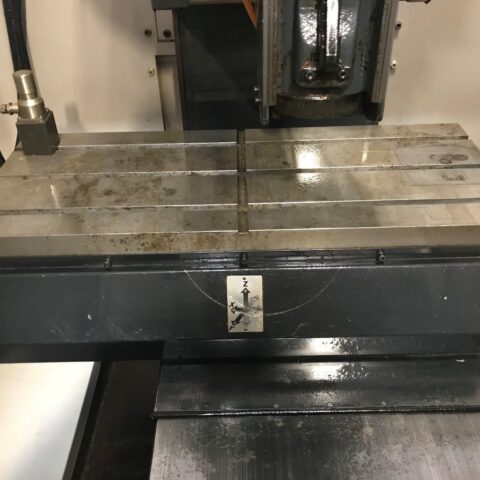

- Table:
- Length: 31.5″
- Width: 11.8″
- Max Weight on Table: 330 lbs
- Spindle:
- Taper Size: 30
- Speed Range: 60 – 10,000 RPM
- Spindle Motor: 10 HP
- Automatic Tool Changer:
- 30 Taper
- Capacity: 14
- Max Tool Dia: 3.15″
- Max Tool Length: 7.87″
- General:
- Air Required: 80 psi, 4 scfm
- Power: 205-220v / 66FLA / 3-Phase
- Overall Dimensions: 78″ x 104″ x 97″ High
- Weight: 4500 lbs
BROTHER TC-S2 Comes as shown in pictures.
